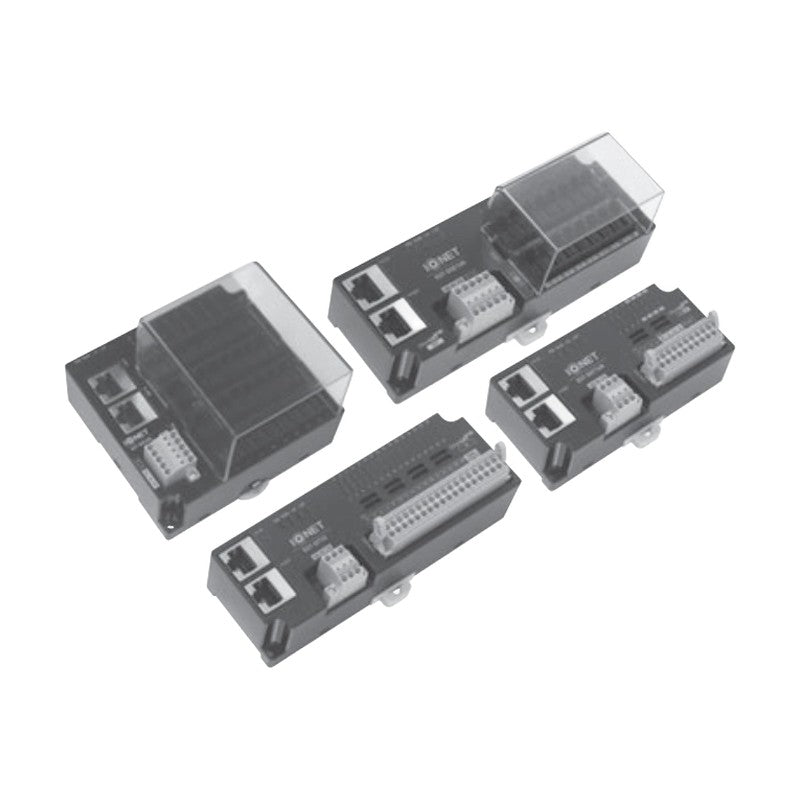

Samwon ACT EST Series EtherCAT Slave Digital I/O Terminals

Samwon ACT EST Series EtherCAT Slave Digital I/O Terminals

EtherCAT slave remote digital I/O terminals with 16 or 32 points, available with push-in spring terminal blocks or e-con connectors.

Key features

  • EtherCAT slave terminal supporting line, bus, tree and star topologies. 16- and 32-point input, output and mixed I/O models
  • Push-type screwless terminals or standard e-con connectors speed up wiring
  • Detachable load-side terminal block for maintenance without rewiring
  • EMC certified to EN IEC 61000-6-2 and EN IEC 61000-6-4
  • Optional EM-3P1C dust cover for e-con connectors

Specifications

Unit Power Supply 24 V DC +/-10%
Isolation Photocoupler
EtherCAT Interface 2 x RJ45, STP Category 5e cable, Free Run sync
Dielectric Strength 2,500 Vrms (photocoupler), 1,500 Vrms (magnetic transformer)
Protection IP20
Case Polycarbonate
Ambient Temperature -10 to +50 C (no condensation)
Mounting Screw / DIN rail (channel)
Approvals CE
EST-DIT16 Points: 16 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 34 mA
EST-DOT16N Points: 16 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 37 mA
EST-DHT16N Points: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 35 mA
EST-DIT32 Points: 32 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 37 mA
EST-DOT32N Points: 32 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 43 mA
EST-DHT32N Points: 32 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 40 mA
EST-DIE16N Points: 16 | I/O: Input | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 16 | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 34 mA
EST-DOE16N Points: 16 | I/O: Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 16 | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 37 mA
EST-DHE16N Points: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 16 | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 35 mA
EST-DIE32N Points: 32 | I/O: Input | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 32 | Dimensions (W x D): 95.0 x 92.0 mm | Unit Current: 38 mA
EST-DOE32N Points: 32 | I/O: Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 32 | Dimensions (W x D): 95.0 x 92.0 mm | Unit Current: 48 mA
EST-DHE32N Points: 32 | I/O: Input/Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 32 | Dimensions (W x D): 95.0 x 92.0 mm | Unit Current: 43 mA
Remote I/O TerminalsSamwon ACT
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT EST Series EtherCAT Slave Digital I/O Terminals

Brand Samwon ACT·Remote I/O Terminals

Available part numbers (12)

EST-DIT16, EST-DOT16N, EST-DHT16N, EST-DIT32, EST-DOT32N, EST-DHT32N, EST-DIE16N, EST-DOE16N, EST-DHE16N, EST-DIE32N + 2 more — see full table ↓

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EST-DIT16Points: 16 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 34 mA
EST-DOT16NPoints: 16 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 37 mA
EST-DHT16NPoints: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 20p | Dimensions (W x D): 105.0 x 50.0 mm | Unit Current: 35 mA
EST-DIT32Points: 32 | I/O: Input | Common: NPN/PNP | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 37 mA
EST-DOT32NPoints: 32 | I/O: Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 43 mA
EST-DHT32NPoints: 32 | I/O: Input/Output | Common: NPN | I/O Terminal: Push-in spring 3.5 mm pitch 36p | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 40 mA
EST-DIE16NPoints: 16 | I/O: Input | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 16 | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 34 mA
EST-DOE16NPoints: 16 | I/O: Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 16 | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 37 mA
EST-DHE16NPoints: 16 | I/O: Input/Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 16 | Dimensions (W x D): 135.0 x 50.0 mm | Unit Current: 35 mA
EST-DIE32NPoints: 32 | I/O: Input | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 32 | Dimensions (W x D): 95.0 x 92.0 mm | Unit Current: 38 mA
EST-DOE32NPoints: 32 | I/O: Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 32 | Dimensions (W x D): 95.0 x 92.0 mm | Unit Current: 48 mA
EST-DHE32NPoints: 32 | I/O: Input/Output | Common: NPN | I/O Terminal: e-con EC-3SP4 3P female x 32 | Dimensions (W x D): 95.0 x 92.0 mm | Unit Current: 43 mA
