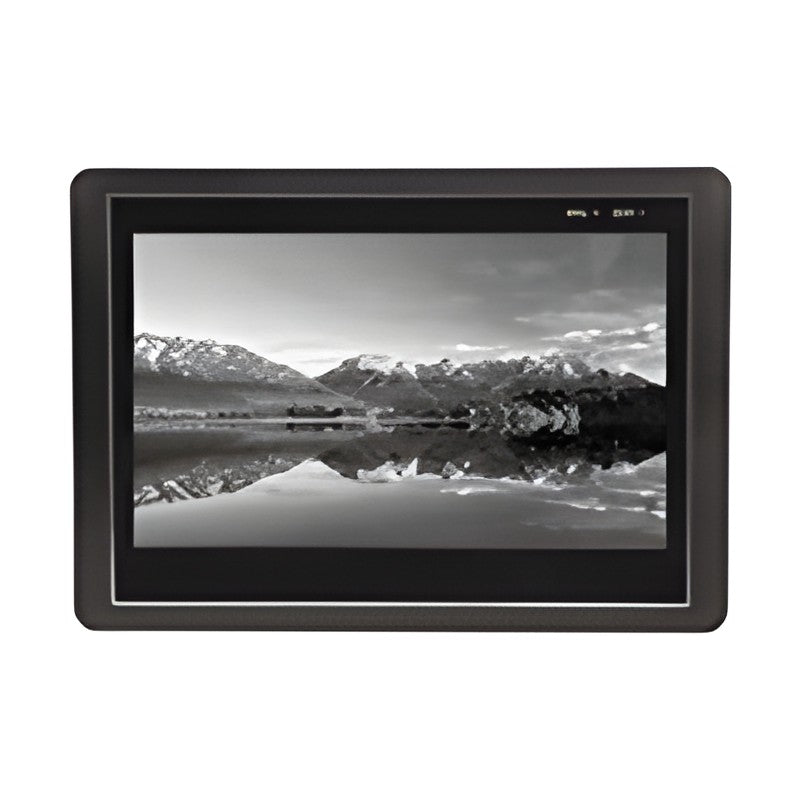

KACON FE Series Touch Screen HMI, 4.3 to 9.7 inch
KACON FE Series Touch Screen HMI, 4.3 to 9.7 inch
Compact panel-mount touch screen HMIs from 4.3 to 9.7 inch for machine operation and PLC monitoring.
Key features
- 600MHz ARM Cortex-A8 processor for fast booting
- Drawing data, OS and recipe/log transfer via USB flash drive without a PC
- Supports 1:1, 1:N serial and N:M Ethernet HMI-PLC configurations
- Free drawing software with 3D graphics library
- Broad PLC driver support (Mitsubishi, Siemens, Omron, LS, Delta, Keyence, Modbus and more)
Specifications
| Backlight | LED, 50,000 h life |
|---|---|
| Touch panel | 4-wire resistive (surface hardness 4H) |
| CPU | 600MHz ARM Cortex-A8 |
| Memory | 128MB Flash + 128MB DDR3 |
| RTC | Built in |
| USB | USB 2.0 slave x1, USB 2.0 host x1 |
| Rated voltage | 24VDC |
| Certification | EN61000-6-2:2005, EN61000-6-4:2007, RoHS |
| Protection | Front IP65, rear IP20 |
| Cooling | Natural air cooling |
| Operating temperature | 0 to 50°C |
| Material | ABS+PC |
| FE4043C | Display: 4.3" TFT LCD | Resolution: 480 x 272 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: No | SD card: No | COM: COM1 RS232/RS485/RS422, COM3 RS232 | Input range: 9-28VDC | Power: max. 5W | Panel cut-out: 120 x 93 mm | Size: 129.3 x 103.9 x 32 mm | Weight: approx. 430g | |
| FE4070C | Display: 7" 16:9 TFT LCD | Resolution: 800 x 480 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: No | SD card: No | COM: COM1 RS232/RS485/RS422, COM3 RS232 | Input range: 9-28VDC | Power: max. 10W | Panel cut-out: 192 x 138 mm | Size: 204 x 145 x 44.5 mm | Weight: approx. 600g | |
| FE4070CE | Display: 7" 16:9 TFT LCD | Resolution: 800 x 480 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 9-28VDC | Power: max. 10W | Panel cut-out: 192 x 138 mm | Size: 204 x 145 x 44.5 mm | Weight: approx. 650g | |
| FE4070IE | Display: 7" 16:9 TFT LCD | Resolution: 800 x 480 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 18-28VDC | Power protection: surge/lightning protected | Power: max. 10W | Panel cut-out: 192 x 138 mm | Size: 204 x 145 x 44.5 mm | Weight: approx. 800g | |
| FE4097C | Display: 9.7" TFT LCD | Resolution: 1024 x 768 | Colors: 16-bit | Brightness: 350 cd/m² | Ethernet: No | SD card: No | COM: COM1 RS232/RS485/RS422, COM3 RS232 | Input range: 9-28VDC | Power: max. 10W | Panel cut-out: 259 x 201 mm | Size: 276 x 213 x 39 mm | Weight: approx. 1100g | |
| FE4097CE | Display: 9.7" TFT LCD | Resolution: 1024 x 768 | Colors: 16-bit | Brightness: 350 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 18-28VDC | Power: max. 10W | Panel cut-out: 259 x 201 mm | Size: 276 x 213 x 39 mm | Weight: approx. 1000g | |
| FE4097IE | Display: 9.7" TFT LCD | Resolution: 1024 x 768 | Colors: 16-bit | Brightness: 350 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 18-28VDC | Power protection: surge/lightning protected | Power: max. 10W | Panel cut-out: 259 x 201 mm | Size: 276 x 213 x 39 mm | Weight: approx. 1000g |
HMIsKACON
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON FE Series Touch Screen HMI, 4.3 to 9.7 inch
Available part numbers (7)
FE4043C, FE4070C, FE4070CE, FE4070IE, FE4097C, FE4097CE, FE4097IE
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
HMIs
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| FE4043C | Display: 4.3" TFT LCD | Resolution: 480 x 272 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: No | SD card: No | COM: COM1 RS232/RS485/RS422, COM3 RS232 | Input range: 9-28VDC | Power: max. 5W | Panel cut-out: 120 x 93 mm | Size: 129.3 x 103.9 x 32 mm | Weight: approx. 430g | ||
| FE4070C | Display: 7" 16:9 TFT LCD | Resolution: 800 x 480 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: No | SD card: No | COM: COM1 RS232/RS485/RS422, COM3 RS232 | Input range: 9-28VDC | Power: max. 10W | Panel cut-out: 192 x 138 mm | Size: 204 x 145 x 44.5 mm | Weight: approx. 600g | ||
| FE4070CE | Display: 7" 16:9 TFT LCD | Resolution: 800 x 480 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 9-28VDC | Power: max. 10W | Panel cut-out: 192 x 138 mm | Size: 204 x 145 x 44.5 mm | Weight: approx. 650g | ||
| FE4070IE | Display: 7" 16:9 TFT LCD | Resolution: 800 x 480 | Colors: 24-bit | Brightness: 360 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 18-28VDC | Power protection: surge/lightning protected | Power: max. 10W | Panel cut-out: 192 x 138 mm | Size: 204 x 145 x 44.5 mm | Weight: approx. 800g | ||
| FE4097C | Display: 9.7" TFT LCD | Resolution: 1024 x 768 | Colors: 16-bit | Brightness: 350 cd/m² | Ethernet: No | SD card: No | COM: COM1 RS232/RS485/RS422, COM3 RS232 | Input range: 9-28VDC | Power: max. 10W | Panel cut-out: 259 x 201 mm | Size: 276 x 213 x 39 mm | Weight: approx. 1100g | ||
| FE4097CE | Display: 9.7" TFT LCD | Resolution: 1024 x 768 | Colors: 16-bit | Brightness: 350 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 18-28VDC | Power: max. 10W | Panel cut-out: 259 x 201 mm | Size: 276 x 213 x 39 mm | Weight: approx. 1000g | ||
| FE4097IE | Display: 9.7" TFT LCD | Resolution: 1024 x 768 | Colors: 16-bit | Brightness: 350 cd/m² | Ethernet: 10/100M | SD card: Built in | COM: COM1/COM2 RS232/RS485/RS422, COM3/COM4 RS232 | Input range: 18-28VDC | Power protection: surge/lightning protected | Power: max. 10W | Panel cut-out: 259 x 201 mm | Size: 276 x 213 x 39 mm | Weight: approx. 1000g |
