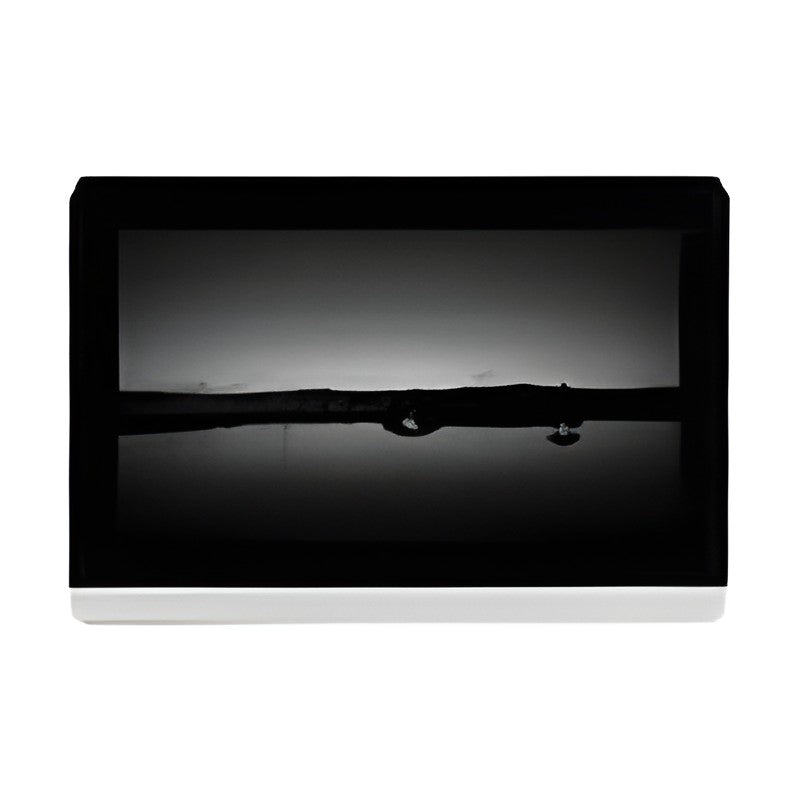

KACON K Series Economy Touch Screen HMI (capacitive)

KACON K Series Economy Touch Screen HMI (capacitive)

Economy-type multi-touch capacitive HMIs in 7 and 9.7 inch sizes with Ethernet, SD card and four serial ports.

Key features

  • Multi-touch capacitive panel with reinforced glass surface
  • Isolated power supply protected against surge and lightning
  • Ethernet, SD card, USB host/device and 4 COM ports
  • 600MHz ARM Cortex-A8 processor for fast booting
  • Drawing data, OS and recipe/log transfer via USB flash drive without a PC
  • Supports 1:1, 1:N serial and N:M Ethernet HMI-PLC configurations

Specifications

Colors 24-bit
Backlight LED, 50,000 h life
Touch panel Glass + glass projected multi-touch capacitive
CPU 600MHz ARM Cortex-A8
Memory 128MB Flash + 128MB DDR3
Ethernet 10/100M
SD card Built in
USB USB 2.0 host x1, USB 2.0 device x1
COM ports COM1 RS232/RS485/RS422, COM2/COM4 RS485, COM3 RS232
Input voltage 24VDC (9-28VDC), isolated power supply
Protection Front IP65, rear IP20
Material ABS+PC
KACON K Series Economy Touch Screen HMI (capacitive) - reference 2
K007 Display: 7" 16:9 TFT LCD | Resolution: 1024 x 600 | Brightness: 450 cd/m² | Power: max. 5W | Operating temperature: -20 to 60°C | Panel cut-out: 178 x 125 mm | Size: 185.1 x 131.1 x 30 mm | Weight: approx. 650g
K010 Display: 9.7" 4:3 TFT LCD | Resolution: 1024 x 768 | Brightness: 350 cd/m² | Power: max. 7W | Operating temperature: 0 to 50°C | Panel cut-out: 230 x 180 mm | Size: 247 x 197 x 31.5 mm | Weight: approx. 1000g
HMIsKACON
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON K Series Economy Touch Screen HMI (capacitive)

Brand KACON·HMIs

Available part numbers (2)

K007, K010

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON K Series Economy Touch Screen HMI (capacitive) - reference 2
0 selected
RFQ List (0)
Product codeSpec
K007Display: 7" 16:9 TFT LCD | Resolution: 1024 x 600 | Brightness: 450 cd/m² | Power: max. 5W | Operating temperature: -20 to 60°C | Panel cut-out: 178 x 125 mm | Size: 185.1 x 131.1 x 30 mm | Weight: approx. 650g
K010Display: 9.7" 4:3 TFT LCD | Resolution: 1024 x 768 | Brightness: 350 cd/m² | Power: max. 7W | Operating temperature: 0 to 50°C | Panel cut-out: 230 x 180 mm | Size: 247 x 197 x 31.5 mm | Weight: approx. 1000g
