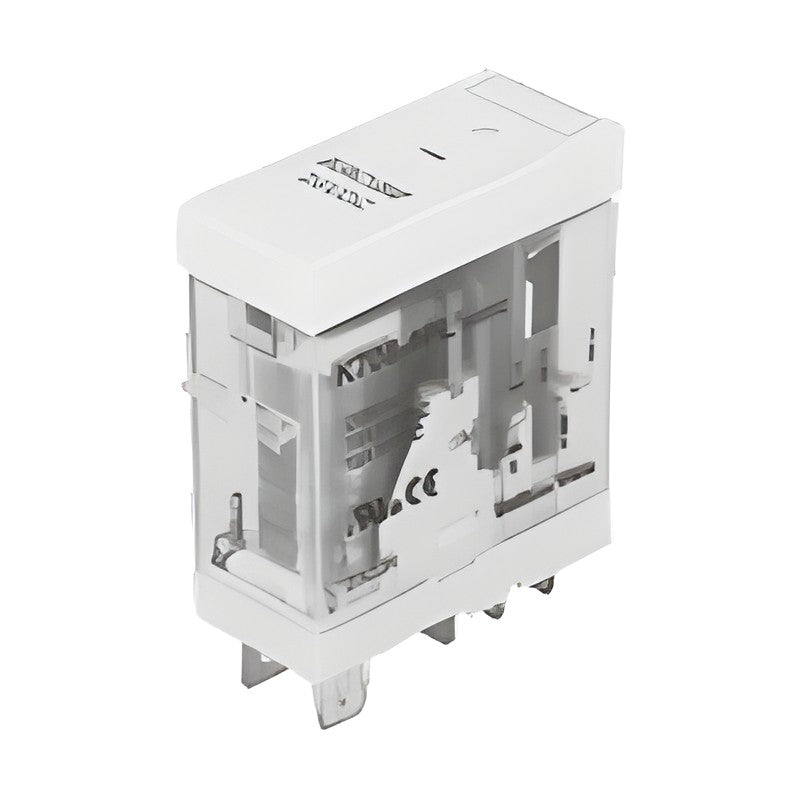

KACON K708 New Cube Relay 1-Pole (SPDT)
KACON K708 New Cube Relay 1-Pole (SPDT)
Compact plug-in cube relay with one changeover contact and LED indicator for general control panels and machine interfacing.
Key features
- 1 form C (SPDT), 12A at 250VAC/30VDC
- Built-in LED operation indicator; optional surge suppression diode (DC coils)
- Optional test button for manual contact operation
- Gold-plated Ag alloy contacts
- 5,000Vrms dielectric strength between coil and contacts
- cULus, CE and RoHS marked
Specifications
| Contact material | Ag alloy, gold-plated |
|---|---|
| Initial contact resistance | 50mΩ max. |
| Min. switching load | 100mA 5VDC (reference value) |
| Rated power consumption | DC 0.53W / AC 1.0VA |
| Coil voltage limits | Operate DC 75% / AC 80%, release DC 10% / AC 30%, max. 110% of rated voltage |
| Operate / release time | 20ms / 10ms max. at rated voltage |
| Insulation resistance | 1,000MΩ min. (500VDC) |
| Dielectric strength | Coil-contacts 5,000Vrms, adjacent poles 3,000Vrms, open contacts 1,000Vrms (1 min) |
| Expected life | Mechanical 10,000,000 ops min., electrical 100,000 ops min. |
| Ambient temperature | -40 to +55°C (no condensation), 35-85% RH |
| Mounting / weight | Plug-in, approx. 20g |
| Rated load | 12A 250VAC/30VDC, max. 360W/3,000VA |
| K708-1PL 24VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VAC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLT 24VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VAC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PL 110VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VAC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLT 110VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VAC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PL 230VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 230VAC (220/240VAC) | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | |
| K708-1PLT 230VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 230VAC (220/240VAC) | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | |
| K708-1PL 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLT 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLD 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLDT 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PL 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLT 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLD 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLDT 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PL 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | |
| K708-1PLT 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | |
| K708-1PLD 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | |
| K708-1PLDT 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | |
| K708-1PL 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLT 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLD 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLDT 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PL 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLT 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLD 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | |
| K708-1PLDT 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand |
General Purpose RelaysKACON
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON K708 New Cube Relay 1-Pole (SPDT)
Available part numbers (26)
K708-1PL 24VAC, K708-1PLT 24VAC, K708-1PL 110VAC, K708-1PLT 110VAC, K708-1PL 230VAC, K708-1PLT 230VAC, K708-1PL 6VDC, K708-1PLT 6VDC, K708-1PLD 6VDC, K708-1PLDT 6VDC + 16 more — see full table ↓
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
General Purpose Relays
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| K708-1PL 24VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VAC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLT 24VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VAC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PL 110VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VAC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLT 110VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VAC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PL 230VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 230VAC (220/240VAC) | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | ||
| K708-1PLT 230VAC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 230VAC (220/240VAC) | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | ||
| K708-1PL 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLT 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLD 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLDT 6VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 6VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PL 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLT 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLD 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLDT 12VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 12VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PL 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | ||
| K708-1PLT 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | ||
| K708-1PLD 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | ||
| K708-1PLDT 24VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 24VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | ||
| K708-1PL 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLT 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLD 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLDT 48VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 48VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PL 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLT 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLD 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator + surge suppression diode | Function: Standard | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand | ||
| K708-1PLDT 110VDC | Contact: 1 form C (SPDT), 1a+1b | Coil voltage: 110VDC | Option: LED indicator + surge suppression diode | Function: Test button | Rated load: 12A 250VAC/30VDC | Sockets: KPX13, KPX12, KPX12-P, KPX-05-PU | Availability: on demand |
Need a different model, or a part not listed here? Send us your parts list →
