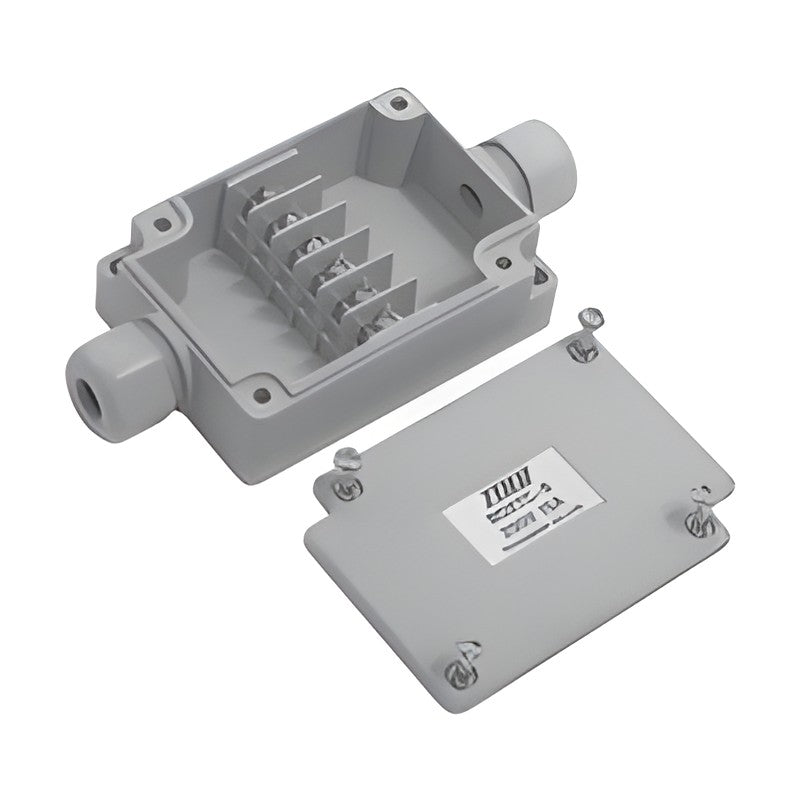

Samwon ACT BOXTC Series Slim Terminal Box IP65

Samwon ACT BOXTC Series Slim Terminal Box IP65

Ultra-slim IP65 PBT terminal box with integrated terminal block for mounting directly on equipment as a junction box for sensors, solenoids and motors.

Key features

  • Box and terminal block are integrated; small and light, can be stacked in 2 or 3 tiers
  • Oil- and chemical-resistant PBT engineering plastic
  • IP65 fully waterproof type usable outdoors
  • Junction box for sensor inputs and solenoid / motor outputs

Specifications

Rated Voltage AC/DC 250V
Rated Current 15A
Insulation Resistance 100 MΩ min. (at DC500V)
Withstanding Voltage AC2500V 1 min
Applicable Wire 1.25 mm² max.
Tightening Torque 1.2 N·m
Protection IP65 (IEC529)
Operating Temperature -25 to +60 °C
Material Glass-filled PBT
Terminal Screw M3 x 8
BOXTC-4 Cable OD: Ø3.5~Ø7.3
BOXTC-4A Cable OD: Ø4.0~Ø5.3, Ø6.0~Ø9.0 (2 built-in packings)
BOXTC-6 Cable OD: Ø3.5~Ø7.3
BOXTC-6A Cable OD: Ø4.0~Ø5.3, Ø6.0~Ø9.0 (2 built-in packings)
Terminal BlocksSamwon ACT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT BOXTC Series Slim Terminal Box IP65

Brand Samwon ACT·Terminal Blocks

Available part numbers (4)

BOXTC-4, BOXTC-4A, BOXTC-6, BOXTC-6A

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BOXTC-4Cable OD: Ø3.5~Ø7.3
BOXTC-4ACable OD: Ø4.0~Ø5.3, Ø6.0~Ø9.0 (2 built-in packings)
BOXTC-6Cable OD: Ø3.5~Ø7.3
BOXTC-6ACable OD: Ø4.0~Ø5.3, Ø6.0~Ø9.0 (2 built-in packings)
