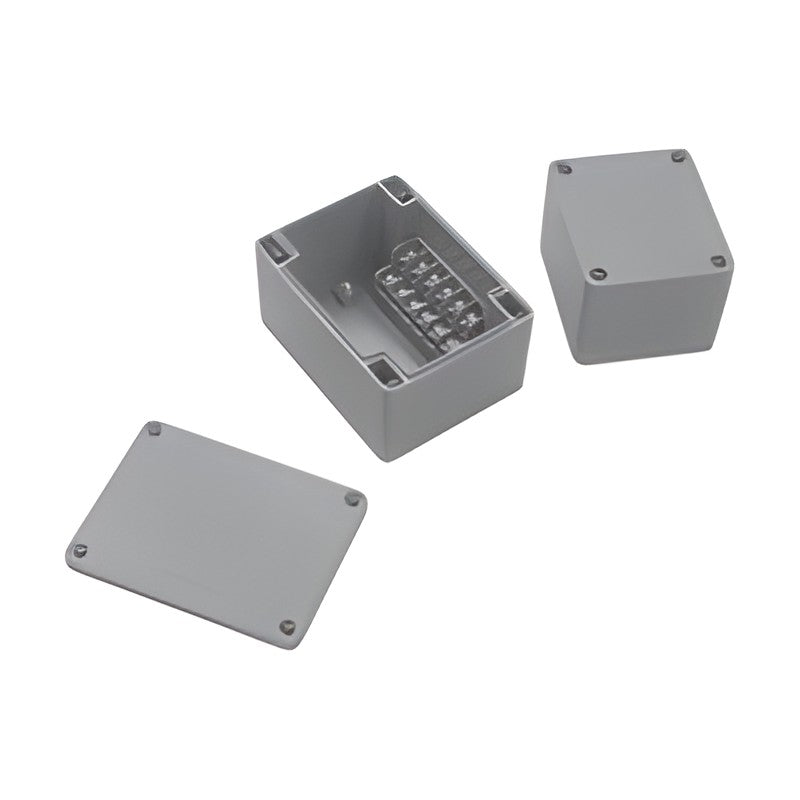

Samwon ACT JTB-AL Series Aluminum Joint Terminal Box IP65

Samwon ACT JTB-AL Series Aluminum Joint Terminal Box IP65

Aluminum junction box with built-in terminal block (4 to 40 poles), IP65, for relaying cables in machine tools, robots, petrochemical plants and automotive lines.

Key features

  • Aluminum terminal box with integrated terminal block for wiring junctions
  • Suited to machine tools, industrial robots, petrochemical industry and automotive production lines
  • Terminal block mounted at the center or on the side wall depending on model. 20-pole type available with center (JTB-AL20) or side (JTB-AL20PT) terminal block

Specifications

Rated Voltage 250V AC
Rated Current 15A
Withstanding Voltage 1880V / 1 min
Body Aluminum
Cover Aluminum
Terminal ABS
Protection IP65
Tightening Torque 1.37 N·m
Operating Temperature -20 to +70 °C
JTB-AL04 Poles: 4 | Terminal Block Position: Side wall | Size (W x D x H): 71.0 x 61.0 x 48.8 mm
JTB-AL06 Poles: 6 | Terminal Block Position: Side wall | Size (W x D x H): 93.0 x 70.0 x 52.5 mm
JTB-AL10 Poles: 10 | Terminal Block Position: Side wall | Size (W x D x H): 128.0 x 70.0 x 52.8 mm
JTB-AL12 Poles: 12 | Terminal Block Position: Center | Size (W x D x H): 110.0 x 110.0 x 53.5 mm
JTB-AL15 Poles: 15 | Terminal Block Position: Side wall | Size (W x D x H): 172.0 x 70.0 x 54.5 mm
JTB-AL20 Poles: 20 | Terminal Block Position: Center | Size (W x D x H): 145.0 x 125.0 x 62.4 mm
JTB-AL20PT Poles: 20 | Terminal Block Position: Side wall | Size (W x D x H): 235.0 x 80.0 x 80.5 mm
JTB-AL30 Poles: 30 | Terminal Block Position: Center | Size (W x D x H): 190.0 x 125.0 x 80.5 mm
JTB-AL40 Poles: 40 | Terminal Block Position: Center | Size (W x D x H): 263.0 x 161.8 x 90.5 mm
Terminal BlocksSamwon ACT
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT JTB-AL Series Aluminum Joint Terminal Box IP65

Brand Samwon ACT·Terminal Blocks

Available part numbers (9)

JTB-AL04, JTB-AL06, JTB-AL10, JTB-AL12, JTB-AL15, JTB-AL20, JTB-AL20PT, JTB-AL30, JTB-AL40

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JTB-AL04Poles: 4 | Terminal Block Position: Side wall | Size (W x D x H): 71.0 x 61.0 x 48.8 mm
JTB-AL06Poles: 6 | Terminal Block Position: Side wall | Size (W x D x H): 93.0 x 70.0 x 52.5 mm
JTB-AL10Poles: 10 | Terminal Block Position: Side wall | Size (W x D x H): 128.0 x 70.0 x 52.8 mm
JTB-AL12Poles: 12 | Terminal Block Position: Center | Size (W x D x H): 110.0 x 110.0 x 53.5 mm
JTB-AL15Poles: 15 | Terminal Block Position: Side wall | Size (W x D x H): 172.0 x 70.0 x 54.5 mm
JTB-AL20Poles: 20 | Terminal Block Position: Center | Size (W x D x H): 145.0 x 125.0 x 62.4 mm
JTB-AL20PTPoles: 20 | Terminal Block Position: Side wall | Size (W x D x H): 235.0 x 80.0 x 80.5 mm
JTB-AL30Poles: 30 | Terminal Block Position: Center | Size (W x D x H): 190.0 x 125.0 x 80.5 mm
JTB-AL40Poles: 40 | Terminal Block Position: Center | Size (W x D x H): 263.0 x 161.8 x 90.5 mm
