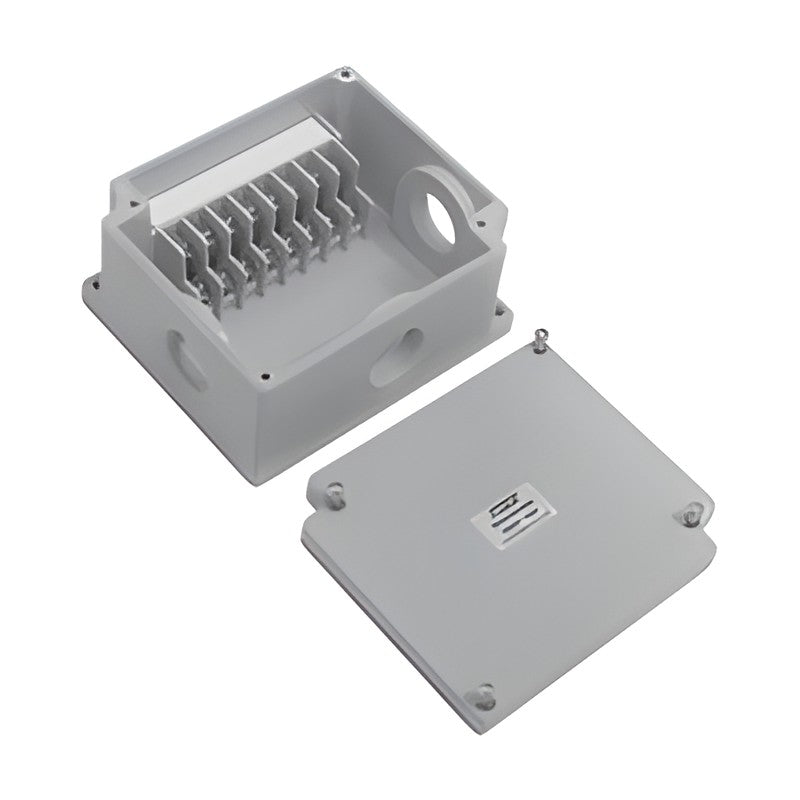

Samwon ACT BOXTM Series Terminal Box IP65

Medium and large IP65 terminal boxes of reinforced PBT with detachable terminal block and nameplate cover, for machine tool, switchgear and outdoor wiring.

Key features

Medium/large junction box with good workability
Detachable terminal block and nameplate cover for easy maintenance
Oil- and chemical-resistant reinforced PBT engineering plastic
Suited to outdoor equipment wiring

Specifications

Rated Voltage	AC/DC 600V
Insulation Resistance	100 MΩ min. (at DC500V)
Withstanding Voltage	AC2500V 1 min
Applicable Wire	2.0 mm² max.
Tightening Torque	1.4 N·m
Body	Reinforced PBT (5Y7/1)
Terminal Screw	M3.5 x 8L
Packing	NBR
Flammability	UL94V-0
Operating Temperature	-25 to +100 °C
Protection	IP65 ~ IP67

BOXTM-401		Rated Current: 20A
BOXTM-801		Rated Current: 15A
BOXTM-802		Rated Current: 15A
BOXTM-1001		Rated Current: 15A
BOXTM-2000		Rated Current: 15A

Terminal BlocksSamwon ACT

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT BOXTM Series Terminal Box IP65

Brand Samwon ACT·Terminal Blocks

Available part numbers (5)

BOXTM-401, BOXTM-801, BOXTM-802, BOXTM-1001, BOXTM-2000

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
