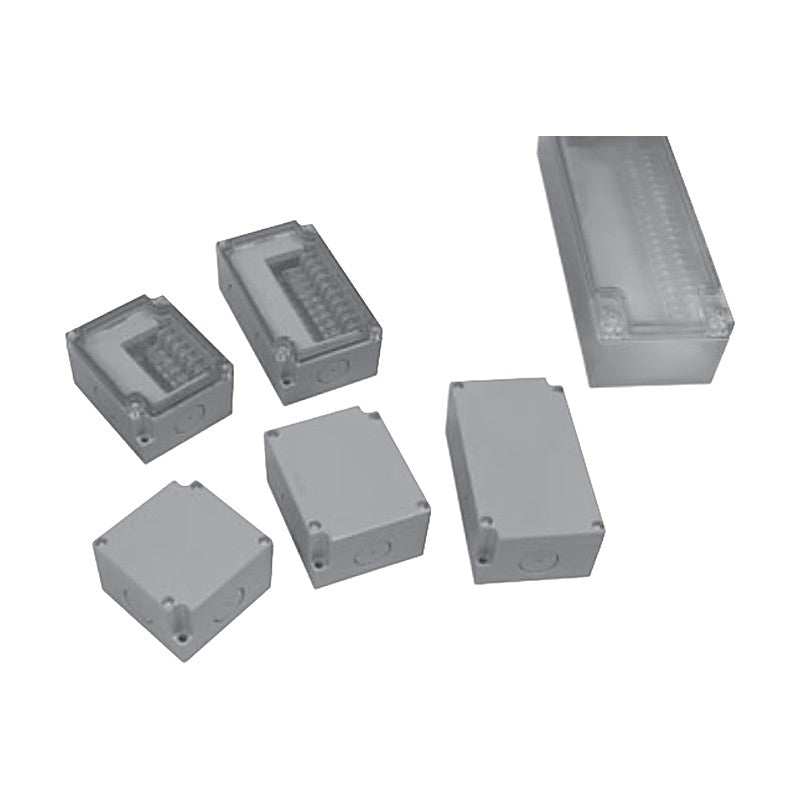

Samwon ACT JTB Series Plastic Joint Terminal Box IP65

Samwon ACT JTB Series Plastic Joint Terminal Box IP65

Flame-retardant ABS junction box with built-in terminal block (4 to 40 poles) and gray or transparent cover, IP65, for relaying cables of machine tools, switchgear, sensors and switches.

Key features

  • Flame-retardant ABS terminal box with integrated terminal block, IP65
  • For cable junctions of machine tools, switchgear, sensors and switches
  • Transparent cover types (4, 6, 10 P) include an inner cover that hides the wiring
  • Gray or transparent cover

Specifications

Rated Voltage 250V AC
Rated Current 15A
Withstanding Voltage 1880V / 1 min
Body ABS (gray)
Protection IP65
Tightening Torque 0.7 N·m
Operating Temperature -20 to +70 °C
JTB-P04G Poles: 4 | Cover: Gray (ABS) | Size (W x D x H): 65.0 x 65.0 x 43.8 mm
JTB-P04T Poles: 4 | Cover: Transparent (polycarbonate) | Size (W x D x H): 65.0 x 65.0 x 43.8 mm
JTB-P06G Poles: 6 | Cover: Gray (ABS) | Size (W x D x H): 65.0 x 80.0 x 44.0 mm
JTB-P06T Poles: 6 | Cover: Transparent (polycarbonate) | Size (W x D x H): 65.0 x 80.0 x 44.0 mm
JTB-P10G Poles: 10 | Cover: Gray (ABS) | Size (W x D x H): 64.9 x 109.9 x 44.0 mm
JTB-P10T Poles: 10 | Cover: Transparent (polycarbonate) | Size (W x D x H): 64.9 x 109.9 x 44.0 mm
JTB-P15G Poles: 15 | Cover: Gray (ABS) | Size (W x D x H): 75.0 x 169.8 x 55.4 mm
JTB-P15T Poles: 15 | Cover: Transparent (polycarbonate) | Size (W x D x H): 75.0 x 169.8 x 55.4 mm
JTB-P20G Poles: 20 | Cover: Gray (ABS) | Size (W x D x H): 80.0 x 235.0 x 56.5 mm
JTB-P20T Poles: 20 | Cover: Transparent (polycarbonate) | Size (W x D x H): 80.0 x 235.0 x 56.5 mm
JTB-P30G Poles: 30 | Cover: Gray (ABS) | Size (W x D x H): 125.0 x 190.0 x 65.5 mm
JTB-P30T Poles: 30 | Cover: Transparent (polycarbonate) | Size (W x D x H): 125.0 x 190.0 x 65.5 mm
JTB-P40G Poles: 40 | Cover: Gray (ABS) | Size (W x D x H): 160.0 x 260.0 x 90.0 mm
JTB-P40T Poles: 40 | Cover: Transparent (polycarbonate) | Size (W x D x H): 160.0 x 260.0 x 90.0 mm
