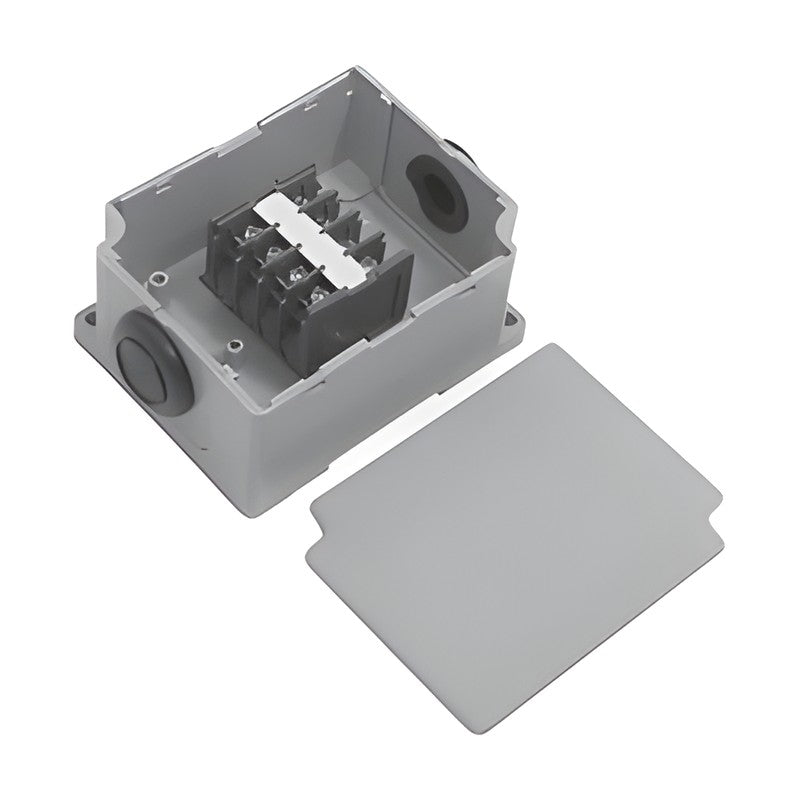

Samwon ACT BOXTB Series Terminal Box with Detachable Terminal Block

PBT terminal box with a removable terminal block and detachable barriers, so wiring can be done outside the box; mountable on a channel.

Key features

Terminal block and barriers can be removed, so wiring can be done outside the box and installed afterwards
Oil- and chemical-resistant PBT engineering plastic body and terminal block
Can be mounted directly on machine tools exposed to oil
Mountable on a channel

Specifications

Rated Voltage	AC/DC 600V
Rated Current	0.75 mm²: 10A, 1.25 mm²: 15A, 2.0 mm²: 20A
Insulation Resistance	200 MΩ min. (at DC500V)
Withstanding Voltage	AC2500V 1 min
Tightening Torque	1.4 N·m
Material	PBT

BOXTB-4AT		Size (W x H x D): 90 x 70 x 49 mm
BOXTB-6AT		Size (W x H x D): 110 x 90 x 49 mm

Terminal BlocksSamwon ACT

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samwon ACT BOXTB Series Terminal Box with Detachable Terminal Block

Brand Samwon ACT·Terminal Blocks

Available part numbers (2)

BOXTB-4AT, BOXTB-6AT

How to order

Send the Samwon ACT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
