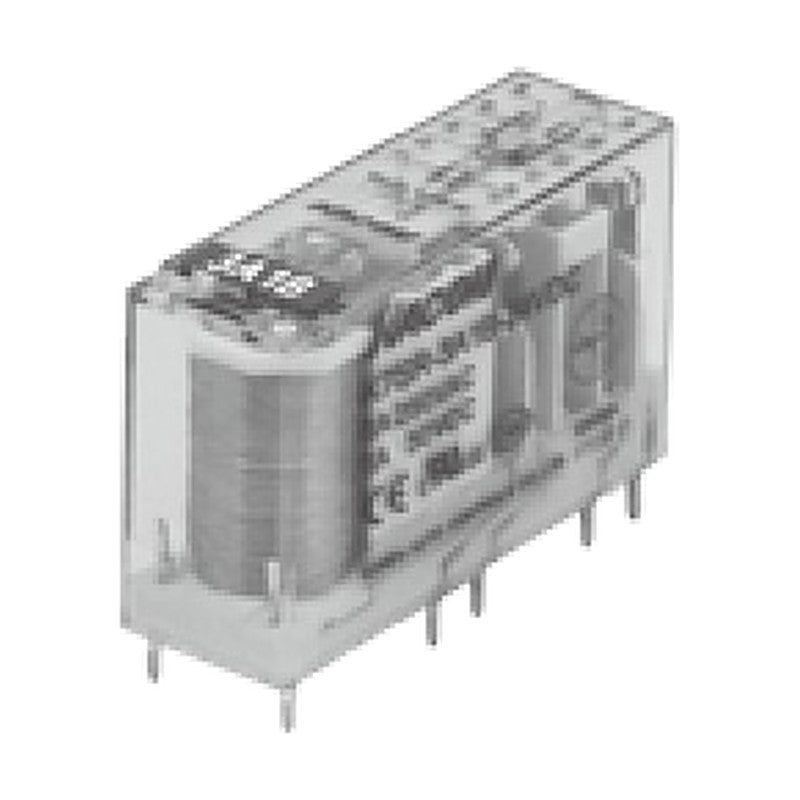

KACON K7SR Series Safety Relay (Forced Guide Contacts)

KACON K7SR Series Safety Relay (Forced Guide Contacts)

PCB/socket-mount safety relay with mechanically linked (forced guide) NO and NC contacts for safety circuits such as emergency stop and machine guarding.

Key features

  • Forced guide contacts to IEC 61810-3 Type A: NO and NC contacts never close simultaneously
  • 4-pole (2NO+2NC, 3NO+1NC) and 6-pole (5NO+1NC, 4NO+2NC, 3NO+3NC) versions
  • 6A 250VAC / 30VDC per circuit, AgSnO2 contacts
  • 4,000VAC between coil and contacts, 10kV surge withstand
  • Mounts on PCB or on dedicated K7SC / K7SA sockets
  • Wide -40 to +85°C operating range

Specifications

Contact type Forced guide (IEC 61810-3 Type A)
Contact material AgSnO2
Contact rating 6A 250VAC / 30VDC (1 circuit); max. 400VAC/30VDC, 1500VA/180W
Inductive load (IEC 60947-5-1) AC15 240VAC 2A; DC13 24VDC 1A / 48VDC 0.5A / 110VDC 0.2A
Contact resistance 100mΩ max. (1A 6VDC)
Coil voltage 24VDC (min. operating 18.0VDC, max. drop-out 2.4VDC)
Expected life Mechanical 10,000,000 ops; electrical 100,000 ops (6A resistive)
Insulation resistance 1,000MΩ (500VDC), insulation class F
Withstand voltage Coil-contacts 4,000VAC; open contacts 1,500VAC (1 min)
Operate / release time 20ms max. at rated voltage
Ambient conditions -40 to +85°C, 5-85% RH
Certification S-Mark, CE, cURus, CQC, TÜV
KACON K7SR Series Safety Relay (Forced Guide Contacts) - reference 2
K7SR-3A1B-24VDC Contact: 3NO + 1NC | Poles: 4P | Coil voltage: 24VDC | Coil consumption: approx. 360mW | Coil resistance: 1600Ω ±10% | Size: 40 x 13 x 24 mm | Weight: approx. 20g | Socket: K7SC-10FL-24VDC, K7SA-10P
K7SR-2A2B-24VDC Contact: 2NO + 2NC | Poles: 4P | Coil voltage: 24VDC | Coil consumption: approx. 360mW | Coil resistance: 1600Ω ±10% | Size: 40 x 13 x 24 mm | Weight: approx. 20g | Socket: K7SC-10FL-24VDC, K7SA-10P
K7SR-5A1B-24VDC Contact: 5NO + 1NC | Poles: 6P | Coil voltage: 24VDC | Coil consumption: approx. 500mW | Coil resistance: 1152Ω ±10% | Size: 50 x 13 x 24 mm | Weight: approx. 23g | Socket: K7SC-14FL-24VDC, K7SA-14P
K7SR-4A2B-24VDC Contact: 4NO + 2NC | Poles: 6P | Coil voltage: 24VDC | Coil consumption: approx. 500mW | Coil resistance: 1152Ω ±10% | Size: 50 x 13 x 24 mm | Weight: approx. 23g | Socket: K7SC-14FL-24VDC, K7SA-14P
K7SR-3A3B-24VDC Contact: 3NO + 3NC | Poles: 6P | Coil voltage: 24VDC | Coil consumption: approx. 500mW | Coil resistance: 1152Ω ±10% | Size: 50 x 13 x 24 mm | Weight: approx. 23g | Socket: K7SC-14FL-24VDC, K7SA-14P
Safety RelaysKACON
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON K7SR Series Safety Relay (Forced Guide Contacts)

Brand KACON·Safety Relays

Available part numbers (5)

K7SR-3A1B-24VDC, K7SR-2A2B-24VDC, K7SR-5A1B-24VDC, K7SR-4A2B-24VDC, K7SR-3A3B-24VDC

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
