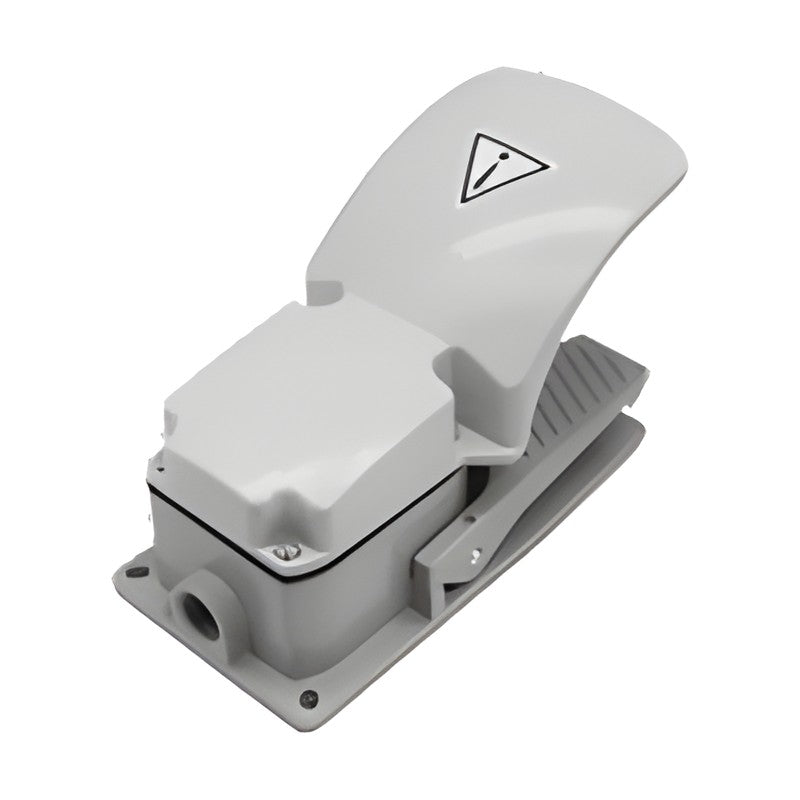

KACON KAF-HD3T Series Heavy-Duty Foot Switch

KACON KAF-HD3T Series Heavy-Duty Foot Switch

Heavy-duty aluminum die-cast foot switch with IP65 protection for hands-free control of machine tools, presses and industrial equipment.

Key features

  • Single, double and triple pedal versions
  • 1a+1b or 2a+2b contacts per pedal
  • Choice of Z15G basic switch (15A), V type micro switch (16A) or bolt-terminal V type micro switch
  • Rugged aluminum die-cast body, IP65
  • 1/2 inch conduit entry for flexible cable

Specifications

Housing Aluminum die-casting
Degree of protection IP65
Cable entry PF 1/2 inch tapped hole per pedal, for flexible conduit (zinc connector 10-16)
Certification CE, CCC, KC; built-in switch UL/cUL
KACON KAF-HD3T Series Heavy-Duty Foot Switch - reference 2
KAF-HD3T Pedals: 1 | Contact: 1a+1b | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T2C Pedals: 2 | Contact: (2a+2b) x2 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T2 Pedals: 2 | Contact: (1a+1b) x2 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T22C Pedals: 2 | Contact: (2a+2b) x2 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T3 Pedals: 3 | Contact: (1a+1b) x3 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T32C Pedals: 3 | Contact: (2a+2b) x3 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3TV Pedals: 1 | Contact: 1a+1b | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3TV2C Pedals: 1 | Contact: 2a+2b | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T2V Pedals: 2 | Contact: (1a+1b) x2 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T2V2C Pedals: 2 | Contact: (2a+2b) x2 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T3V Pedals: 3 | Contact: (1a+1b) x3 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T3V2C Pedals: 3 | Contact: (2a+2b) x3 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3TVB Pedals: 1 | Contact: 1a+1b | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3TVB2C Pedals: 1 | Contact: 2a+2b | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T2VB Pedals: 2 | Contact: (1a+1b) x2 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T2VB2C Pedals: 2 | Contact: (2a+2b) x2 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T3VB Pedals: 3 | Contact: (1a+1b) x3 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T3VB2C Pedals: 3 | Contact: (2a+2b) x3 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
Foot SwitchesKACON
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KAF-HD3T Series Heavy-Duty Foot Switch

Brand KACON·Foot Switches

Available part numbers (18)

KAF-HD3T, KAF-HD3T2C, KAF-HD3T2, KAF-HD3T22C, KAF-HD3T3, KAF-HD3T32C, KAF-HD3TV, KAF-HD3TV2C, KAF-HD3T2V, KAF-HD3T2V2C + 8 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KAF-HD3T Series Heavy-Duty Foot Switch - reference 2
0 selected
RFQ List (0)
Product codeSpec
KAF-HD3TPedals: 1 | Contact: 1a+1b | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T2CPedals: 2 | Contact: (2a+2b) x2 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T2Pedals: 2 | Contact: (1a+1b) x2 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T22CPedals: 2 | Contact: (2a+2b) x2 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T3Pedals: 3 | Contact: (1a+1b) x3 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3T32CPedals: 3 | Contact: (2a+2b) x3 | Built-in switch: Z15G-10B | Rated load: 15A 250VAC (resistive)
KAF-HD3TVPedals: 1 | Contact: 1a+1b | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3TV2CPedals: 1 | Contact: 2a+2b | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T2VPedals: 2 | Contact: (1a+1b) x2 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T2V2CPedals: 2 | Contact: (2a+2b) x2 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T3VPedals: 3 | Contact: (1a+1b) x3 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3T3V2CPedals: 3 | Contact: (2a+2b) x3 | Built-in switch: V type micro switch | Rated load: 16A 250VAC (resistive)
KAF-HD3TVBPedals: 1 | Contact: 1a+1b | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3TVB2CPedals: 1 | Contact: 2a+2b | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T2VBPedals: 2 | Contact: (1a+1b) x2 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T2VB2CPedals: 2 | Contact: (2a+2b) x2 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T3VBPedals: 3 | Contact: (1a+1b) x3 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
KAF-HD3T3VB2CPedals: 3 | Contact: (2a+2b) x3 | Built-in switch: V type micro switch, bolt terminal | Rated load: 16A 250VAC (resistive)
