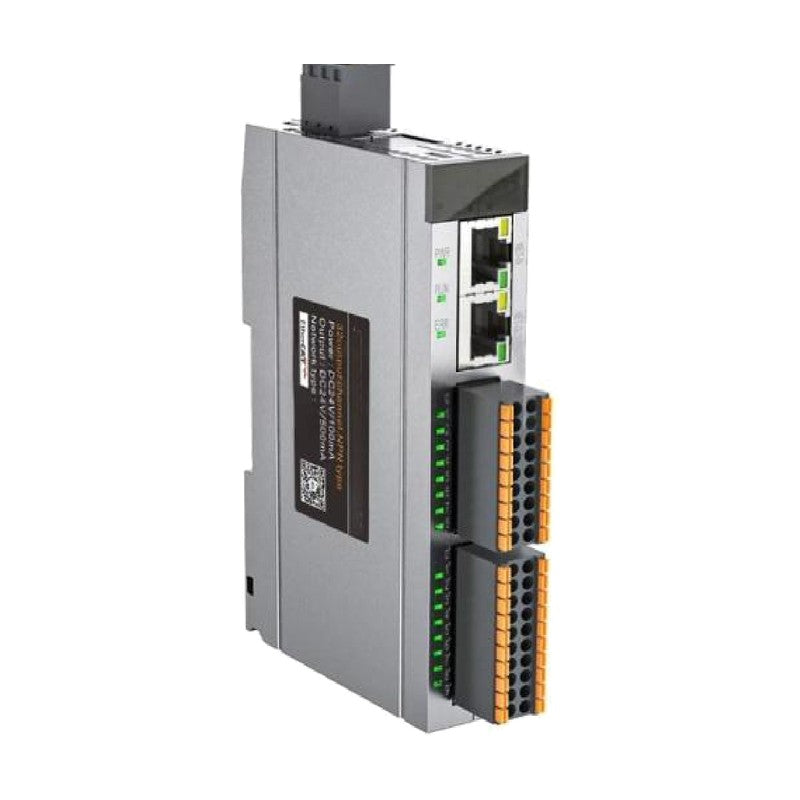

KACON KCAT Remote EtherCAT Analog I/O Module
KACON KCAT Remote EtherCAT Analog I/O Module
Vertical EtherCAT remote analog I/O module with 16-bit voltage/current inputs and outputs for process signals.
Key features
- Compatible with EtherCAT protocol
- 16-bit resolution analog inputs and outputs
- Input sampling rate of 10 ksps or more
- LED status indicators for easy monitoring and debugging
- Vertical design with integrated coupler
Specifications
| Protocol | EtherCAT |
|---|---|
| Power supply | 24VDC (20.4-28.8VDC, -15%/+20%) |
| Bus interface | 2 x RJ45 |
| Transmission distance | 100 m max. |
| Resolution | 16 bit |
| Input sampling rate | 10 ksps min. |
| Precision | ±0.01% |
| Output load impedance | >500 kOhm |
| Rated withstand voltage | 500V |
| Terminal | Spring-type terminal |
| Operating temperature | -20 to +60°C |
| Size | 124 x 25 x 77 mm |
| KCAT919 | Protocol: EtherCAT | Input: 8 points analog voltage (-10 to 10V) | Output: 8 points analog voltage (-10 to 10V) | |
| KCAT920 | Protocol: EtherCAT | Input: 4 points analog (-10 to 10V, 0 to 24mA) | Output: 4 points analog (-10 to 10V, 0 to 24mA) |
Remote I/O ModulesKACON
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KCAT Remote EtherCAT Analog I/O Module
Available part numbers (2)
KCAT919, KCAT920
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
Remote I/O Modules
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KCAT919 | Protocol: EtherCAT | Input: 8 points analog voltage (-10 to 10V) | Output: 8 points analog voltage (-10 to 10V) | ||
| KCAT920 | Protocol: EtherCAT | Input: 4 points analog (-10 to 10V, 0 to 24mA) | Output: 4 points analog (-10 to 10V, 0 to 24mA) |
