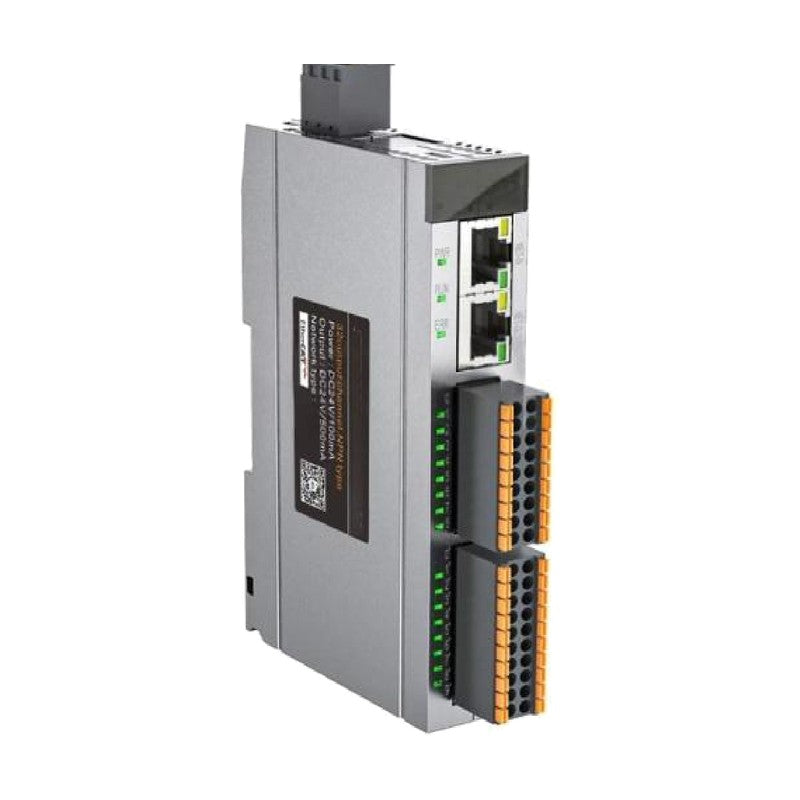

KACON KCAT Remote EtherCAT Digital I/O Module
KACON KCAT Remote EtherCAT Digital I/O Module
Compact vertical EtherCAT remote I/O module with 16 or 32 digital points for distributed machine control.
Key features
- Compatible with EtherCAT protocol
- Digital outputs rated up to 500mA per point
- LED status indicators for easy monitoring and debugging
- Vertical design with integrated coupler
Specifications
| Protocol | EtherCAT |
|---|---|
| Power supply | 24VDC (20.4-28.8VDC, -15%/+20%) |
| Bus interface | 2 x RJ45 |
| Transmission distance | 100 m max. |
| Terminal | Spring-type terminal |
| Input voltage | 24VDC (max. 30V), NPN/PNP selectable |
| Input ON/OFF voltage | ON 15-30V / OFF -3 to 3V |
| Isolation | Optocoupler, 3000V |
| Output load | Resistive 500mA per point (2A max.); inductive 12W/24VDC; lamp 2W/24VDC |
| Short-circuit protection | Yes (output) |
| Operating temperature | -20 to +60°C |
| Size | 124 x 25 x 77 mm |
| KCAT901 | Protocol: EtherCAT | Input: 16 points (NPN/PNP selectable, 24VDC) | Output: 16 points NPN, 500mA/point, 2A max. | |
| KCAT903 | Protocol: EtherCAT | Input: 32 points (NPN/PNP selectable, 24VDC) | |
| KCAT905 | Protocol: EtherCAT | Output: 32 points NPN, 500mA/point, 2A max. |
Remote I/O ModulesKACON
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KCAT Remote EtherCAT Digital I/O Module
Available part numbers (3)
KCAT901, KCAT903, KCAT905
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
Remote I/O Modules
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KCAT901 | Protocol: EtherCAT | Input: 16 points (NPN/PNP selectable, 24VDC) | Output: 16 points NPN, 500mA/point, 2A max. | ||
| KCAT903 | Protocol: EtherCAT | Input: 32 points (NPN/PNP selectable, 24VDC) | ||
| KCAT905 | Protocol: EtherCAT | Output: 32 points NPN, 500mA/point, 2A max. |
