KACON KHS Series Heat Sinks for SSRs and Power Regulators

Aluminium heat sinks sized for KACON single- and three-phase SSRs and power regulators, in panel, channel-mount and fan-cooled versions.

Key features

Matched to KSR-N2, KSR-N3 and KTPR/KTPL/KTPU ratings
KHS-100 series in 70 to 250 mm lengths
Compact KHS-010/020/040 types mountable on channel
KHS-140 series for 60A and 80A loads
Fan and bimetal integrated versions (F suffix) for three-phase high-current use

Specifications

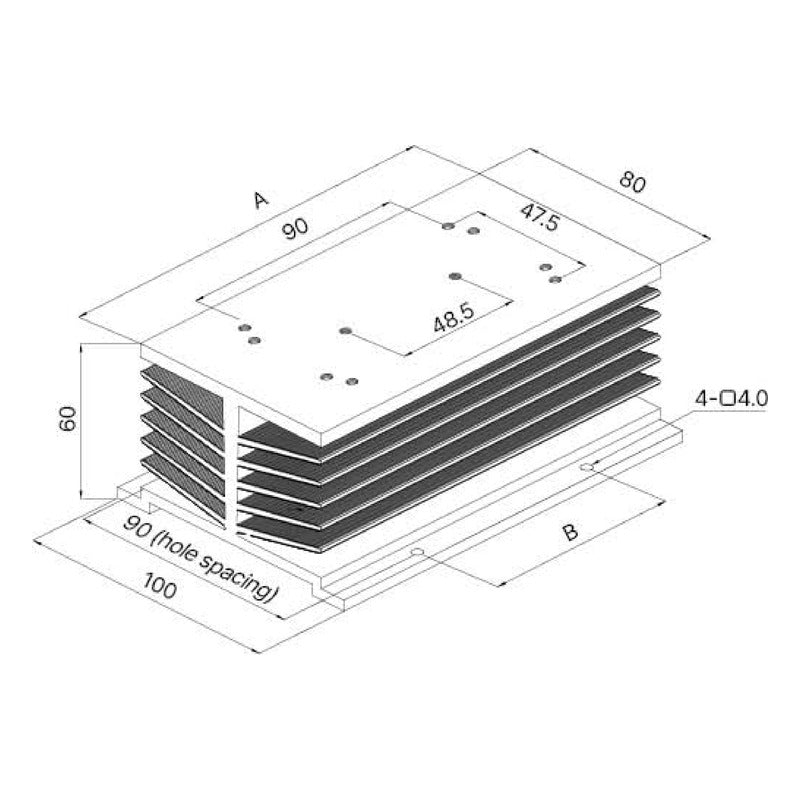

Height	KHS-100: 60 mm; KHS-010: 74 mm; KHS-020/040: 95 mm; KHS-140: 99 mm
Width	KHS-100: 80 mm; KHS-140: 139 mm

KACON KHS Series Heat Sinks for SSRs and Power Regulators - reference 2

KHS-100-070		Length: 70mm \| Mounting hole spacing: 90x35mm \| For: KSR-N2 10A; KTPR/KTPL/KTPU 10A, 15A \| Weight: 340 g
KHS-100-110		Length: 110mm \| Mounting hole spacing: 90x55mm \| For: KSR-N2 20A, 30A; KTPR/KTPL/KTPU 20A, 25A, 30A \| Weight: 490 g
KHS-100-150		Length: 150mm \| Mounting hole spacing: 90x75mm \| For: KSR-N2 40A; KSR-N3 10A; KTPR/KTPL/KTPU 40A \| Weight: 770 g
KHS-100-200		Length: 200mm \| Mounting hole spacing: 90x100mm \| For: KSR-N3 20A, 30A \| Weight: 980 g
KHS-100-250		Length: 250mm \| Mounting hole spacing: 90x125mm \| For: KSR-N3 40A \| Weight: 1,220 g
KHS-010		Length: 75mm \| Mounting hole spacing: 34x90mm (channel mountable) \| For: KSR-N2 10A; KTPR/KTPL/KTPU 10A, 15A \| Weight: 190 g
KHS-020		Length: 75mm \| Mounting hole spacing: 34x90mm (channel mountable) \| For: KSR-N2 20A; KTPR/KTPL/KTPU 20A, 25A \| Weight: 380 g
KHS-040		Length: 75mm \| Mounting hole spacing: 34x90mm (channel mountable) \| For: KSR-N2 30A, 40A; KTPR/KTPL/KTPU 30A, 40A \| Weight: 500 g
KHS-140-080		Length: 80mm \| Mounting hole spacing: 130x60mm \| For: KSR-N2 60A \| Weight: 1,100 g
KHS-140-120		Length: 120mm \| Mounting hole spacing: 130x60mm \| For: KSR-N2 80A \| Weight: 1,650 g
KHS-140-080F		Length: 122mm (including fan) \| Mounting hole spacing: 130x60mm \| For: KSR-N3 60A; KTPR/KTPL/KTPU 60A \| Weight: 1,400 g \| Option: Fan and bimetal integrated
KHS-140-120F		Length: 150mm (including fan) \| Mounting hole spacing: 130x60mm \| For: KSR-N3 80A; KTPR/KTPL/KTPU 80A \| Weight: 2,000 g \| Option: Fan and bimetal integrated
