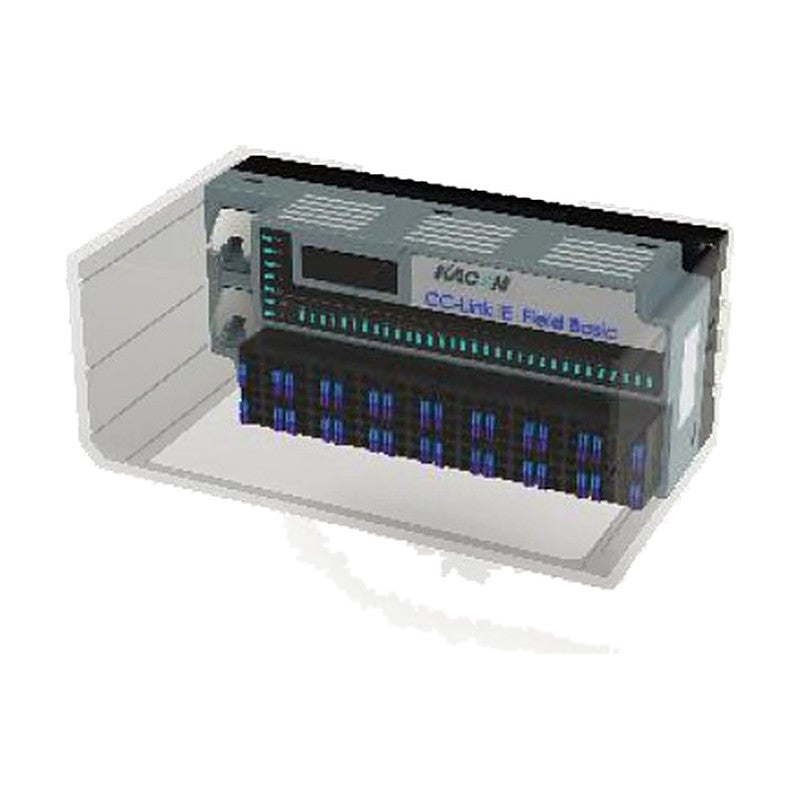

KACON KIE Integrated Digital I/O Module (Horizontal), Mixed Input/Output

KACON KIE Integrated Digital I/O Module (Horizontal), Mixed Input/Output

Horizontal fieldbus remote I/O module combining digital inputs and transistor outputs on one DIN-rail unit with integrated coupler.

Key features

  • Compatible with Profinet, EtherNet/IP, CC-Link IE Field Basic and EtherCAT protocols
  • ECON wiring mode and input/output adaptive function
  • LED status indicators for easier monitoring and debugging
  • Horizontal I/O design with integrated coupler and I/O module

Specifications

Power supply 24V nominal (18-30V), max. 150mA
External connection Spring-type terminal blocks + pull-out spring terminal blocks
Wiring Ferrule wire 0.3 mm² (22AWG) to 1 mm² (17AWG), 10 mm strip
Mounting 35 mm DIN rail
Isolation I/O to internal bus: optocoupler, 500V
Operating temperature -10 to +55°C
Storage temperature -25 to +85°C
Protection IP20
Environment Avoid dust, oil mist and corrosive gases
Diagnosis and alarm Supported
Response time Input 1 ms / Output 1 ms
Output load capacity 300mA nominal, 500mA max. per channel, 2A max. per 8 continuous points
KACON KIE Integrated Digital I/O Module (Horizontal), Mixed Input/Output - reference 2KACON KIE Integrated Digital I/O Module (Horizontal), Mixed Input/Output - reference 3
KIE201 Protocol: Profinet | Input: 16 points NPN | Output: 16 points NPN | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE202 Protocol: Profinet | Input: 16 points PNP | Output: 16 points PNP | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE209 Protocol: Profinet | Input: 8 points NPN | Output: 8 points NPN | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE210 Protocol: Profinet | Input: 8 points PNP | Output: 8 points PNP | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE301 Protocol: EtherNet/IP | Input: 16 points NPN | Output: 16 points NPN | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE302 Protocol: EtherNet/IP | Input: 16 points PNP | Output: 16 points PNP | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE309 Protocol: EtherNet/IP | Input: 8 points NPN | Output: 8 points NPN | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE310 Protocol: EtherNet/IP | Input: 8 points PNP | Output: 8 points PNP | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE701 Protocol: CC-Link IE Field Basic | Input: 16 points NPN | Output: 16 points NPN | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE702 Protocol: CC-Link IE Field Basic | Input: 16 points PNP | Output: 16 points PNP | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE709 Protocol: CC-Link IE Field Basic | Input: 8 points NPN | Output: 8 points NPN | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE710 Protocol: CC-Link IE Field Basic | Input: 8 points PNP | Output: 8 points PNP | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE901 Protocol: EtherCAT | Input: 16 points NPN | Output: 16 points NPN | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE902 Protocol: EtherCAT | Input: 16 points PNP | Output: 16 points PNP | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE907 Protocol: EtherCAT | Input: 24 points NPN | Output: 8 points NPN | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE908 Protocol: EtherCAT | Input: 24 points PNP | Output: 8 points PNP | Current consumption: 128mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE909 Protocol: EtherCAT | Input: 8 points NPN | Output: 8 points NPN | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE910 Protocol: EtherCAT | Input: 8 points PNP | Output: 8 points PNP | Current consumption: 118mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
