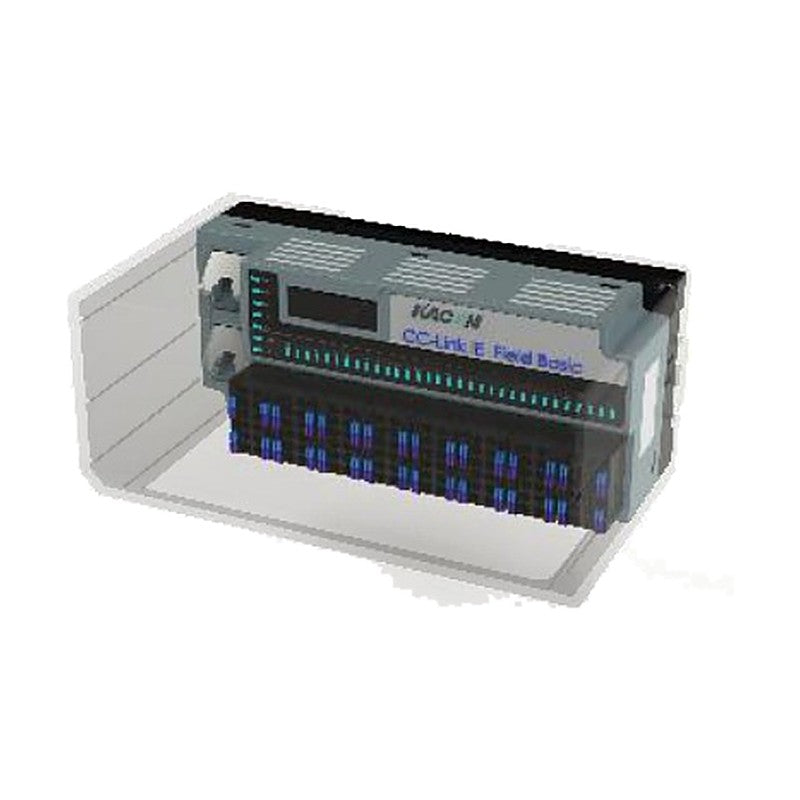

KACON KIE Integrated Digital Input Module (Horizontal)

Horizontal fieldbus remote digital input module with 16 or 32 NPN/PNP inputs and integrated coupler for DIN-rail mounting.

Key features

Compatible with Profinet, EtherNet/IP, CC-Link IE Field Basic and EtherCAT protocols
ECON wiring mode and input/output adaptive function
LED status indicators for easier monitoring and debugging
Horizontal I/O design with integrated coupler and I/O module

Specifications

Power supply	24V nominal (18-30V), max. 150mA
External connection	Spring-type terminal blocks + pull-out spring terminal blocks
Wiring	Ferrule wire 0.3 mm² (22AWG) to 1 mm² (17AWG), 10 mm strip
Mounting	35 mm DIN rail
Isolation	I/O to internal bus: optocoupler, 500V
Operating temperature	-10 to +55°C
Storage temperature	-25 to +85°C
Protection	IP20
Environment	Avoid dust, oil mist and corrosive gases
Diagnosis and alarm	Supported
Response time	Input 1 ms
Signal level	NPN: '0' 12-30V, '1' 0-5V; PNP: '0' 0-5V, '1' 12-30V

KACON KIE Integrated Digital Input Module (Horizontal) - reference 2

KACON KIE Integrated Digital Input Module (Horizontal) - reference 3

KIE203		Protocol: Profinet \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE204		Protocol: Profinet \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE213		Protocol: Profinet \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE214		Protocol: Profinet \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE303		Protocol: EtherNet/IP \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE304		Protocol: EtherNet/IP \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE313		Protocol: EtherNet/IP \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE314		Protocol: EtherNet/IP \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE703		Protocol: CC-Link IE Field Basic \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE704		Protocol: CC-Link IE Field Basic \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE713		Protocol: CC-Link IE Field Basic \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE714		Protocol: CC-Link IE Field Basic \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE903		Protocol: EtherCAT \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE904		Protocol: EtherCAT \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
KIE913		Protocol: EtherCAT \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
KIE914		Protocol: EtherCAT \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g

Remote I/O ModulesKACON

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KIE Integrated Digital Input Module (Horizontal)

Brand KACON·Remote I/O Modules

Available part numbers (16)

KIE203, KIE204, KIE213, KIE214, KIE303, KIE304, KIE313, KIE314, KIE703, KIE704 + 6 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	KIE203	Protocol: Profinet \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE204	Protocol: Profinet \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE213	Protocol: Profinet \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE214	Protocol: Profinet \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE303	Protocol: EtherNet/IP \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE304	Protocol: EtherNet/IP \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE313	Protocol: EtherNet/IP \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE314	Protocol: EtherNet/IP \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE703	Protocol: CC-Link IE Field Basic \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE704	Protocol: CC-Link IE Field Basic \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE713	Protocol: CC-Link IE Field Basic \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE714	Protocol: CC-Link IE Field Basic \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE903	Protocol: EtherCAT \| Input: 32 points NPN \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE904	Protocol: EtherCAT \| Input: 32 points PNP \| Current consumption: 100mA \| Size: 136.2 x 58 x 43.7 mm \| Weight: approx. 200g
	KIE913	Protocol: EtherCAT \| Input: 16 points NPN \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
	KIE914	Protocol: EtherCAT \| Input: 16 points PNP \| Current consumption: 95mA \| Size: 104.2 x 58 x 42.2 mm \| Weight: approx. 180g
