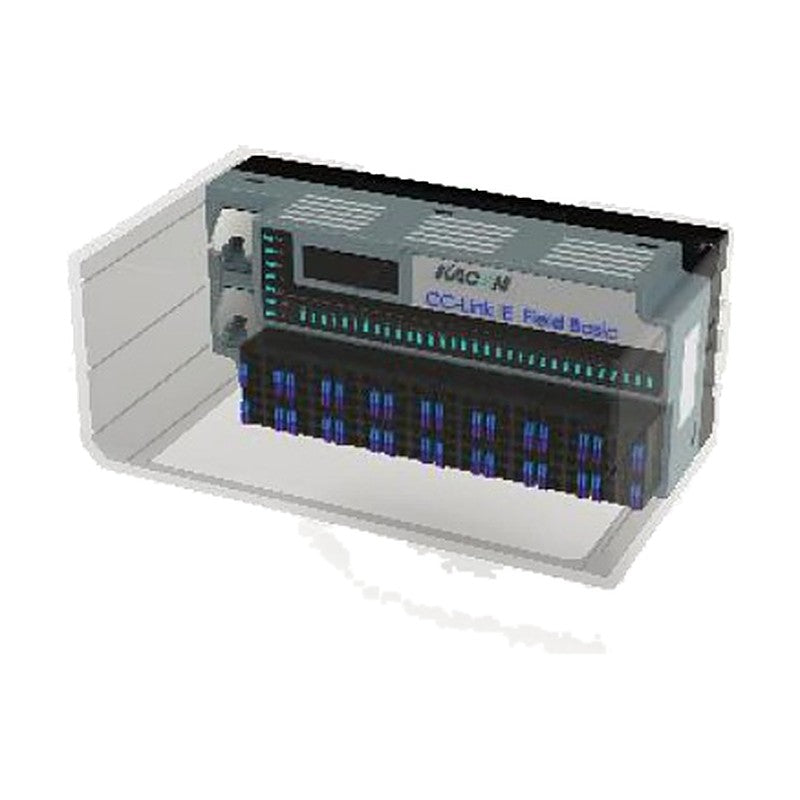

KACON KIE Integrated Digital Output Module (Horizontal)

KACON KIE Integrated Digital Output Module (Horizontal)

Horizontal fieldbus remote digital output module with 16 or 32 NPN/PNP transistor outputs and integrated coupler.

Key features

  • Compatible with Profinet, EtherNet/IP, CC-Link IE Field Basic and EtherCAT protocols
  • ECON wiring mode and input/output adaptive function
  • LED status indicators for easier monitoring and debugging
  • Horizontal I/O design with integrated coupler and I/O module

Specifications

Power supply 24V nominal (18-30V), max. 150mA
External connection Spring-type terminal blocks + pull-out spring terminal blocks
Wiring Ferrule wire 0.3 mm² (22AWG) to 1 mm² (17AWG), 10 mm strip
Mounting 35 mm DIN rail
Isolation I/O to internal bus: optocoupler, 500V
Operating temperature -10 to +55°C
Storage temperature -25 to +85°C
Protection IP20
Environment Avoid dust, oil mist and corrosive gases
Diagnosis and alarm Supported
Response time Output 1 ms
Output load capacity 300mA nominal, 500mA max. per channel, 2A max. per 8 continuous points
KACON KIE Integrated Digital Output Module (Horizontal) - reference 2KACON KIE Integrated Digital Output Module (Horizontal) - reference 3
KIE205 Protocol: Profinet | Output: 32 points NPN | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE206 Protocol: Profinet | Output: 32 points PNP | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE211 Protocol: Profinet | Output: 16 points NPN | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE212 Protocol: Profinet | Output: 16 points PNP | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE305 Protocol: EtherNet/IP | Output: 32 points NPN | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE306 Protocol: EtherNet/IP | Output: 32 points PNP | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE311 Protocol: EtherNet/IP | Output: 16 points NPN | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE312 Protocol: EtherNet/IP | Output: 16 points PNP | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE705 Protocol: CC-Link IE Field Basic | Output: 32 points NPN | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE706 Protocol: CC-Link IE Field Basic | Output: 32 points PNP | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE711 Protocol: CC-Link IE Field Basic | Output: 16 points NPN | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE712 Protocol: CC-Link IE Field Basic | Output: 16 points PNP | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE905 Protocol: EtherCAT | Output: 32 points NPN | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE906 Protocol: EtherCAT | Output: 32 points PNP | Current consumption: 156mA | Size: 136.2 x 58 x 43.7 mm | Weight: approx. 200g
KIE911 Protocol: EtherCAT | Output: 16 points NPN | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
KIE912 Protocol: EtherCAT | Output: 16 points PNP | Current consumption: 138mA | Size: 104.2 x 58 x 42.2 mm | Weight: approx. 180g
Remote I/O ModulesKACON
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KIE Integrated Digital Output Module (Horizontal)

Brand KACON·Remote I/O Modules

Available part numbers (16)

KIE205, KIE206, KIE211, KIE212, KIE305, KIE306, KIE311, KIE312, KIE705, KIE706 + 6 more — see full table ↓
