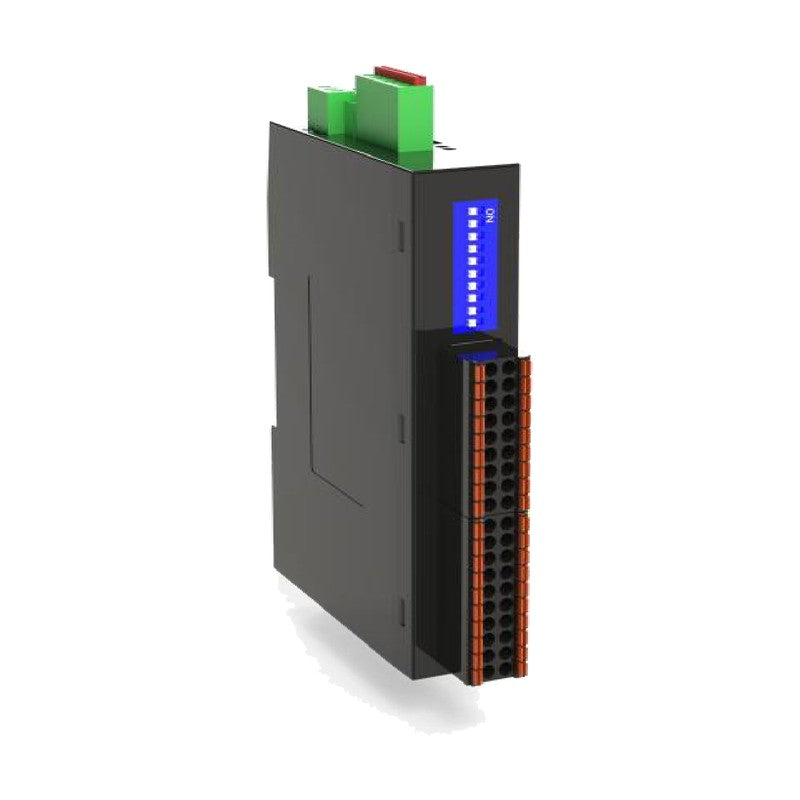

KACON KIO Integrated Analog I/O Module (Vertical), 8 Channels

KACON KIO Integrated Analog I/O Module (Vertical), 8 Channels

Slim vertical fieldbus remote analog module with 8 voltage or current inputs or outputs at 16-bit resolution.

Key features

  • Compatible with Modbus/TCP, Profinet, EtherNet/IP, CC-Link, CC-Link IE Field Basic and EtherCAT protocols
  • 16-bit analog resolution, 8 channels per module
  • Switchable ranges 0-5V/0-10V or 0-20mA/4-20mA
  • DIN-rail or direct panel mounting
  • Plug-in spring terminals for convenient wiring

Specifications

Power supply 24V nominal (18-30V), max. 150mA
External connection Plug-in spring terminal
Mounting 35 mm DIN rail or direct panel mounting
Size 108 x 24 x 77 mm
Isolation I/O to internal bus: optocoupler, 500V; channels not isolated
Operating temperature -10 to +55°C
Diagnosis and alarm Supported
Resolution 16 bit
Current consumption 136mA
Response time 1 ms / 8 channels
Sampling rate 250 us / 8 channels
KACON KIO Integrated Analog I/O Module (Vertical), 8 Channels - reference 2
KIO215 Protocol: Profinet | Input: 8 points analog voltage (0-5V / 0-10V switchable) | Precision: ±0.1% at 25°C | Filtering: settable | Hardware filter: 0.5 ms
KIO216 Protocol: Profinet | Output: 8 points analog voltage (0-5V / 0-10V switchable) | Precision: ±0.1% at 25°C
KIO217 Protocol: Profinet | Input: 8 points analog current (0-20mA / 4-20mA switchable) | Precision: ±0.2% at 25°C | Filtering: settable | Hardware filter: 0.5 ms
KIO218 Protocol: Profinet | Output: 8 points analog current (0-20mA / 4-20mA switchable) | Precision: ±0.2% at 25°C
KIO315 Protocol: EtherNet/IP | Input: 8 points analog voltage (0-5V / 0-10V switchable) | Precision: ±0.1% at 25°C | Filtering: settable | Hardware filter: 0.5 ms
KIO316 Protocol: EtherNet/IP | Output: 8 points analog voltage (0-5V / 0-10V switchable) | Precision: ±0.1% at 25°C
KIO317 Protocol: EtherNet/IP | Input: 8 points analog current (0-20mA / 4-20mA switchable) | Precision: ±0.2% at 25°C | Filtering: settable | Hardware filter: 0.5 ms
KIO318 Protocol: EtherNet/IP | Output: 8 points analog current (0-20mA / 4-20mA switchable) | Precision: ±0.2% at 25°C
KIO915 Protocol: EtherCAT | Input: 8 points analog voltage (0-5V / 0-10V switchable) | Precision: ±0.1% at 25°C | Filtering: settable | Hardware filter: 0.5 ms
KIO916 Protocol: EtherCAT | Output: 8 points analog voltage (0-5V / 0-10V switchable) | Precision: ±0.1% at 25°C
KIO917 Protocol: EtherCAT | Input: 8 points analog current (0-20mA / 4-20mA switchable) | Precision: ±0.2% at 25°C | Filtering: settable | Hardware filter: 0.5 ms
KIO918 Protocol: EtherCAT | Output: 8 points analog current (0-20mA / 4-20mA switchable) | Precision: ±0.2% at 25°C
