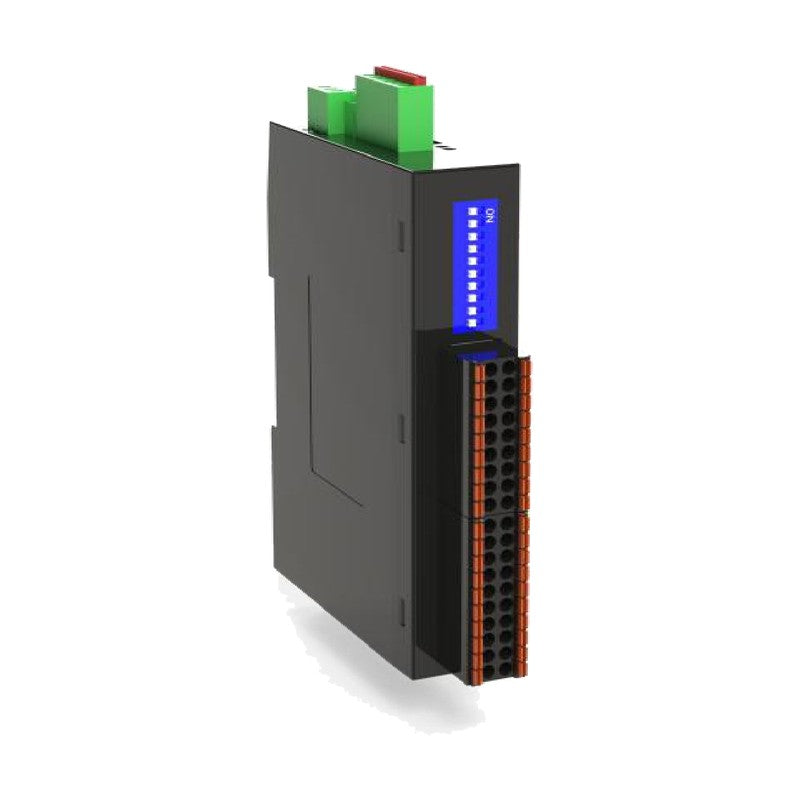

KACON KIO Integrated Digital I/O Module (Vertical), Input and Mixed I/O

KACON KIO Integrated Digital I/O Module (Vertical), Input and Mixed I/O

Slim vertical fieldbus remote I/O module with 16 inputs plus 16 outputs, or 32 inputs, for DIN-rail or panel mounting.

Key features

  • Compatible with Modbus/TCP, Profinet, EtherNet/IP, CC-Link, CC-Link IE Field Basic and EtherCAT protocols
  • Slim vertical design, 24 mm wide
  • DIN-rail or direct panel mounting
  • Plug-in spring terminals for convenient wiring

Specifications

Power supply 24V nominal (18-30V), max. 150mA
External connection Plug-in spring terminal
Wiring Ferrule wire 0.3 mm² (22AWG) to 1 mm² (17AWG), 10 mm strip
Mounting 35 mm DIN rail or direct panel mounting
Weight Approx. 136g
Size 108 x 24 x 77 mm
Isolation I/O to internal bus: optocoupler, 500V
Operating temperature -10 to +55°C
Storage temperature -25 to +85°C
Relative humidity 5-95%, non-condensing
Protection IP20
Diagnosis and alarm Supported
KACON KIO Integrated Digital I/O Module (Vertical), Input and Mixed I/O - reference 2
KIO101 Protocol: Modbus/TCP | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO102 Protocol: Modbus/TCP | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO103 Protocol: Modbus/TCP | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO201 Protocol: Profinet | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO202 Protocol: Profinet | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO203 Protocol: Profinet | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO301 Protocol: EtherNet/IP | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO302 Protocol: EtherNet/IP | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO303 Protocol: EtherNet/IP | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO501 Protocol: CC-Link | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO502 Protocol: CC-Link | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO503 Protocol: CC-Link | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO701 Protocol: CC-Link IE Field Basic | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO702 Protocol: CC-Link IE Field Basic | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO703 Protocol: CC-Link IE Field Basic | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO901 Protocol: EtherCAT | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO902 Protocol: EtherCAT | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO903 Protocol: EtherCAT | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
Remote I/O ModulesKACON
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KIO Integrated Digital I/O Module (Vertical), Input and Mixed I/O

Brand KACON·Remote I/O Modules

Available part numbers (18)

KIO101, KIO102, KIO103, KIO201, KIO202, KIO203, KIO301, KIO302, KIO303, KIO501 + 8 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KIO Integrated Digital I/O Module (Vertical), Input and Mixed I/O - reference 2
0 selected
RFQ List (0)
Product codeSpec
KIO101Protocol: Modbus/TCP | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO102Protocol: Modbus/TCP | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO103Protocol: Modbus/TCP | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO201Protocol: Profinet | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO202Protocol: Profinet | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO203Protocol: Profinet | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO301Protocol: EtherNet/IP | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO302Protocol: EtherNet/IP | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO303Protocol: EtherNet/IP | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO501Protocol: CC-Link | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO502Protocol: CC-Link | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO503Protocol: CC-Link | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO701Protocol: CC-Link IE Field Basic | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO702Protocol: CC-Link IE Field Basic | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO703Protocol: CC-Link IE Field Basic | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
KIO901Protocol: EtherCAT | Input: 16 points | Output: 16 points NPN | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO902Protocol: EtherCAT | Input: 16 points | Output: 16 points PNP | Current consumption: 128mA | Response time: input 30/10 us, output 12/40 us | Output load: 300mA nominal, 500mA max. per channel
KIO903Protocol: EtherCAT | Input: 32 points | Current consumption: 100mA | Response time: input 30/10 us
