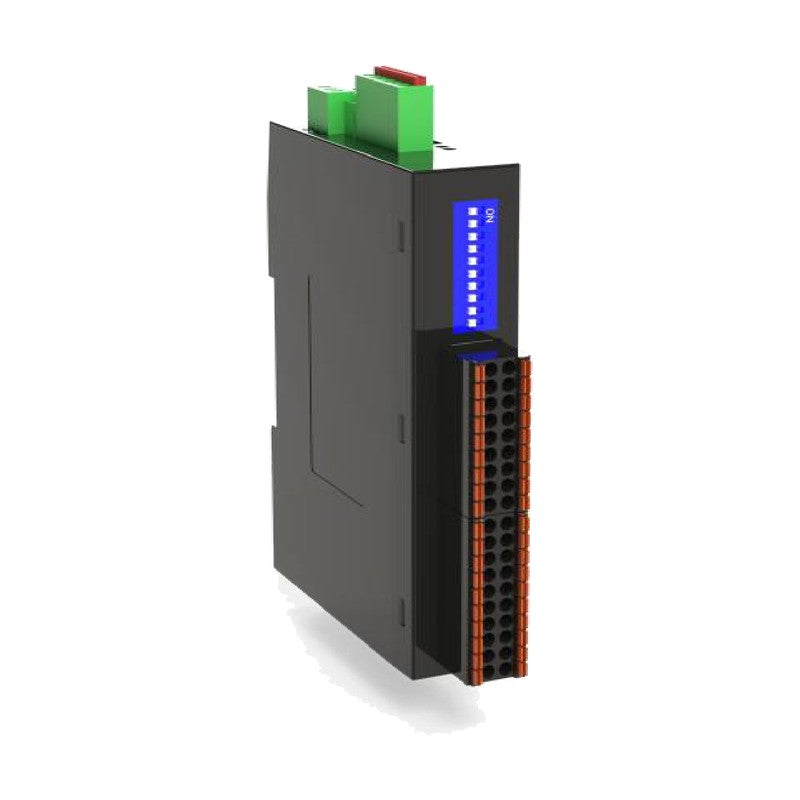

KACON KIO Integrated Digital Output Module (Vertical), 32 Points

KACON KIO Integrated Digital Output Module (Vertical), 32 Points

Slim vertical fieldbus remote output module with 32 NPN or PNP transistor outputs for DIN-rail or panel mounting.

Key features

  • Compatible with Modbus/TCP, Profinet, EtherNet/IP, CC-Link, CC-Link IE Field Basic and EtherCAT protocols
  • Slim vertical design, 24 mm wide
  • DIN-rail or direct panel mounting
  • Plug-in spring terminals for convenient wiring

Specifications

Power supply 24V nominal (18-30V), max. 150mA
External connection Plug-in spring terminal
Wiring Ferrule wire 0.3 mm² (22AWG) to 1 mm² (17AWG), 10 mm strip
Mounting 35 mm DIN rail or direct panel mounting
Weight Approx. 136g
Size 108 x 24 x 77 mm
Isolation I/O to internal bus: optocoupler, 500V
Operating temperature -10 to +55°C
Storage temperature -25 to +85°C
Relative humidity 5-95%, non-condensing
Protection IP20
Diagnosis and alarm Supported
KACON KIO Integrated Digital Output Module (Vertical), 32 Points - reference 2
KIO105 Protocol: Modbus/TCP | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO106 Protocol: Modbus/TCP | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO205 Protocol: Profinet | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO206 Protocol: Profinet | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO305 Protocol: EtherNet/IP | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO306 Protocol: EtherNet/IP | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO505 Protocol: CC-Link | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO506 Protocol: CC-Link | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO705 Protocol: CC-Link IE Field Basic | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO706 Protocol: CC-Link IE Field Basic | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO905 Protocol: EtherCAT | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO906 Protocol: EtherCAT | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
Remote I/O ModulesKACON
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KIO Integrated Digital Output Module (Vertical), 32 Points

Brand KACON·Remote I/O Modules

Available part numbers (12)

KIO105, KIO106, KIO205, KIO206, KIO305, KIO306, KIO505, KIO506, KIO705, KIO706 + 2 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KIO Integrated Digital Output Module (Vertical), 32 Points - reference 2
0 selected
RFQ List (0)
Product codeSpec
KIO105Protocol: Modbus/TCP | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO106Protocol: Modbus/TCP | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO205Protocol: Profinet | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO206Protocol: Profinet | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO305Protocol: EtherNet/IP | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO306Protocol: EtherNet/IP | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO505Protocol: CC-Link | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO506Protocol: CC-Link | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO705Protocol: CC-Link IE Field Basic | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO706Protocol: CC-Link IE Field Basic | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO905Protocol: EtherCAT | Output: 32 points NPN | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
KIO906Protocol: EtherCAT | Output: 32 points PNP | Current consumption: 156mA | Response time: 12/40 us | Output load: 300mA nominal, 500mA max. per channel, 2A per 8 channels
