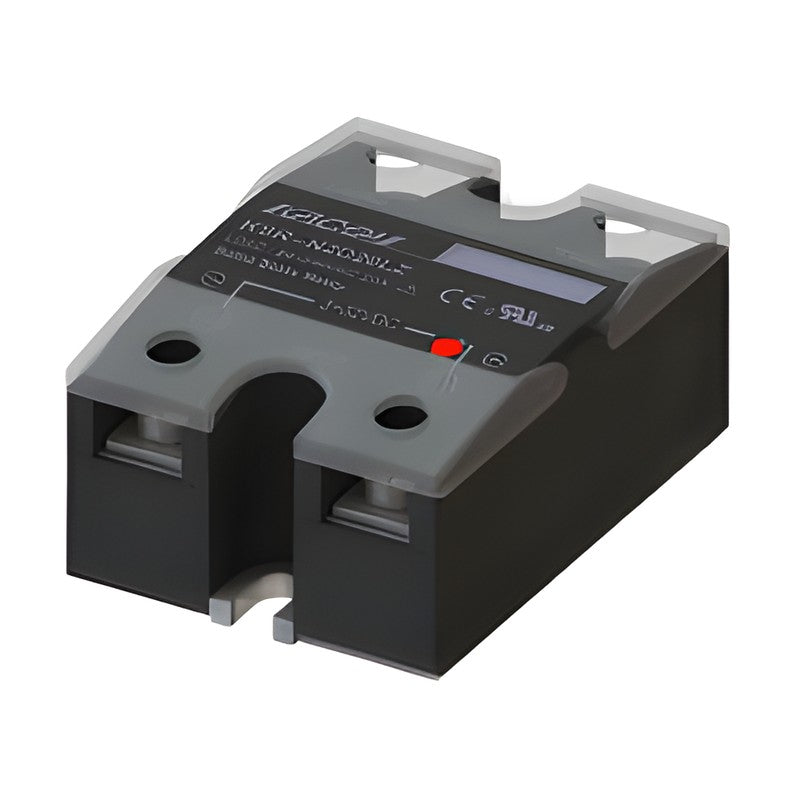

KACON KSR-N2 Single-phase Solid State Relay

KACON KSR-N2 Single-phase Solid State Relay

Compact panel-mount single-phase solid state relay with DC or AC control input for contactless switching of AC resistive loads up to 80A.

Key features

  • Compact, lightweight body with large switching capacity
  • Bolt mounting
  • High insulation between input and output
  • Built-in C-R snubber
  • Zero-cross switching as standard, random switching on request
  • LED input indicator

Specifications

Peak voltage (non-repetitive) 1,200 V
Leakage current 20 mA max.
Output ON voltage drop 1.6 V (RMS) max.
DC input 3-32 VDC (rated 5-24 VDC), OFF 3 V max., impedance 4 kΩ max., 14 mA max.
AC input 90-264 VAC (rated 100-240 VAC), OFF 50 V max., impedance 40 kΩ max., 14 mA max.
Response time 1/2 cycle + 1 ms max. (R type 1 ms max.)
Insulation resistance 100 MΩ at 500 VDC (input, output, case)
Withstand voltage 2,500 VAC for 1 min
Ambient operating conditions -30 to 80 °C (no condensation), 45-85% RH
Bolt tightening torque Input 0.05 Nm / Output 0.25 Nm
Mounting Bolt mounting
Approvals CE (IEC 60947-4-3), cULus, RoHS2
KACON KSR-N2 Single-phase Solid State Relay - reference 2
KSR-N2D10LZ Control input: 3-32 VDC | Rated load current: 10A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2D20LZ Control input: 3-32 VDC | Rated load current: 20A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 260A | Surge current 50Hz (10 ms): 250A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2D30LZ Control input: 3-32 VDC | Rated load current: 30A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2D40LZ Control input: 3-32 VDC | Rated load current: 40A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2D60LZ Control input: 3-32 VDC | Rated load current: 60A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2D80LZ Control input: 3-32 VDC | Rated load current: 80A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2D10LR Control input: 3-32 VDC | Rated load current: 10A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2D20LR Control input: 3-32 VDC | Rated load current: 20A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 260A | Surge current 50Hz (10 ms): 250A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2D30LR Control input: 3-32 VDC | Rated load current: 30A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2D40LR Control input: 3-32 VDC | Rated load current: 40A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2D60LR Control input: 3-32 VDC | Rated load current: 60A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2D80LR Control input: 3-32 VDC | Rated load current: 80A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2D10HZ Control input: 3-32 VDC | Rated load current: 10A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2D20HZ Control input: 3-32 VDC | Rated load current: 20A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 250A | Surge current 50Hz (10 ms): 240A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2D30HZ Control input: 3-32 VDC | Rated load current: 30A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2D40HZ Control input: 3-32 VDC | Rated load current: 40A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2D60HZ Control input: 3-32 VDC | Rated load current: 60A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2D80HZ Control input: 3-32 VDC | Rated load current: 80A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2D10HR Control input: 3-32 VDC | Rated load current: 10A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2D20HR Control input: 3-32 VDC | Rated load current: 20A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 250A | Surge current 50Hz (10 ms): 240A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2D30HR Control input: 3-32 VDC | Rated load current: 30A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2D40HR Control input: 3-32 VDC | Rated load current: 40A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2D60HR Control input: 3-32 VDC | Rated load current: 60A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2D80HR Control input: 3-32 VDC | Rated load current: 80A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2A10LZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 10A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2A20LZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 20A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 260A | Surge current 50Hz (10 ms): 250A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2A30LZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 30A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2A40LZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 40A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2A60LZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 60A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2A80LZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 80A | Load voltage: 24-250VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2A10LR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 10A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2A20LR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 20A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 260A | Surge current 50Hz (10 ms): 250A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2A30LR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 30A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2A40LR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 40A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 420A | Surge current 50Hz (10 ms): 400A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2A60LR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 60A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2A80LR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 80A | Load voltage: 24-250VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2A10HZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 10A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2A20HZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 20A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 250A | Surge current 50Hz (10 ms): 240A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2A30HZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 30A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2A40HZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 40A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2A60HZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 60A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2A80HZ Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 80A | Load voltage: 24-480VAC 50/60Hz | Switching: Zero-cross | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
KSR-N2A10HR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 10A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 170A | Surge current 50Hz (10 ms): 160A | Required heatsink thermal resistance (40 °C): 2.00 °C/W
KSR-N2A20HR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 20A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 250A | Surge current 50Hz (10 ms): 240A | Required heatsink thermal resistance (40 °C): 1.00 °C/W
KSR-N2A30HR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 30A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.50 °C/W
KSR-N2A40HR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 40A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 370A | Surge current 50Hz (10 ms): 340A | Required heatsink thermal resistance (40 °C): 0.25 °C/W
KSR-N2A60HR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 60A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.30 °C/W
KSR-N2A80HR Control input: 90-264 VAC 50/60Hz (rated 100-240 VAC) | Rated load current: 80A | Load voltage: 24-480VAC 50/60Hz | Switching: Random (custom-made) | Surge current 60Hz (8.3 ms): 525A | Surge current 50Hz (10 ms): 500A | Required heatsink thermal resistance (40 °C): 0.15 °C/W
