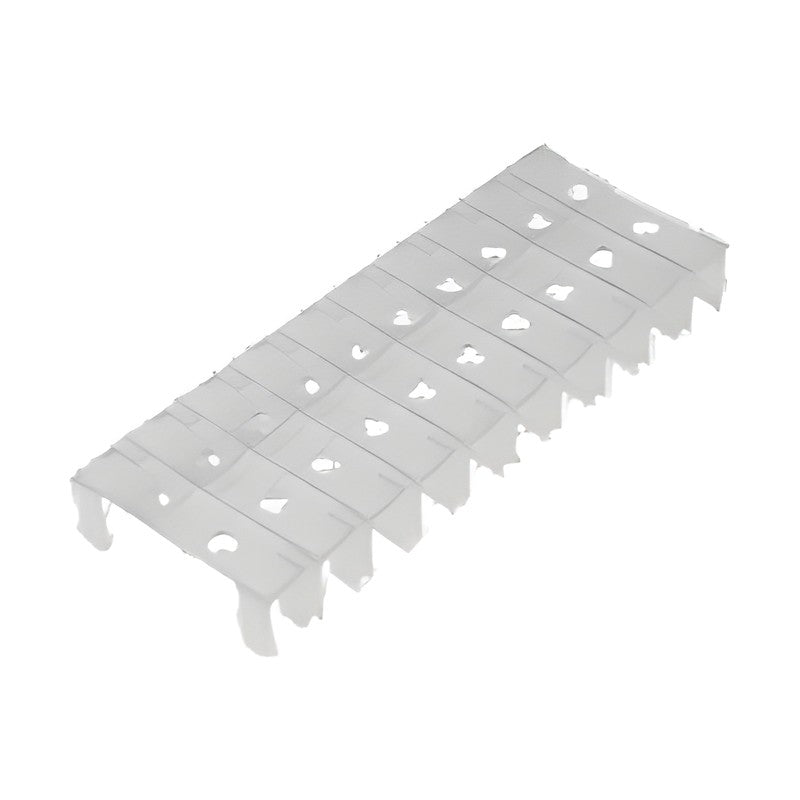

KACON KTB1 C Type Safety Covers
KACON KTB1 C Type Safety Covers
Clear flame-retardant safety covers that snap over KTB1 power distribution blocks (10A to 600A) to prevent contact with live terminals.
Key features
- Transparent PC lets terminals be inspected without removal
- 60A-600A covers include top hole covers
- Can be cut to match the number of poles in use
- Name plate can be fitted inside or outside the cover
Specifications
| Material | Flame-retardant transparent PC (V2), clear |
|---|---|
| Fixing | KTB1-BKT bracket (10A-30A) or KTB1-CAP cap (60A-600A) |
| KTB1-010C | Poles: 10 | For terminal block: KTB1-01003 to KTB1-01010 | Size (A x B x C): 95.0 x 36.5 x 9.5 mm | |
| KTB1-020C | Poles: 10 | For terminal block: KTB1-02003 to KTB1-02020 | Size (A x B x C): 112.0 x 44.5 x 11.5 mm | |
| KTB1-030C | Poles: 10 | For terminal block: KTB1-03003 to KTB1-03010 | Size (A x B x C): 135.0 x 49.0 x 15.5 mm | |
| KTB1-060C | Poles: 4 | For terminal block: KTB1-06003, KTB1-06004 | Top hole cover: yes | |
| KTB1-100C | Poles: 4 | For terminal block: KTB1-10003, KTB1-10004 | Top hole cover: yes | |
| KTB1-150C | Poles: 4 | For terminal block: KTB1-15003, KTB1-15004 | Top hole cover: yes | |
| KTB1-200C | Poles: 4 | For terminal block: KTB1-20003, KTB1-20004 | Top hole cover: yes | |
| KTB1-400C | Poles: 2 | For terminal block: KTB1-30003, KTB1-30004, KTB1-40003, KTB1-40004 | Top hole cover: yes | Size (A x B x C): 110.0 x 144.0 x 31.5 mm | |
| KTB1-600C | Poles: 2 | For terminal block: KTB1-50003, KTB1-50004, KTB1-60003, KTB1-60004 | Top hole cover: yes | Size (A x B x C): 137.0 x 165.0 x 46.0 mm |
Terminal Block AccessoriesKACON
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KTB1 C Type Safety Covers
Available part numbers (9)
KTB1-010C, KTB1-020C, KTB1-030C, KTB1-060C, KTB1-100C, KTB1-150C, KTB1-200C, KTB1-400C, KTB1-600C
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
Terminal Block Accessories
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KTB1-010C | Poles: 10 | For terminal block: KTB1-01003 to KTB1-01010 | Size (A x B x C): 95.0 x 36.5 x 9.5 mm | ||
| KTB1-020C | Poles: 10 | For terminal block: KTB1-02003 to KTB1-02020 | Size (A x B x C): 112.0 x 44.5 x 11.5 mm | ||
| KTB1-030C | Poles: 10 | For terminal block: KTB1-03003 to KTB1-03010 | Size (A x B x C): 135.0 x 49.0 x 15.5 mm | ||
| KTB1-060C | Poles: 4 | For terminal block: KTB1-06003, KTB1-06004 | Top hole cover: yes | ||
| KTB1-100C | Poles: 4 | For terminal block: KTB1-10003, KTB1-10004 | Top hole cover: yes | ||
| KTB1-150C | Poles: 4 | For terminal block: KTB1-15003, KTB1-15004 | Top hole cover: yes | ||
| KTB1-200C | Poles: 4 | For terminal block: KTB1-20003, KTB1-20004 | Top hole cover: yes | ||
| KTB1-400C | Poles: 2 | For terminal block: KTB1-30003, KTB1-30004, KTB1-40003, KTB1-40004 | Top hole cover: yes | Size (A x B x C): 110.0 x 144.0 x 31.5 mm | ||
| KTB1-600C | Poles: 2 | For terminal block: KTB1-50003, KTB1-50004, KTB1-60003, KTB1-60004 | Top hole cover: yes | Size (A x B x C): 137.0 x 165.0 x 46.0 mm |
Need a different model, or a part not listed here? Send us your parts list →
Related products
All Relays & Switches →-

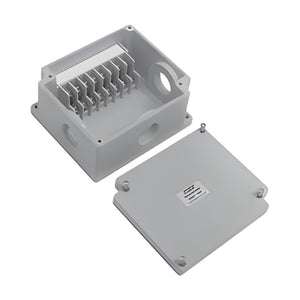

Samwon ACTSamwon ACT BOXTM Series Terminal Box IP655 models -

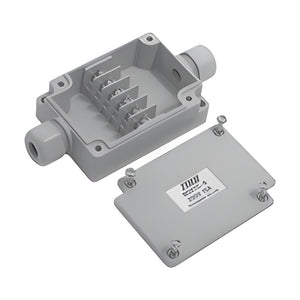

Samwon ACTSamwon ACT BOXTC Series Slim Terminal Box IP654 models -

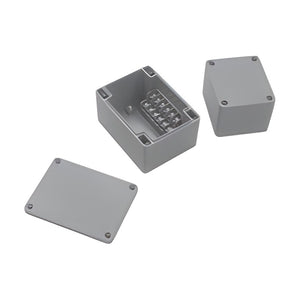

Samwon ACTSamwon ACT JTB-AL Series Aluminum Joint Terminal Box IP659 models -

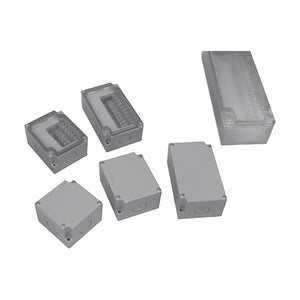

Samwon ACTSamwon ACT JTB Series Plastic Joint Terminal Box IP6514 models -

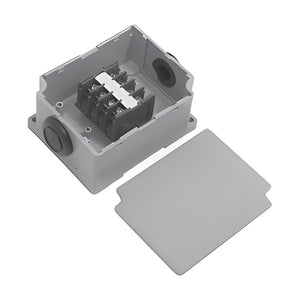

Samwon ACTSamwon ACT BOXTB Series Terminal Box with Detachable Terminal Block2 models -

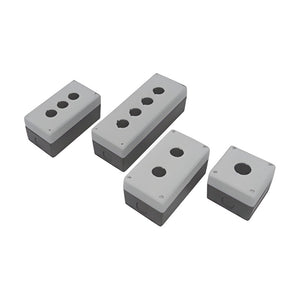

Samwon ACTSamwon ACT SPB Series Plastic Push Button Box36 models
