• KACON KTB1 H Type Hinged Safety Covers
1 1

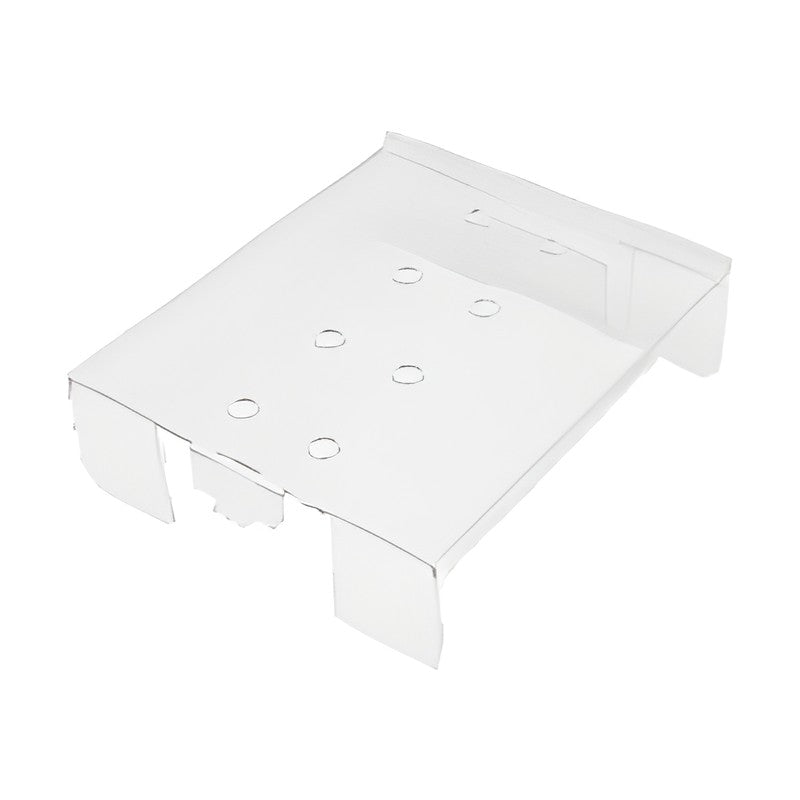

KACON KTB1 H Type Hinged Safety Covers

KACON KTB1 H Type Hinged Safety Covers

Replacement hinged safety covers for KTB1 60A-200A power distribution blocks, in 3-pole and 4-pole sizes.

Key features

  • Hinged clear cover for touch protection and easy access
  • Sized per rating and pole count

Specifications

Material Flame-retardant resin (V2)
KTB1-060A3HC Poles: 3 | For terminal block: KTB1-06003 | Size (A x B x C x D x E): 94.5 x 85.0 x 89.0 x 33.0 x 38.0 mm
KTB1-060A4HC Poles: 4 | For terminal block: KTB1-06004 | Size (A x B x C x D x E): 123.0 x 117.5 x 89.0 x 33.0 x 38.0 mm
KTB1-100A3HC Poles: 3 | For terminal block: KTB1-10003 | Size (A x B x C x D x E): 113.0 x 107.5 x 114.5 x 37.5 x 42.5 mm
KTB1-100A4HC Poles: 4 | For terminal block: KTB1-10004 | Size (A x B x C x D x E): 147.0 x 141.5 x 114.5 x 37.5 x 42.5 mm
KTB1-150A3HC Poles: 3 | For terminal block: KTB1-15003 | Size (A x B x C x D x E): 124.0 x 118.5 x 136.5 x 41.0 x 46.0 mm
KTB1-150A4HC Poles: 4 | For terminal block: KTB1-15004 | Size (A x B x C x D x E): 163.0 x 157.0 x 136.5 x 41.0 x 46.0 mm
KTB1-200A3HC Poles: 3 | For terminal block: KTB1-20003 | Size (A x B x C x D x E): 143.0 x 135.0 x 152.0 x 47.5 x 53.5 mm
KTB1-200A4HC Poles: 4 | For terminal block: KTB1-20004 | Size (A x B x C x D x E): 187.0 x 179.0 x 152.0 x 47.5 x 53.5 mm
Terminal Block AccessoriesKACON
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB1 H Type Hinged Safety Covers

Brand KACON·Terminal Block Accessories

Available part numbers (8)

KTB1-060A3HC, KTB1-060A4HC, KTB1-100A3HC, KTB1-100A4HC, KTB1-150A3HC, KTB1-150A4HC, KTB1-200A3HC, KTB1-200A4HC

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTB1-060A3HCPoles: 3 | For terminal block: KTB1-06003 | Size (A x B x C x D x E): 94.5 x 85.0 x 89.0 x 33.0 x 38.0 mm
KTB1-060A4HCPoles: 4 | For terminal block: KTB1-06004 | Size (A x B x C x D x E): 123.0 x 117.5 x 89.0 x 33.0 x 38.0 mm
KTB1-100A3HCPoles: 3 | For terminal block: KTB1-10003 | Size (A x B x C x D x E): 113.0 x 107.5 x 114.5 x 37.5 x 42.5 mm
KTB1-100A4HCPoles: 4 | For terminal block: KTB1-10004 | Size (A x B x C x D x E): 147.0 x 141.5 x 114.5 x 37.5 x 42.5 mm
KTB1-150A3HCPoles: 3 | For terminal block: KTB1-15003 | Size (A x B x C x D x E): 124.0 x 118.5 x 136.5 x 41.0 x 46.0 mm
KTB1-150A4HCPoles: 4 | For terminal block: KTB1-15004 | Size (A x B x C x D x E): 163.0 x 157.0 x 136.5 x 41.0 x 46.0 mm
KTB1-200A3HCPoles: 3 | For terminal block: KTB1-20003 | Size (A x B x C x D x E): 143.0 x 135.0 x 152.0 x 47.5 x 53.5 mm
KTB1-200A4HCPoles: 4 | For terminal block: KTB1-20004 | Size (A x B x C x D x E): 187.0 x 179.0 x 152.0 x 47.5 x 53.5 mm
