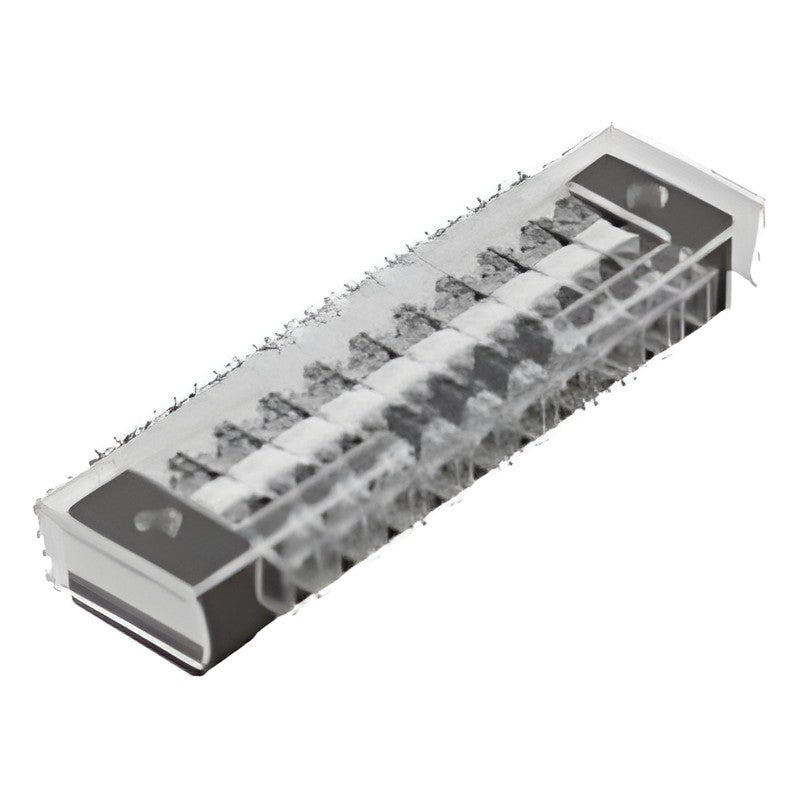

KACON KTB1 Power Distribution Block with C Type Safety Cover, 10A-30A

KACON KTB1 Power Distribution Block with C Type Safety Cover, 10A-30A

Fixed-type power distribution terminal blocks (10A, 20A, 30A; 3 to 20 poles) supplied with a clear snap-on C type safety cover for touch-protected panel wiring.

Key features

  • Transparent safety cover protects live terminals against accidental contact
  • Order code ships as a set: terminal block, safety cover and fixed bracket
  • Terminal block also available alone (code without "-C")
  • Name plate can be used inside or outside the protective cover
  • Brass terminals with M3.0 or M4.0 terminal bolts
  • Rated up to 600VAC

Specifications

Rated voltage Max. 600VAC
Insulation resistance 1,000 MOhm min. (at 500VDC)
Dielectric strength 2,500VAC for 1 minute
Terminal material 1st grade brass
Safety cover material Flame-retardant transparent PC (V2), clear
Name plate PVC (pearl white)
Operating temperature -20 to 60°C
KACON KTB1 Power Distribution Block with C Type Safety Cover, 10A-30A - reference 2
KTB1-01003-C Rated current: 10A | Poles: 3 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01003 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-01004-C Rated current: 10A | Poles: 4 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01004 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-01006-C Rated current: 10A | Poles: 6 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01006 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-01010-C Rated current: 10A | Poles: 10 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01010 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-02003-C Rated current: 20A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02003 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02004-C Rated current: 20A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02004 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02006-C Rated current: 20A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02006 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02010-C Rated current: 20A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02010 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02012-C Rated current: 20A | Poles: 12 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02012 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02015-C Rated current: 20A | Poles: 15 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02015 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02020-C Rated current: 20A | Poles: 20 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02020 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-03003-C Rated current: 30A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03003 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-03004-C Rated current: 30A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03004 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-03006-C Rated current: 30A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03006 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-03010-C Rated current: 30A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03010 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-01003 Rated current: 10A | Poles: 3 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-01004 Rated current: 10A | Poles: 4 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-01006 Rated current: 10A | Poles: 6 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-01010 Rated current: 10A | Poles: 10 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02003 Rated current: 20A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02004 Rated current: 20A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02006 Rated current: 20A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02010 Rated current: 20A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02012 Rated current: 20A | Poles: 12 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02015 Rated current: 20A | Poles: 15 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02020 Rated current: 20A | Poles: 20 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-03003 Rated current: 30A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
KTB1-03004 Rated current: 30A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
KTB1-03006 Rated current: 30A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
KTB1-03010 Rated current: 30A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
Terminal BlocksKACON
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB1 Power Distribution Block with C Type Safety Cover, 10A-30A

Brand KACON·Terminal Blocks

Available part numbers (30)

KTB1-01003-C, KTB1-01004-C, KTB1-01006-C, KTB1-01010-C, KTB1-02003-C, KTB1-02004-C, KTB1-02006-C, KTB1-02010-C, KTB1-02012-C, KTB1-02015-C + 20 more — see full table ↓

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KTB1 Power Distribution Block with C Type Safety Cover, 10A-30A - reference 2
0 selected
RFQ List (0)
Product codeSpec
KTB1-01003-CRated current: 10A | Poles: 3 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01003 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-01004-CRated current: 10A | Poles: 4 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01004 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-01006-CRated current: 10A | Poles: 6 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01006 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-01010-CRated current: 10A | Poles: 10 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-01010 + safety cover KTB1-010C + fixed bracket KTB1-BKT
KTB1-02003-CRated current: 20A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02003 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02004-CRated current: 20A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02004 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02006-CRated current: 20A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02006 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02010-CRated current: 20A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02010 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02012-CRated current: 20A | Poles: 12 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02012 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02015-CRated current: 20A | Poles: 15 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02015 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-02020-CRated current: 20A | Poles: 20 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Set: terminal block KTB1-02020 + safety cover KTB1-020C + fixed bracket KTB1-BKT
KTB1-03003-CRated current: 30A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03003 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-03004-CRated current: 30A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03004 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-03006-CRated current: 30A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03006 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-03010-CRated current: 30A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-03010 + safety cover KTB1-030C + fixed bracket KTB1-BKT
KTB1-01003Rated current: 10A | Poles: 3 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-01004Rated current: 10A | Poles: 4 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-01006Rated current: 10A | Poles: 6 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-01010Rated current: 10A | Poles: 10 | Terminal bolt: M3.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02003Rated current: 20A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02004Rated current: 20A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02006Rated current: 20A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02010Rated current: 20A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02012Rated current: 20A | Poles: 12 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02015Rated current: 20A | Poles: 15 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-02020Rated current: 20A | Poles: 20 | Terminal bolt: M4.0 | Body: Flame-retardant PC (HB), black | Version: terminal block only (without safety cover)
KTB1-03003Rated current: 30A | Poles: 3 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
KTB1-03004Rated current: 30A | Poles: 4 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
KTB1-03006Rated current: 30A | Poles: 6 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
KTB1-03010Rated current: 30A | Poles: 10 | Terminal bolt: M4.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover)
