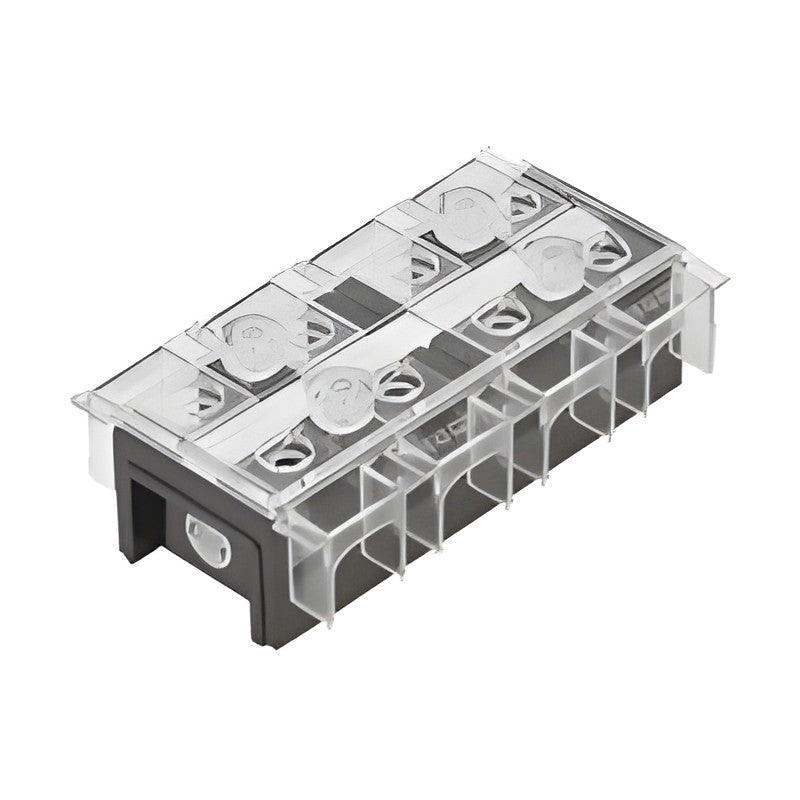

KACON KTB1 Power Distribution Block with C Type Safety Cover, 60A-600A
KACON KTB1 Power Distribution Block with C Type Safety Cover, 60A-600A
High-current fixed-type power distribution terminal blocks (60A to 600A, 3 or 4 poles) supplied with a clear C type safety cover with top hole covers.
Key features
- Clear safety cover with top hole cover for inspection and touch protection
- Order code ships as a set: terminal block, safety cover and fixed cap
- Terminal block also available alone (code without "-C")
- Phenolic resin body with brass terminals, M6.0 to M12.0 terminal bolts
- Rated up to 600VAC
Specifications
| Rated voltage | Max. 600VAC |
|---|---|
| Insulation resistance | 1,000 MOhm min. (at 500VDC) |
| Dielectric strength | 2,500VAC for 1 minute |
| Terminal material | 1st grade brass |
| Safety cover material | Flame-retardant transparent PC (V2), clear |
| Name plate | PVC (pearl white) |
| Operating temperature | -20 to 60°C |
| KTB1-06003-C | Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06003 + safety cover KTB1-060C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-06004-C | Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06004 + safety cover KTB1-060C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-10003-C | Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10003 + safety cover KTB1-100C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-10004-C | Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10004 + safety cover KTB1-100C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-15003-C | Rated current: 150A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15003 + safety cover KTB1-150C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-15004-C | Rated current: 150A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15004 + safety cover KTB1-150C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-20003-C | Rated current: 200A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20003 + safety cover KTB1-200C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-20004-C | Rated current: 200A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20004 + safety cover KTB1-200C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-30003-C | Rated current: 300A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-30003 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-30004-C | Rated current: 300A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-30004 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-40003-C | Rated current: 400A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-40003 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-40004-C | Rated current: 400A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-40004 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-50003-C | Rated current: 500A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-50003 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-50004-C | Rated current: 500A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-50004 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-60003-C | Rated current: 600A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-60003 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-60004-C | Rated current: 600A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-60004 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | |
| KTB1-06003 | Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | |
| KTB1-06004 | Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | |
| KTB1-10003 | Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | |
| KTB1-10004 | Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | |
| KTB1-15003 | Rated current: 150A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-15004 | Rated current: 150A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-20003 | Rated current: 200A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-20004 | Rated current: 200A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-30003 | Rated current: 300A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-30004 | Rated current: 300A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-40003 | Rated current: 400A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-40004 | Rated current: 400A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-50003 | Rated current: 500A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-50004 | Rated current: 500A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-60003 | Rated current: 600A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | |
| KTB1-60004 | Rated current: 600A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) |
Terminal BlocksKACON
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KACON KTB1 Power Distribution Block with C Type Safety Cover, 60A-600A
Available part numbers (32)
KTB1-06003-C, KTB1-06004-C, KTB1-10003-C, KTB1-10004-C, KTB1-15003-C, KTB1-15004-C, KTB1-20003-C, KTB1-20004-C, KTB1-30003-C, KTB1-30004-C + 22 more — see full table ↓
How to order
Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KACON
Terminal Blocks
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| KTB1-06003-C | Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06003 + safety cover KTB1-060C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-06004-C | Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-06004 + safety cover KTB1-060C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-10003-C | Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10003 + safety cover KTB1-100C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-10004-C | Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Set: terminal block KTB1-10004 + safety cover KTB1-100C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-15003-C | Rated current: 150A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15003 + safety cover KTB1-150C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-15004-C | Rated current: 150A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-15004 + safety cover KTB1-150C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-20003-C | Rated current: 200A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20003 + safety cover KTB1-200C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-20004-C | Rated current: 200A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-20004 + safety cover KTB1-200C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-30003-C | Rated current: 300A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-30003 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-30004-C | Rated current: 300A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-30004 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-40003-C | Rated current: 400A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-40003 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-40004-C | Rated current: 400A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-40004 + safety cover KTB1-400C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-50003-C | Rated current: 500A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-50003 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-50004-C | Rated current: 500A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-50004 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-60003-C | Rated current: 600A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-60003 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-60004-C | Rated current: 600A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Set: terminal block KTB1-60004 + safety cover KTB1-600C (with top hole cover) + fixed cap KTB1-CAP | ||
| KTB1-06003 | Rated current: 60A | Poles: 3 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | ||
| KTB1-06004 | Rated current: 60A | Poles: 4 | Terminal bolt: M6.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | ||
| KTB1-10003 | Rated current: 100A | Poles: 3 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | ||
| KTB1-10004 | Rated current: 100A | Poles: 4 | Terminal bolt: M7.0 | Body: Flame-retardant phenolic resin (V0), black | Version: terminal block only (without safety cover) | ||
| KTB1-15003 | Rated current: 150A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-15004 | Rated current: 150A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-20003 | Rated current: 200A | Poles: 3 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-20004 | Rated current: 200A | Poles: 4 | Terminal bolt: M8.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-30003 | Rated current: 300A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-30004 | Rated current: 300A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-40003 | Rated current: 400A | Poles: 3 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-40004 | Rated current: 400A | Poles: 4 | Terminal bolt: M10.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-50003 | Rated current: 500A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-50004 | Rated current: 500A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-60003 | Rated current: 600A | Poles: 3 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) | ||
| KTB1-60004 | Rated current: 600A | Poles: 4 | Terminal bolt: M12.0 | Body: Flame-retardant phenolic resin (HB), black | Version: terminal block only (without safety cover) |
