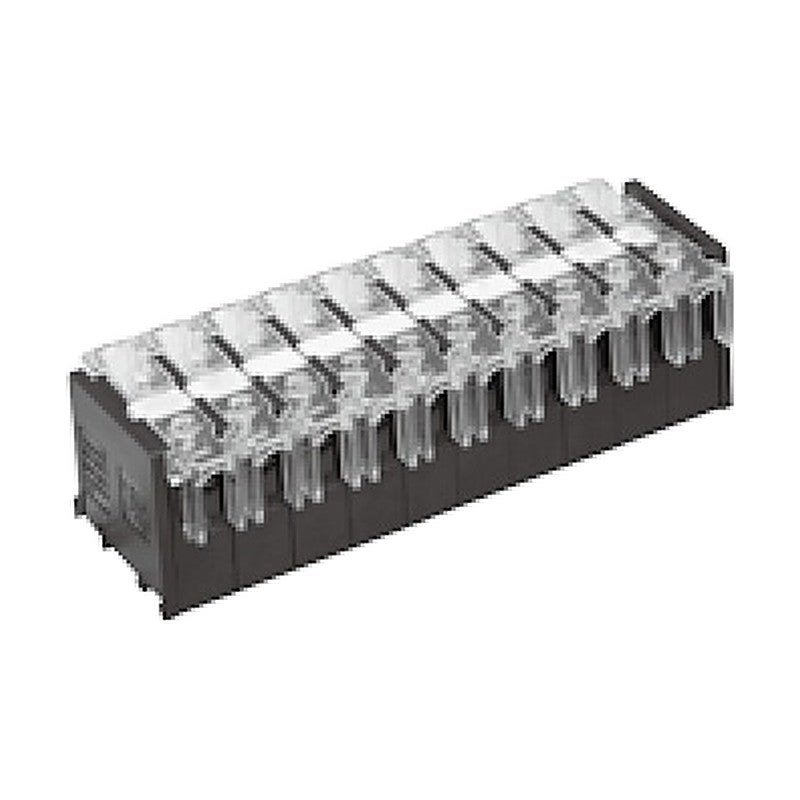

KACON KTB2 Modular Terminal Block with C Type Safety Cover

KACON KTB2 Modular Terminal Block with C Type Safety Cover

Channel-mounted modular terminal blocks from 10A to 100A with a clear C type safety cover for touch-protected control and power wiring.

Key features

  • Modular construction mounted on 15mm or 35mm channel
  • Clear snap-on safety cover sized per rated current
  • Short bars available for jumpering (assemble before the safety cover)
  • Separators, stoppers, covers and name plates available as accessories
  • Rated up to 600VAC

Specifications

Rated voltage Max. 600VAC
Insulation resistance 1,000 MOhm min. (at 500VDC)
Dielectric strength 2,500VAC for 1 minute
Body material Flame-retardant PC (HB)
Safety cover material Flame-retardant transparent PC (V2), clear
Mounting 15mm channel (10A) or 35mm channel (15A-100A)
Operating temperature -20 to 60°C
KTB2-010-C Rated current: 10A | Terminal bolt: M3.0 | Safety cover: KTB2-01010C | Separator: KTB2-A10 | Short bar: KTB2-S1010
KTB2-015-C Rated current: 15A | Terminal bolt: M3.5 | Safety cover: KTB2-01510C | Separator: KTB2-A25 | Short bar: KTB2-S1510
KTB2-025-C Rated current: 25A | Terminal bolt: M4.0 | Safety cover: KTB2-02510C | Separator: KTB2-A25 | Short bar: KTB2-S2510
KTB2-035-C Rated current: 35A | Terminal bolt: M4.0 | Safety cover: KTB2-03510C | Separator: KTB2-A35 | Short bar: KTB2-S3510
KTB2-060-C Rated current: 60A | Terminal bolt: M6.0 | Safety cover: KTB2-06010C | Separator: KTB2-A60
KTB2-100-C Rated current: 100A | Terminal bolt: M6.0 | Safety cover: KTB2-10004C | Separator: KTB2-A100
Terminal BlocksKACON
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB2 Modular Terminal Block with C Type Safety Cover

Brand KACON·Terminal Blocks

Available part numbers (6)

KTB2-010-C, KTB2-015-C, KTB2-025-C, KTB2-035-C, KTB2-060-C, KTB2-100-C

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTB2-010-CRated current: 10A | Terminal bolt: M3.0 | Safety cover: KTB2-01010C | Separator: KTB2-A10 | Short bar: KTB2-S1010
KTB2-015-CRated current: 15A | Terminal bolt: M3.5 | Safety cover: KTB2-01510C | Separator: KTB2-A25 | Short bar: KTB2-S1510
KTB2-025-CRated current: 25A | Terminal bolt: M4.0 | Safety cover: KTB2-02510C | Separator: KTB2-A25 | Short bar: KTB2-S2510
KTB2-035-CRated current: 35A | Terminal bolt: M4.0 | Safety cover: KTB2-03510C | Separator: KTB2-A35 | Short bar: KTB2-S3510
KTB2-060-CRated current: 60A | Terminal bolt: M6.0 | Safety cover: KTB2-06010C | Separator: KTB2-A60
KTB2-100-CRated current: 100A | Terminal bolt: M6.0 | Safety cover: KTB2-10004C | Separator: KTB2-A100
