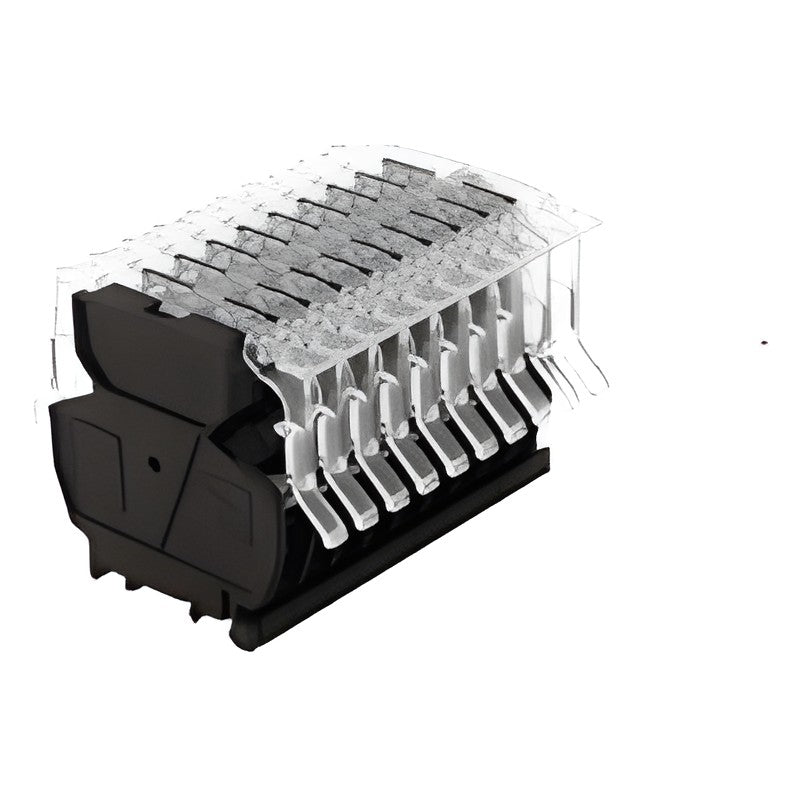

KACON KTB3 Two-Level Modular Terminal Block with C Type Safety Cover

KACON KTB3 Two-Level Modular Terminal Block with C Type Safety Cover

Two-level (double-deck) modular terminal blocks rated 10A and 15A with a clear C type safety cover, saving panel space on channel mounting.

Key features

  • Two-level design doubles wiring density on the same channel length
  • Clear snap-on safety cover against accidental contact
  • Uses KTB2 channels, stoppers, covers and name plates
  • Rated up to 600VAC

Specifications

Rated voltage Max. 600VAC
Insulation resistance 1,000 MOhm min. (at 500VDC)
Dielectric strength 2,500VAC for 1 minute
Body material Flame-retardant PC (HB)
Safety cover material Flame-retardant transparent PC (V2), clear
Mounting 15mm channel (10A) or 35mm channel (15A)
Operating temperature -20 to 60°C
Heat rating Class B, 130°C (KS C IEC 60085)
KTB3-010-C Rated current: 10A | Terminal bolt: M3.0 | Levels: 2 | Safety cover: KTB3-01010C | Separator: KTB3-A10 | Short bar: KTB3-S1010
KTB3-015-C Rated current: 15A | Terminal bolt: M3.5 | Levels: 2 | Safety cover: KTB3-01510C | Separator: KTB3-A15 | Short bar: KTB3-S1510
Terminal BlocksKACON
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTB3 Two-Level Modular Terminal Block with C Type Safety Cover

Brand KACON·Terminal Blocks

Available part numbers (2)

KTB3-010-C, KTB3-015-C

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTB3-010-CRated current: 10A | Terminal bolt: M3.0 | Levels: 2 | Safety cover: KTB3-01010C | Separator: KTB3-A10 | Short bar: KTB3-S1010
KTB3-015-CRated current: 15A | Terminal bolt: M3.5 | Levels: 2 | Safety cover: KTB3-01510C | Separator: KTB3-A15 | Short bar: KTB3-S1510
