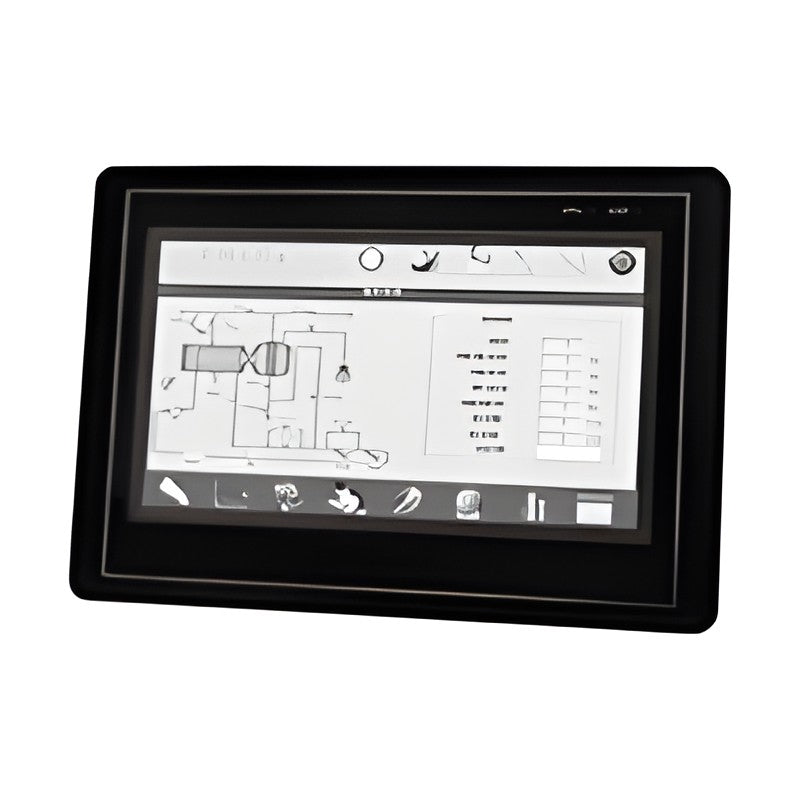

KACON KTS 7 Series Touch Screen HMI

KACON KTS 7 Series Touch Screen HMI

Economical resistive touch screen HMIs from 4.3 to 9.7 inch in ABS+PC housing for machine operator panels.

Key features

  • Drawing data, OS and recipe/log transfer via USB flash drive without a PC
  • Supports 1:1, 1:N serial and N:M Ethernet HMI-PLC configurations
  • Free drawing software with 3D graphics library
  • Broad PLC driver support (Mitsubishi, Siemens, Omron, LS, Delta, Keyence, Modbus and more)

Specifications

Colors 65,536
Rated voltage 24VDC
USB USB host and USB slave
Touch panel Resistive
CPU 32-bit 400MHz RISC
Memory 128MB Flash + 64MB
Material ABS+PC
KTS72043C Display: 4.3" | Resolution: 480 x 272 | Brightness: 300 cd/m² | COM: 2 channels | Interfaces: USB host, USB slave
KTS72070C Display: 7" | Resolution: 800 x 480 | Brightness: 450 cd/m² | COM: 2 channels | Interfaces: SD card, USB host, USB slave
KTS72070i Display: 7" | Resolution: 800 x 480 | Brightness: 450 cd/m² | COM: 4 channels | Interfaces: USB host, USB slave
KTS72070iE Display: 7" | Resolution: 800 x 480 | Brightness: 450 cd/m² | COM: 4 channels | Interfaces: Ethernet, SD card, USB host, USB slave
KTS72097C Display: 9.7" | Resolution: 1024 x 768 | Brightness: 350 cd/m² | COM: 2 channels | Interfaces: USB host, USB slave
KTS72097iE Display: 9.7" | Resolution: 1024 x 768 | Brightness: 350 cd/m² | COM: 4 channels | Interfaces: Ethernet, SD card, USB host, USB slave
HMIsKACON
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KTS 7 Series Touch Screen HMI

Brand KACON·HMIs

Available part numbers (6)

KTS72043C, KTS72070C, KTS72070i, KTS72070iE, KTS72097C, KTS72097iE

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTS72043CDisplay: 4.3" | Resolution: 480 x 272 | Brightness: 300 cd/m² | COM: 2 channels | Interfaces: USB host, USB slave
KTS72070CDisplay: 7" | Resolution: 800 x 480 | Brightness: 450 cd/m² | COM: 2 channels | Interfaces: SD card, USB host, USB slave
KTS72070iDisplay: 7" | Resolution: 800 x 480 | Brightness: 450 cd/m² | COM: 4 channels | Interfaces: USB host, USB slave
KTS72070iEDisplay: 7" | Resolution: 800 x 480 | Brightness: 450 cd/m² | COM: 4 channels | Interfaces: Ethernet, SD card, USB host, USB slave
KTS72097CDisplay: 9.7" | Resolution: 1024 x 768 | Brightness: 350 cd/m² | COM: 2 channels | Interfaces: USB host, USB slave
KTS72097iEDisplay: 9.7" | Resolution: 1024 x 768 | Brightness: 350 cd/m² | COM: 4 channels | Interfaces: Ethernet, SD card, USB host, USB slave
