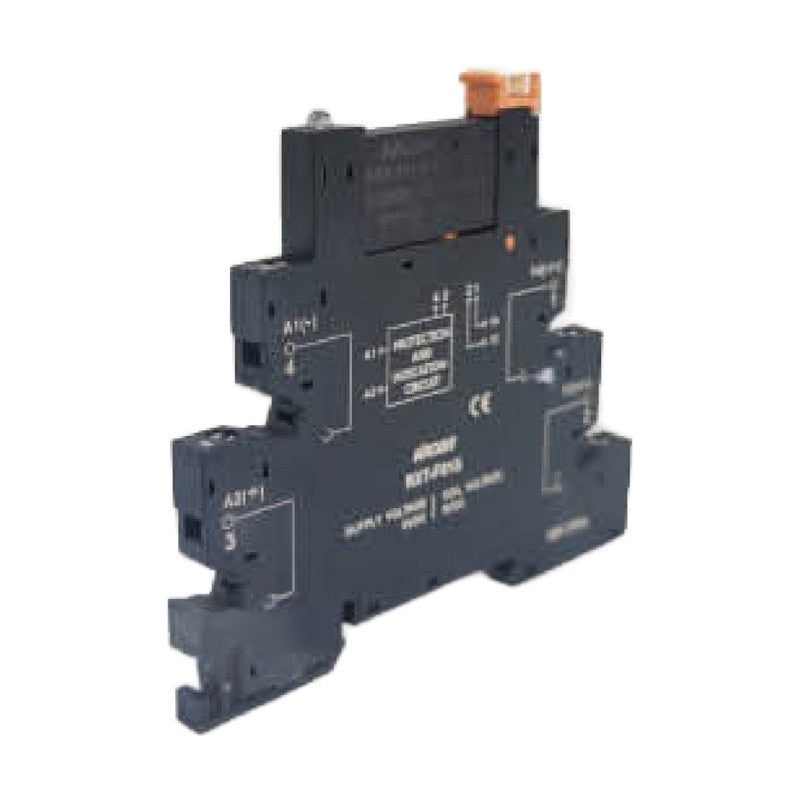

KACON RXT-F01S 6.2 mm Slim SSR Relay Terminal

KACON RXT-F01S 6.2 mm Slim SSR Relay Terminal

6.2 mm wide DIN-rail interface terminal fitted with a plug-in solid state relay for 24 VDC controlled switching of AC or DC loads up to 2A.

Key features

  • Solid state relay: no arcing, chattering or bounce
  • Zero-cross function on AC versions suppresses transient and inrush currents
  • Channel/DIN-rail mounting
  • LED operation indicator
  • Relay replaceable with lever

Specifications

Coil rated voltage 24 VDC (operate 3 VDC, release 1.2 VDC max.)
Coil power consumption 170 mW
Surge voltage 6,000 V
Withstand voltage 4,000 VAC for 1 min
Wire stripping length 10 mm
Suitable wire AWG 21-14 (0.5-2.5 mm²)
Case / conductive plate PA6 / phosphor copper
Ambient operating temperature -40 to 70 °C (no condensation)
Dimensions 96 x 6.2 mm (W x D)
RXT-F01S-L-02 Load: 24-240VAC, 2A | Relay: KSR-F01-L-02 | Points: 1 (1a) | Coil voltage: 24VDC
RXT-F01S-H-02 Load: 24-440VAC, 2A | Relay: KSR-F01-H-02 | Points: 1 (1a) | Coil voltage: 24VDC
RXT-F01S-D6-02 Load: 5-60VDC, 2A | Relay: KSR-F01-D6-02 | Points: 1 (1a) | Coil voltage: 24VDC
Solid State RelaysKACON
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON RXT-F01S 6.2 mm Slim SSR Relay Terminal

Brand KACON·Solid State Relays

Available part numbers (3)

RXT-F01S-L-02, RXT-F01S-H-02, RXT-F01S-D6-02

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RXT-F01S-L-02Load: 24-240VAC, 2A | Relay: KSR-F01-L-02 | Points: 1 (1a) | Coil voltage: 24VDC
RXT-F01S-H-02Load: 24-440VAC, 2A | Relay: KSR-F01-H-02 | Points: 1 (1a) | Coil voltage: 24VDC
RXT-F01S-D6-02Load: 5-60VDC, 2A | Relay: KSR-F01-D6-02 | Points: 1 (1a) | Coil voltage: 24VDC
