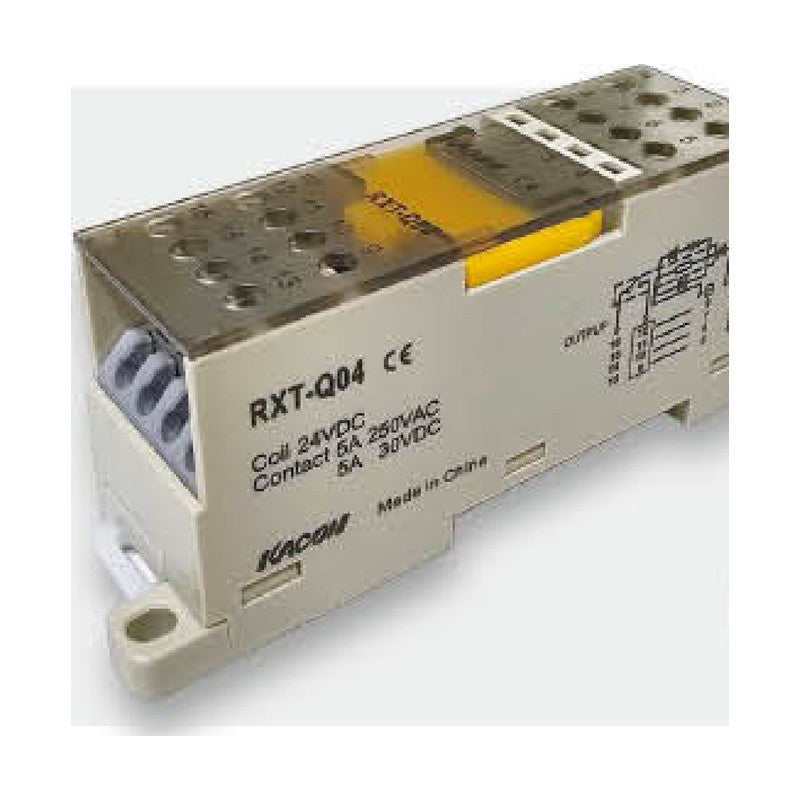

KACON RXT-Q04K-DD-03 4-point PhotoMOS Relay Terminal for DC Loads (Slim)

KACON RXT-Q04K-DD-03 4-point PhotoMOS Relay Terminal for DC Loads (Slim)

Slim 24 mm four-channel relay terminal with plug-in PhotoMOS relays for switching DC loads up to 2.7A at 60V from 5-24 VDC signals.

Key features

  • Plug-in Panasonic AQZ202D PhotoMOS relays for power loads
  • Wide 5-24 VDC input for 5V, 12V and 24V systems
  • LED indicator per channel
  • Relays replaceable with the socket installed
  • Slim 24 mm thickness (8 mm narrower than bolt type)

Specifications

Relay Panasonic AQZ202D PhotoMOS
Input operate voltage 1.4 V typ., 4 V max.
Output load voltage 60 V peak AC (48 V max. recommended)
Continuous load current 2.7A (peak AC); peak 9.0A
Contact load capacity CE 60V 2.7A / UL 24VDC 2.0A
Turn-on / turn-off time 5.8 ms typ. (10 ms max.) / 3.0 ms typ.
I/O isolation voltage 2,500 VAC
Wire / terminal screw AWG 22-16 (1.5 mm² max.), M3x6L, 0.68-0.78 N·m
Case / base Modified PO / epoxy 1.6t
Ambient operating temperature -10 to 50 °C (no condensation)
Terminals Screw terminals, 7.62 mm pitch
RXT-Q04K-DD-03 Points: 4 (1a x 4) | Input voltage: 5-24VDC | Output: 2.7A 60VDC | Relay: Panasonic AQZ202D | Common: individual coil and contact commons with built-in 4P short bars | Terminal: screw, 7.62 mm pitch | Size: 32.0 x 71.0 mm (W x D) | Mounting: screw or DIN rail (channel) | Approval: CE
