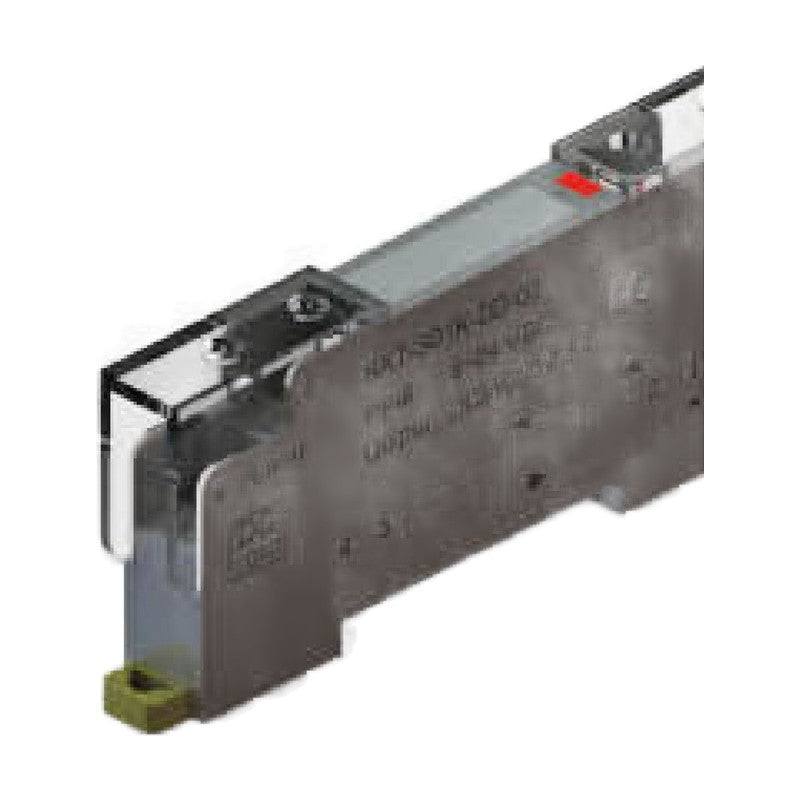

KACON RXT-S01-A2-02 Single-point SSR Terminal for AC Loads 2A

KACON RXT-S01-A2-02 Single-point SSR Terminal for AC Loads 2A

Single-channel 10 mm wide solid state relay terminal with DC input for contactless zero-cross switching of AC loads up to 2A.

Key features

  • Contactless SSR: no arcing, chattering or bounce, long service life
  • DC 5V, 12V and 24V input versions
  • Full photocoupler isolation between input and output
  • Zero-cross function suppresses transient and inrush currents, suitable for inductive loads

Specifications

Relay Panasonic AQ-G series SSR
Load voltage 75-264 VAC, 45-65 Hz
Max. load current 2A AC (25 °C)
Non-repetitive surge current 30A (one cycle at 60 Hz)
OFF-state leakage current 1.5 mA max. (60 Hz / 200 VAC)
ON-state voltage drop 1.6 V (at max. carrying current)
Min. load current 20 mA
Operate / release time 1/2 cycle of supply voltage + 1 ms max.
Breakdown voltage 3,000 Vrms for 1 min (input-output)
Terminals Screw terminal block, M3x6L, AWG 22-16
Ambient operating temperature -10 to 50 °C (no condensation)
RXT-S01-D5A2-02 Points: 1 (1a) | Input voltage: 5VDC | Relay: Panasonic AQG22105 | Input range: 4-6 VDC | Input impedance: approx. 0.3 kΩ | Output: 2A AC, 75-264VAC | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel)
RXT-S01-D2A2-02 Points: 1 (1a) | Input voltage: 12VDC | Relay: Panasonic AQG22112 | Input range: 9.6-14.4 VDC | Input impedance: approx. 0.8 kΩ | Output: 2A AC, 75-264VAC | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel)
RXT-S01-D4A2-02 Points: 1 (1a) | Input voltage: 24VDC | Relay: Panasonic AQG22124 | Input range: 19.2-28.8 VDC | Input impedance: approx. 1.6 kΩ | Output: 2A AC, 75-264VAC | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel)
Solid State RelaysKACON
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON RXT-S01-A2-02 Single-point SSR Terminal for AC Loads 2A

Brand KACON·Solid State Relays

Available part numbers (3)

RXT-S01-D5A2-02, RXT-S01-D2A2-02, RXT-S01-D4A2-02

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RXT-S01-D5A2-02Points: 1 (1a) | Input voltage: 5VDC | Relay: Panasonic AQG22105 | Input range: 4-6 VDC | Input impedance: approx. 0.3 kΩ | Output: 2A AC, 75-264VAC | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel)
RXT-S01-D2A2-02Points: 1 (1a) | Input voltage: 12VDC | Relay: Panasonic AQG22112 | Input range: 9.6-14.4 VDC | Input impedance: approx. 0.8 kΩ | Output: 2A AC, 75-264VAC | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel)
RXT-S01-D4A2-02Points: 1 (1a) | Input voltage: 24VDC | Relay: Panasonic AQG22124 | Input range: 19.2-28.8 VDC | Input impedance: approx. 1.6 kΩ | Output: 2A AC, 75-264VAC | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel)
