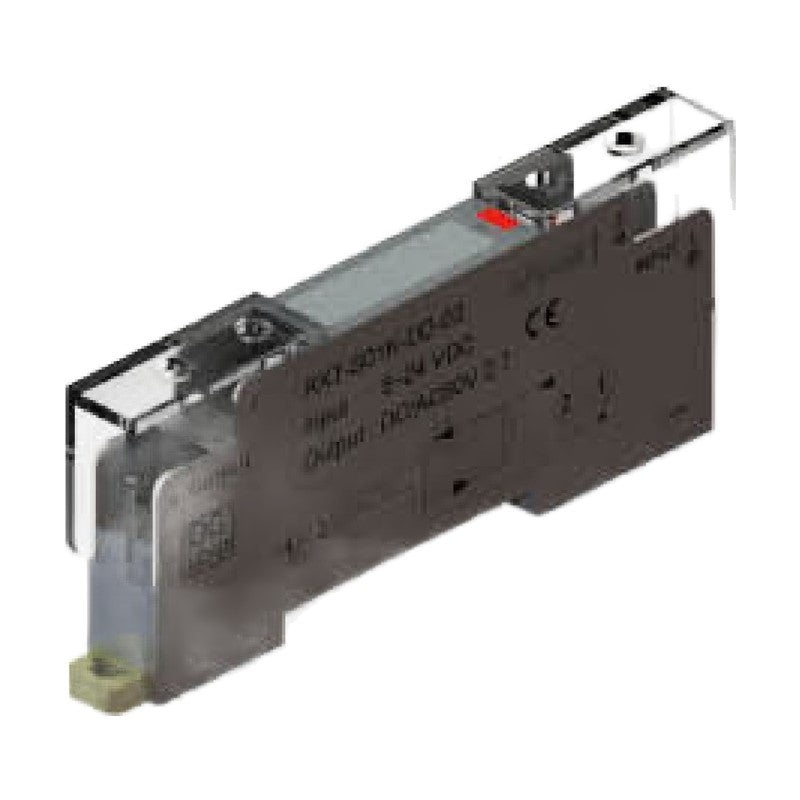

KACON RXT-S01K-DD-03 Single-point PhotoMOS Relay Terminal 2.7A

KACON RXT-S01K-DD-03 Single-point PhotoMOS Relay Terminal 2.7A

Single-channel 10 mm wide PhotoMOS relay terminal for high-reliability, fast-response switching of DC loads up to 2.7A at 60V from 5-24 VDC signals.

Key features

  • Panasonic AQZ202D PhotoMOS relay for power loads
  • Wide 5-24 VDC input
  • LED operation indicator
  • Mounts easily on channel/DIN rail
  • Built-in common bar for easy wiring
  • Integrated nameplate and safety protection cover

Specifications

Relay Panasonic AQZ202D PhotoMOS
Input operate voltage 1.4 V typ., 4 V max.
Output load voltage 60 V peak AC (48 V max. recommended)
Continuous load current 2.7A (peak AC); peak 9.0A
Contact load capacity CE 60V 2.7A / UL 24VDC 2.0A
Turn-on / turn-off time 5.8 ms typ. (10 ms max.) / 3.0 ms typ.
I/O isolation voltage 2,500 VAC
Wire / terminal screw AWG 22-16 (1.5 mm² max.), M3x6L, 0.68-0.78 N·m
Case / base Modified PO / epoxy 1.6t
Ambient operating temperature -10 to 50 °C (no condensation)
Terminals Screw terminal block, M3 screws
RXT-S01K-DD-03 Points: 1 (1a) | Input voltage: 5-24VDC | Output: 2.7A 60VDC | Relay: Panasonic AQZ202D | Terminal: screw terminal block, M3 | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel) | Approval: CE
Solid State RelaysKACON
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON RXT-S01K-DD-03 Single-point PhotoMOS Relay Terminal 2.7A

Brand KACON·Solid State Relays

Available part numbers (1)

RXT-S01K-DD-03

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RXT-S01K-DD-03Points: 1 (1a) | Input voltage: 5-24VDC | Output: 2.7A 60VDC | Relay: Panasonic AQZ202D | Terminal: screw terminal block, M3 | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel) | Approval: CE
