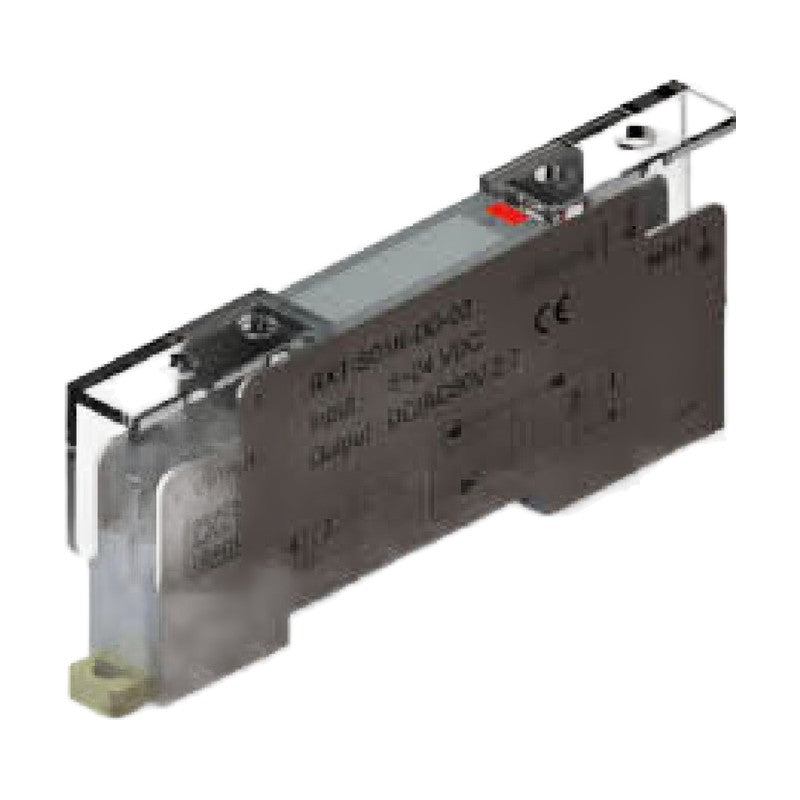

KACON RXT-S01K-DD-05 Single-point PhotoMOS Relay Terminal 5A

KACON RXT-S01K-DD-05 Single-point PhotoMOS Relay Terminal 5A

Single-channel 10 mm wide PhotoMOS relay terminal for high-speed switching of DC loads up to 5A at 60V from a 24 VDC signal.

Key features

  • Panasonic AQZ202G PhotoMOS relay for power loads
  • LED operation indicator
  • Mounts easily on channel/DIN rail
  • Built-in common bar for easy wiring
  • Integrated nameplate and safety protection cover

Specifications

Relay Panasonic AQZ202G PhotoMOS
LED forward current 50 mA
Peak forward current 1 A
Output load voltage 60 V peak AC
Continuous load current 6.0A (peak AC); peak 12.0A
Output load capacity 60V 5A
Terminals Screw terminal block, M3 screws
Wire / terminal screw AWG 22-16 (1.5 mm² max.), M3x6L, 0.68-0.78 N·m
Ambient operating temperature -10 to 50 °C (no condensation)
RXT-S01K-DD-05 Points: 1 (1a) | Input voltage: 24VDC | Output: 5.0A 60V | Relay: Panasonic AQZ202G | Terminal: screw terminal block, M3 | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel) | Approval: CE
Solid State RelaysKACON
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON RXT-S01K-DD-05 Single-point PhotoMOS Relay Terminal 5A

Brand KACON·Solid State Relays

Available part numbers (1)

RXT-S01K-DD-05

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RXT-S01K-DD-05Points: 1 (1a) | Input voltage: 24VDC | Output: 5.0A 60V | Relay: Panasonic AQZ202G | Terminal: screw terminal block, M3 | Size: 10.0 x 67.0 mm (W x D) | Mounting: DIN rail (channel) | Approval: CE
