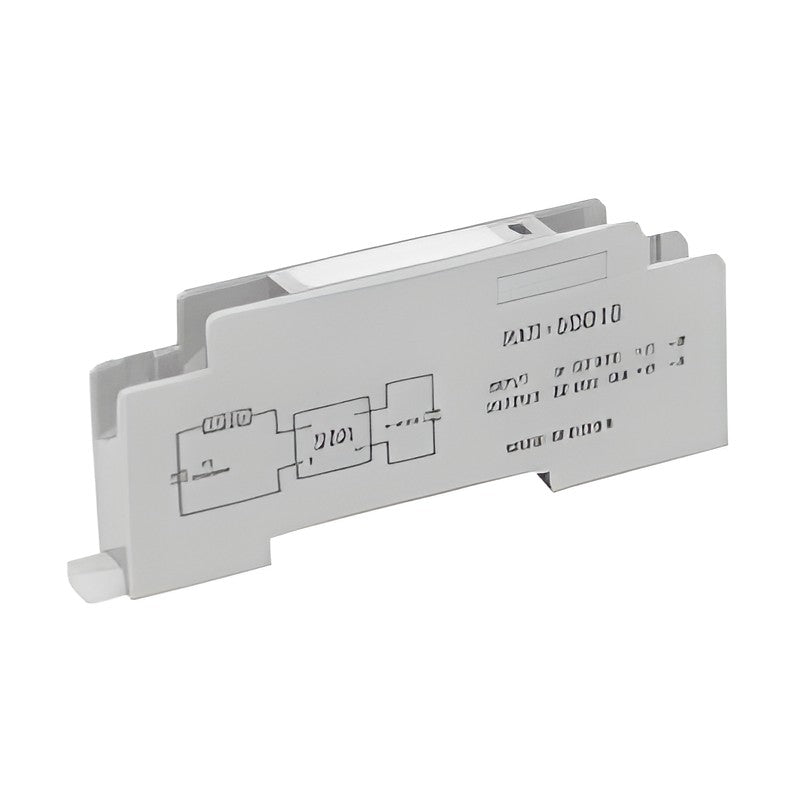

KACON RXT-SDD10 SSR Interface Terminal, 5-30VDC Load, 10A

Slim DIN-rail solid state relay interface terminal switching DC loads up to 10A at 5-30VDC from a 4-32VDC control signal.

Key features

Contactless DC output for 5-30VDC loads up to 10A
Wide 4-32VDC control input, approx. 10mA input current
Slim 10 mm DIN-rail housing
2,500VAC dielectric strength
CE marked

Specifications

Control voltage	4-32VDC (rated 30VDC)
Input current	10 ± 3mA
Load voltage	5-30VDC (peak 32VDC)
Load current	10A
Insulation resistance	100MΩ (500VDC)
Dielectric strength	2,500VAC 50/60Hz, 1 min
Vibration resistance	10-55-10Hz, 0.35mm amplitude (durable 0.7mm)
Shock resistance	294m/s²
Ambient temperature	-30 to +80°C (storage -30 to +100°C), 45-85% RH
Size	10 x 81.3 x 32 mm
Wiring	Y type (1.25-3Y) or O type (1.25-3O) terminals

RXT-SDD10

Type: SSR | Control voltage: 4-32VDC | Load voltage: 5-30VDC | Load current: 10A

Relay Interface TerminalsKACON

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON RXT-SDD10 SSR Interface Terminal, 5-30VDC Load, 10A

Brand KACON·Relay Interface Terminals

Available part numbers (1)

RXT-SDD10

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
