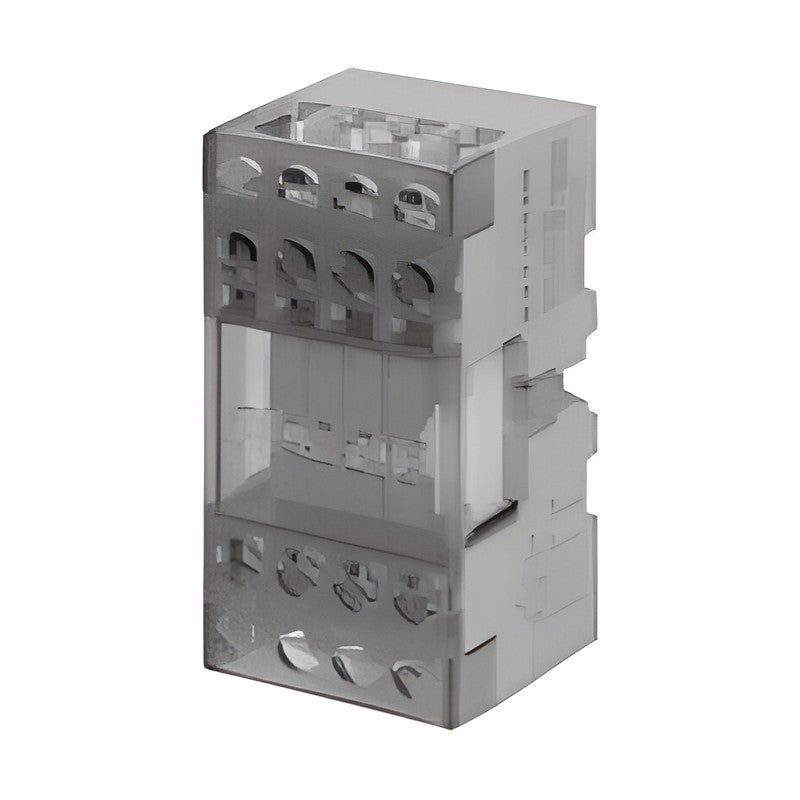

KACON RXT Series 4-Channel Relay Interface Terminals

KACON RXT Series 4-Channel Relay Interface Terminals

DIN-rail interface terminals with four plug-in relays for converting PLC or controller outputs into isolated relay contacts.

Key features

  • Four relay outputs in one compact DIN-rail module
  • Choice of KACON TA-1a, Panasonic APAN3124 / ALQ324 or Hankuk HR96A relays
  • Separate power side and output contact side terminals
  • Per-channel operation LED
  • RXT-T04 relays separate with one touch using the release lever

Specifications

Mounting DIN rail
Channels 4
Coil voltage 24VDC
Certification cULus (relay)
KACON RXT Series 4-Channel Relay Interface Terminals - reference 2
RXT-G04 Relay: TA-1a (KACON) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Size: 33 x 67 x 32 mm
RXT-G04N Relay: APAN3124 (Panasonic/NAIS) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Size: 33 x 67 x 32 mm
RXT-T04 Relay: APAN3124 (Panasonic/NAIS) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Feature: one-touch relay separation lever | Size: 75.8 x 33 x 35.9 mm
RXT-K04H Relay: HR96A (Hankuk Relay) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Size: 44 x 77.5 x 31.8 mm max.
RXT-K04 Relay: ALQ324-24V (Panasonic) | Rating: 10A 125VAC | Channels: 4 | Size: 44 x 77.5 x 31.8 mm max.
Relay Interface TerminalsKACON
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON RXT Series 4-Channel Relay Interface Terminals

Brand KACON·Relay Interface Terminals

Available part numbers (5)

RXT-G04, RXT-G04N, RXT-T04, RXT-K04H, RXT-K04

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON RXT Series 4-Channel Relay Interface Terminals - reference 2
0 selected
RFQ List (0)
Product codeSpec
RXT-G04Relay: TA-1a (KACON) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Size: 33 x 67 x 32 mm
RXT-G04NRelay: APAN3124 (Panasonic/NAIS) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Size: 33 x 67 x 32 mm
RXT-T04Relay: APAN3124 (Panasonic/NAIS) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Feature: one-touch relay separation lever | Size: 75.8 x 33 x 35.9 mm
RXT-K04HRelay: HR96A (Hankuk Relay) | Rating: 5A 250VAC, 5A 30VDC | Channels: 4 | Size: 44 x 77.5 x 31.8 mm max.
RXT-K04Relay: ALQ324-24V (Panasonic) | Rating: 10A 125VAC | Channels: 4 | Size: 44 x 77.5 x 31.8 mm max.
