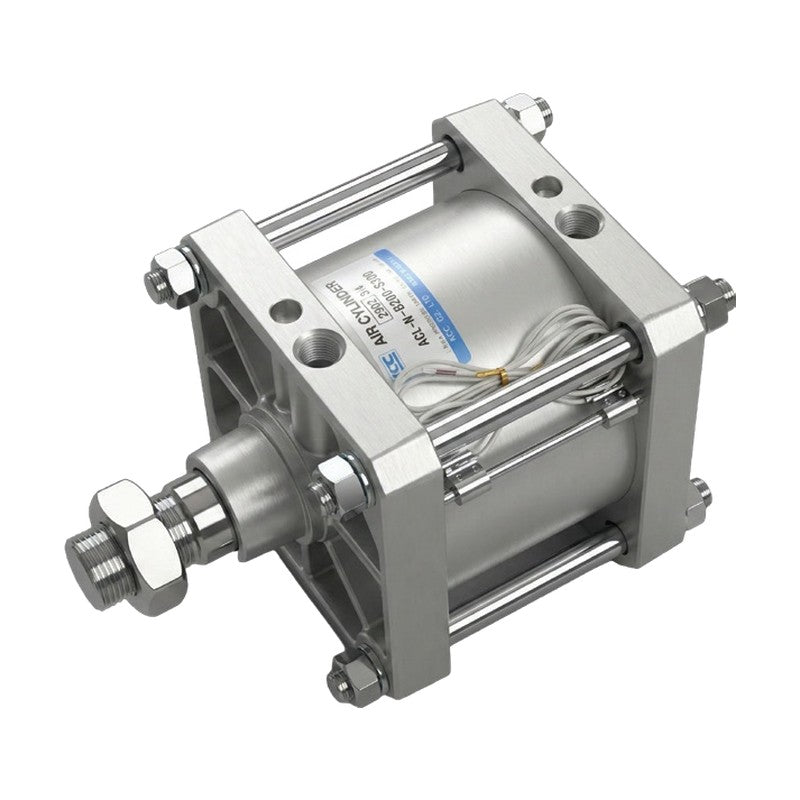

KCC ACLW Large-Bore Cylinder (Double Rod, Ø125-300)

KCC ACLW Large-Bore Cylinder (Double Rod, Ø125-300)

KCC ACLW series double-rod large-bore tie-rod cylinder, bore 125 to 300 mm, with optional built-in magnet.

Key features

  • SIL2 certified (IEC 61508); durable large-bore design with a wide choice of mountings
  • Lightweight aluminium covers, tube and piston with improved cushioning (aluminium type)
  • Built-in magnet option H (Ø125-300) for auto switch mounting; not available with iron tube
  • Mountings in code: B, LB, FA, TC, TA (double rod)
  • Iron tube (F) / iron cover (FC), low-hydraulic (L/G) and low-friction (Q) types, bellows, knuckle joints, auto switches and TS/TW/TD/ASJ/BSJ/SV/LT/SS/MS specials on order

Specifications

Action Double acting
Fluid Air
Operating pressure 0.05 to 0.97 MPa
Proof pressure 1.6 MPa
Ambient and fluid temperature 5 to 60°C
Piston speed 50 to 500 mm/s
Cushion Air cushion
Lubrication Non-lube (N, standard)
Tube / cover Aluminium (Ø300 iron cover std.)
Max. stroke 2950 mm (Ø125-160), 1200 mm (Ø180-300)
Rod Double rod
Source KCC catalog ACL.pdf, p. 1-2
ACLW-N-B125-S25 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-B125-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-B125-S75 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-B125-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-B125-S125 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-B125-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-B125-S175 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-B125-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-B125-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-B125-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-B125-S350 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-B125-S400 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-B125-S450 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-B125-S500 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-LB125-S25 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-LB125-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-LB125-S75 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-LB125-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-LB125-S125 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-LB125-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-LB125-S175 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-LB125-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-LB125-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-LB125-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-LB125-S350 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-LB125-S400 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-LB125-S450 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-LB125-S500 Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-FA125-S25 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-FA125-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-FA125-S75 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-FA125-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-FA125-S125 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-FA125-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-FA125-S175 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-FA125-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-FA125-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-FA125-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-FA125-S350 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-FA125-S400 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-FA125-S450 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-FA125-S500 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-TC125-S25 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-TC125-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-TC125-S75 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-TC125-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-TC125-S125 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-TC125-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-TC125-S175 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-TC125-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-TC125-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-TC125-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-TC125-S350 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-TC125-S400 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-TC125-S450 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-TC125-S500 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-TA125-S25 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-TA125-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-TA125-S75 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-TA125-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-TA125-S125 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-TA125-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-TA125-S175 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-TA125-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-TA125-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-TA125-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-TA125-S350 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-TA125-S400 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-TA125-S450 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-TA125-S500 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-B125-S25 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-B125-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-B125-S75 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-B125-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-B125-S125 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-B125-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-B125-S175 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-B125-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-B125-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-B125-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-B125-S350 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-B125-S400 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-B125-S450 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-B125-S500 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-LB125-S25 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-LB125-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-LB125-S75 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-LB125-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-LB125-S125 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-LB125-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-LB125-S175 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-LB125-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-LB125-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-LB125-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-LB125-S350 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-LB125-S400 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-LB125-S450 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-LB125-S500 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-FA125-S25 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-FA125-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-FA125-S75 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-FA125-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-FA125-S125 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-FA125-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-FA125-S175 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-FA125-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-FA125-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-FA125-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-FA125-S350 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-FA125-S400 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-FA125-S450 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-FA125-S500 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-TC125-S25 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-TC125-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-TC125-S75 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-TC125-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-TC125-S125 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-TC125-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-TC125-S175 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-TC125-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-TC125-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-TC125-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-TC125-S350 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-TC125-S400 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-TC125-S450 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-TC125-S500 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-TA125-S25 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-TA125-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-TA125-S75 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-TA125-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-TA125-S125 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-TA125-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-TA125-S175 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-TA125-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-TA125-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-TA125-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-TA125-S350 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-TA125-S400 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-TA125-S450 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-TA125-S500 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-B140-S25 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-B140-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-B140-S75 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-B140-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-B140-S125 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-B140-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-B140-S175 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-B140-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-B140-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-B140-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-LB140-S25 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-LB140-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-LB140-S75 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-LB140-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-LB140-S125 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-LB140-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-LB140-S175 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-LB140-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-LB140-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-LB140-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-FA140-S25 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-FA140-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-FA140-S75 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-FA140-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-FA140-S125 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-FA140-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-FA140-S175 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-FA140-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-FA140-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-FA140-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-TC140-S25 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-TC140-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-TC140-S75 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-TC140-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-TC140-S125 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-TC140-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-TC140-S175 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-TC140-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-TC140-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-TC140-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-TA140-S25 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-TA140-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-TA140-S75 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-TA140-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-TA140-S125 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-TA140-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-TA140-S175 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-TA140-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-TA140-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-TA140-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-B140-S25 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-B140-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-B140-S75 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-B140-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-B140-S125 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-B140-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-B140-S175 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-B140-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-B140-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-B140-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-LB140-S25 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-LB140-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-LB140-S75 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-LB140-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-LB140-S125 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-LB140-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-LB140-S175 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-LB140-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-LB140-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-LB140-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-FA140-S25 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-FA140-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-FA140-S75 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-FA140-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-FA140-S125 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-FA140-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-FA140-S175 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-FA140-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-FA140-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-FA140-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-TC140-S25 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-TC140-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-TC140-S75 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-TC140-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-TC140-S125 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-TC140-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-TC140-S175 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-TC140-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-TC140-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-TC140-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-TA140-S25 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-TA140-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-TA140-S75 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-TA140-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-TA140-S125 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-TA140-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-TA140-S175 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-TA140-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-TA140-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-TA140-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-B150-S25 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-B150-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-B150-S75 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-B150-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-B150-S125 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-B150-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-B150-S175 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-B150-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-B150-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-B150-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-B150-S350 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-B150-S400 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-B150-S450 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-B150-S500 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-LB150-S25 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-LB150-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-LB150-S75 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-LB150-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-LB150-S125 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-LB150-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-LB150-S175 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-LB150-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-LB150-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-LB150-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-LB150-S350 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-LB150-S400 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-LB150-S450 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-LB150-S500 Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-FA150-S25 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-FA150-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-FA150-S75 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-FA150-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-FA150-S125 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-FA150-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-FA150-S175 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-FA150-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-FA150-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-FA150-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-FA150-S350 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-FA150-S400 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-FA150-S450 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-FA150-S500 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-TC150-S25 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-TC150-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-TC150-S75 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-TC150-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-TC150-S125 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-TC150-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-TC150-S175 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-TC150-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-TC150-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-TC150-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-TC150-S350 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-TC150-S400 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-TC150-S450 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-TC150-S500 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-TA150-S25 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-TA150-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-TA150-S75 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-TA150-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-TA150-S125 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-TA150-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-TA150-S175 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-TA150-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-TA150-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-TA150-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-TA150-S350 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-TA150-S400 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-TA150-S450 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-TA150-S500 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-B150-S25 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-B150-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-B150-S75 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-B150-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-B150-S125 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-B150-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-B150-S175 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-B150-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-B150-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-B150-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-B150-S350 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-B150-S400 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-B150-S450 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-B150-S500 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-LB150-S25 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-LB150-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-LB150-S75 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-LB150-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-LB150-S125 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-LB150-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-LB150-S175 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-LB150-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-LB150-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-LB150-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-LB150-S350 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-LB150-S400 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-LB150-S450 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-LB150-S500 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-FA150-S25 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-FA150-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-FA150-S75 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-FA150-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-FA150-S125 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-FA150-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-FA150-S175 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-FA150-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-FA150-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-FA150-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-FA150-S350 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-FA150-S400 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-FA150-S450 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-FA150-S500 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-TC150-S25 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-TC150-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-TC150-S75 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-TC150-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-TC150-S125 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-TC150-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-TC150-S175 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-TC150-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-TC150-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-TC150-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-TC150-S350 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-TC150-S400 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-TC150-S450 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-TC150-S500 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-TA150-S25 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-TA150-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-TA150-S75 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-TA150-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-TA150-S125 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-TA150-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-TA150-S175 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-TA150-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-TA150-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-TA150-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-TA150-S350 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-TA150-S400 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-TA150-S450 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-TA150-S500 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-B160-S25 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-B160-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-B160-S75 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-B160-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-B160-S125 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-B160-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-B160-S175 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-B160-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-B160-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-B160-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-LB160-S25 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-LB160-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-LB160-S75 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-LB160-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-LB160-S125 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-LB160-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-LB160-S175 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-LB160-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-LB160-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-LB160-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-FA160-S25 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-FA160-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-FA160-S75 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-FA160-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-FA160-S125 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-FA160-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-FA160-S175 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-FA160-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-FA160-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-FA160-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-TC160-S25 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-TC160-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-TC160-S75 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-TC160-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-TC160-S125 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-TC160-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-TC160-S175 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-TC160-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-TC160-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-TC160-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-TA160-S25 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-TA160-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-TA160-S75 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-TA160-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-TA160-S125 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-TA160-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-TA160-S175 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-TA160-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-TA160-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-TA160-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-B160-S25 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-B160-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-B160-S75 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-B160-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-B160-S125 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-B160-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-B160-S175 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-B160-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-B160-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-B160-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-LB160-S25 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-LB160-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-LB160-S75 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-LB160-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-LB160-S125 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-LB160-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-LB160-S175 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-LB160-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-LB160-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-LB160-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-FA160-S25 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-FA160-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-FA160-S75 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-FA160-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-FA160-S125 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-FA160-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-FA160-S175 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-FA160-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-FA160-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-FA160-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-TC160-S25 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-TC160-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-TC160-S75 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-TC160-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-TC160-S125 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-TC160-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-TC160-S175 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-TC160-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-TC160-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-TC160-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-TA160-S25 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-TA160-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-TA160-S75 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-TA160-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-TA160-S125 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-TA160-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-TA160-S175 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-TA160-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-TA160-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-TA160-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-B180-S25 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-B180-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-B180-S75 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-B180-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-B180-S125 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-B180-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-B180-S175 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-B180-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-B180-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-B180-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-LB180-S25 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-LB180-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-LB180-S75 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-LB180-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-LB180-S125 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-LB180-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-LB180-S175 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-LB180-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-LB180-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-LB180-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-FA180-S25 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-FA180-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-FA180-S75 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-FA180-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-FA180-S125 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-FA180-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-FA180-S175 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-FA180-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-FA180-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-FA180-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-TC180-S25 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-TC180-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-TC180-S75 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-TC180-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-TC180-S125 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-TC180-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-TC180-S175 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-TC180-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-TC180-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-TC180-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-TA180-S25 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-TA180-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-TA180-S75 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-TA180-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-TA180-S125 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-TA180-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-TA180-S175 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-TA180-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-TA180-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-TA180-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-B180-S25 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-B180-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-B180-S75 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-B180-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-B180-S125 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-B180-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-B180-S175 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-B180-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-B180-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-B180-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-LB180-S25 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-LB180-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-LB180-S75 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-LB180-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-LB180-S125 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-LB180-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-LB180-S175 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-LB180-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-LB180-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-LB180-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-FA180-S25 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-FA180-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-FA180-S75 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-FA180-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-FA180-S125 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-FA180-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-FA180-S175 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-FA180-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-FA180-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-FA180-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-TC180-S25 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-TC180-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-TC180-S75 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-TC180-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-TC180-S125 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-TC180-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-TC180-S175 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-TC180-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-TC180-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-TC180-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-TA180-S25 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-TA180-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-TA180-S75 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-TA180-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-TA180-S125 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-TA180-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-TA180-S175 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-TA180-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-TA180-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-TA180-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-B200-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-B200-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-B200-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-B200-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-B200-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-B200-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-LB200-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-LB200-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-LB200-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-LB200-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-LB200-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-LB200-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-FA200-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-FA200-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-FA200-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-FA200-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-FA200-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-FA200-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-TC200-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-TC200-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-TC200-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-TC200-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-TC200-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-TC200-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-TA200-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-TA200-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-TA200-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-TA200-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-TA200-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-TA200-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-B200-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-B200-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-B200-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-B200-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-B200-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-B200-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-LB200-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-LB200-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-LB200-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-LB200-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-LB200-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-LB200-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-FA200-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-FA200-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-FA200-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-FA200-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-FA200-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-FA200-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-TC200-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-TC200-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-TC200-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-TC200-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-TC200-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-TC200-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-TA200-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-TA200-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-TA200-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-TA200-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-TA200-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-TA200-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-B250-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-B250-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-B250-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-B250-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-B250-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-B250-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-LB250-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-LB250-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-LB250-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-LB250-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-LB250-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-LB250-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-FA250-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-FA250-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-FA250-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-FA250-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-FA250-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-FA250-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-TC250-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-TC250-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-TC250-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-TC250-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-TC250-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-TC250-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-TA250-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-TA250-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-TA250-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-TA250-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-TA250-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-TA250-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-B250-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-B250-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-B250-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-B250-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-B250-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-B250-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-LB250-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-LB250-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-LB250-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-LB250-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-LB250-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-LB250-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-FA250-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-FA250-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-FA250-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-FA250-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-FA250-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-FA250-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-TC250-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-TC250-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-TC250-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-TC250-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-TC250-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-TC250-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-TA250-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-TA250-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-TA250-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-TA250-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-TA250-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-TA250-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-B300-S50 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-B300-S100 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-B300-S150 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-B300-S200 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-B300-S250 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-B300-S300 Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-LB300-S50 Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-LB300-S100 Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-LB300-S150 Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-LB300-S200 Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-LB300-S250 Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-LB300-S300 Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-FA300-S50 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-FA300-S100 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-FA300-S150 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-FA300-S200 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-FA300-S250 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-FA300-S300 Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-TC300-S50 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-TC300-S100 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-TC300-S150 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-TC300-S200 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-TC300-S250 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-TC300-S300 Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-TA300-S50 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-TA300-S100 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-TA300-S150 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-TA300-S200 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-TA300-S250 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-TA300-S300 Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-B300-S50 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-B300-S100 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-B300-S150 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-B300-S200 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-B300-S250 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-B300-S300 Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-LB300-S50 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-LB300-S100 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-LB300-S150 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-LB300-S200 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-LB300-S250 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-LB300-S300 Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-FA300-S50 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-FA300-S100 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-FA300-S150 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-FA300-S200 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-FA300-S250 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-FA300-S300 Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-TC300-S50 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-TC300-S100 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-TC300-S150 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-TC300-S200 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-TC300-S250 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-TC300-S300 Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-TA300-S50 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-TA300-S100 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-TA300-S150 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-TA300-S200 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-TA300-S250 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-TA300-S300 Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-125 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø125 mm
ACLW-140 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø140 mm
ACLW-150 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø150 mm
ACLW-160 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø160 mm
ACLW-180 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø180 mm
ACLW-200 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø200 mm
ACLW-250 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø250 mm
ACLW-300 Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø300 mm
Pneumatic CylindersKCC
768 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC ACLW Large-Bore Cylinder (Double Rod, Ø125-300)

Brand KCC·Pneumatic Cylinders

Available part numbers (768)

ACLW-N-B125-S25, ACLW-N-B125-S50, ACLW-N-B125-S75, ACLW-N-B125-S100, ACLW-N-B125-S125, ACLW-N-B125-S150, ACLW-N-B125-S175, ACLW-N-B125-S200, ACLW-N-B125-S250, ACLW-N-B125-S300 + 758 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ACLW-N-B125-S25Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-B125-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-B125-S75Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-B125-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-B125-S125Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-B125-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-B125-S175Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-B125-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-B125-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-B125-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-B125-S350Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-B125-S400Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-B125-S450Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-B125-S500Magnet: None | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-LB125-S25Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-LB125-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-LB125-S75Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-LB125-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-LB125-S125Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-LB125-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-LB125-S175Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-LB125-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-LB125-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-LB125-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-LB125-S350Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-LB125-S400Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-LB125-S450Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-LB125-S500Magnet: None | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-FA125-S25Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-FA125-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-FA125-S75Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-FA125-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-FA125-S125Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-FA125-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-FA125-S175Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-FA125-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-FA125-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-FA125-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-FA125-S350Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-FA125-S400Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-FA125-S450Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-FA125-S500Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-TC125-S25Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-TC125-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-TC125-S75Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-TC125-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-TC125-S125Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-TC125-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-TC125-S175Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-TC125-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-TC125-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-TC125-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-TC125-S350Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-TC125-S400Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-TC125-S450Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-TC125-S500Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-TA125-S25Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-N-TA125-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-N-TA125-S75Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-N-TA125-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-N-TA125-S125Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-N-TA125-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-N-TA125-S175Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-N-TA125-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-N-TA125-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-N-TA125-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-N-TA125-S350Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-N-TA125-S400Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-N-TA125-S450Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-N-TA125-S500Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-B125-S25Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-B125-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-B125-S75Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-B125-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-B125-S125Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-B125-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-B125-S175Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-B125-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-B125-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-B125-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-B125-S350Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-B125-S400Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-B125-S450Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-B125-S500Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-LB125-S25Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-LB125-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-LB125-S75Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-LB125-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-LB125-S125Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-LB125-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-LB125-S175Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-LB125-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-LB125-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-LB125-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-LB125-S350Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-LB125-S400Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-LB125-S450Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-LB125-S500Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-FA125-S25Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-FA125-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-FA125-S75Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-FA125-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-FA125-S125Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-FA125-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-FA125-S175Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-FA125-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-FA125-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-FA125-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-FA125-S350Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-FA125-S400Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-FA125-S450Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-FA125-S500Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-TC125-S25Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-TC125-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-TC125-S75Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-TC125-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-TC125-S125Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-TC125-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-TC125-S175Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-TC125-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-TC125-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-TC125-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-TC125-S350Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-TC125-S400Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-TC125-S450Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-TC125-S500Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-NH-TA125-S25Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 25 mm
ACLW-NH-TA125-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 50 mm
ACLW-NH-TA125-S75Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 75 mm
ACLW-NH-TA125-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 100 mm
ACLW-NH-TA125-S125Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 125 mm
ACLW-NH-TA125-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 150 mm
ACLW-NH-TA125-S175Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 175 mm
ACLW-NH-TA125-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 200 mm
ACLW-NH-TA125-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 250 mm
ACLW-NH-TA125-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 300 mm
ACLW-NH-TA125-S350Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 350 mm
ACLW-NH-TA125-S400Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 400 mm
ACLW-NH-TA125-S450Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 450 mm
ACLW-NH-TA125-S500Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø125 mm | Stroke: 500 mm
ACLW-N-B140-S25Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-B140-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-B140-S75Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-B140-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-B140-S125Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-B140-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-B140-S175Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-B140-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-B140-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-B140-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-LB140-S25Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-LB140-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-LB140-S75Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-LB140-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-LB140-S125Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-LB140-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-LB140-S175Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-LB140-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-LB140-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-LB140-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-FA140-S25Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-FA140-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-FA140-S75Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-FA140-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-FA140-S125Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-FA140-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-FA140-S175Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-FA140-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-FA140-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-FA140-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-TC140-S25Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-TC140-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-TC140-S75Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-TC140-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-TC140-S125Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-TC140-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-TC140-S175Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-TC140-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-TC140-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-TC140-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-TA140-S25Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-N-TA140-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-N-TA140-S75Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-N-TA140-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-N-TA140-S125Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-N-TA140-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-N-TA140-S175Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-N-TA140-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-N-TA140-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-N-TA140-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-B140-S25Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-B140-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-B140-S75Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-B140-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-B140-S125Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-B140-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-B140-S175Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-B140-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-B140-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-B140-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-LB140-S25Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-LB140-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-LB140-S75Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-LB140-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-LB140-S125Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-LB140-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-LB140-S175Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-LB140-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-LB140-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-LB140-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-FA140-S25Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-FA140-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-FA140-S75Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-FA140-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-FA140-S125Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-FA140-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-FA140-S175Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-FA140-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-FA140-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-FA140-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-TC140-S25Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-TC140-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-TC140-S75Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-TC140-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-TC140-S125Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-TC140-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-TC140-S175Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-TC140-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-TC140-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-TC140-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-NH-TA140-S25Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 25 mm
ACLW-NH-TA140-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 50 mm
ACLW-NH-TA140-S75Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 75 mm
ACLW-NH-TA140-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 100 mm
ACLW-NH-TA140-S125Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 125 mm
ACLW-NH-TA140-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 150 mm
ACLW-NH-TA140-S175Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 175 mm
ACLW-NH-TA140-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 200 mm
ACLW-NH-TA140-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 250 mm
ACLW-NH-TA140-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø140 mm | Stroke: 300 mm
ACLW-N-B150-S25Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-B150-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-B150-S75Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-B150-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-B150-S125Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-B150-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-B150-S175Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-B150-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-B150-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-B150-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-B150-S350Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-B150-S400Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-B150-S450Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-B150-S500Magnet: None | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-LB150-S25Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-LB150-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-LB150-S75Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-LB150-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-LB150-S125Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-LB150-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-LB150-S175Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-LB150-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-LB150-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-LB150-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-LB150-S350Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-LB150-S400Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-LB150-S450Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-LB150-S500Magnet: None | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-FA150-S25Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-FA150-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-FA150-S75Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-FA150-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-FA150-S125Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-FA150-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-FA150-S175Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-FA150-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-FA150-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-FA150-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-FA150-S350Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-FA150-S400Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-FA150-S450Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-FA150-S500Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-TC150-S25Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-TC150-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-TC150-S75Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-TC150-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-TC150-S125Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-TC150-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-TC150-S175Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-TC150-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-TC150-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-TC150-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-TC150-S350Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-TC150-S400Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-TC150-S450Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-TC150-S500Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-TA150-S25Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-N-TA150-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-N-TA150-S75Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-N-TA150-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-N-TA150-S125Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-N-TA150-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-N-TA150-S175Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-N-TA150-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-N-TA150-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-N-TA150-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-N-TA150-S350Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-N-TA150-S400Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-N-TA150-S450Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-N-TA150-S500Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-B150-S25Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-B150-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-B150-S75Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-B150-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-B150-S125Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-B150-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-B150-S175Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-B150-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-B150-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-B150-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-B150-S350Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-B150-S400Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-B150-S450Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-B150-S500Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-LB150-S25Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-LB150-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-LB150-S75Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-LB150-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-LB150-S125Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-LB150-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-LB150-S175Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-LB150-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-LB150-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-LB150-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-LB150-S350Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-LB150-S400Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-LB150-S450Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-LB150-S500Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-FA150-S25Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-FA150-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-FA150-S75Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-FA150-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-FA150-S125Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-FA150-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-FA150-S175Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-FA150-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-FA150-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-FA150-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-FA150-S350Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-FA150-S400Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-FA150-S450Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-FA150-S500Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-TC150-S25Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-TC150-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-TC150-S75Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-TC150-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-TC150-S125Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-TC150-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-TC150-S175Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-TC150-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-TC150-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-TC150-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-TC150-S350Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-TC150-S400Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-TC150-S450Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-TC150-S500Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-NH-TA150-S25Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 25 mm
ACLW-NH-TA150-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 50 mm
ACLW-NH-TA150-S75Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 75 mm
ACLW-NH-TA150-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 100 mm
ACLW-NH-TA150-S125Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 125 mm
ACLW-NH-TA150-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 150 mm
ACLW-NH-TA150-S175Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 175 mm
ACLW-NH-TA150-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 200 mm
ACLW-NH-TA150-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 250 mm
ACLW-NH-TA150-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 300 mm
ACLW-NH-TA150-S350Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 350 mm
ACLW-NH-TA150-S400Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 400 mm
ACLW-NH-TA150-S450Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 450 mm
ACLW-NH-TA150-S500Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø150 mm | Stroke: 500 mm
ACLW-N-B160-S25Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-B160-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-B160-S75Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-B160-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-B160-S125Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-B160-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-B160-S175Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-B160-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-B160-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-B160-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-LB160-S25Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-LB160-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-LB160-S75Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-LB160-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-LB160-S125Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-LB160-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-LB160-S175Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-LB160-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-LB160-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-LB160-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-FA160-S25Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-FA160-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-FA160-S75Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-FA160-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-FA160-S125Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-FA160-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-FA160-S175Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-FA160-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-FA160-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-FA160-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-TC160-S25Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-TC160-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-TC160-S75Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-TC160-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-TC160-S125Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-TC160-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-TC160-S175Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-TC160-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-TC160-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-TC160-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-TA160-S25Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-N-TA160-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-N-TA160-S75Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-N-TA160-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-N-TA160-S125Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-N-TA160-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-N-TA160-S175Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-N-TA160-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-N-TA160-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-N-TA160-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-B160-S25Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-B160-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-B160-S75Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-B160-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-B160-S125Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-B160-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-B160-S175Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-B160-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-B160-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-B160-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-LB160-S25Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-LB160-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-LB160-S75Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-LB160-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-LB160-S125Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-LB160-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-LB160-S175Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-LB160-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-LB160-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-LB160-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-FA160-S25Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-FA160-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-FA160-S75Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-FA160-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-FA160-S125Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-FA160-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-FA160-S175Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-FA160-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-FA160-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-FA160-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-TC160-S25Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-TC160-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-TC160-S75Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-TC160-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-TC160-S125Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-TC160-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-TC160-S175Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-TC160-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-TC160-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-TC160-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-NH-TA160-S25Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 25 mm
ACLW-NH-TA160-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 50 mm
ACLW-NH-TA160-S75Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 75 mm
ACLW-NH-TA160-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 100 mm
ACLW-NH-TA160-S125Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 125 mm
ACLW-NH-TA160-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 150 mm
ACLW-NH-TA160-S175Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 175 mm
ACLW-NH-TA160-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 200 mm
ACLW-NH-TA160-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 250 mm
ACLW-NH-TA160-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø160 mm | Stroke: 300 mm
ACLW-N-B180-S25Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-B180-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-B180-S75Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-B180-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-B180-S125Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-B180-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-B180-S175Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-B180-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-B180-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-B180-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-LB180-S25Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-LB180-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-LB180-S75Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-LB180-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-LB180-S125Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-LB180-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-LB180-S175Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-LB180-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-LB180-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-LB180-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-FA180-S25Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-FA180-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-FA180-S75Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-FA180-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-FA180-S125Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-FA180-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-FA180-S175Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-FA180-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-FA180-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-FA180-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-TC180-S25Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-TC180-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-TC180-S75Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-TC180-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-TC180-S125Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-TC180-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-TC180-S175Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-TC180-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-TC180-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-TC180-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-TA180-S25Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-N-TA180-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-N-TA180-S75Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-N-TA180-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-N-TA180-S125Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-N-TA180-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-N-TA180-S175Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-N-TA180-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-N-TA180-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-N-TA180-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-B180-S25Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-B180-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-B180-S75Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-B180-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-B180-S125Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-B180-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-B180-S175Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-B180-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-B180-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-B180-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-LB180-S25Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-LB180-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-LB180-S75Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-LB180-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-LB180-S125Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-LB180-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-LB180-S175Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-LB180-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-LB180-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-LB180-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-FA180-S25Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-FA180-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-FA180-S75Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-FA180-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-FA180-S125Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-FA180-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-FA180-S175Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-FA180-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-FA180-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-FA180-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-TC180-S25Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-TC180-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-TC180-S75Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-TC180-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-TC180-S125Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-TC180-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-TC180-S175Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-TC180-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-TC180-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-TC180-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-NH-TA180-S25Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 25 mm
ACLW-NH-TA180-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 50 mm
ACLW-NH-TA180-S75Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 75 mm
ACLW-NH-TA180-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 100 mm
ACLW-NH-TA180-S125Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 125 mm
ACLW-NH-TA180-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 150 mm
ACLW-NH-TA180-S175Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 175 mm
ACLW-NH-TA180-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 200 mm
ACLW-NH-TA180-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 250 mm
ACLW-NH-TA180-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø180 mm | Stroke: 300 mm
ACLW-N-B200-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-B200-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-B200-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-B200-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-B200-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-B200-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-LB200-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-LB200-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-LB200-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-LB200-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-LB200-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-LB200-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-FA200-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-FA200-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-FA200-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-FA200-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-FA200-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-FA200-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-TC200-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-TC200-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-TC200-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-TC200-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-TC200-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-TC200-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-TA200-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-N-TA200-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-N-TA200-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-N-TA200-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-N-TA200-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-N-TA200-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-B200-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-B200-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-B200-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-B200-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-B200-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-B200-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-LB200-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-LB200-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-LB200-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-LB200-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-LB200-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-LB200-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-FA200-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-FA200-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-FA200-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-FA200-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-FA200-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-FA200-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-TC200-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-TC200-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-TC200-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-TC200-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-TC200-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-TC200-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-NH-TA200-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 50 mm
ACLW-NH-TA200-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 100 mm
ACLW-NH-TA200-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 150 mm
ACLW-NH-TA200-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 200 mm
ACLW-NH-TA200-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 250 mm
ACLW-NH-TA200-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø200 mm | Stroke: 300 mm
ACLW-N-B250-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-B250-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-B250-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-B250-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-B250-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-B250-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-LB250-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-LB250-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-LB250-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-LB250-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-LB250-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-LB250-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-FA250-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-FA250-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-FA250-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-FA250-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-FA250-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-FA250-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-TC250-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-TC250-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-TC250-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-TC250-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-TC250-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-TC250-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-TA250-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-N-TA250-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-N-TA250-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-N-TA250-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-N-TA250-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-N-TA250-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-B250-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-B250-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-B250-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-B250-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-B250-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-B250-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-LB250-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-LB250-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-LB250-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-LB250-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-LB250-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-LB250-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-FA250-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-FA250-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-FA250-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-FA250-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-FA250-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-FA250-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-TC250-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-TC250-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-TC250-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-TC250-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-TC250-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-TC250-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-NH-TA250-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 50 mm
ACLW-NH-TA250-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 100 mm
ACLW-NH-TA250-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 150 mm
ACLW-NH-TA250-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 200 mm
ACLW-NH-TA250-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 250 mm
ACLW-NH-TA250-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø250 mm | Stroke: 300 mm
ACLW-N-B300-S50Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-B300-S100Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-B300-S150Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-B300-S200Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-B300-S250Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-B300-S300Magnet: None | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-LB300-S50Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-LB300-S100Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-LB300-S150Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-LB300-S200Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-LB300-S250Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-LB300-S300Magnet: None | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-FA300-S50Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-FA300-S100Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-FA300-S150Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-FA300-S200Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-FA300-S250Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-FA300-S300Magnet: None | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-TC300-S50Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-TC300-S100Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-TC300-S150Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-TC300-S200Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-TC300-S250Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-TC300-S300Magnet: None | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-N-TA300-S50Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-N-TA300-S100Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-N-TA300-S150Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-N-TA300-S200Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-N-TA300-S250Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-N-TA300-S300Magnet: None | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-B300-S50Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-B300-S100Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-B300-S150Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-B300-S200Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-B300-S250Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-B300-S300Magnet: Built-in (H) | Mounting: Basic (no bracket) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-LB300-S50Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-LB300-S100Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-LB300-S150Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-LB300-S200Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-LB300-S250Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-LB300-S300Magnet: Built-in (H) | Mounting: Foot (LB) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-FA300-S50Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-FA300-S100Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-FA300-S150Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-FA300-S200Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-FA300-S250Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-FA300-S300Magnet: Built-in (H) | Mounting: Rod-side flange (FA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-TC300-S50Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-TC300-S100Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-TC300-S150Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-TC300-S200Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-TC300-S250Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-TC300-S300Magnet: Built-in (H) | Mounting: Centre trunnion (TC) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-NH-TA300-S50Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 50 mm
ACLW-NH-TA300-S100Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 100 mm
ACLW-NH-TA300-S150Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 150 mm
ACLW-NH-TA300-S200Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 200 mm
ACLW-NH-TA300-S250Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 250 mm
ACLW-NH-TA300-S300Magnet: Built-in (H) | Mounting: Rod-side trunnion (TA) | Bore: Ø300 mm | Stroke: 300 mm
ACLW-125Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø125 mm
ACLW-140Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø140 mm
ACLW-150Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø150 mm
ACLW-160Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø160 mm
ACLW-180Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø180 mm
ACLW-200Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø200 mm
ACLW-250Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø250 mm
ACLW-300Legacy code, base model (add lubrication/magnet, mounting, stroke) | Bore: Ø300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
