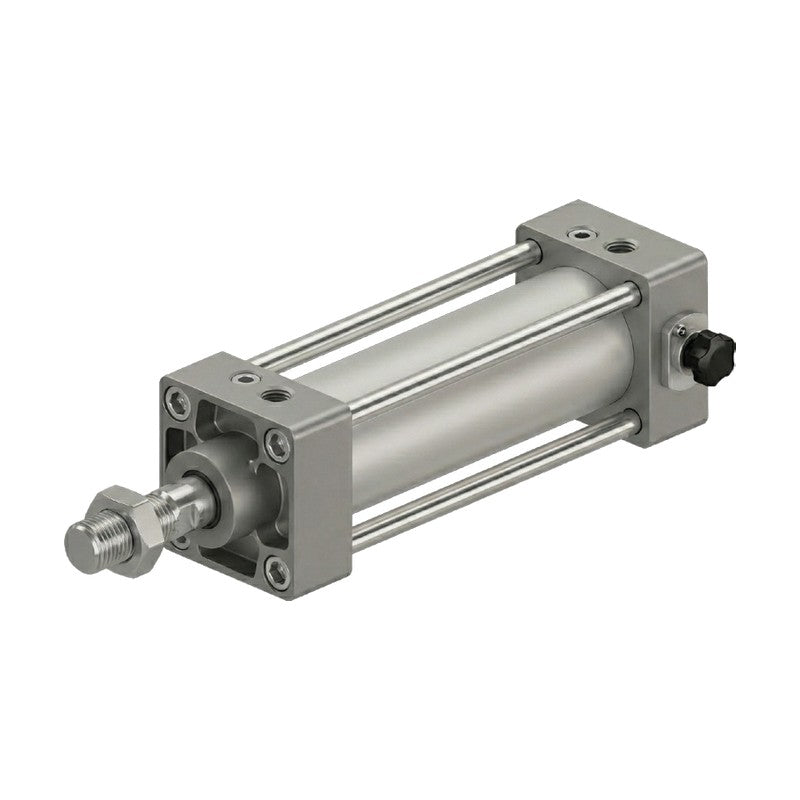

KCC ACME End-Lock Medium Cylinder (Ø80-100)

KCC ACME series double-acting medium-bore tie-rod cylinder with mechanical end lock, bore 80 to 100 mm.

Key features

Spring-loaded lock piston mechanically holds the piston at the stroke end when air is cut off
Lock position selectable: H (head end), R (rod end) or B (both ends)
Max. holding force Ø80: 3,448 N, Ø100: 5,387 N
Mountings in code: B, LB, FA, FB, CA, CB, TC, TA, TB
Bellows (J/K), knuckle joints (I/Y, shared with ACM), KA2 trunnion support, auto switches and MS strong scraper on order

Specifications

Action	Double acting
Fluid	Compressed air
Lubrication	Not required
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa
Proof pressure	1.5 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	Air cushion both ends
Source	KCC catalog ACME.pdf, p. 1-3

ACME-B80-S25H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-B80-S25R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-B80-S25B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-B80-S50H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-B80-S50R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-B80-S50B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-B80-S75H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-B80-S75R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-B80-S75B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-B80-S100H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-B80-S100R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-B80-S100B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-B80-S125H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-B80-S125R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-B80-S125B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-B80-S150H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-B80-S150R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-B80-S150B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-B80-S175H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-B80-S175R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-B80-S175B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-B80-S200H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-B80-S200R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-B80-S200B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-B80-S250H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-B80-S250R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-B80-S250B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-B80-S300H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-B80-S300R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-B80-S300B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-B80-S350H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-B80-S350R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-B80-S350B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-B80-S400H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-B80-S400R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-B80-S400B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-B80-S450H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-B80-S450R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-B80-S450B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-B80-S500H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-B80-S500R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-B80-S500B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-B80-S550H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-B80-S550R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-B80-S550B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-B80-S600H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-B80-S600R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-B80-S600B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-B80-S650H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-B80-S650R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-B80-S650B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-B80-S700H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-B80-S700R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-B80-S700B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-B80-S750H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-B80-S750R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-B80-S750B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-B80-S800H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-B80-S800R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-B80-S800B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-LB80-S25H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-LB80-S25R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-LB80-S25B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-LB80-S50H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-LB80-S50R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-LB80-S50B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-LB80-S75H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-LB80-S75R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-LB80-S75B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-LB80-S100H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-LB80-S100R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-LB80-S100B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-LB80-S125H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-LB80-S125R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-LB80-S125B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-LB80-S150H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-LB80-S150R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-LB80-S150B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-LB80-S175H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-LB80-S175R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-LB80-S175B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-LB80-S200H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-LB80-S200R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-LB80-S200B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-LB80-S250H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-LB80-S250R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-LB80-S250B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-LB80-S300H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-LB80-S300R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-LB80-S300B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-LB80-S350H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-LB80-S350R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-LB80-S350B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-LB80-S400H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-LB80-S400R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-LB80-S400B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-LB80-S450H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-LB80-S450R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-LB80-S450B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-LB80-S500H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-LB80-S500R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-LB80-S500B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-LB80-S550H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-LB80-S550R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-LB80-S550B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-LB80-S600H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-LB80-S600R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-LB80-S600B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-LB80-S650H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-LB80-S650R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-LB80-S650B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-LB80-S700H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-LB80-S700R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-LB80-S700B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-LB80-S750H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-LB80-S750R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-LB80-S750B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-LB80-S800H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-LB80-S800R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-LB80-S800B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-FA80-S25H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-FA80-S25R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-FA80-S25B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-FA80-S50H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-FA80-S50R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-FA80-S50B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-FA80-S75H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-FA80-S75R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-FA80-S75B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-FA80-S100H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-FA80-S100R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-FA80-S100B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-FA80-S125H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-FA80-S125R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-FA80-S125B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-FA80-S150H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-FA80-S150R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-FA80-S150B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-FA80-S175H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-FA80-S175R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-FA80-S175B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-FA80-S200H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-FA80-S200R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-FA80-S200B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-FA80-S250H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-FA80-S250R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-FA80-S250B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-FA80-S300H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-FA80-S300R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-FA80-S300B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-FA80-S350H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-FA80-S350R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-FA80-S350B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-FA80-S400H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-FA80-S400R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-FA80-S400B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-FA80-S450H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-FA80-S450R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-FA80-S450B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-FA80-S500H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-FA80-S500R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-FA80-S500B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-FA80-S550H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-FA80-S550R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-FA80-S550B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-FA80-S600H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-FA80-S600R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-FA80-S600B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-FA80-S650H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-FA80-S650R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-FA80-S650B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-FA80-S700H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-FA80-S700R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-FA80-S700B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-FA80-S750H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-FA80-S750R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-FA80-S750B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-FA80-S800H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-FA80-S800R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-FA80-S800B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-FB80-S25H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-FB80-S25R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-FB80-S25B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-FB80-S50H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-FB80-S50R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-FB80-S50B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-FB80-S75H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-FB80-S75R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-FB80-S75B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-FB80-S100H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-FB80-S100R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-FB80-S100B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-FB80-S125H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-FB80-S125R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-FB80-S125B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-FB80-S150H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-FB80-S150R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-FB80-S150B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-FB80-S175H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-FB80-S175R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-FB80-S175B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-FB80-S200H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-FB80-S200R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-FB80-S200B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-FB80-S250H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-FB80-S250R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-FB80-S250B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-FB80-S300H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-FB80-S300R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-FB80-S300B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-FB80-S350H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-FB80-S350R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-FB80-S350B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-FB80-S400H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-FB80-S400R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-FB80-S400B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-FB80-S450H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-FB80-S450R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-FB80-S450B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-FB80-S500H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-FB80-S500R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-FB80-S500B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-FB80-S550H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-FB80-S550R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-FB80-S550B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-FB80-S600H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-FB80-S600R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-FB80-S600B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-FB80-S650H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-FB80-S650R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-FB80-S650B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-FB80-S700H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-FB80-S700R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-FB80-S700B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-FB80-S750H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-FB80-S750R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-FB80-S750B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-FB80-S800H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-FB80-S800R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-FB80-S800B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-CA80-S25H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-CA80-S25R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-CA80-S25B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-CA80-S50H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-CA80-S50R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-CA80-S50B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-CA80-S75H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-CA80-S75R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-CA80-S75B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-CA80-S100H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-CA80-S100R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-CA80-S100B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-CA80-S125H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-CA80-S125R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-CA80-S125B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-CA80-S150H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-CA80-S150R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-CA80-S150B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-CA80-S175H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-CA80-S175R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-CA80-S175B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-CA80-S200H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-CA80-S200R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-CA80-S200B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-CA80-S250H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-CA80-S250R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-CA80-S250B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-CA80-S300H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-CA80-S300R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-CA80-S300B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-CA80-S350H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-CA80-S350R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-CA80-S350B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-CA80-S400H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-CA80-S400R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-CA80-S400B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-CA80-S450H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-CA80-S450R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-CA80-S450B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-CA80-S500H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-CA80-S500R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-CA80-S500B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-CA80-S550H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-CA80-S550R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-CA80-S550B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-CA80-S600H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-CA80-S600R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-CA80-S600B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-CA80-S650H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-CA80-S650R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-CA80-S650B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-CA80-S700H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-CA80-S700R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-CA80-S700B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-CA80-S750H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-CA80-S750R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-CA80-S750B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-CA80-S800H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-CA80-S800R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-CA80-S800B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-CB80-S25H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-CB80-S25R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-CB80-S25B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-CB80-S50H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-CB80-S50R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-CB80-S50B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-CB80-S75H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-CB80-S75R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-CB80-S75B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-CB80-S100H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-CB80-S100R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-CB80-S100B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-CB80-S125H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-CB80-S125R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-CB80-S125B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-CB80-S150H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-CB80-S150R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-CB80-S150B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-CB80-S175H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-CB80-S175R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-CB80-S175B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-CB80-S200H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-CB80-S200R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-CB80-S200B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-CB80-S250H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-CB80-S250R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-CB80-S250B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-CB80-S300H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-CB80-S300R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-CB80-S300B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-CB80-S350H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-CB80-S350R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-CB80-S350B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-CB80-S400H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-CB80-S400R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-CB80-S400B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-CB80-S450H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-CB80-S450R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-CB80-S450B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-CB80-S500H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-CB80-S500R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-CB80-S500B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-CB80-S550H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-CB80-S550R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-CB80-S550B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-CB80-S600H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-CB80-S600R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-CB80-S600B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-CB80-S650H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-CB80-S650R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-CB80-S650B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-CB80-S700H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-CB80-S700R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-CB80-S700B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-CB80-S750H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-CB80-S750R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-CB80-S750B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-CB80-S800H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-CB80-S800R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-CB80-S800B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TC80-S25H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TC80-S25R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TC80-S25B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TC80-S50H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TC80-S50R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TC80-S50B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TC80-S75H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TC80-S75R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TC80-S75B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TC80-S100H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TC80-S100R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TC80-S100B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TC80-S125H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TC80-S125R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TC80-S125B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TC80-S150H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TC80-S150R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TC80-S150B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TC80-S175H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TC80-S175R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TC80-S175B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TC80-S200H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TC80-S200R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TC80-S200B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TC80-S250H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TC80-S250R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TC80-S250B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TC80-S300H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TC80-S300R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TC80-S300B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TC80-S350H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TC80-S350R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TC80-S350B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TC80-S400H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TC80-S400R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TC80-S400B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TC80-S450H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TC80-S450R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TC80-S450B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TC80-S500H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TC80-S500R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TC80-S500B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TC80-S550H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TC80-S550R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TC80-S550B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TC80-S600H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TC80-S600R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TC80-S600B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TC80-S650H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TC80-S650R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TC80-S650B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TC80-S700H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TC80-S700R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TC80-S700B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TC80-S750H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TC80-S750R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TC80-S750B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TC80-S800H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TC80-S800R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TC80-S800B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TA80-S25H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TA80-S25R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TA80-S25B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TA80-S50H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TA80-S50R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TA80-S50B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TA80-S75H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TA80-S75R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TA80-S75B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TA80-S100H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TA80-S100R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TA80-S100B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TA80-S125H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TA80-S125R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TA80-S125B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TA80-S150H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TA80-S150R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TA80-S150B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TA80-S175H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TA80-S175R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TA80-S175B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TA80-S200H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TA80-S200R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TA80-S200B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TA80-S250H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TA80-S250R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TA80-S250B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TA80-S300H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TA80-S300R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TA80-S300B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TA80-S350H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TA80-S350R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TA80-S350B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TA80-S400H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TA80-S400R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TA80-S400B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TA80-S450H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TA80-S450R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TA80-S450B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TA80-S500H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TA80-S500R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TA80-S500B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TA80-S550H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TA80-S550R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TA80-S550B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TA80-S600H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TA80-S600R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TA80-S600B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TA80-S650H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TA80-S650R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TA80-S650B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TA80-S700H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TA80-S700R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TA80-S700B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TA80-S750H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TA80-S750R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TA80-S750B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TA80-S800H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TA80-S800R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TA80-S800B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TB80-S25H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TB80-S25R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TB80-S25B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 25 mm
ACME-TB80-S50H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TB80-S50R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TB80-S50B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 50 mm
ACME-TB80-S75H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TB80-S75R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TB80-S75B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 75 mm
ACME-TB80-S100H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TB80-S100R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TB80-S100B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 100 mm
ACME-TB80-S125H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TB80-S125R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TB80-S125B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 125 mm
ACME-TB80-S150H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TB80-S150R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TB80-S150B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 150 mm
ACME-TB80-S175H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TB80-S175R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TB80-S175B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 175 mm
ACME-TB80-S200H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TB80-S200R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TB80-S200B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 200 mm
ACME-TB80-S250H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TB80-S250R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TB80-S250B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 250 mm
ACME-TB80-S300H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TB80-S300R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TB80-S300B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 300 mm
ACME-TB80-S350H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TB80-S350R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TB80-S350B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 350 mm
ACME-TB80-S400H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TB80-S400R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TB80-S400B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 400 mm
ACME-TB80-S450H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TB80-S450R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TB80-S450B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 450 mm
ACME-TB80-S500H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TB80-S500R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TB80-S500B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 500 mm
ACME-TB80-S550H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TB80-S550R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TB80-S550B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 550 mm
ACME-TB80-S600H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TB80-S600R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TB80-S600B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 600 mm
ACME-TB80-S650H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TB80-S650R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TB80-S650B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 650 mm
ACME-TB80-S700H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TB80-S700R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TB80-S700B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 700 mm
ACME-TB80-S750H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TB80-S750R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TB80-S750B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 750 mm
ACME-TB80-S800H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TB80-S800R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-TB80-S800B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 800 mm
ACME-B100-S25H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-B100-S25R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-B100-S25B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-B100-S50H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-B100-S50R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-B100-S50B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-B100-S75H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-B100-S75R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-B100-S75B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-B100-S100H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-B100-S100R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-B100-S100B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-B100-S125H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-B100-S125R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-B100-S125B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-B100-S150H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-B100-S150R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-B100-S150B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-B100-S175H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-B100-S175R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-B100-S175B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-B100-S200H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-B100-S200R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-B100-S200B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-B100-S250H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-B100-S250R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-B100-S250B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-B100-S300H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-B100-S300R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-B100-S300B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-B100-S350H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-B100-S350R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-B100-S350B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-B100-S400H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-B100-S400R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-B100-S400B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-B100-S450H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-B100-S450R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-B100-S450B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-B100-S500H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-B100-S500R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-B100-S500B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-B100-S550H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-B100-S550R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-B100-S550B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-B100-S600H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-B100-S600R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-B100-S600B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-B100-S650H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-B100-S650R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-B100-S650B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-B100-S700H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-B100-S700R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-B100-S700B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-B100-S750H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-B100-S750R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-B100-S750B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-B100-S800H		End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-B100-S800R		End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-B100-S800B		End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-LB100-S25H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-LB100-S25R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-LB100-S25B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-LB100-S50H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-LB100-S50R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-LB100-S50B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-LB100-S75H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-LB100-S75R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-LB100-S75B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-LB100-S100H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-LB100-S100R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-LB100-S100B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-LB100-S125H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-LB100-S125R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-LB100-S125B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-LB100-S150H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-LB100-S150R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-LB100-S150B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-LB100-S175H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-LB100-S175R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-LB100-S175B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-LB100-S200H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-LB100-S200R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-LB100-S200B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-LB100-S250H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-LB100-S250R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-LB100-S250B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-LB100-S300H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-LB100-S300R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-LB100-S300B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-LB100-S350H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-LB100-S350R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-LB100-S350B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-LB100-S400H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-LB100-S400R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-LB100-S400B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-LB100-S450H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-LB100-S450R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-LB100-S450B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-LB100-S500H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-LB100-S500R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-LB100-S500B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-LB100-S550H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-LB100-S550R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-LB100-S550B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-LB100-S600H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-LB100-S600R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-LB100-S600B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-LB100-S650H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-LB100-S650R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-LB100-S650B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-LB100-S700H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-LB100-S700R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-LB100-S700B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-LB100-S750H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-LB100-S750R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-LB100-S750B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-LB100-S800H		End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-LB100-S800R		End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-LB100-S800B		End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-FA100-S25H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-FA100-S25R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-FA100-S25B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-FA100-S50H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-FA100-S50R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-FA100-S50B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-FA100-S75H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-FA100-S75R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-FA100-S75B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-FA100-S100H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-FA100-S100R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-FA100-S100B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-FA100-S125H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-FA100-S125R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-FA100-S125B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-FA100-S150H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-FA100-S150R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-FA100-S150B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-FA100-S175H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-FA100-S175R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-FA100-S175B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-FA100-S200H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-FA100-S200R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-FA100-S200B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-FA100-S250H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-FA100-S250R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-FA100-S250B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-FA100-S300H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-FA100-S300R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-FA100-S300B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-FA100-S350H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-FA100-S350R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-FA100-S350B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-FA100-S400H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-FA100-S400R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-FA100-S400B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-FA100-S450H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-FA100-S450R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-FA100-S450B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-FA100-S500H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-FA100-S500R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-FA100-S500B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-FA100-S550H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-FA100-S550R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-FA100-S550B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-FA100-S600H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-FA100-S600R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-FA100-S600B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-FA100-S650H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-FA100-S650R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-FA100-S650B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-FA100-S700H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-FA100-S700R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-FA100-S700B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-FA100-S750H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-FA100-S750R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-FA100-S750B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-FA100-S800H		End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-FA100-S800R		End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-FA100-S800B		End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-FB100-S25H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-FB100-S25R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-FB100-S25B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-FB100-S50H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-FB100-S50R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-FB100-S50B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-FB100-S75H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-FB100-S75R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-FB100-S75B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-FB100-S100H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-FB100-S100R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-FB100-S100B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-FB100-S125H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-FB100-S125R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-FB100-S125B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-FB100-S150H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-FB100-S150R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-FB100-S150B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-FB100-S175H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-FB100-S175R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-FB100-S175B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-FB100-S200H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-FB100-S200R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-FB100-S200B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-FB100-S250H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-FB100-S250R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-FB100-S250B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-FB100-S300H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-FB100-S300R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-FB100-S300B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-FB100-S350H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-FB100-S350R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-FB100-S350B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-FB100-S400H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-FB100-S400R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-FB100-S400B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-FB100-S450H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-FB100-S450R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-FB100-S450B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-FB100-S500H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-FB100-S500R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-FB100-S500B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-FB100-S550H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-FB100-S550R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-FB100-S550B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-FB100-S600H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-FB100-S600R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-FB100-S600B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-FB100-S650H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-FB100-S650R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-FB100-S650B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-FB100-S700H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-FB100-S700R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-FB100-S700B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-FB100-S750H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-FB100-S750R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-FB100-S750B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-FB100-S800H		End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-FB100-S800R		End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-FB100-S800B		End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-CA100-S25H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-CA100-S25R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-CA100-S25B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-CA100-S50H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-CA100-S50R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-CA100-S50B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-CA100-S75H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-CA100-S75R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-CA100-S75B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-CA100-S100H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-CA100-S100R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-CA100-S100B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-CA100-S125H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-CA100-S125R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-CA100-S125B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-CA100-S150H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-CA100-S150R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-CA100-S150B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-CA100-S175H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-CA100-S175R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-CA100-S175B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-CA100-S200H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-CA100-S200R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-CA100-S200B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-CA100-S250H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-CA100-S250R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-CA100-S250B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-CA100-S300H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-CA100-S300R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-CA100-S300B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-CA100-S350H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-CA100-S350R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-CA100-S350B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-CA100-S400H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-CA100-S400R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-CA100-S400B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-CA100-S450H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-CA100-S450R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-CA100-S450B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-CA100-S500H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-CA100-S500R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-CA100-S500B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-CA100-S550H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-CA100-S550R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-CA100-S550B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-CA100-S600H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-CA100-S600R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-CA100-S600B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-CA100-S650H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-CA100-S650R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-CA100-S650B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-CA100-S700H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-CA100-S700R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-CA100-S700B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-CA100-S750H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-CA100-S750R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-CA100-S750B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-CA100-S800H		End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-CA100-S800R		End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-CA100-S800B		End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-CB100-S25H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-CB100-S25R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-CB100-S25B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-CB100-S50H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-CB100-S50R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-CB100-S50B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-CB100-S75H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-CB100-S75R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-CB100-S75B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-CB100-S100H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-CB100-S100R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-CB100-S100B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-CB100-S125H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-CB100-S125R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-CB100-S125B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-CB100-S150H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-CB100-S150R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-CB100-S150B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-CB100-S175H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-CB100-S175R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-CB100-S175B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-CB100-S200H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-CB100-S200R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-CB100-S200B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-CB100-S250H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-CB100-S250R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-CB100-S250B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-CB100-S300H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-CB100-S300R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-CB100-S300B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-CB100-S350H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-CB100-S350R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-CB100-S350B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-CB100-S400H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-CB100-S400R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-CB100-S400B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-CB100-S450H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-CB100-S450R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-CB100-S450B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-CB100-S500H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-CB100-S500R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-CB100-S500B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-CB100-S550H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-CB100-S550R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-CB100-S550B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-CB100-S600H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-CB100-S600R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-CB100-S600B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-CB100-S650H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-CB100-S650R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-CB100-S650B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-CB100-S700H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-CB100-S700R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-CB100-S700B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-CB100-S750H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-CB100-S750R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-CB100-S750B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-CB100-S800H		End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-CB100-S800R		End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-CB100-S800B		End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TC100-S25H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TC100-S25R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TC100-S25B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TC100-S50H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TC100-S50R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TC100-S50B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TC100-S75H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TC100-S75R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TC100-S75B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TC100-S100H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TC100-S100R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TC100-S100B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TC100-S125H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TC100-S125R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TC100-S125B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TC100-S150H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TC100-S150R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TC100-S150B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TC100-S175H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TC100-S175R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TC100-S175B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TC100-S200H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TC100-S200R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TC100-S200B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TC100-S250H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TC100-S250R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TC100-S250B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TC100-S300H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TC100-S300R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TC100-S300B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TC100-S350H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TC100-S350R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TC100-S350B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TC100-S400H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TC100-S400R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TC100-S400B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TC100-S450H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TC100-S450R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TC100-S450B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TC100-S500H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TC100-S500R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TC100-S500B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TC100-S550H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TC100-S550R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TC100-S550B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TC100-S600H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TC100-S600R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TC100-S600B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TC100-S650H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TC100-S650R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TC100-S650B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TC100-S700H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TC100-S700R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TC100-S700B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TC100-S750H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TC100-S750R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TC100-S750B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TC100-S800H		End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TC100-S800R		End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TC100-S800B		End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TA100-S25H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TA100-S25R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TA100-S25B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TA100-S50H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TA100-S50R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TA100-S50B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TA100-S75H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TA100-S75R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TA100-S75B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TA100-S100H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TA100-S100R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TA100-S100B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TA100-S125H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TA100-S125R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TA100-S125B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TA100-S150H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TA100-S150R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TA100-S150B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TA100-S175H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TA100-S175R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TA100-S175B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TA100-S200H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TA100-S200R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TA100-S200B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TA100-S250H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TA100-S250R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TA100-S250B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TA100-S300H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TA100-S300R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TA100-S300B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TA100-S350H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TA100-S350R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TA100-S350B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TA100-S400H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TA100-S400R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TA100-S400B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TA100-S450H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TA100-S450R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TA100-S450B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TA100-S500H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TA100-S500R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TA100-S500B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TA100-S550H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TA100-S550R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TA100-S550B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TA100-S600H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TA100-S600R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TA100-S600B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TA100-S650H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TA100-S650R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TA100-S650B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TA100-S700H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TA100-S700R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TA100-S700B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TA100-S750H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TA100-S750R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TA100-S750B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TA100-S800H		End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TA100-S800R		End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TA100-S800B		End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TB100-S25H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TB100-S25R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TB100-S25B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 25 mm
ACME-TB100-S50H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TB100-S50R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TB100-S50B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 50 mm
ACME-TB100-S75H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TB100-S75R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TB100-S75B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 75 mm
ACME-TB100-S100H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TB100-S100R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TB100-S100B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 100 mm
ACME-TB100-S125H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TB100-S125R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TB100-S125B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 125 mm
ACME-TB100-S150H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TB100-S150R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TB100-S150B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 150 mm
ACME-TB100-S175H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TB100-S175R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TB100-S175B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 175 mm
ACME-TB100-S200H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TB100-S200R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TB100-S200B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 200 mm
ACME-TB100-S250H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TB100-S250R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TB100-S250B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 250 mm
ACME-TB100-S300H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TB100-S300R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TB100-S300B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 300 mm
ACME-TB100-S350H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TB100-S350R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TB100-S350B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 350 mm
ACME-TB100-S400H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TB100-S400R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TB100-S400B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 400 mm
ACME-TB100-S450H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TB100-S450R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TB100-S450B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 450 mm
ACME-TB100-S500H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TB100-S500R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TB100-S500B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 500 mm
ACME-TB100-S550H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TB100-S550R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TB100-S550B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 550 mm
ACME-TB100-S600H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TB100-S600R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TB100-S600B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 600 mm
ACME-TB100-S650H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TB100-S650R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TB100-S650B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 650 mm
ACME-TB100-S700H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TB100-S700R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TB100-S700B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 700 mm
ACME-TB100-S750H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TB100-S750R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TB100-S750B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 750 mm
ACME-TB100-S800H		End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TB100-S800R		End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-TB100-S800B		End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 800 mm
ACME-80		Legacy code, base model (add mounting, stroke, lock position) \| Bore: Ø80 mm
ACME-100		Legacy code, base model (add mounting, stroke, lock position) \| Bore: Ø100 mm

Lock-Up CylindersKCC

1082 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC ACME End-Lock Medium Cylinder (Ø80-100)

Brand KCC·Lock-Up Cylinders

Available part numbers (1082)

ACME-B80-S25H, ACME-B80-S25R, ACME-B80-S25B, ACME-B80-S50H, ACME-B80-S50R, ACME-B80-S50B, ACME-B80-S75H, ACME-B80-S75R, ACME-B80-S75B, ACME-B80-S100H + 1072 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ACME-B80-S25H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-B80-S25R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-B80-S25B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-B80-S50H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-B80-S50R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-B80-S50B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-B80-S75H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-B80-S75R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-B80-S75B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-B80-S100H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-B80-S100R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-B80-S100B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-B80-S125H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-B80-S125R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-B80-S125B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-B80-S150H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-B80-S150R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-B80-S150B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-B80-S175H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-B80-S175R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-B80-S175B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-B80-S200H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-B80-S200R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-B80-S200B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-B80-S250H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-B80-S250R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-B80-S250B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-B80-S300H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-B80-S300R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-B80-S300B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-B80-S350H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-B80-S350R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-B80-S350B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-B80-S400H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-B80-S400R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-B80-S400B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-B80-S450H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-B80-S450R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-B80-S450B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-B80-S500H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-B80-S500R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-B80-S500B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-B80-S550H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-B80-S550R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-B80-S550B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-B80-S600H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-B80-S600R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-B80-S600B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-B80-S650H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-B80-S650R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-B80-S650B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-B80-S700H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-B80-S700R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-B80-S700B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-B80-S750H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-B80-S750R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-B80-S750B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-B80-S800H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-B80-S800R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-B80-S800B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-LB80-S25H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-LB80-S25R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-LB80-S25B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-LB80-S50H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-LB80-S50R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-LB80-S50B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-LB80-S75H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-LB80-S75R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-LB80-S75B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-LB80-S100H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-LB80-S100R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-LB80-S100B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-LB80-S125H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-LB80-S125R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-LB80-S125B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-LB80-S150H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-LB80-S150R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-LB80-S150B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-LB80-S175H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-LB80-S175R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-LB80-S175B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-LB80-S200H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-LB80-S200R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-LB80-S200B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-LB80-S250H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-LB80-S250R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-LB80-S250B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-LB80-S300H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-LB80-S300R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-LB80-S300B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-LB80-S350H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-LB80-S350R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-LB80-S350B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-LB80-S400H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-LB80-S400R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-LB80-S400B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-LB80-S450H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-LB80-S450R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-LB80-S450B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-LB80-S500H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-LB80-S500R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-LB80-S500B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-LB80-S550H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-LB80-S550R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-LB80-S550B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-LB80-S600H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-LB80-S600R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-LB80-S600B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-LB80-S650H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-LB80-S650R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-LB80-S650B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-LB80-S700H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-LB80-S700R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-LB80-S700B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-LB80-S750H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-LB80-S750R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-LB80-S750B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-LB80-S800H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-LB80-S800R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-LB80-S800B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-FA80-S25H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-FA80-S25R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-FA80-S25B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-FA80-S50H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-FA80-S50R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-FA80-S50B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-FA80-S75H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-FA80-S75R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-FA80-S75B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-FA80-S100H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-FA80-S100R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-FA80-S100B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-FA80-S125H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-FA80-S125R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-FA80-S125B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-FA80-S150H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-FA80-S150R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-FA80-S150B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-FA80-S175H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-FA80-S175R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-FA80-S175B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-FA80-S200H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-FA80-S200R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-FA80-S200B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-FA80-S250H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-FA80-S250R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-FA80-S250B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-FA80-S300H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-FA80-S300R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-FA80-S300B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-FA80-S350H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-FA80-S350R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-FA80-S350B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-FA80-S400H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-FA80-S400R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-FA80-S400B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-FA80-S450H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-FA80-S450R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-FA80-S450B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-FA80-S500H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-FA80-S500R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-FA80-S500B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-FA80-S550H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-FA80-S550R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-FA80-S550B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-FA80-S600H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-FA80-S600R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-FA80-S600B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-FA80-S650H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-FA80-S650R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-FA80-S650B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-FA80-S700H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-FA80-S700R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-FA80-S700B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-FA80-S750H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-FA80-S750R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-FA80-S750B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-FA80-S800H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-FA80-S800R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-FA80-S800B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-FB80-S25H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-FB80-S25R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-FB80-S25B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-FB80-S50H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-FB80-S50R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-FB80-S50B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-FB80-S75H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-FB80-S75R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-FB80-S75B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-FB80-S100H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-FB80-S100R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-FB80-S100B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-FB80-S125H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-FB80-S125R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-FB80-S125B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-FB80-S150H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-FB80-S150R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-FB80-S150B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-FB80-S175H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-FB80-S175R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-FB80-S175B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-FB80-S200H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-FB80-S200R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-FB80-S200B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-FB80-S250H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-FB80-S250R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-FB80-S250B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-FB80-S300H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-FB80-S300R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-FB80-S300B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-FB80-S350H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-FB80-S350R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-FB80-S350B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-FB80-S400H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-FB80-S400R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-FB80-S400B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-FB80-S450H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-FB80-S450R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-FB80-S450B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-FB80-S500H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-FB80-S500R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-FB80-S500B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-FB80-S550H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-FB80-S550R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-FB80-S550B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-FB80-S600H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-FB80-S600R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-FB80-S600B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-FB80-S650H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-FB80-S650R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-FB80-S650B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-FB80-S700H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-FB80-S700R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-FB80-S700B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-FB80-S750H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-FB80-S750R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-FB80-S750B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-FB80-S800H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-FB80-S800R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-FB80-S800B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-CA80-S25H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-CA80-S25R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-CA80-S25B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-CA80-S50H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-CA80-S50R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-CA80-S50B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-CA80-S75H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-CA80-S75R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-CA80-S75B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-CA80-S100H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-CA80-S100R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-CA80-S100B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-CA80-S125H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-CA80-S125R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-CA80-S125B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-CA80-S150H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-CA80-S150R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-CA80-S150B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-CA80-S175H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-CA80-S175R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-CA80-S175B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-CA80-S200H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-CA80-S200R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-CA80-S200B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-CA80-S250H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-CA80-S250R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-CA80-S250B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-CA80-S300H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-CA80-S300R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-CA80-S300B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-CA80-S350H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-CA80-S350R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-CA80-S350B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-CA80-S400H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-CA80-S400R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-CA80-S400B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-CA80-S450H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-CA80-S450R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-CA80-S450B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-CA80-S500H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-CA80-S500R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-CA80-S500B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-CA80-S550H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-CA80-S550R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-CA80-S550B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-CA80-S600H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-CA80-S600R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-CA80-S600B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-CA80-S650H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-CA80-S650R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-CA80-S650B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-CA80-S700H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-CA80-S700R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-CA80-S700B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-CA80-S750H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-CA80-S750R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-CA80-S750B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-CA80-S800H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-CA80-S800R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-CA80-S800B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-CB80-S25H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-CB80-S25R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-CB80-S25B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-CB80-S50H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-CB80-S50R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-CB80-S50B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-CB80-S75H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-CB80-S75R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-CB80-S75B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-CB80-S100H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-CB80-S100R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-CB80-S100B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-CB80-S125H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-CB80-S125R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-CB80-S125B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-CB80-S150H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-CB80-S150R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-CB80-S150B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-CB80-S175H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-CB80-S175R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-CB80-S175B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-CB80-S200H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-CB80-S200R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-CB80-S200B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-CB80-S250H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-CB80-S250R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-CB80-S250B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-CB80-S300H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-CB80-S300R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-CB80-S300B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-CB80-S350H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-CB80-S350R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-CB80-S350B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-CB80-S400H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-CB80-S400R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-CB80-S400B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-CB80-S450H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-CB80-S450R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-CB80-S450B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-CB80-S500H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-CB80-S500R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-CB80-S500B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-CB80-S550H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-CB80-S550R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-CB80-S550B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-CB80-S600H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-CB80-S600R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-CB80-S600B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-CB80-S650H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-CB80-S650R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-CB80-S650B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-CB80-S700H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-CB80-S700R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-CB80-S700B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-CB80-S750H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-CB80-S750R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-CB80-S750B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-CB80-S800H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-CB80-S800R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-CB80-S800B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TC80-S25H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TC80-S25R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TC80-S25B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TC80-S50H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TC80-S50R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TC80-S50B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TC80-S75H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TC80-S75R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TC80-S75B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TC80-S100H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TC80-S100R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TC80-S100B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TC80-S125H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TC80-S125R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TC80-S125B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TC80-S150H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TC80-S150R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TC80-S150B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TC80-S175H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TC80-S175R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TC80-S175B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TC80-S200H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TC80-S200R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TC80-S200B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TC80-S250H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TC80-S250R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TC80-S250B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TC80-S300H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TC80-S300R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TC80-S300B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TC80-S350H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TC80-S350R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TC80-S350B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TC80-S400H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TC80-S400R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TC80-S400B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TC80-S450H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TC80-S450R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TC80-S450B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TC80-S500H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TC80-S500R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TC80-S500B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TC80-S550H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TC80-S550R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TC80-S550B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TC80-S600H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TC80-S600R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TC80-S600B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TC80-S650H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TC80-S650R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TC80-S650B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TC80-S700H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TC80-S700R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TC80-S700B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TC80-S750H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TC80-S750R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TC80-S750B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TC80-S800H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TC80-S800R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TC80-S800B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TA80-S25H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TA80-S25R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TA80-S25B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TA80-S50H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TA80-S50R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TA80-S50B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TA80-S75H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TA80-S75R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TA80-S75B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TA80-S100H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TA80-S100R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TA80-S100B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TA80-S125H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TA80-S125R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TA80-S125B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TA80-S150H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TA80-S150R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TA80-S150B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TA80-S175H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TA80-S175R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TA80-S175B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TA80-S200H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TA80-S200R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TA80-S200B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TA80-S250H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TA80-S250R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TA80-S250B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TA80-S300H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TA80-S300R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TA80-S300B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TA80-S350H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TA80-S350R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TA80-S350B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TA80-S400H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TA80-S400R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TA80-S400B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TA80-S450H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TA80-S450R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TA80-S450B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TA80-S500H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TA80-S500R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TA80-S500B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TA80-S550H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TA80-S550R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TA80-S550B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TA80-S600H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TA80-S600R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TA80-S600B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TA80-S650H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TA80-S650R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TA80-S650B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TA80-S700H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TA80-S700R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TA80-S700B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TA80-S750H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TA80-S750R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TA80-S750B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TA80-S800H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TA80-S800R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TA80-S800B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TB80-S25H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TB80-S25R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TB80-S25B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 25 mm
	ACME-TB80-S50H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TB80-S50R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TB80-S50B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 50 mm
	ACME-TB80-S75H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TB80-S75R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TB80-S75B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 75 mm
	ACME-TB80-S100H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TB80-S100R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TB80-S100B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 100 mm
	ACME-TB80-S125H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TB80-S125R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TB80-S125B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 125 mm
	ACME-TB80-S150H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TB80-S150R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TB80-S150B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 150 mm
	ACME-TB80-S175H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TB80-S175R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TB80-S175B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 175 mm
	ACME-TB80-S200H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TB80-S200R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TB80-S200B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 200 mm
	ACME-TB80-S250H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TB80-S250R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TB80-S250B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 250 mm
	ACME-TB80-S300H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TB80-S300R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TB80-S300B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 300 mm
	ACME-TB80-S350H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TB80-S350R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TB80-S350B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 350 mm
	ACME-TB80-S400H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TB80-S400R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TB80-S400B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 400 mm
	ACME-TB80-S450H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TB80-S450R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TB80-S450B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 450 mm
	ACME-TB80-S500H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TB80-S500R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TB80-S500B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 500 mm
	ACME-TB80-S550H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TB80-S550R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TB80-S550B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 550 mm
	ACME-TB80-S600H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TB80-S600R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TB80-S600B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 600 mm
	ACME-TB80-S650H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TB80-S650R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TB80-S650B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 650 mm
	ACME-TB80-S700H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TB80-S700R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TB80-S700B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 700 mm
	ACME-TB80-S750H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TB80-S750R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TB80-S750B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 750 mm
	ACME-TB80-S800H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TB80-S800R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-TB80-S800B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø80 mm \| Stroke: 800 mm
	ACME-B100-S25H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-B100-S25R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-B100-S25B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-B100-S50H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-B100-S50R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-B100-S50B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-B100-S75H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-B100-S75R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-B100-S75B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-B100-S100H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-B100-S100R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-B100-S100B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-B100-S125H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-B100-S125R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-B100-S125B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-B100-S150H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-B100-S150R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-B100-S150B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-B100-S175H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-B100-S175R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-B100-S175B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-B100-S200H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-B100-S200R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-B100-S200B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-B100-S250H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-B100-S250R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-B100-S250B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-B100-S300H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-B100-S300R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-B100-S300B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-B100-S350H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-B100-S350R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-B100-S350B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-B100-S400H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-B100-S400R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-B100-S400B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-B100-S450H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-B100-S450R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-B100-S450B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-B100-S500H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-B100-S500R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-B100-S500B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-B100-S550H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-B100-S550R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-B100-S550B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-B100-S600H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-B100-S600R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-B100-S600B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-B100-S650H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-B100-S650R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-B100-S650B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-B100-S700H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-B100-S700R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-B100-S700B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-B100-S750H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-B100-S750R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-B100-S750B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-B100-S800H	End lock: Head end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-B100-S800R	End lock: Rod end \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-B100-S800B	End lock: Both ends \| Mounting: Basic (no bracket) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-LB100-S25H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-LB100-S25R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-LB100-S25B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-LB100-S50H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-LB100-S50R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-LB100-S50B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-LB100-S75H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-LB100-S75R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-LB100-S75B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-LB100-S100H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-LB100-S100R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-LB100-S100B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-LB100-S125H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-LB100-S125R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-LB100-S125B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-LB100-S150H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-LB100-S150R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-LB100-S150B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-LB100-S175H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-LB100-S175R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-LB100-S175B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-LB100-S200H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-LB100-S200R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-LB100-S200B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-LB100-S250H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-LB100-S250R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-LB100-S250B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-LB100-S300H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-LB100-S300R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-LB100-S300B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-LB100-S350H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-LB100-S350R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-LB100-S350B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-LB100-S400H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-LB100-S400R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-LB100-S400B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-LB100-S450H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-LB100-S450R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-LB100-S450B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-LB100-S500H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-LB100-S500R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-LB100-S500B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-LB100-S550H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-LB100-S550R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-LB100-S550B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-LB100-S600H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-LB100-S600R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-LB100-S600B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-LB100-S650H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-LB100-S650R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-LB100-S650B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-LB100-S700H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-LB100-S700R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-LB100-S700B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-LB100-S750H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-LB100-S750R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-LB100-S750B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-LB100-S800H	End lock: Head end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-LB100-S800R	End lock: Rod end \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-LB100-S800B	End lock: Both ends \| Mounting: Foot (LB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-FA100-S25H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-FA100-S25R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-FA100-S25B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-FA100-S50H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-FA100-S50R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-FA100-S50B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-FA100-S75H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-FA100-S75R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-FA100-S75B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-FA100-S100H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-FA100-S100R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-FA100-S100B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-FA100-S125H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-FA100-S125R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-FA100-S125B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-FA100-S150H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-FA100-S150R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-FA100-S150B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-FA100-S175H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-FA100-S175R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-FA100-S175B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-FA100-S200H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-FA100-S200R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-FA100-S200B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-FA100-S250H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-FA100-S250R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-FA100-S250B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-FA100-S300H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-FA100-S300R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-FA100-S300B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-FA100-S350H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-FA100-S350R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-FA100-S350B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-FA100-S400H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-FA100-S400R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-FA100-S400B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-FA100-S450H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-FA100-S450R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-FA100-S450B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-FA100-S500H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-FA100-S500R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-FA100-S500B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-FA100-S550H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-FA100-S550R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-FA100-S550B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-FA100-S600H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-FA100-S600R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-FA100-S600B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-FA100-S650H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-FA100-S650R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-FA100-S650B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-FA100-S700H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-FA100-S700R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-FA100-S700B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-FA100-S750H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-FA100-S750R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-FA100-S750B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-FA100-S800H	End lock: Head end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-FA100-S800R	End lock: Rod end \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-FA100-S800B	End lock: Both ends \| Mounting: Rod-side flange (FA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-FB100-S25H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-FB100-S25R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-FB100-S25B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-FB100-S50H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-FB100-S50R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-FB100-S50B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-FB100-S75H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-FB100-S75R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-FB100-S75B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-FB100-S100H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-FB100-S100R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-FB100-S100B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-FB100-S125H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-FB100-S125R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-FB100-S125B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-FB100-S150H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-FB100-S150R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-FB100-S150B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-FB100-S175H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-FB100-S175R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-FB100-S175B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-FB100-S200H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-FB100-S200R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-FB100-S200B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-FB100-S250H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-FB100-S250R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-FB100-S250B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-FB100-S300H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-FB100-S300R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-FB100-S300B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-FB100-S350H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-FB100-S350R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-FB100-S350B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-FB100-S400H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-FB100-S400R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-FB100-S400B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-FB100-S450H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-FB100-S450R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-FB100-S450B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-FB100-S500H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-FB100-S500R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-FB100-S500B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-FB100-S550H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-FB100-S550R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-FB100-S550B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-FB100-S600H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-FB100-S600R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-FB100-S600B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-FB100-S650H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-FB100-S650R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-FB100-S650B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-FB100-S700H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-FB100-S700R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-FB100-S700B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-FB100-S750H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-FB100-S750R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-FB100-S750B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-FB100-S800H	End lock: Head end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-FB100-S800R	End lock: Rod end \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-FB100-S800B	End lock: Both ends \| Mounting: Head-side flange (FB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-CA100-S25H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-CA100-S25R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-CA100-S25B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-CA100-S50H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-CA100-S50R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-CA100-S50B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-CA100-S75H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-CA100-S75R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-CA100-S75B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-CA100-S100H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-CA100-S100R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-CA100-S100B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-CA100-S125H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-CA100-S125R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-CA100-S125B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-CA100-S150H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-CA100-S150R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-CA100-S150B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-CA100-S175H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-CA100-S175R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-CA100-S175B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-CA100-S200H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-CA100-S200R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-CA100-S200B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-CA100-S250H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-CA100-S250R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-CA100-S250B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-CA100-S300H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-CA100-S300R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-CA100-S300B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-CA100-S350H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-CA100-S350R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-CA100-S350B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-CA100-S400H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-CA100-S400R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-CA100-S400B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-CA100-S450H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-CA100-S450R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-CA100-S450B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-CA100-S500H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-CA100-S500R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-CA100-S500B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-CA100-S550H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-CA100-S550R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-CA100-S550B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-CA100-S600H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-CA100-S600R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-CA100-S600B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-CA100-S650H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-CA100-S650R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-CA100-S650B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-CA100-S700H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-CA100-S700R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-CA100-S700B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-CA100-S750H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-CA100-S750R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-CA100-S750B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-CA100-S800H	End lock: Head end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-CA100-S800R	End lock: Rod end \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-CA100-S800B	End lock: Both ends \| Mounting: Single clevis (CA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-CB100-S25H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-CB100-S25R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-CB100-S25B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-CB100-S50H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-CB100-S50R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-CB100-S50B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-CB100-S75H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-CB100-S75R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-CB100-S75B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-CB100-S100H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-CB100-S100R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-CB100-S100B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-CB100-S125H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-CB100-S125R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-CB100-S125B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-CB100-S150H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-CB100-S150R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-CB100-S150B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-CB100-S175H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-CB100-S175R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-CB100-S175B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-CB100-S200H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-CB100-S200R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-CB100-S200B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-CB100-S250H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-CB100-S250R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-CB100-S250B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-CB100-S300H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-CB100-S300R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-CB100-S300B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-CB100-S350H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-CB100-S350R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-CB100-S350B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-CB100-S400H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-CB100-S400R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-CB100-S400B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-CB100-S450H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-CB100-S450R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-CB100-S450B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-CB100-S500H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-CB100-S500R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-CB100-S500B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-CB100-S550H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-CB100-S550R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-CB100-S550B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-CB100-S600H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-CB100-S600R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-CB100-S600B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-CB100-S650H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-CB100-S650R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-CB100-S650B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-CB100-S700H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-CB100-S700R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-CB100-S700B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-CB100-S750H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-CB100-S750R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-CB100-S750B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-CB100-S800H	End lock: Head end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-CB100-S800R	End lock: Rod end \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-CB100-S800B	End lock: Both ends \| Mounting: Double clevis (CB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TC100-S25H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TC100-S25R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TC100-S25B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TC100-S50H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TC100-S50R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TC100-S50B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TC100-S75H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TC100-S75R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TC100-S75B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TC100-S100H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TC100-S100R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TC100-S100B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TC100-S125H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TC100-S125R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TC100-S125B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TC100-S150H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TC100-S150R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TC100-S150B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TC100-S175H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TC100-S175R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TC100-S175B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TC100-S200H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TC100-S200R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TC100-S200B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TC100-S250H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TC100-S250R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TC100-S250B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TC100-S300H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TC100-S300R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TC100-S300B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TC100-S350H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TC100-S350R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TC100-S350B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TC100-S400H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TC100-S400R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TC100-S400B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TC100-S450H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TC100-S450R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TC100-S450B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TC100-S500H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TC100-S500R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TC100-S500B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TC100-S550H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TC100-S550R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TC100-S550B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TC100-S600H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TC100-S600R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TC100-S600B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TC100-S650H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TC100-S650R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TC100-S650B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TC100-S700H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TC100-S700R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TC100-S700B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TC100-S750H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TC100-S750R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TC100-S750B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TC100-S800H	End lock: Head end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TC100-S800R	End lock: Rod end \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TC100-S800B	End lock: Both ends \| Mounting: Centre trunnion (TC) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TA100-S25H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TA100-S25R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TA100-S25B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TA100-S50H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TA100-S50R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TA100-S50B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TA100-S75H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TA100-S75R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TA100-S75B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TA100-S100H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TA100-S100R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TA100-S100B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TA100-S125H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TA100-S125R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TA100-S125B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TA100-S150H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TA100-S150R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TA100-S150B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TA100-S175H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TA100-S175R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TA100-S175B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TA100-S200H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TA100-S200R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TA100-S200B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TA100-S250H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TA100-S250R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TA100-S250B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TA100-S300H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TA100-S300R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TA100-S300B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TA100-S350H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TA100-S350R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TA100-S350B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TA100-S400H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TA100-S400R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TA100-S400B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TA100-S450H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TA100-S450R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TA100-S450B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TA100-S500H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TA100-S500R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TA100-S500B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TA100-S550H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TA100-S550R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TA100-S550B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TA100-S600H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TA100-S600R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TA100-S600B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TA100-S650H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TA100-S650R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TA100-S650B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TA100-S700H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TA100-S700R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TA100-S700B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TA100-S750H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TA100-S750R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TA100-S750B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TA100-S800H	End lock: Head end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TA100-S800R	End lock: Rod end \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TA100-S800B	End lock: Both ends \| Mounting: Rod-side trunnion (TA) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TB100-S25H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TB100-S25R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TB100-S25B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 25 mm
	ACME-TB100-S50H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TB100-S50R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TB100-S50B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 50 mm
	ACME-TB100-S75H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TB100-S75R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TB100-S75B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 75 mm
	ACME-TB100-S100H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TB100-S100R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TB100-S100B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 100 mm
	ACME-TB100-S125H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TB100-S125R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TB100-S125B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 125 mm
	ACME-TB100-S150H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TB100-S150R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TB100-S150B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 150 mm
	ACME-TB100-S175H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TB100-S175R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TB100-S175B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 175 mm
	ACME-TB100-S200H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TB100-S200R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TB100-S200B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 200 mm
	ACME-TB100-S250H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TB100-S250R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TB100-S250B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 250 mm
	ACME-TB100-S300H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TB100-S300R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TB100-S300B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 300 mm
	ACME-TB100-S350H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TB100-S350R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TB100-S350B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 350 mm
	ACME-TB100-S400H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TB100-S400R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TB100-S400B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 400 mm
	ACME-TB100-S450H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TB100-S450R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TB100-S450B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 450 mm
	ACME-TB100-S500H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TB100-S500R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TB100-S500B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 500 mm
	ACME-TB100-S550H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TB100-S550R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TB100-S550B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 550 mm
	ACME-TB100-S600H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TB100-S600R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TB100-S600B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 600 mm
	ACME-TB100-S650H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TB100-S650R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TB100-S650B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 650 mm
	ACME-TB100-S700H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TB100-S700R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TB100-S700B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 700 mm
	ACME-TB100-S750H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TB100-S750R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TB100-S750B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 750 mm
	ACME-TB100-S800H	End lock: Head end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TB100-S800R	End lock: Rod end \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-TB100-S800B	End lock: Both ends \| Mounting: Head-side trunnion (TB) \| Bore: Ø100 mm \| Stroke: 800 mm
	ACME-80	Legacy code, base model (add mounting, stroke, lock position) \| Bore: Ø80 mm
	ACME-100	Legacy code, base model (add mounting, stroke, lock position) \| Bore: Ø100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC ACME End-Lock Medium Cylinder (Ø80-100)
