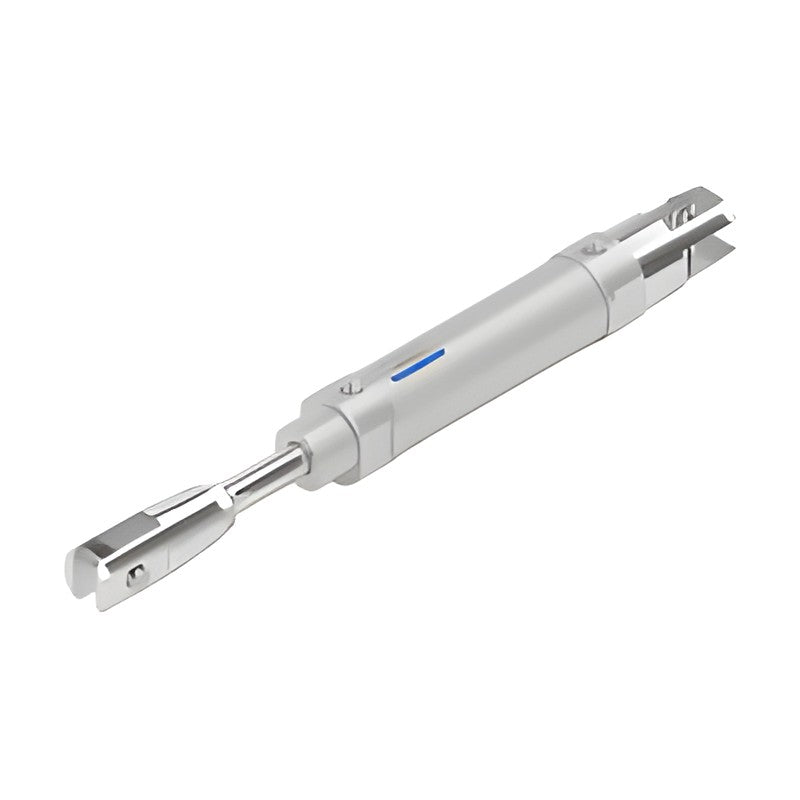

KCC ACS4A Small Cylinder (Aluminum Tube, Air Cushion)

KCC ACS4A series ISO-style small round cylinder with aluminum tube and air cushion, bore 20 to 40 mm, single or double rod.

Key features

Series: ACS4A single rod and ACS4AW double rod, air cushion, bore 20, 25, 32, 40 mm
Aluminum tube with built-in magnet and non-lube packing as standard; rod seal replaceable
Single rod in 12 mounting styles (B, LB, FA, FB, CA, CB, CD, TR, TH, BC, BF, BT); double rod in B, LB, FA, FB, TR, TH
Standard strokes 10-600 mm (bore 40: 25-600 mm); intermediate strokes made to order
Low-pressure hydraulic type (lube symbol L) available on order
Bellows (J nylon tarpaulin, K neoprene), rod-end knuckle (I/Y), auto switches (C72, C73, C76, C80, H7A1, H7A2, H7B), special versions (TS/TW/TD/ASJ/BSJ/SV/SS) and single acting S/T ordered as suffixes

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	Single rod 0.05 MPa, double rod 0.08 MPa
Ambient and fluid temperature	-10 to 70 C (with auto switch -10 to 60 C)
Cushion	Air cushion
Piston speed	50 to 1000 mm/s
Lubrication	Not required (non-lube, type N)
Tube	Aluminum alloy, magnet built in
Thread tolerance	KS class 2
Source	KCC catalog ACS4.pdf, p. 1-14

ACS4A-N-B20-S10		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-B20-S15		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-B20-S20		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-B20-S25		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-B20-S30		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-B20-S35		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-B20-S40		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-B20-S45		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-B20-S50		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-B20-S60		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-B20-S75		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-B20-S100		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-B20-S125		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-B20-S150		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-B20-S175		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-B20-S200		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-B20-S250		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-B20-S300		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-B20-S350		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-B20-S400		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-B20-S450		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-B20-S500		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-B20-S550		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-B20-S600		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-B25-S10		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-B25-S15		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-B25-S20		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-B25-S25		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-B25-S30		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-B25-S35		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-B25-S40		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-B25-S45		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-B25-S50		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-B25-S60		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-B25-S75		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-B25-S100		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-B25-S125		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-B25-S150		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-B25-S175		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-B25-S200		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-B25-S250		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-B25-S300		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-B25-S350		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-B25-S400		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-B25-S450		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-B25-S500		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-B25-S550		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-B25-S600		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-B32-S10		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-B32-S15		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-B32-S20		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-B32-S25		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-B32-S30		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-B32-S35		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-B32-S40		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-B32-S45		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-B32-S50		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-B32-S60		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-B32-S75		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-B32-S100		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-B32-S125		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-B32-S150		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-B32-S175		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-B32-S200		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-B32-S250		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-B32-S300		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-B32-S350		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-B32-S400		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-B32-S450		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-B32-S500		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-B32-S550		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-B32-S600		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-B40-S25		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-B40-S50		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-B40-S75		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-B40-S100		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-B40-S125		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-B40-S150		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-B40-S175		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-B40-S200		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-B40-S250		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-B40-S300		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-B40-S350		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-B40-S400		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-B40-S450		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-B40-S500		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-B40-S600		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-LB20-S10		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-LB20-S15		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-LB20-S20		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-LB20-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-LB20-S30		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-LB20-S35		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-LB20-S40		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-LB20-S45		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-LB20-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-LB20-S60		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-LB20-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-LB20-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-LB20-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-LB20-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-LB20-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-LB20-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-LB20-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-LB20-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-LB20-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-LB20-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-LB20-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-LB20-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-LB20-S550		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-LB20-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-LB25-S10		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-LB25-S15		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-LB25-S20		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-LB25-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-LB25-S30		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-LB25-S35		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-LB25-S40		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-LB25-S45		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-LB25-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-LB25-S60		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-LB25-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-LB25-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-LB25-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-LB25-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-LB25-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-LB25-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-LB25-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-LB25-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-LB25-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-LB25-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-LB25-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-LB25-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-LB25-S550		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-LB25-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-LB32-S10		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-LB32-S15		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-LB32-S20		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-LB32-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-LB32-S30		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-LB32-S35		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-LB32-S40		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-LB32-S45		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-LB32-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-LB32-S60		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-LB32-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-LB32-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-LB32-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-LB32-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-LB32-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-LB32-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-LB32-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-LB32-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-LB32-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-LB32-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-LB32-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-LB32-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-LB32-S550		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-LB32-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-LB40-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-LB40-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-LB40-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-LB40-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-LB40-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-LB40-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-LB40-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-LB40-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-LB40-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-LB40-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-LB40-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-LB40-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-LB40-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-LB40-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-LB40-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-FA20-S10		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-FA20-S15		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-FA20-S20		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-FA20-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-FA20-S30		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-FA20-S35		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-FA20-S40		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-FA20-S45		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-FA20-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-FA20-S60		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-FA20-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-FA20-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-FA20-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-FA20-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-FA20-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-FA20-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-FA20-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-FA20-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-FA20-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-FA20-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-FA20-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-FA20-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-FA20-S550		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-FA20-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-FA25-S10		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-FA25-S15		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-FA25-S20		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-FA25-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-FA25-S30		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-FA25-S35		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-FA25-S40		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-FA25-S45		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-FA25-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-FA25-S60		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-FA25-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-FA25-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-FA25-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-FA25-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-FA25-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-FA25-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-FA25-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-FA25-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-FA25-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-FA25-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-FA25-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-FA25-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-FA25-S550		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-FA25-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-FA32-S10		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-FA32-S15		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-FA32-S20		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-FA32-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-FA32-S30		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-FA32-S35		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-FA32-S40		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-FA32-S45		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-FA32-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-FA32-S60		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-FA32-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-FA32-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-FA32-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-FA32-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-FA32-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-FA32-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-FA32-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-FA32-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-FA32-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-FA32-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-FA32-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-FA32-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-FA32-S550		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-FA32-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-FA40-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-FA40-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-FA40-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-FA40-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-FA40-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-FA40-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-FA40-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-FA40-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-FA40-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-FA40-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-FA40-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-FA40-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-FA40-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-FA40-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-FA40-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-FB20-S10		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-FB20-S15		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-FB20-S20		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-FB20-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-FB20-S30		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-FB20-S35		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-FB20-S40		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-FB20-S45		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-FB20-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-FB20-S60		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-FB20-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-FB20-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-FB20-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-FB20-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-FB20-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-FB20-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-FB20-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-FB20-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-FB20-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-FB20-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-FB20-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-FB20-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-FB20-S550		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-FB20-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-FB25-S10		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-FB25-S15		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-FB25-S20		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-FB25-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-FB25-S30		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-FB25-S35		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-FB25-S40		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-FB25-S45		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-FB25-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-FB25-S60		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-FB25-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-FB25-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-FB25-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-FB25-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-FB25-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-FB25-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-FB25-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-FB25-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-FB25-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-FB25-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-FB25-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-FB25-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-FB25-S550		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-FB25-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-FB32-S10		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-FB32-S15		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-FB32-S20		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-FB32-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-FB32-S30		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-FB32-S35		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-FB32-S40		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-FB32-S45		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-FB32-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-FB32-S60		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-FB32-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-FB32-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-FB32-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-FB32-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-FB32-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-FB32-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-FB32-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-FB32-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-FB32-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-FB32-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-FB32-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-FB32-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-FB32-S550		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-FB32-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-FB40-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-FB40-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-FB40-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-FB40-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-FB40-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-FB40-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-FB40-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-FB40-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-FB40-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-FB40-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-FB40-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-FB40-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-FB40-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-FB40-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-FB40-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-CA20-S10		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CA20-S15		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CA20-S20		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CA20-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CA20-S30		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CA20-S35		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CA20-S40		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CA20-S45		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CA20-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CA20-S60		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CA20-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CA20-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CA20-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CA20-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CA20-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CA20-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CA20-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CA20-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CA20-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CA20-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CA20-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CA20-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CA20-S550		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CA20-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CA25-S10		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CA25-S15		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CA25-S20		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CA25-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CA25-S30		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CA25-S35		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CA25-S40		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CA25-S45		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CA25-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CA25-S60		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CA25-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CA25-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CA25-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CA25-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CA25-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CA25-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CA25-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CA25-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CA25-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CA25-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CA25-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CA25-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CA25-S550		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CA25-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CA32-S10		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CA32-S15		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CA32-S20		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CA32-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CA32-S30		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CA32-S35		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CA32-S40		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CA32-S45		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CA32-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CA32-S60		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CA32-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CA32-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CA32-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CA32-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CA32-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CA32-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CA32-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CA32-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CA32-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CA32-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CA32-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CA32-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CA32-S550		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CA32-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CA40-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-CA40-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-CA40-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-CA40-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-CA40-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-CA40-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-CA40-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-CA40-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-CA40-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-CA40-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-CA40-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-CA40-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-CA40-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-CA40-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-CA40-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-CB20-S10		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CB20-S15		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CB20-S20		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CB20-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CB20-S30		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CB20-S35		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CB20-S40		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CB20-S45		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CB20-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CB20-S60		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CB20-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CB20-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CB20-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CB20-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CB20-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CB20-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CB20-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CB20-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CB20-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CB20-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CB20-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CB20-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CB20-S550		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CB20-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CB25-S10		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CB25-S15		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CB25-S20		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CB25-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CB25-S30		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CB25-S35		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CB25-S40		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CB25-S45		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CB25-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CB25-S60		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CB25-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CB25-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CB25-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CB25-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CB25-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CB25-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CB25-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CB25-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CB25-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CB25-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CB25-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CB25-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CB25-S550		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CB25-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CB32-S10		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CB32-S15		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CB32-S20		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CB32-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CB32-S30		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CB32-S35		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CB32-S40		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CB32-S45		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CB32-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CB32-S60		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CB32-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CB32-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CB32-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CB32-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CB32-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CB32-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CB32-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CB32-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CB32-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CB32-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CB32-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CB32-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CB32-S550		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CB32-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CB40-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-CB40-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-CB40-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-CB40-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-CB40-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-CB40-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-CB40-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-CB40-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-CB40-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-CB40-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-CB40-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-CB40-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-CB40-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-CB40-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-CB40-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-CD20-S10		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CD20-S15		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CD20-S20		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CD20-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CD20-S30		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CD20-S35		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CD20-S40		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CD20-S45		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CD20-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CD20-S60		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CD20-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CD20-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CD20-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CD20-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CD20-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CD20-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CD20-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CD20-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CD20-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CD20-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CD20-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CD20-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CD20-S550		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CD20-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CD25-S10		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CD25-S15		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CD25-S20		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CD25-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CD25-S30		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CD25-S35		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CD25-S40		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CD25-S45		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CD25-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CD25-S60		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CD25-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CD25-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CD25-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CD25-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CD25-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CD25-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CD25-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CD25-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CD25-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CD25-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CD25-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CD25-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CD25-S550		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CD25-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CD32-S10		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-CD32-S15		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-CD32-S20		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-CD32-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-CD32-S30		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-CD32-S35		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-CD32-S40		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-CD32-S45		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-CD32-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-CD32-S60		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-CD32-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-CD32-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-CD32-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-CD32-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-CD32-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-CD32-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-CD32-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-CD32-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-CD32-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-CD32-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-CD32-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-CD32-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-CD32-S550		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-CD32-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-CD40-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-CD40-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-CD40-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-CD40-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-CD40-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-CD40-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-CD40-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-CD40-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-CD40-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-CD40-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-CD40-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-CD40-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-CD40-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-CD40-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-CD40-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-TR20-S10		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-TR20-S15		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-TR20-S20		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-TR20-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-TR20-S30		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-TR20-S35		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-TR20-S40		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-TR20-S45		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-TR20-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-TR20-S60		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-TR20-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-TR20-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-TR20-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-TR20-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-TR20-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-TR20-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-TR20-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-TR20-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-TR20-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-TR20-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-TR20-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-TR20-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-TR20-S550		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-TR20-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-TR25-S10		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-TR25-S15		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-TR25-S20		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-TR25-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-TR25-S30		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-TR25-S35		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-TR25-S40		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-TR25-S45		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-TR25-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-TR25-S60		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-TR25-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-TR25-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-TR25-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-TR25-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-TR25-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-TR25-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-TR25-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-TR25-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-TR25-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-TR25-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-TR25-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-TR25-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-TR25-S550		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-TR25-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-TR32-S10		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-TR32-S15		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-TR32-S20		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-TR32-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-TR32-S30		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-TR32-S35		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-TR32-S40		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-TR32-S45		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-TR32-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-TR32-S60		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-TR32-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-TR32-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-TR32-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-TR32-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-TR32-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-TR32-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-TR32-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-TR32-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-TR32-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-TR32-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-TR32-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-TR32-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-TR32-S550		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-TR32-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-TR40-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-TR40-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-TR40-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-TR40-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-TR40-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-TR40-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-TR40-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-TR40-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-TR40-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-TR40-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-TR40-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-TR40-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-TR40-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-TR40-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-TR40-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-TH20-S10		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-TH20-S15		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-TH20-S20		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-TH20-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-TH20-S30		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-TH20-S35		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-TH20-S40		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-TH20-S45		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-TH20-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-TH20-S60		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-TH20-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-TH20-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-TH20-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-TH20-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-TH20-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-TH20-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-TH20-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-TH20-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-TH20-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-TH20-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-TH20-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-TH20-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-TH20-S550		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-TH20-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-TH25-S10		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-TH25-S15		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-TH25-S20		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-TH25-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-TH25-S30		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-TH25-S35		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-TH25-S40		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-TH25-S45		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-TH25-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-TH25-S60		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-TH25-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-TH25-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-TH25-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-TH25-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-TH25-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-TH25-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-TH25-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-TH25-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-TH25-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-TH25-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-TH25-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-TH25-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-TH25-S550		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-TH25-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-TH32-S10		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-TH32-S15		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-TH32-S20		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-TH32-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS4A-N-TH32-S30		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
ACS4A-N-TH32-S35		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
ACS4A-N-TH32-S40		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
ACS4A-N-TH32-S45		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
ACS4A-N-TH32-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS4A-N-TH32-S60		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
ACS4A-N-TH32-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS4A-N-TH32-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS4A-N-TH32-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS4A-N-TH32-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS4A-N-TH32-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS4A-N-TH32-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS4A-N-TH32-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS4A-N-TH32-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS4A-N-TH32-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS4A-N-TH32-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS4A-N-TH32-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS4A-N-TH32-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS4A-N-TH32-S550		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
ACS4A-N-TH32-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
ACS4A-N-TH40-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS4A-N-TH40-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS4A-N-TH40-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS4A-N-TH40-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS4A-N-TH40-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS4A-N-TH40-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS4A-N-TH40-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS4A-N-TH40-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS4A-N-TH40-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS4A-N-TH40-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS4A-N-TH40-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS4A-N-TH40-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS4A-N-TH40-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS4A-N-TH40-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS4A-N-TH40-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
ACS4A-N-BC20-S10		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
ACS4A-N-BC20-S15		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
ACS4A-N-BC20-S20		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
ACS4A-N-BC20-S25		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8

Pneumatic CylindersKCC

787 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC ACS4A Small Cylinder (Aluminum Tube, Air Cushion)

Brand KCC·Pneumatic Cylinders

Available part numbers (787)

ACS4A-N-B20-S10, ACS4A-N-B20-S15, ACS4A-N-B20-S20, ACS4A-N-B20-S25, ACS4A-N-B20-S30, ACS4A-N-B20-S35, ACS4A-N-B20-S40, ACS4A-N-B20-S45, ACS4A-N-B20-S50, ACS4A-N-B20-S60 + 777 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ACS4A-N-B20-S10	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-B20-S15	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-B20-S20	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-B20-S25	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-B20-S30	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-B20-S35	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-B20-S40	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-B20-S45	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-B20-S50	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-B20-S60	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-B20-S75	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-B20-S100	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-B20-S125	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-B20-S150	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-B20-S175	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-B20-S200	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-B20-S250	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-B20-S300	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-B20-S350	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-B20-S400	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-B20-S450	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-B20-S500	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-B20-S550	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-B20-S600	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-B25-S10	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-B25-S15	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-B25-S20	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-B25-S25	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-B25-S30	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-B25-S35	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-B25-S40	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-B25-S45	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-B25-S50	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-B25-S60	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-B25-S75	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-B25-S100	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-B25-S125	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-B25-S150	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-B25-S175	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-B25-S200	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-B25-S250	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-B25-S300	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-B25-S350	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-B25-S400	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-B25-S450	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-B25-S500	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-B25-S550	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-B25-S600	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-B32-S10	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-B32-S15	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-B32-S20	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-B32-S25	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-B32-S30	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-B32-S35	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-B32-S40	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-B32-S45	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-B32-S50	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-B32-S60	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-B32-S75	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-B32-S100	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-B32-S125	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-B32-S150	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-B32-S175	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-B32-S200	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-B32-S250	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-B32-S300	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-B32-S350	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-B32-S400	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-B32-S450	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-B32-S500	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-B32-S550	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-B32-S600	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-B40-S25	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-B40-S50	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-B40-S75	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-B40-S100	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-B40-S125	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-B40-S150	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-B40-S175	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-B40-S200	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-B40-S250	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-B40-S300	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-B40-S350	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-B40-S400	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-B40-S450	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-B40-S500	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-B40-S600	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-LB20-S10	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-LB20-S15	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-LB20-S20	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-LB20-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-LB20-S30	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-LB20-S35	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-LB20-S40	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-LB20-S45	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-LB20-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-LB20-S60	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-LB20-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-LB20-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-LB20-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-LB20-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-LB20-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-LB20-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-LB20-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-LB20-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-LB20-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-LB20-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-LB20-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-LB20-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-LB20-S550	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-LB20-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-LB25-S10	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-LB25-S15	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-LB25-S20	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-LB25-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-LB25-S30	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-LB25-S35	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-LB25-S40	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-LB25-S45	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-LB25-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-LB25-S60	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-LB25-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-LB25-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-LB25-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-LB25-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-LB25-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-LB25-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-LB25-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-LB25-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-LB25-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-LB25-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-LB25-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-LB25-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-LB25-S550	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-LB25-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-LB32-S10	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-LB32-S15	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-LB32-S20	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-LB32-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-LB32-S30	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-LB32-S35	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-LB32-S40	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-LB32-S45	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-LB32-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-LB32-S60	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-LB32-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-LB32-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-LB32-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-LB32-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-LB32-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-LB32-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-LB32-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-LB32-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-LB32-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-LB32-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-LB32-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-LB32-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-LB32-S550	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-LB32-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-LB40-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-LB40-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-LB40-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-LB40-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-LB40-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-LB40-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-LB40-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-LB40-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-LB40-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-LB40-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-LB40-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-LB40-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-LB40-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-LB40-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-LB40-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-FA20-S10	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-FA20-S15	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-FA20-S20	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-FA20-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-FA20-S30	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-FA20-S35	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-FA20-S40	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-FA20-S45	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-FA20-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-FA20-S60	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-FA20-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-FA20-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-FA20-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-FA20-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-FA20-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-FA20-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-FA20-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-FA20-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-FA20-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-FA20-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-FA20-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-FA20-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-FA20-S550	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-FA20-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-FA25-S10	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-FA25-S15	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-FA25-S20	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-FA25-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-FA25-S30	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-FA25-S35	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-FA25-S40	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-FA25-S45	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-FA25-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-FA25-S60	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-FA25-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-FA25-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-FA25-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-FA25-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-FA25-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-FA25-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-FA25-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-FA25-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-FA25-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-FA25-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-FA25-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-FA25-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-FA25-S550	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-FA25-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-FA32-S10	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-FA32-S15	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-FA32-S20	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-FA32-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-FA32-S30	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-FA32-S35	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-FA32-S40	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-FA32-S45	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-FA32-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-FA32-S60	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-FA32-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-FA32-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-FA32-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-FA32-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-FA32-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-FA32-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-FA32-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-FA32-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-FA32-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-FA32-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-FA32-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-FA32-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-FA32-S550	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-FA32-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-FA40-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-FA40-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-FA40-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-FA40-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-FA40-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-FA40-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-FA40-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-FA40-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-FA40-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-FA40-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-FA40-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-FA40-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-FA40-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-FA40-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-FA40-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-FB20-S10	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-FB20-S15	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-FB20-S20	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-FB20-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-FB20-S30	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-FB20-S35	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-FB20-S40	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-FB20-S45	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-FB20-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-FB20-S60	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-FB20-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-FB20-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-FB20-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-FB20-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-FB20-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-FB20-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-FB20-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-FB20-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-FB20-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-FB20-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-FB20-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-FB20-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-FB20-S550	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-FB20-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-FB25-S10	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-FB25-S15	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-FB25-S20	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-FB25-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-FB25-S30	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-FB25-S35	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-FB25-S40	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-FB25-S45	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-FB25-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-FB25-S60	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-FB25-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-FB25-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-FB25-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-FB25-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-FB25-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-FB25-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-FB25-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-FB25-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-FB25-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-FB25-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-FB25-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-FB25-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-FB25-S550	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-FB25-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-FB32-S10	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-FB32-S15	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-FB32-S20	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-FB32-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-FB32-S30	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-FB32-S35	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-FB32-S40	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-FB32-S45	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-FB32-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-FB32-S60	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-FB32-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-FB32-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-FB32-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-FB32-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-FB32-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-FB32-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-FB32-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-FB32-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-FB32-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-FB32-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-FB32-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-FB32-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-FB32-S550	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-FB32-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-FB40-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-FB40-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-FB40-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-FB40-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-FB40-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-FB40-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-FB40-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-FB40-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-FB40-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-FB40-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-FB40-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-FB40-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-FB40-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-FB40-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-FB40-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-CA20-S10	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CA20-S15	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CA20-S20	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CA20-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CA20-S30	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CA20-S35	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CA20-S40	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CA20-S45	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CA20-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CA20-S60	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CA20-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CA20-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CA20-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CA20-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CA20-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CA20-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CA20-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CA20-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CA20-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CA20-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CA20-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CA20-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CA20-S550	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CA20-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CA25-S10	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CA25-S15	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CA25-S20	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CA25-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CA25-S30	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CA25-S35	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CA25-S40	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CA25-S45	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CA25-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CA25-S60	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CA25-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CA25-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CA25-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CA25-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CA25-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CA25-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CA25-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CA25-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CA25-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CA25-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CA25-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CA25-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CA25-S550	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CA25-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CA32-S10	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CA32-S15	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CA32-S20	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CA32-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CA32-S30	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CA32-S35	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CA32-S40	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CA32-S45	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CA32-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CA32-S60	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CA32-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CA32-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CA32-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CA32-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CA32-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CA32-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CA32-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CA32-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CA32-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CA32-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CA32-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CA32-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CA32-S550	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CA32-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CA40-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-CA40-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-CA40-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-CA40-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-CA40-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-CA40-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-CA40-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-CA40-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-CA40-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-CA40-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-CA40-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-CA40-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-CA40-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-CA40-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-CA40-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-CB20-S10	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CB20-S15	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CB20-S20	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CB20-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CB20-S30	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CB20-S35	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CB20-S40	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CB20-S45	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CB20-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CB20-S60	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CB20-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CB20-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CB20-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CB20-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CB20-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CB20-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CB20-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CB20-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CB20-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CB20-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CB20-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CB20-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CB20-S550	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CB20-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CB25-S10	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CB25-S15	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CB25-S20	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CB25-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CB25-S30	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CB25-S35	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CB25-S40	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CB25-S45	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CB25-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CB25-S60	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CB25-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CB25-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CB25-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CB25-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CB25-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CB25-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CB25-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CB25-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CB25-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CB25-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CB25-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CB25-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CB25-S550	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CB25-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CB32-S10	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CB32-S15	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CB32-S20	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CB32-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CB32-S30	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CB32-S35	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CB32-S40	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CB32-S45	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CB32-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CB32-S60	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CB32-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CB32-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CB32-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CB32-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CB32-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CB32-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CB32-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CB32-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CB32-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CB32-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CB32-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CB32-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CB32-S550	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CB32-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CB40-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-CB40-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-CB40-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-CB40-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-CB40-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-CB40-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-CB40-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-CB40-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-CB40-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-CB40-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-CB40-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-CB40-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-CB40-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-CB40-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-CB40-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-CD20-S10	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CD20-S15	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CD20-S20	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CD20-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CD20-S30	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CD20-S35	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CD20-S40	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CD20-S45	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CD20-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CD20-S60	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CD20-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CD20-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CD20-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CD20-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CD20-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CD20-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CD20-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CD20-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CD20-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CD20-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CD20-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CD20-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CD20-S550	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CD20-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CD25-S10	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CD25-S15	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CD25-S20	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CD25-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CD25-S30	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CD25-S35	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CD25-S40	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CD25-S45	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CD25-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CD25-S60	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CD25-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CD25-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CD25-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CD25-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CD25-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CD25-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CD25-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CD25-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CD25-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CD25-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CD25-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CD25-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CD25-S550	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CD25-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CD32-S10	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-CD32-S15	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-CD32-S20	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-CD32-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-CD32-S30	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-CD32-S35	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-CD32-S40	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-CD32-S45	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-CD32-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-CD32-S60	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-CD32-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-CD32-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-CD32-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-CD32-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-CD32-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-CD32-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-CD32-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-CD32-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-CD32-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-CD32-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-CD32-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-CD32-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-CD32-S550	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-CD32-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-CD40-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-CD40-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-CD40-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-CD40-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-CD40-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-CD40-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-CD40-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-CD40-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-CD40-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-CD40-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-CD40-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-CD40-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-CD40-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-CD40-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-CD40-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-TR20-S10	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-TR20-S15	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-TR20-S20	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-TR20-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-TR20-S30	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-TR20-S35	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-TR20-S40	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-TR20-S45	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-TR20-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-TR20-S60	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-TR20-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-TR20-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-TR20-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-TR20-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-TR20-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-TR20-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-TR20-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-TR20-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-TR20-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-TR20-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-TR20-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-TR20-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-TR20-S550	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-TR20-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-TR25-S10	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-TR25-S15	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-TR25-S20	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-TR25-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-TR25-S30	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-TR25-S35	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-TR25-S40	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-TR25-S45	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-TR25-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-TR25-S60	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-TR25-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-TR25-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-TR25-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-TR25-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-TR25-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-TR25-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-TR25-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-TR25-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-TR25-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-TR25-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-TR25-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-TR25-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-TR25-S550	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-TR25-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-TR32-S10	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-TR32-S15	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-TR32-S20	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-TR32-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-TR32-S30	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-TR32-S35	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-TR32-S40	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-TR32-S45	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-TR32-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-TR32-S60	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-TR32-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-TR32-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-TR32-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-TR32-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-TR32-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-TR32-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-TR32-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-TR32-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-TR32-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-TR32-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-TR32-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-TR32-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-TR32-S550	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-TR32-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-TR40-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-TR40-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-TR40-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-TR40-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-TR40-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-TR40-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-TR40-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-TR40-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-TR40-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-TR40-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-TR40-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-TR40-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-TR40-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-TR40-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-TR40-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-TH20-S10	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-TH20-S15	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-TH20-S20	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-TH20-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-TH20-S30	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-TH20-S35	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-TH20-S40	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-TH20-S45	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-TH20-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-TH20-S60	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-TH20-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-TH20-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-TH20-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-TH20-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-TH20-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-TH20-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-TH20-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-TH20-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-TH20-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-TH20-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-TH20-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-TH20-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-TH20-S550	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-TH20-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-TH25-S10	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-TH25-S15	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-TH25-S20	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-TH25-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-TH25-S30	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-TH25-S35	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-TH25-S40	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-TH25-S45	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-TH25-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-TH25-S60	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-TH25-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-TH25-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-TH25-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-TH25-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-TH25-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-TH25-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-TH25-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-TH25-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-TH25-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-TH25-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-TH25-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-TH25-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-TH25-S550	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-TH25-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-TH32-S10	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-TH32-S15	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-TH32-S20	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-TH32-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS4A-N-TH32-S30	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	ACS4A-N-TH32-S35	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	ACS4A-N-TH32-S40	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	ACS4A-N-TH32-S45	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	ACS4A-N-TH32-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS4A-N-TH32-S60	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	ACS4A-N-TH32-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS4A-N-TH32-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS4A-N-TH32-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS4A-N-TH32-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS4A-N-TH32-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS4A-N-TH32-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS4A-N-TH32-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS4A-N-TH32-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS4A-N-TH32-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS4A-N-TH32-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS4A-N-TH32-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS4A-N-TH32-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS4A-N-TH32-S550	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	ACS4A-N-TH32-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	ACS4A-N-TH40-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS4A-N-TH40-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS4A-N-TH40-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS4A-N-TH40-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS4A-N-TH40-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS4A-N-TH40-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS4A-N-TH40-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS4A-N-TH40-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS4A-N-TH40-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS4A-N-TH40-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS4A-N-TH40-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS4A-N-TH40-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS4A-N-TH40-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS4A-N-TH40-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS4A-N-TH40-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	ACS4A-N-BC20-S10	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	ACS4A-N-BC20-S15	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	ACS4A-N-BC20-S20	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	ACS4A-N-BC20-S25	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC ACS4A Small Cylinder (Aluminum Tube, Air Cushion)
