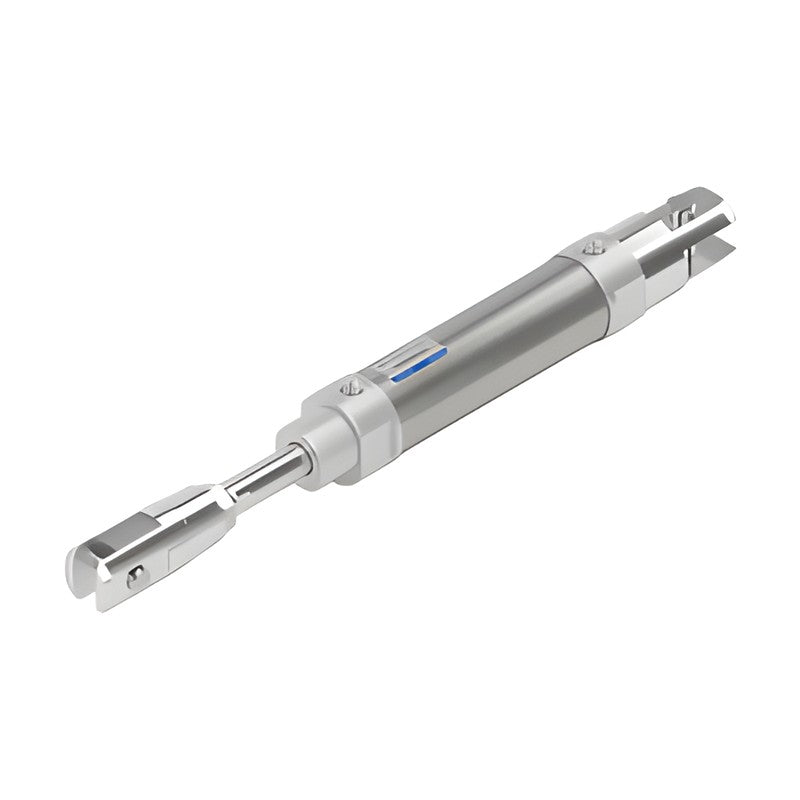

KCC ACS5A Small Cylinder (Stainless Tube, Air Cushion)

KCC ACS5A series ISO-style small round cylinder with stainless tube and air cushion, bore 20 to 40 mm, single or double rod.

Key features

Series: ACS5A single rod and ACS5AW double rod, air cushion, bore 20, 25, 32, 40 mm
Stainless tube with built-in magnet and non-lube packing as standard; rod seal replaceable
Single rod in 12 mounting styles (B, LB, FA, FB, CA, CB, CD, TR, TH, BC, BF, BT); double rod in B, LB, FA, FB, TR, TH
Standard strokes 25-500 mm; intermediate strokes made to order
Bellows (J nylon tarpaulin, K neoprene), rod-end knuckle (I/Y), auto switches (C72, C73, C76, C80, H7A1, H7A2, H7B), special versions (TS/TW/TD/ASJ/BSJ/SV/SS) and single acting S/T ordered as suffixes

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	Single rod 0.05 MPa, double rod 0.08 MPa
Ambient and fluid temperature	-10 to 70 C (with auto switch -10 to 60 C)
Cushion	Air cushion
Piston speed	50 to 1000 mm/s
Lubrication	Not required (non-lube, type N)
Tube	Stainless steel, magnet built in
Thread tolerance	KS class 2
Source	KCC catalog ACS5.pdf, p. 1-12

ACS5A-N-B20-S25		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-B20-S50		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-B20-S75		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-B20-S100		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-B20-S125		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-B20-S150		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-B20-S175		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-B20-S200		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-B20-S250		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-B20-S300		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-B20-S350		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-B20-S400		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-B20-S450		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-B20-S500		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-B25-S25		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-B25-S50		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-B25-S75		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-B25-S100		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-B25-S125		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-B25-S150		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-B25-S175		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-B25-S200		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-B25-S250		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-B25-S300		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-B25-S350		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-B25-S400		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-B25-S450		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-B25-S500		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-B32-S25		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-B32-S50		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-B32-S75		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-B32-S100		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-B32-S125		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-B32-S150		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-B32-S175		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-B32-S200		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-B32-S250		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-B32-S300		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-B32-S350		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-B32-S400		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-B32-S450		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-B32-S500		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-B40-S25		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-B40-S50		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-B40-S75		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-B40-S100		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-B40-S125		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-B40-S150		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-B40-S175		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-B40-S200		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-B40-S250		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-B40-S300		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-B40-S350		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-B40-S400		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-B40-S450		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-B40-S500		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-LB20-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-LB20-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-LB20-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-LB20-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-LB20-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-LB20-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-LB20-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-LB20-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-LB20-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-LB20-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-LB20-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-LB20-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-LB20-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-LB20-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-LB25-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-LB25-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-LB25-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-LB25-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-LB25-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-LB25-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-LB25-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-LB25-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-LB25-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-LB25-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-LB25-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-LB25-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-LB25-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-LB25-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-LB32-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-LB32-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-LB32-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-LB32-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-LB32-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-LB32-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-LB32-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-LB32-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-LB32-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-LB32-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-LB32-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-LB32-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-LB32-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-LB32-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-LB40-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-LB40-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-LB40-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-LB40-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-LB40-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-LB40-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-LB40-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-LB40-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-LB40-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-LB40-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-LB40-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-LB40-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-LB40-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-LB40-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-FA20-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-FA20-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-FA20-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-FA20-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-FA20-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-FA20-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-FA20-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-FA20-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-FA20-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-FA20-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-FA20-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-FA20-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-FA20-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-FA20-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-FA25-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-FA25-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-FA25-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-FA25-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-FA25-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-FA25-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-FA25-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-FA25-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-FA25-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-FA25-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-FA25-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-FA25-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-FA25-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-FA25-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-FA32-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-FA32-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-FA32-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-FA32-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-FA32-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-FA32-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-FA32-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-FA32-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-FA32-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-FA32-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-FA32-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-FA32-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-FA32-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-FA32-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-FA40-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-FA40-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-FA40-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-FA40-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-FA40-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-FA40-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-FA40-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-FA40-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-FA40-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-FA40-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-FA40-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-FA40-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-FA40-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-FA40-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-FB20-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-FB20-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-FB20-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-FB20-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-FB20-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-FB20-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-FB20-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-FB20-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-FB20-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-FB20-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-FB20-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-FB20-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-FB20-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-FB20-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-FB25-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-FB25-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-FB25-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-FB25-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-FB25-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-FB25-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-FB25-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-FB25-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-FB25-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-FB25-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-FB25-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-FB25-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-FB25-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-FB25-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-FB32-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-FB32-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-FB32-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-FB32-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-FB32-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-FB32-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-FB32-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-FB32-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-FB32-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-FB32-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-FB32-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-FB32-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-FB32-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-FB32-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-FB40-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-FB40-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-FB40-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-FB40-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-FB40-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-FB40-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-FB40-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-FB40-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-FB40-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-FB40-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-FB40-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-FB40-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-FB40-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-FB40-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-CA20-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CA20-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CA20-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CA20-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CA20-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CA20-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CA20-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CA20-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CA20-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CA20-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CA20-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CA20-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CA20-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CA20-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CA25-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CA25-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CA25-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CA25-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CA25-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CA25-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CA25-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CA25-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CA25-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CA25-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CA25-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CA25-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CA25-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CA25-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CA32-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CA32-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CA32-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CA32-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CA32-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CA32-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CA32-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CA32-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CA32-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CA32-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CA32-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CA32-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CA32-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CA32-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CA40-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-CA40-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-CA40-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-CA40-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-CA40-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-CA40-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-CA40-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-CA40-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-CA40-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-CA40-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-CA40-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-CA40-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-CA40-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-CA40-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-CB20-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CB20-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CB20-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CB20-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CB20-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CB20-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CB20-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CB20-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CB20-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CB20-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CB20-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CB20-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CB20-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CB20-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CB25-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CB25-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CB25-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CB25-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CB25-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CB25-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CB25-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CB25-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CB25-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CB25-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CB25-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CB25-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CB25-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CB25-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CB32-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CB32-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CB32-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CB32-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CB32-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CB32-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CB32-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CB32-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CB32-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CB32-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CB32-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CB32-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CB32-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CB32-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CB40-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-CB40-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-CB40-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-CB40-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-CB40-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-CB40-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-CB40-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-CB40-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-CB40-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-CB40-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-CB40-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-CB40-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-CB40-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-CB40-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-CD20-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CD20-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CD20-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CD20-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CD20-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CD20-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CD20-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CD20-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CD20-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CD20-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CD20-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CD20-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CD20-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CD20-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CD25-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CD25-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CD25-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CD25-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CD25-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CD25-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CD25-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CD25-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CD25-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CD25-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CD25-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CD25-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CD25-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CD25-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CD32-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-CD32-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-CD32-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-CD32-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-CD32-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-CD32-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-CD32-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-CD32-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-CD32-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-CD32-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-CD32-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-CD32-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-CD32-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-CD32-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-CD40-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-CD40-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-CD40-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-CD40-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-CD40-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-CD40-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-CD40-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-CD40-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-CD40-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-CD40-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-CD40-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-CD40-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-CD40-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-CD40-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-TR20-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-TR20-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-TR20-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-TR20-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-TR20-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-TR20-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-TR20-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-TR20-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-TR20-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-TR20-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-TR20-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-TR20-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-TR20-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-TR20-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-TR25-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-TR25-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-TR25-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-TR25-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-TR25-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-TR25-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-TR25-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-TR25-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-TR25-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-TR25-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-TR25-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-TR25-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-TR25-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-TR25-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-TR32-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-TR32-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-TR32-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-TR32-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-TR32-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-TR32-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-TR32-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-TR32-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-TR32-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-TR32-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-TR32-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-TR32-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-TR32-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-TR32-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-TR40-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-TR40-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-TR40-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-TR40-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-TR40-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-TR40-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-TR40-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-TR40-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-TR40-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-TR40-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-TR40-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-TR40-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-TR40-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-TR40-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-TH20-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-TH20-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-TH20-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-TH20-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-TH20-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-TH20-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-TH20-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-TH20-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-TH20-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-TH20-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-TH20-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-TH20-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-TH20-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-TH20-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-TH25-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-TH25-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-TH25-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-TH25-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-TH25-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-TH25-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-TH25-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-TH25-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-TH25-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-TH25-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-TH25-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-TH25-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-TH25-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-TH25-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-TH32-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-TH32-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-TH32-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-TH32-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-TH32-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-TH32-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-TH32-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-TH32-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-TH32-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-TH32-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-TH32-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-TH32-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-TH32-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-TH32-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-TH40-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-TH40-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-TH40-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-TH40-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-TH40-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-TH40-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-TH40-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-TH40-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-TH40-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-TH40-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-TH40-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-TH40-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-TH40-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-TH40-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-BC20-S25		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BC20-S50		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BC20-S75		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BC20-S100		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BC20-S125		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BC20-S150		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BC20-S175		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BC20-S200		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BC20-S250		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BC20-S300		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BC20-S350		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BC20-S400		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BC20-S450		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BC20-S500		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BC25-S25		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BC25-S50		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BC25-S75		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BC25-S100		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BC25-S125		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BC25-S150		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BC25-S175		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BC25-S200		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BC25-S250		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BC25-S300		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BC25-S350		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BC25-S400		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BC25-S450		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BC25-S500		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BC32-S25		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BC32-S50		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BC32-S75		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BC32-S100		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BC32-S125		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BC32-S150		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BC32-S175		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BC32-S200		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BC32-S250		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BC32-S300		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BC32-S350		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BC32-S400		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BC32-S450		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BC32-S500		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BC40-S25		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-BC40-S50		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-BC40-S75		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-BC40-S100		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-BC40-S125		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-BC40-S150		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-BC40-S175		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-BC40-S200		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-BC40-S250		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-BC40-S300		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-BC40-S350		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-BC40-S400		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-BC40-S450		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-BC40-S500		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-BF20-S25		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BF20-S50		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BF20-S75		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BF20-S100		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BF20-S125		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BF20-S150		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BF20-S175		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BF20-S200		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BF20-S250		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BF20-S300		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BF20-S350		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BF20-S400		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BF20-S450		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BF20-S500		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BF25-S25		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BF25-S50		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BF25-S75		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BF25-S100		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BF25-S125		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BF25-S150		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BF25-S175		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BF25-S200		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BF25-S250		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BF25-S300		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BF25-S350		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BF25-S400		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BF25-S450		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BF25-S500		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BF32-S25		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BF32-S50		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BF32-S75		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BF32-S100		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BF32-S125		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BF32-S150		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BF32-S175		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BF32-S200		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BF32-S250		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BF32-S300		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BF32-S350		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BF32-S400		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BF32-S450		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BF32-S500		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BF40-S25		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-BF40-S50		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-BF40-S75		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-BF40-S100		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-BF40-S125		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-BF40-S150		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-BF40-S175		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-BF40-S200		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-BF40-S250		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-BF40-S300		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-BF40-S350		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-BF40-S400		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-BF40-S450		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-BF40-S500		Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-N-BT20-S25		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BT20-S50		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BT20-S75		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BT20-S100		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BT20-S125		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BT20-S150		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BT20-S175		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BT20-S200		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BT20-S250		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BT20-S300		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BT20-S350		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BT20-S400		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BT20-S450		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BT20-S500		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BT25-S25		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BT25-S50		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BT25-S75		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BT25-S100		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BT25-S125		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BT25-S150		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BT25-S175		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BT25-S200		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BT25-S250		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BT25-S300		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BT25-S350		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BT25-S400		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BT25-S450		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BT25-S500		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BT32-S25		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5A-N-BT32-S50		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5A-N-BT32-S75		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5A-N-BT32-S100		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5A-N-BT32-S125		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5A-N-BT32-S150		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5A-N-BT32-S175		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5A-N-BT32-S200		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5A-N-BT32-S250		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5A-N-BT32-S300		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5A-N-BT32-S350		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5A-N-BT32-S400		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5A-N-BT32-S450		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5A-N-BT32-S500		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5A-N-BT40-S25		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5A-N-BT40-S50		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5A-N-BT40-S75		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5A-N-BT40-S100		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5A-N-BT40-S125		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5A-N-BT40-S150		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5A-N-BT40-S175		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5A-N-BT40-S200		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5A-N-BT40-S250		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5A-N-BT40-S300		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5A-N-BT40-S350		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5A-N-BT40-S400		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5A-N-BT40-S450		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5A-N-BT40-S500		Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5AW-N-B20-S25		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-B20-S50		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-B20-S75		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-B20-S100		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-B20-S125		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-B20-S150		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-B20-S175		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-B20-S200		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-B20-S250		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-B20-S300		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-B20-S350		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-B20-S400		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-B20-S450		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-B20-S500		Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-B25-S25		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-B25-S50		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-B25-S75		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-B25-S100		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-B25-S125		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-B25-S150		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-B25-S175		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-B25-S200		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-B25-S250		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-B25-S300		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-B25-S350		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-B25-S400		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-B25-S450		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-B25-S500		Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-B32-S25		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-B32-S50		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-B32-S75		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-B32-S100		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-B32-S125		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-B32-S150		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-B32-S175		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-B32-S200		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-B32-S250		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-B32-S300		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-B32-S350		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-B32-S400		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-B32-S450		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-B32-S500		Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-B40-S25		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5AW-N-B40-S50		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5AW-N-B40-S75		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5AW-N-B40-S100		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5AW-N-B40-S125		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5AW-N-B40-S150		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5AW-N-B40-S175		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5AW-N-B40-S200		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5AW-N-B40-S250		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5AW-N-B40-S300		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5AW-N-B40-S350		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5AW-N-B40-S400		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5AW-N-B40-S450		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5AW-N-B40-S500		Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5AW-N-LB20-S25		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-LB20-S50		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-LB20-S75		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-LB20-S100		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-LB20-S125		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-LB20-S150		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-LB20-S175		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-LB20-S200		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-LB20-S250		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-LB20-S300		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-LB20-S350		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-LB20-S400		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-LB20-S450		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-LB20-S500		Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-LB25-S25		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-LB25-S50		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-LB25-S75		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-LB25-S100		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-LB25-S125		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-LB25-S150		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-LB25-S175		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-LB25-S200		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-LB25-S250		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-LB25-S300		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-LB25-S350		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-LB25-S400		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-LB25-S450		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-LB25-S500		Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-LB32-S25		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-LB32-S50		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-LB32-S75		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-LB32-S100		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-LB32-S125		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-LB32-S150		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-LB32-S175		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-LB32-S200		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-LB32-S250		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-LB32-S300		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-LB32-S350		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-LB32-S400		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-LB32-S450		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-LB32-S500		Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-LB40-S25		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5AW-N-LB40-S50		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5AW-N-LB40-S75		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5AW-N-LB40-S100		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5AW-N-LB40-S125		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5AW-N-LB40-S150		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5AW-N-LB40-S175		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5AW-N-LB40-S200		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5AW-N-LB40-S250		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5AW-N-LB40-S300		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5AW-N-LB40-S350		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5AW-N-LB40-S400		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5AW-N-LB40-S450		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5AW-N-LB40-S500		Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5AW-N-FA20-S25		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-FA20-S50		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-FA20-S75		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-FA20-S100		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-FA20-S125		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-FA20-S150		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-FA20-S175		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-FA20-S200		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-FA20-S250		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-FA20-S300		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-FA20-S350		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-FA20-S400		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-FA20-S450		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-FA20-S500		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-FA25-S25		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-FA25-S50		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-FA25-S75		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-FA25-S100		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-FA25-S125		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-FA25-S150		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-FA25-S175		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-FA25-S200		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-FA25-S250		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-FA25-S300		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-FA25-S350		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-FA25-S400		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-FA25-S450		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-FA25-S500		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-FA32-S25		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-FA32-S50		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-FA32-S75		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-FA32-S100		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-FA32-S125		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-FA32-S150		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-FA32-S175		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-FA32-S200		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-FA32-S250		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-FA32-S300		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-FA32-S350		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-FA32-S400		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-FA32-S450		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-FA32-S500		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-FA40-S25		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5AW-N-FA40-S50		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5AW-N-FA40-S75		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5AW-N-FA40-S100		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5AW-N-FA40-S125		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5AW-N-FA40-S150		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5AW-N-FA40-S175		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5AW-N-FA40-S200		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5AW-N-FA40-S250		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5AW-N-FA40-S300		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5AW-N-FA40-S350		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5AW-N-FA40-S400		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5AW-N-FA40-S450		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5AW-N-FA40-S500		Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5AW-N-FB20-S25		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-FB20-S50		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-FB20-S75		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-FB20-S100		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-FB20-S125		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-FB20-S150		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-FB20-S175		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-FB20-S200		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-FB20-S250		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-FB20-S300		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-FB20-S350		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-FB20-S400		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-FB20-S450		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-FB20-S500		Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-FB25-S25		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-FB25-S50		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-FB25-S75		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-FB25-S100		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-FB25-S125		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-FB25-S150		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-FB25-S175		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-FB25-S200		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-FB25-S250		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-FB25-S300		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-FB25-S350		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-FB25-S400		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-FB25-S450		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-FB25-S500		Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-FB32-S25		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-FB32-S50		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-FB32-S75		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-FB32-S100		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-FB32-S125		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-FB32-S150		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-FB32-S175		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-FB32-S200		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-FB32-S250		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-FB32-S300		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-FB32-S350		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-FB32-S400		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-FB32-S450		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-FB32-S500		Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-FB40-S25		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5AW-N-FB40-S50		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5AW-N-FB40-S75		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5AW-N-FB40-S100		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5AW-N-FB40-S125		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5AW-N-FB40-S150		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5AW-N-FB40-S175		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5AW-N-FB40-S200		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5AW-N-FB40-S250		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5AW-N-FB40-S300		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5AW-N-FB40-S350		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5AW-N-FB40-S400		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5AW-N-FB40-S450		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5AW-N-FB40-S500		Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5AW-N-TR20-S25		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-TR20-S50		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-TR20-S75		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-TR20-S100		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-TR20-S125		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-TR20-S150		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-TR20-S175		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-TR20-S200		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-TR20-S250		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-TR20-S300		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-TR20-S350		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-TR20-S400		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-TR20-S450		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-TR20-S500		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-TR25-S25		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-TR25-S50		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-TR25-S75		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-TR25-S100		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-TR25-S125		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-TR25-S150		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-TR25-S175		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-TR25-S200		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-TR25-S250		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-TR25-S300		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-TR25-S350		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-TR25-S400		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-TR25-S450		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-TR25-S500		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-TR32-S25		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-TR32-S50		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-TR32-S75		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-TR32-S100		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-TR32-S125		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-TR32-S150		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-TR32-S175		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-TR32-S200		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-TR32-S250		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-TR32-S300		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-TR32-S350		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-TR32-S400		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-TR32-S450		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-TR32-S500		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-TR40-S25		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5AW-N-TR40-S50		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5AW-N-TR40-S75		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5AW-N-TR40-S100		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5AW-N-TR40-S125		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5AW-N-TR40-S150		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5AW-N-TR40-S175		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5AW-N-TR40-S200		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5AW-N-TR40-S250		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5AW-N-TR40-S300		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5AW-N-TR40-S350		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5AW-N-TR40-S400		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5AW-N-TR40-S450		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5AW-N-TR40-S500		Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5AW-N-TH20-S25		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-TH20-S50		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-TH20-S75		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-TH20-S100		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-TH20-S125		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-TH20-S150		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-TH20-S175		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-TH20-S200		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-TH20-S250		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-TH20-S300		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-TH20-S350		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-TH20-S400		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-TH20-S450		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-TH20-S500		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-TH25-S25		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-TH25-S50		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-TH25-S75		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-TH25-S100		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-TH25-S125		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-TH25-S150		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-TH25-S175		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-TH25-S200		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-TH25-S250		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-TH25-S300		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-TH25-S350		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-TH25-S400		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-TH25-S450		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-TH25-S500		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-TH32-S25		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
ACS5AW-N-TH32-S50		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
ACS5AW-N-TH32-S75		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
ACS5AW-N-TH32-S100		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
ACS5AW-N-TH32-S125		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
ACS5AW-N-TH32-S150		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
ACS5AW-N-TH32-S175		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
ACS5AW-N-TH32-S200		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
ACS5AW-N-TH32-S250		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
ACS5AW-N-TH32-S300		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
ACS5AW-N-TH32-S350		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
ACS5AW-N-TH32-S400		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
ACS5AW-N-TH32-S450		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
ACS5AW-N-TH32-S500		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
ACS5AW-N-TH40-S25		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
ACS5AW-N-TH40-S50		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
ACS5AW-N-TH40-S75		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
ACS5AW-N-TH40-S100		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
ACS5AW-N-TH40-S125		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
ACS5AW-N-TH40-S150		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
ACS5AW-N-TH40-S175		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
ACS5AW-N-TH40-S200		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
ACS5AW-N-TH40-S250		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
ACS5AW-N-TH40-S300		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
ACS5AW-N-TH40-S350		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
ACS5AW-N-TH40-S400		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
ACS5AW-N-TH40-S450		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
ACS5AW-N-TH40-S500		Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
ACS5A-20		Legacy code: former simplified base code
ACS5A-25		Legacy code: former simplified base code
ACS5A-32		Legacy code: former simplified base code
ACS5A-40		Legacy code: former simplified base code
ACS5AW-20		Legacy code: former simplified base code
ACS5AW-25		Legacy code: former simplified base code
ACS5AW-32		Legacy code: former simplified base code
ACS5AW-40		Legacy code: former simplified base code

Pneumatic CylindersKCC

1016 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC ACS5A Small Cylinder (Stainless Tube, Air Cushion)

Brand KCC·Pneumatic Cylinders

Available part numbers (1016)

ACS5A-N-B20-S25, ACS5A-N-B20-S50, ACS5A-N-B20-S75, ACS5A-N-B20-S100, ACS5A-N-B20-S125, ACS5A-N-B20-S150, ACS5A-N-B20-S175, ACS5A-N-B20-S200, ACS5A-N-B20-S250, ACS5A-N-B20-S300 + 1006 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ACS5A-N-B20-S25	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-B20-S50	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-B20-S75	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-B20-S100	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-B20-S125	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-B20-S150	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-B20-S175	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-B20-S200	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-B20-S250	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-B20-S300	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-B20-S350	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-B20-S400	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-B20-S450	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-B20-S500	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-B25-S25	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-B25-S50	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-B25-S75	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-B25-S100	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-B25-S125	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-B25-S150	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-B25-S175	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-B25-S200	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-B25-S250	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-B25-S300	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-B25-S350	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-B25-S400	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-B25-S450	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-B25-S500	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-B32-S25	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-B32-S50	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-B32-S75	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-B32-S100	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-B32-S125	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-B32-S150	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-B32-S175	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-B32-S200	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-B32-S250	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-B32-S300	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-B32-S350	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-B32-S400	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-B32-S450	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-B32-S500	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-B40-S25	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-B40-S50	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-B40-S75	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-B40-S100	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-B40-S125	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-B40-S150	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-B40-S175	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-B40-S200	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-B40-S250	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-B40-S300	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-B40-S350	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-B40-S400	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-B40-S450	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-B40-S500	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-LB20-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-LB20-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-LB20-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-LB20-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-LB20-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-LB20-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-LB20-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-LB20-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-LB20-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-LB20-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-LB20-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-LB20-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-LB20-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-LB20-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-LB25-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-LB25-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-LB25-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-LB25-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-LB25-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-LB25-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-LB25-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-LB25-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-LB25-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-LB25-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-LB25-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-LB25-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-LB25-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-LB25-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-LB32-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-LB32-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-LB32-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-LB32-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-LB32-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-LB32-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-LB32-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-LB32-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-LB32-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-LB32-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-LB32-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-LB32-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-LB32-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-LB32-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-LB40-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-LB40-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-LB40-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-LB40-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-LB40-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-LB40-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-LB40-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-LB40-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-LB40-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-LB40-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-LB40-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-LB40-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-LB40-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-LB40-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-FA20-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-FA20-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-FA20-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-FA20-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-FA20-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-FA20-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-FA20-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-FA20-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-FA20-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-FA20-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-FA20-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-FA20-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-FA20-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-FA20-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-FA25-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-FA25-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-FA25-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-FA25-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-FA25-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-FA25-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-FA25-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-FA25-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-FA25-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-FA25-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-FA25-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-FA25-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-FA25-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-FA25-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-FA32-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-FA32-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-FA32-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-FA32-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-FA32-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-FA32-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-FA32-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-FA32-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-FA32-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-FA32-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-FA32-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-FA32-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-FA32-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-FA32-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-FA40-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-FA40-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-FA40-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-FA40-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-FA40-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-FA40-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-FA40-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-FA40-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-FA40-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-FA40-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-FA40-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-FA40-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-FA40-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-FA40-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-FB20-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-FB20-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-FB20-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-FB20-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-FB20-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-FB20-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-FB20-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-FB20-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-FB20-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-FB20-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-FB20-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-FB20-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-FB20-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-FB20-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-FB25-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-FB25-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-FB25-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-FB25-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-FB25-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-FB25-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-FB25-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-FB25-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-FB25-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-FB25-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-FB25-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-FB25-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-FB25-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-FB25-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-FB32-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-FB32-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-FB32-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-FB32-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-FB32-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-FB32-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-FB32-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-FB32-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-FB32-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-FB32-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-FB32-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-FB32-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-FB32-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-FB32-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-FB40-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-FB40-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-FB40-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-FB40-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-FB40-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-FB40-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-FB40-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-FB40-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-FB40-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-FB40-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-FB40-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-FB40-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-FB40-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-FB40-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-CA20-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CA20-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CA20-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CA20-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CA20-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CA20-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CA20-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CA20-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CA20-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CA20-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CA20-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CA20-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CA20-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CA20-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CA25-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CA25-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CA25-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CA25-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CA25-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CA25-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CA25-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CA25-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CA25-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CA25-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CA25-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CA25-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CA25-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CA25-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CA32-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CA32-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CA32-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CA32-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CA32-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CA32-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CA32-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CA32-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CA32-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CA32-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CA32-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CA32-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CA32-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CA32-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CA40-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-CA40-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-CA40-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-CA40-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-CA40-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-CA40-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-CA40-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-CA40-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-CA40-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-CA40-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-CA40-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-CA40-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-CA40-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-CA40-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-CB20-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CB20-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CB20-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CB20-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CB20-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CB20-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CB20-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CB20-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CB20-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CB20-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CB20-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CB20-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CB20-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CB20-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CB25-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CB25-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CB25-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CB25-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CB25-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CB25-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CB25-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CB25-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CB25-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CB25-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CB25-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CB25-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CB25-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CB25-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CB32-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CB32-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CB32-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CB32-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CB32-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CB32-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CB32-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CB32-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CB32-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CB32-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CB32-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CB32-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CB32-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CB32-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CB40-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-CB40-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-CB40-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-CB40-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-CB40-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-CB40-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-CB40-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-CB40-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-CB40-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-CB40-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-CB40-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-CB40-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-CB40-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-CB40-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-CD20-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CD20-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CD20-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CD20-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CD20-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CD20-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CD20-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CD20-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CD20-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CD20-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CD20-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CD20-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CD20-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CD20-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CD25-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CD25-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CD25-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CD25-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CD25-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CD25-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CD25-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CD25-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CD25-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CD25-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CD25-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CD25-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CD25-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CD25-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CD32-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-CD32-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-CD32-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-CD32-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-CD32-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-CD32-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-CD32-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-CD32-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-CD32-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-CD32-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-CD32-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-CD32-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-CD32-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-CD32-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-CD40-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-CD40-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-CD40-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-CD40-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-CD40-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-CD40-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-CD40-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-CD40-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-CD40-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-CD40-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-CD40-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-CD40-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-CD40-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-CD40-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-TR20-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-TR20-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-TR20-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-TR20-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-TR20-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-TR20-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-TR20-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-TR20-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-TR20-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-TR20-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-TR20-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-TR20-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-TR20-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-TR20-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-TR25-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-TR25-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-TR25-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-TR25-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-TR25-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-TR25-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-TR25-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-TR25-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-TR25-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-TR25-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-TR25-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-TR25-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-TR25-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-TR25-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-TR32-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-TR32-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-TR32-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-TR32-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-TR32-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-TR32-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-TR32-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-TR32-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-TR32-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-TR32-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-TR32-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-TR32-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-TR32-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-TR32-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-TR40-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-TR40-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-TR40-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-TR40-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-TR40-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-TR40-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-TR40-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-TR40-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-TR40-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-TR40-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-TR40-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-TR40-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-TR40-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-TR40-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-TH20-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-TH20-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-TH20-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-TH20-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-TH20-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-TH20-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-TH20-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-TH20-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-TH20-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-TH20-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-TH20-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-TH20-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-TH20-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-TH20-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-TH25-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-TH25-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-TH25-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-TH25-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-TH25-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-TH25-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-TH25-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-TH25-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-TH25-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-TH25-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-TH25-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-TH25-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-TH25-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-TH25-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-TH32-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-TH32-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-TH32-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-TH32-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-TH32-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-TH32-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-TH32-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-TH32-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-TH32-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-TH32-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-TH32-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-TH32-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-TH32-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-TH32-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-TH40-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-TH40-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-TH40-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-TH40-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-TH40-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-TH40-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-TH40-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-TH40-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-TH40-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-TH40-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-TH40-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-TH40-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-TH40-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-TH40-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-BC20-S25	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BC20-S50	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BC20-S75	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BC20-S100	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BC20-S125	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BC20-S150	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BC20-S175	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BC20-S200	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BC20-S250	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BC20-S300	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BC20-S350	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BC20-S400	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BC20-S450	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BC20-S500	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BC25-S25	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BC25-S50	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BC25-S75	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BC25-S100	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BC25-S125	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BC25-S150	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BC25-S175	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BC25-S200	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BC25-S250	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BC25-S300	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BC25-S350	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BC25-S400	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BC25-S450	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BC25-S500	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BC32-S25	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BC32-S50	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BC32-S75	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BC32-S100	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BC32-S125	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BC32-S150	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BC32-S175	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BC32-S200	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BC32-S250	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BC32-S300	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BC32-S350	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BC32-S400	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BC32-S450	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BC32-S500	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BC40-S25	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-BC40-S50	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-BC40-S75	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-BC40-S100	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-BC40-S125	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-BC40-S150	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-BC40-S175	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-BC40-S200	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-BC40-S250	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-BC40-S300	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-BC40-S350	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-BC40-S400	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-BC40-S450	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-BC40-S500	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-BF20-S25	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BF20-S50	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BF20-S75	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BF20-S100	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BF20-S125	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BF20-S150	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BF20-S175	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BF20-S200	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BF20-S250	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BF20-S300	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BF20-S350	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BF20-S400	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BF20-S450	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BF20-S500	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BF25-S25	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BF25-S50	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BF25-S75	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BF25-S100	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BF25-S125	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BF25-S150	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BF25-S175	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BF25-S200	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BF25-S250	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BF25-S300	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BF25-S350	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BF25-S400	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BF25-S450	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BF25-S500	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BF32-S25	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BF32-S50	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BF32-S75	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BF32-S100	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BF32-S125	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BF32-S150	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BF32-S175	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BF32-S200	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BF32-S250	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BF32-S300	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BF32-S350	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BF32-S400	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BF32-S450	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BF32-S500	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BF40-S25	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-BF40-S50	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-BF40-S75	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-BF40-S100	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-BF40-S125	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-BF40-S150	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-BF40-S175	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-BF40-S200	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-BF40-S250	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-BF40-S300	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-BF40-S350	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-BF40-S400	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-BF40-S450	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-BF40-S500	Rod: Single rod \| Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-N-BT20-S25	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BT20-S50	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BT20-S75	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BT20-S100	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BT20-S125	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BT20-S150	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BT20-S175	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BT20-S200	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BT20-S250	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BT20-S300	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BT20-S350	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BT20-S400	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BT20-S450	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BT20-S500	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BT25-S25	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BT25-S50	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BT25-S75	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BT25-S100	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BT25-S125	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BT25-S150	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BT25-S175	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BT25-S200	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BT25-S250	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BT25-S300	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BT25-S350	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BT25-S400	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BT25-S450	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BT25-S500	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BT32-S25	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5A-N-BT32-S50	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5A-N-BT32-S75	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5A-N-BT32-S100	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5A-N-BT32-S125	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5A-N-BT32-S150	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5A-N-BT32-S175	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5A-N-BT32-S200	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5A-N-BT32-S250	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5A-N-BT32-S300	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5A-N-BT32-S350	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5A-N-BT32-S400	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5A-N-BT32-S450	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5A-N-BT32-S500	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5A-N-BT40-S25	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5A-N-BT40-S50	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5A-N-BT40-S75	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5A-N-BT40-S100	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5A-N-BT40-S125	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5A-N-BT40-S150	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5A-N-BT40-S175	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5A-N-BT40-S200	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5A-N-BT40-S250	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5A-N-BT40-S300	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5A-N-BT40-S350	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5A-N-BT40-S400	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5A-N-BT40-S450	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5A-N-BT40-S500	Rod: Single rod \| Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5AW-N-B20-S25	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-B20-S50	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-B20-S75	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-B20-S100	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-B20-S125	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-B20-S150	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-B20-S175	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-B20-S200	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-B20-S250	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-B20-S300	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-B20-S350	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-B20-S400	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-B20-S450	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-B20-S500	Rod: Double rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-B25-S25	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-B25-S50	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-B25-S75	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-B25-S100	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-B25-S125	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-B25-S150	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-B25-S175	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-B25-S200	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-B25-S250	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-B25-S300	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-B25-S350	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-B25-S400	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-B25-S450	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-B25-S500	Rod: Double rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-B32-S25	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-B32-S50	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-B32-S75	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-B32-S100	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-B32-S125	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-B32-S150	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-B32-S175	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-B32-S200	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-B32-S250	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-B32-S300	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-B32-S350	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-B32-S400	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-B32-S450	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-B32-S500	Rod: Double rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-B40-S25	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5AW-N-B40-S50	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5AW-N-B40-S75	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5AW-N-B40-S100	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5AW-N-B40-S125	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5AW-N-B40-S150	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5AW-N-B40-S175	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5AW-N-B40-S200	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5AW-N-B40-S250	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5AW-N-B40-S300	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5AW-N-B40-S350	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5AW-N-B40-S400	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5AW-N-B40-S450	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5AW-N-B40-S500	Rod: Double rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5AW-N-LB20-S25	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S50	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S75	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S100	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S125	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S150	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S175	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S200	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S250	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S300	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S350	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S400	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S450	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-LB20-S500	Rod: Double rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S25	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S50	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S75	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S100	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S125	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S150	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S175	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S200	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S250	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S300	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S350	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S400	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S450	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-LB25-S500	Rod: Double rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S25	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S50	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S75	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S100	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S125	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S150	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S175	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S200	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S250	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S300	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S350	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S400	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S450	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-LB32-S500	Rod: Double rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-LB40-S25	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S50	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S75	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S100	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S125	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S150	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S175	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S200	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S250	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S300	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S350	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S400	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S450	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5AW-N-LB40-S500	Rod: Double rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5AW-N-FA20-S25	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S50	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S75	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S100	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S125	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S150	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S175	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S200	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S250	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S300	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S350	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S400	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S450	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-FA20-S500	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S25	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S50	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S75	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S100	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S125	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S150	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S175	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S200	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S250	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S300	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S350	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S400	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S450	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-FA25-S500	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S25	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S50	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S75	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S100	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S125	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S150	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S175	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S200	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S250	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S300	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S350	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S400	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S450	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-FA32-S500	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-FA40-S25	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S50	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S75	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S100	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S125	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S150	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S175	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S200	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S250	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S300	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S350	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S400	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S450	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5AW-N-FA40-S500	Rod: Double rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5AW-N-FB20-S25	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S50	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S75	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S100	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S125	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S150	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S175	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S200	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S250	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S300	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S350	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S400	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S450	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-FB20-S500	Rod: Double rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S25	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S50	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S75	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S100	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S125	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S150	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S175	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S200	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S250	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S300	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S350	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S400	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S450	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-FB25-S500	Rod: Double rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S25	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S50	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S75	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S100	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S125	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S150	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S175	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S200	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S250	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S300	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S350	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S400	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S450	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-FB32-S500	Rod: Double rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-FB40-S25	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S50	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S75	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S100	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S125	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S150	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S175	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S200	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S250	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S300	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S350	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S400	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S450	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5AW-N-FB40-S500	Rod: Double rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5AW-N-TR20-S25	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S50	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S75	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S100	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S125	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S150	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S175	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S200	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S250	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S300	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S350	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S400	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S450	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-TR20-S500	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S25	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S50	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S75	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S100	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S125	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S150	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S175	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S200	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S250	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S300	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S350	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S400	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S450	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-TR25-S500	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S25	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S50	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S75	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S100	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S125	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S150	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S175	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S200	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S250	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S300	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S350	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S400	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S450	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-TR32-S500	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-TR40-S25	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S50	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S75	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S100	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S125	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S150	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S175	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S200	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S250	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S300	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S350	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S400	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S450	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5AW-N-TR40-S500	Rod: Double rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5AW-N-TH20-S25	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S50	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S75	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S100	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S125	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S150	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S175	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S200	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S250	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S300	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S350	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S400	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S450	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-TH20-S500	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S25	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S50	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S75	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S100	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S125	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S150	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S175	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S200	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S250	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S300	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S350	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S400	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S450	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-TH25-S500	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S25	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S50	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S75	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S100	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S125	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S150	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S175	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S200	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S250	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S300	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S350	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S400	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S450	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	ACS5AW-N-TH32-S500	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	ACS5AW-N-TH40-S25	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S50	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S75	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S100	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S125	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S150	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S175	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S200	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S250	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S300	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S350	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S400	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S450	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	ACS5AW-N-TH40-S500	Rod: Double rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	ACS5A-20	Legacy code: former simplified base code
	ACS5A-25	Legacy code: former simplified base code
	ACS5A-32	Legacy code: former simplified base code
	ACS5A-40	Legacy code: former simplified base code
	ACS5AW-20	Legacy code: former simplified base code
	ACS5AW-25	Legacy code: former simplified base code
	ACS5AW-32	Legacy code: former simplified base code
	ACS5AW-40	Legacy code: former simplified base code

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC ACS5A Small Cylinder (Stainless Tube, Air Cushion)
