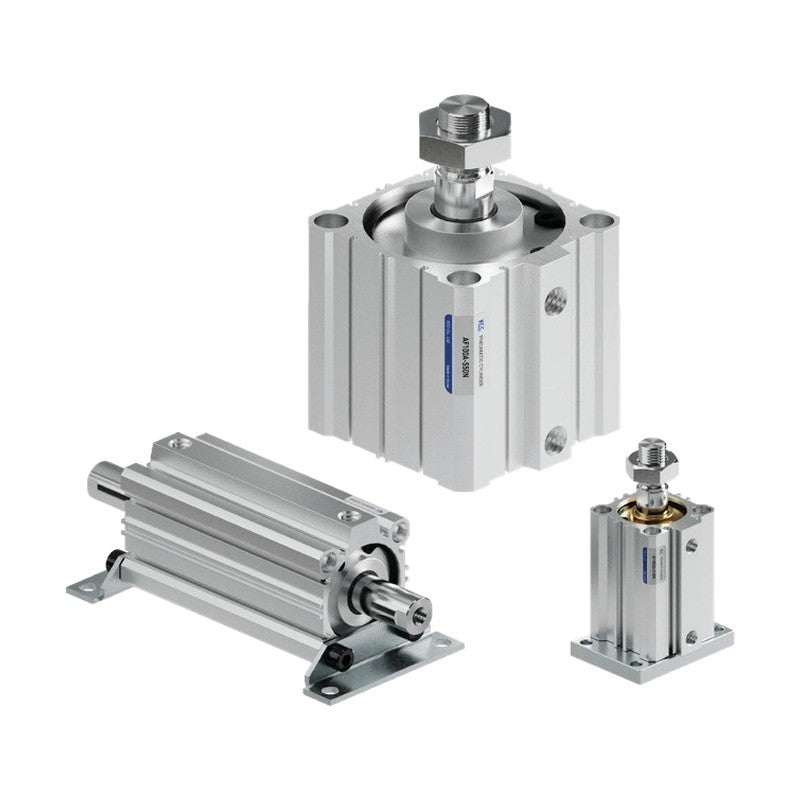

KCC AF/ADF Thin Cylinder (Single Rod, Bore 12-200) - Part 2

KCC AF/ADF series double-acting single-rod thin (compact) pneumatic cylinder, bore 12 to 200 mm, without magnet (AF) or with built-in auto switch magnet (ADF).

Key features

Short axial length for press-fitting, clamping and short-stroke work in tight spaces
Bolts directly to the machine without brackets; special anodized square aluminium body
Standard type has tapped mounting holes on both ends (A) or through-holes (B); foot (LB), rod/head flange (FA/FB) and double clevis (CB) brackets for bore 12-100, head-end spigot (HI) for bore 50/63
Rod end female thread as standard; male thread (N), knuckle joints (I, Y), rubber (C) or air (A) cushion, low hydraulic-pressure type (L) and auto switches (A-7x/A-9x reed, F-7x/F-9x solid state) are ordered as suffixes
Intermediate strokes 55-100 mm are built from the next standard stroke with an internal spacer; specials TS/TW (multi-stage), ASJ/BSJ (adjustable stroke), SV (heat resistant), E (side load), MS (scraper), SS (stainless rod) and single acting S/T on request

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.44 MPa
Max. operating pressure	0.97 MPa
Min. operating pressure	0.07 MPa (bore 12/16), 0.05 MPa (bore 20 to 200)
Ambient and fluid temperature	-10 to 70°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	None (rubber cushion option C; air cushion A for bore 32-80)
Stroke tolerance	+1.0/0 mm (+1.4/0 mm for bore 125-200)
Thread tolerance	KS class 2
Source	KCC catalog 2039239615_vIdDNj7z_6af84da342e1788723816e2300d4783ce8e172d4+1.pdf, p. 1-105 to 1-120 (PDF p. 1-16)

ADF16A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF16A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF16A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF16A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF16B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF16B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF16B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF16B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF16B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF16B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF20A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF20A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF20A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF20A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF20A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF20A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF20A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF20A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF20A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF20A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF20B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF20B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF20B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF20B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF20B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF20B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF20B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF20B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF20B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF20B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF25A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF25A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF25A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF25A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF25A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF25A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF25A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF25A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF25A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF25A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF25B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF25B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF25B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF25B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF25B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF25B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF25B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF25B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF25B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF25B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF32A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF32A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF32A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF32A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF32A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF32A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF32A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF32A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF32A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF32A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF32A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF32A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF32B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF32B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF32B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF32B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF32B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF32B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF32B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF32B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF32B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF32B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF32B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF32B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF40A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF40A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF40A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF40A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF40A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF40A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF40A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF40A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF40A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF40A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF40A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF40A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF40B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF40B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF40B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF40B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF40B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF40B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF40B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF40B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF40B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF40B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF40B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF40B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF50A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF50A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF50A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF50A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF50A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF50A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF50A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF50A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF50A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF50A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF50A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF50A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF50B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF50B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF50B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF50B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF50B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF50B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF50B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF50B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF50B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF50B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF50B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF50B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF63A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF63A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF63A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF63A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF63A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF63A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF63A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF63A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF63A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF63A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF63A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF63A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF63B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF63B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF63B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF63B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF63B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF63B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF63B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF63B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF63B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF63B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF63B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF63B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF80A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF80A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF80A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF80A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF80A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF80A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF80A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF80A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF80A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF80A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF80A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF80A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF80B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF80B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF80B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF80B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF80B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF80B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF80B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF80B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF80B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF80B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF80B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF80B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF100A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF100A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF100A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF100A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF100A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF100A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF100A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF100A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF100A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF100A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF100A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF100A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF100B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF100B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF100B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF100B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF100B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF100B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF100B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF100B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF100B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF100B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF100B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF100B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF125A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF125A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF125A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF125A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF125A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF125A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF125A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF125A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF125A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF125A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF125A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF125A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF125B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF125B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF125B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF125B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF125B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF125B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF125B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF125B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF125B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF125B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF125B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF125B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF140A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF140A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF140A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF140A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF140A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF140A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF140A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF140A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF140A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF140A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF140A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF140A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF140B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF140B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF140B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF140B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF140B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF140B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF140B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF140B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF140B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF140B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF140B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF140B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF160A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF160A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF160A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF160A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF160A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF160A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF160A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF160A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF160A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF160A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF160A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF160A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF160B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF160B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF160B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF160B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF160B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF160B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF160B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF160B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF160B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF160B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF160B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF160B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF200A-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF200A-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF200A-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF200A-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF200A-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF200A-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF200A-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF200A-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF200A-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF200A-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF200A-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF200A-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF200B-S5		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
ADF200B-S10		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
ADF200B-S15		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
ADF200B-S20		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
ADF200B-S25		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
ADF200B-S30		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
ADF200B-S35		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
ADF200B-S40		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
ADF200B-S45		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
ADF200B-S50		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
ADF200B-S75		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
ADF200B-S100		Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
ADF-LB12A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB12A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB12A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB12A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB12A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB12A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB16A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB16A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB16A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB16A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB16A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB16A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB20A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB20A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB20A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB20A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB20A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB20A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB20A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB20A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB20A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB20A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB25A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB25A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB25A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB25A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB25A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB25A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB25A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB25A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB25A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB25A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB32A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB32A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB32A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB32A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB32A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB32A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB32A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB32A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB32A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB32A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB32A-S75		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-LB32A-S100		Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-LB40A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB40A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB40A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB40A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB40A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB40A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB40A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB40A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB40A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB40A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB40A-S75		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-LB40A-S100		Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-LB50A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB50A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB50A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB50A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB50A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB50A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB50A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB50A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB50A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB50A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB50A-S75		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-LB50A-S100		Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-LB63A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB63A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB63A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB63A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB63A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB63A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB63A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB63A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB63A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB63A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB63A-S75		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-LB63A-S100		Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-LB80A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB80A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB80A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB80A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB80A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB80A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB80A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB80A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB80A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB80A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB80A-S75		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-LB80A-S100		Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-LB100A-S5		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-LB100A-S10		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-LB100A-S15		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-LB100A-S20		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-LB100A-S25		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-LB100A-S30		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-LB100A-S35		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-LB100A-S40		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-LB100A-S45		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-LB100A-S50		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-LB100A-S75		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-LB100A-S100		Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FA12A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA12A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA12A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA12A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA12A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA12A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA16A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA16A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA16A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA16A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA16A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA16A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA20A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA20A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA20A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA20A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA20A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA20A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA20A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA20A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA20A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA20A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA25A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA25A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA25A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA25A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA25A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA25A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA25A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA25A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA25A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA25A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA32A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA32A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA32A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA32A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA32A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA32A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA32A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA32A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA32A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA32A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA32A-S75		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FA32A-S100		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FA40A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA40A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA40A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA40A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA40A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA40A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA40A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA40A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA40A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA40A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA40A-S75		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FA40A-S100		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FA50A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA50A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA50A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA50A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA50A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA50A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA50A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA50A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA50A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA50A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA50A-S75		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FA50A-S100		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FA63A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA63A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA63A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA63A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA63A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA63A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA63A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA63A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA63A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA63A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA63A-S75		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FA63A-S100		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FA80A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA80A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA80A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA80A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA80A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA80A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA80A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA80A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA80A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA80A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA80A-S75		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FA80A-S100		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FA100A-S5		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FA100A-S10		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FA100A-S15		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FA100A-S20		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FA100A-S25		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FA100A-S30		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FA100A-S35		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FA100A-S40		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FA100A-S45		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FA100A-S50		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FA100A-S75		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FA100A-S100		Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FB12A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB12A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB12A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB12A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB12A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB12A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB16A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB16A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB16A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB16A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB16A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB16A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB20A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB20A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB20A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB20A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB20A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB20A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB20A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB20A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB20A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB20A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB25A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB25A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB25A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB25A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB25A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB25A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB25A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB25A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB25A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB25A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB32A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB32A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB32A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB32A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB32A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB32A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB32A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB32A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB32A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB32A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB32A-S75		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FB32A-S100		Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FB40A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB40A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB40A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB40A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB40A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB40A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB40A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB40A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB40A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB40A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB40A-S75		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FB40A-S100		Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FB50A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB50A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB50A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB50A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB50A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB50A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB50A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB50A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB50A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB50A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB50A-S75		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FB50A-S100		Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FB63A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB63A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB63A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB63A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB63A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB63A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB63A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB63A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB63A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB63A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB63A-S75		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FB63A-S100		Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FB80A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB80A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB80A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB80A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB80A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB80A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB80A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB80A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB80A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB80A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB80A-S75		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FB80A-S100		Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-FB100A-S5		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-FB100A-S10		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-FB100A-S15		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-FB100A-S20		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-FB100A-S25		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-FB100A-S30		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-FB100A-S35		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-FB100A-S40		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-FB100A-S45		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-FB100A-S50		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-FB100A-S75		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-FB100A-S100		Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-CB12A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB12A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB12A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB12A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB12A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB12A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB16A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB16A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB16A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB16A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB16A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB16A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB20A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB20A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB20A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB20A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB20A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB20A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB20A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB20A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB20A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB20A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB25A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB25A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB25A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB25A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB25A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB25A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB25A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB25A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB25A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB25A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB32A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB32A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB32A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB32A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB32A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB32A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB32A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB32A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB32A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB32A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB32A-S75		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-CB32A-S100		Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-CB40A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB40A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB40A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB40A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB40A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB40A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB40A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB40A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB40A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB40A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB40A-S75		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-CB40A-S100		Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-CB50A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB50A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB50A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB50A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB50A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB50A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB50A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB50A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB50A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB50A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB50A-S75		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-CB50A-S100		Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-CB63A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB63A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB63A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB63A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB63A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB63A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB63A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB63A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB63A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB63A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB63A-S75		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-CB63A-S100		Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-CB80A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB80A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB80A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB80A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB80A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB80A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB80A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB80A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB80A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB80A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB80A-S75		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-CB80A-S100		Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-CB100A-S5		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-CB100A-S10		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-CB100A-S15		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-CB100A-S20		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-CB100A-S25		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-CB100A-S30		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-CB100A-S35		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-CB100A-S40		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-CB100A-S45		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-CB100A-S50		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-CB100A-S75		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-CB100A-S100		Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-HI50A-S5		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-HI50A-S10		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-HI50A-S15		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-HI50A-S20		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-HI50A-S25		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-HI50A-S30		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-HI50A-S35		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-HI50A-S40		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-HI50A-S45		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-HI50A-S50		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-HI50A-S75		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-HI50A-S100		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
ADF-HI63A-S5		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
ADF-HI63A-S10		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
ADF-HI63A-S15		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
ADF-HI63A-S20		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
ADF-HI63A-S25		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
ADF-HI63A-S30		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
ADF-HI63A-S35		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
ADF-HI63A-S40		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
ADF-HI63A-S45		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
ADF-HI63A-S50		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
ADF-HI63A-S75		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
ADF-HI63A-S100		Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
AF12		Legacy code (base model), order as AF12A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF16		Legacy code (base model), order as AF16A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF20		Legacy code (base model), order as AF20A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF25		Legacy code (base model), order as AF25A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF32		Legacy code (base model), order as AF32A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF40		Legacy code (base model), order as AF40A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF50		Legacy code (base model), order as AF50A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF63		Legacy code (base model), order as AF63A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF80		Legacy code (base model), order as AF80A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF100		Legacy code (base model), order as AF100A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF125		Legacy code (base model), order as AF125A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF140		Legacy code (base model), order as AF140A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF160		Legacy code (base model), order as AF160A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
AF200		Legacy code (base model), order as AF200A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF12		Legacy code (base model), order as ADF12A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF16		Legacy code (base model), order as ADF16A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF20		Legacy code (base model), order as ADF20A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF25		Legacy code (base model), order as ADF25A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF32		Legacy code (base model), order as ADF32A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF40		Legacy code (base model), order as ADF40A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF50		Legacy code (base model), order as ADF50A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF63		Legacy code (base model), order as ADF63A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF80		Legacy code (base model), order as ADF80A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF100		Legacy code (base model), order as ADF100A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF125		Legacy code (base model), order as ADF125A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF140		Legacy code (base model), order as ADF140A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF160		Legacy code (base model), order as ADF160A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
ADF200		Legacy code (base model), order as ADF200A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table

Compact CylindersKCC

758 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC AF/ADF Thin Cylinder (Single Rod, Bore 12-200) - Part 2

Brand KCC·Compact Cylinders

Available part numbers (758)

ADF16A-S15, ADF16A-S20, ADF16A-S25, ADF16A-S30, ADF16B-S5, ADF16B-S10, ADF16B-S15, ADF16B-S20, ADF16B-S25, ADF16B-S30 + 748 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ADF16A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF16A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF16A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF16A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF16B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF16B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF16B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF16B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF16B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF16B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF20A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF20A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF20A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF20A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF20A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF20A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF20A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF20A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF20A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF20A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF20B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF20B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF20B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF20B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF20B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF20B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF20B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF20B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF20B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF20B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF25A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF25A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF25A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF25A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF25A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF25A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF25A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF25A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF25A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF25A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF25B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF25B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF25B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF25B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF25B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF25B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF25B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF25B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF25B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF25B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF32A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF32A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF32A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF32A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF32A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF32A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF32A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF32A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF32A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF32A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF32A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF32A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF32B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF32B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF32B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF32B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF32B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF32B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF32B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF32B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF32B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF32B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF32B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF32B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF40A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF40A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF40A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF40A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF40A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF40A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF40A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF40A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF40A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF40A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF40A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF40A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF40B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF40B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF40B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF40B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF40B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF40B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF40B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF40B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF40B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF40B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF40B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF40B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF50A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF50A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF50A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF50A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF50A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF50A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF50A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF50A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF50A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF50A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF50A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF50A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF50B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF50B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF50B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF50B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF50B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF50B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF50B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF50B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF50B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF50B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF50B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF50B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF63A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF63A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF63A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF63A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF63A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF63A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF63A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF63A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF63A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF63A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF63A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF63A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF63B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF63B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF63B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF63B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF63B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF63B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF63B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF63B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF63B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF63B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF63B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF63B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF80A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF80A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF80A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF80A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF80A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF80A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF80A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF80A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF80A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF80A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF80A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF80A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF80B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF80B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF80B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF80B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF80B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF80B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF80B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF80B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF80B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF80B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF80B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF80B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF100A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF100A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF100A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF100A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF100A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF100A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF100A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF100A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF100A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF100A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF100A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF100A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF100B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF100B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF100B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF100B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF100B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF100B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF100B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF100B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF100B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF100B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF100B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF100B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF125A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF125A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF125A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF125A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF125A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF125A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF125A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF125A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF125A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF125A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF125A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF125A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF125B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF125B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF125B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF125B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF125B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF125B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF125B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF125B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF125B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF125B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF125B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF125B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF140A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF140A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF140A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF140A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF140A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF140A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF140A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF140A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF140A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF140A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF140A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF140A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF140B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF140B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF140B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF140B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF140B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF140B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF140B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF140B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF140B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF140B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF140B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF140B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF160A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF160A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF160A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF160A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF160A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF160A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF160A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF160A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF160A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF160A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF160A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF160A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF160B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF160B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF160B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF160B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF160B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF160B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF160B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF160B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF160B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF160B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF160B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF160B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF200A-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF200A-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF200A-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF200A-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF200A-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF200A-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF200A-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF200A-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF200A-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF200A-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF200A-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF200A-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF200B-S5	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 5 mm
	ADF200B-S10	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 10 mm
	ADF200B-S15	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 15 mm
	ADF200B-S20	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 20 mm
	ADF200B-S25	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 25 mm
	ADF200B-S30	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 30 mm
	ADF200B-S35	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 35 mm
	ADF200B-S40	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 40 mm
	ADF200B-S45	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 45 mm
	ADF200B-S50	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 50 mm
	ADF200B-S75	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 75 mm
	ADF200B-S100	Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Through-hole \| Stroke: 100 mm
	ADF-LB12A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB12A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB12A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB12A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB12A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB12A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB16A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB16A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB16A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB16A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB16A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB16A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB20A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB20A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB20A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB20A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB20A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB20A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB20A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB20A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB20A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB20A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB25A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB25A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB25A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB25A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB25A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB25A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB25A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB25A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB25A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB25A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB32A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB32A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB32A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB32A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB32A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB32A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB32A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB32A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB32A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB32A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB32A-S75	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-LB32A-S100	Magnet: Yes \| Mounting: Foot \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-LB40A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB40A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB40A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB40A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB40A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB40A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB40A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB40A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB40A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB40A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB40A-S75	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-LB40A-S100	Magnet: Yes \| Mounting: Foot \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-LB50A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB50A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB50A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB50A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB50A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB50A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB50A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB50A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB50A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB50A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB50A-S75	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-LB50A-S100	Magnet: Yes \| Mounting: Foot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-LB63A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB63A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB63A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB63A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB63A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB63A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB63A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB63A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB63A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB63A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB63A-S75	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-LB63A-S100	Magnet: Yes \| Mounting: Foot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-LB80A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB80A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB80A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB80A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB80A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB80A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB80A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB80A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB80A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB80A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB80A-S75	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-LB80A-S100	Magnet: Yes \| Mounting: Foot \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-LB100A-S5	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-LB100A-S10	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-LB100A-S15	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-LB100A-S20	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-LB100A-S25	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-LB100A-S30	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-LB100A-S35	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-LB100A-S40	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-LB100A-S45	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-LB100A-S50	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-LB100A-S75	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-LB100A-S100	Magnet: Yes \| Mounting: Foot \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FA12A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA12A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA12A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA12A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA12A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA12A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA16A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA16A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA16A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA16A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA16A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA16A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA20A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA20A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA20A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA20A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA20A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA20A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA20A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA20A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA20A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA20A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA25A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA25A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA25A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA25A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA25A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA25A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA25A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA25A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA25A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA25A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA32A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA32A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA32A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA32A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA32A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA32A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA32A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA32A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA32A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA32A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA32A-S75	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FA32A-S100	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FA40A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA40A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA40A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA40A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA40A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA40A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA40A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA40A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA40A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA40A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA40A-S75	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FA40A-S100	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FA50A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA50A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA50A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA50A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA50A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA50A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA50A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA50A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA50A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA50A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA50A-S75	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FA50A-S100	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FA63A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA63A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA63A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA63A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA63A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA63A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA63A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA63A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA63A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA63A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA63A-S75	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FA63A-S100	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FA80A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA80A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA80A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA80A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA80A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA80A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA80A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA80A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA80A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA80A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA80A-S75	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FA80A-S100	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FA100A-S5	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FA100A-S10	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FA100A-S15	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FA100A-S20	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FA100A-S25	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FA100A-S30	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FA100A-S35	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FA100A-S40	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FA100A-S45	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FA100A-S50	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FA100A-S75	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FA100A-S100	Magnet: Yes \| Mounting: Rod-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FB12A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB12A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB12A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB12A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB12A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB12A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB16A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB16A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB16A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB16A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB16A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB16A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB20A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB20A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB20A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB20A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB20A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB20A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB20A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB20A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB20A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB20A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB25A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB25A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB25A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB25A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB25A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB25A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB25A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB25A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB25A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB25A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB32A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB32A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB32A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB32A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB32A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB32A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB32A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB32A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB32A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB32A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB32A-S75	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FB32A-S100	Magnet: Yes \| Mounting: Head-end flange \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FB40A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB40A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB40A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB40A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB40A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB40A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB40A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB40A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB40A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB40A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB40A-S75	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FB40A-S100	Magnet: Yes \| Mounting: Head-end flange \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FB50A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB50A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB50A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB50A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB50A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB50A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB50A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB50A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB50A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB50A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB50A-S75	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FB50A-S100	Magnet: Yes \| Mounting: Head-end flange \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FB63A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB63A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB63A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB63A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB63A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB63A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB63A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB63A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB63A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB63A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB63A-S75	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FB63A-S100	Magnet: Yes \| Mounting: Head-end flange \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FB80A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB80A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB80A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB80A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB80A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB80A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB80A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB80A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB80A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB80A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB80A-S75	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FB80A-S100	Magnet: Yes \| Mounting: Head-end flange \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-FB100A-S5	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-FB100A-S10	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-FB100A-S15	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-FB100A-S20	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-FB100A-S25	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-FB100A-S30	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-FB100A-S35	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-FB100A-S40	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-FB100A-S45	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-FB100A-S50	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-FB100A-S75	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-FB100A-S100	Magnet: Yes \| Mounting: Head-end flange \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-CB12A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB12A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB12A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB12A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB12A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB12A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB16A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB16A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB16A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB16A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB16A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB16A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB20A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB20A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB20A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB20A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB20A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB20A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB20A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB20A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB20A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB20A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB25A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB25A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB25A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB25A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB25A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB25A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB25A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB25A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB25A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB25A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB32A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB32A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB32A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB32A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB32A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB32A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB32A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB32A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB32A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB32A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB32A-S75	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-CB32A-S100	Magnet: Yes \| Mounting: Double clevis \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-CB40A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB40A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB40A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB40A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB40A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB40A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB40A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB40A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB40A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB40A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB40A-S75	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-CB40A-S100	Magnet: Yes \| Mounting: Double clevis \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-CB50A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB50A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB50A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB50A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB50A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB50A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB50A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB50A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB50A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB50A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB50A-S75	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-CB50A-S100	Magnet: Yes \| Mounting: Double clevis \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-CB63A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB63A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB63A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB63A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB63A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB63A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB63A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB63A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB63A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB63A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB63A-S75	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-CB63A-S100	Magnet: Yes \| Mounting: Double clevis \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-CB80A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB80A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB80A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB80A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB80A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB80A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB80A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB80A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB80A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB80A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB80A-S75	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-CB80A-S100	Magnet: Yes \| Mounting: Double clevis \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-CB100A-S5	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-CB100A-S10	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-CB100A-S15	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-CB100A-S20	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-CB100A-S25	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-CB100A-S30	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-CB100A-S35	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-CB100A-S40	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-CB100A-S45	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-CB100A-S50	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-CB100A-S75	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-CB100A-S100	Magnet: Yes \| Mounting: Double clevis \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-HI50A-S5	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-HI50A-S10	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-HI50A-S15	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-HI50A-S20	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-HI50A-S25	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-HI50A-S30	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-HI50A-S35	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-HI50A-S40	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-HI50A-S45	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-HI50A-S50	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-HI50A-S75	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-HI50A-S100	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	ADF-HI63A-S5	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	ADF-HI63A-S10	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	ADF-HI63A-S15	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	ADF-HI63A-S20	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	ADF-HI63A-S25	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	ADF-HI63A-S30	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	ADF-HI63A-S35	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	ADF-HI63A-S40	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	ADF-HI63A-S45	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	ADF-HI63A-S50	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	ADF-HI63A-S75	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	ADF-HI63A-S100	Magnet: Yes \| Mounting: Head-end spigot \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	AF12	Legacy code (base model), order as AF12A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF16	Legacy code (base model), order as AF16A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF20	Legacy code (base model), order as AF20A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF25	Legacy code (base model), order as AF25A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF32	Legacy code (base model), order as AF32A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF40	Legacy code (base model), order as AF40A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF50	Legacy code (base model), order as AF50A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF63	Legacy code (base model), order as AF63A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF80	Legacy code (base model), order as AF80A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF100	Legacy code (base model), order as AF100A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF125	Legacy code (base model), order as AF125A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF140	Legacy code (base model), order as AF140A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF160	Legacy code (base model), order as AF160A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	AF200	Legacy code (base model), order as AF200A-S<stroke> \| Magnet: No \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF12	Legacy code (base model), order as ADF12A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 12 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF16	Legacy code (base model), order as ADF16A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 16 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF20	Legacy code (base model), order as ADF20A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 20 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF25	Legacy code (base model), order as ADF25A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 25 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF32	Legacy code (base model), order as ADF32A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 32 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF40	Legacy code (base model), order as ADF40A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 40 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF50	Legacy code (base model), order as ADF50A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 50 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF63	Legacy code (base model), order as ADF63A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 63 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF80	Legacy code (base model), order as ADF80A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 80 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF100	Legacy code (base model), order as ADF100A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 100 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF125	Legacy code (base model), order as ADF125A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 125 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF140	Legacy code (base model), order as ADF140A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 140 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF160	Legacy code (base model), order as ADF160A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 160 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table
	ADF200	Legacy code (base model), order as ADF200A-S<stroke> \| Magnet: Yes \| Mounting: Standard (no bracket) \| Bore: 200 mm \| Mounting holes: Both ends tapped \| Stroke: See stroke table

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC AF/ADF Thin Cylinder (Single Rod, Bore 12-200) - Part 2
