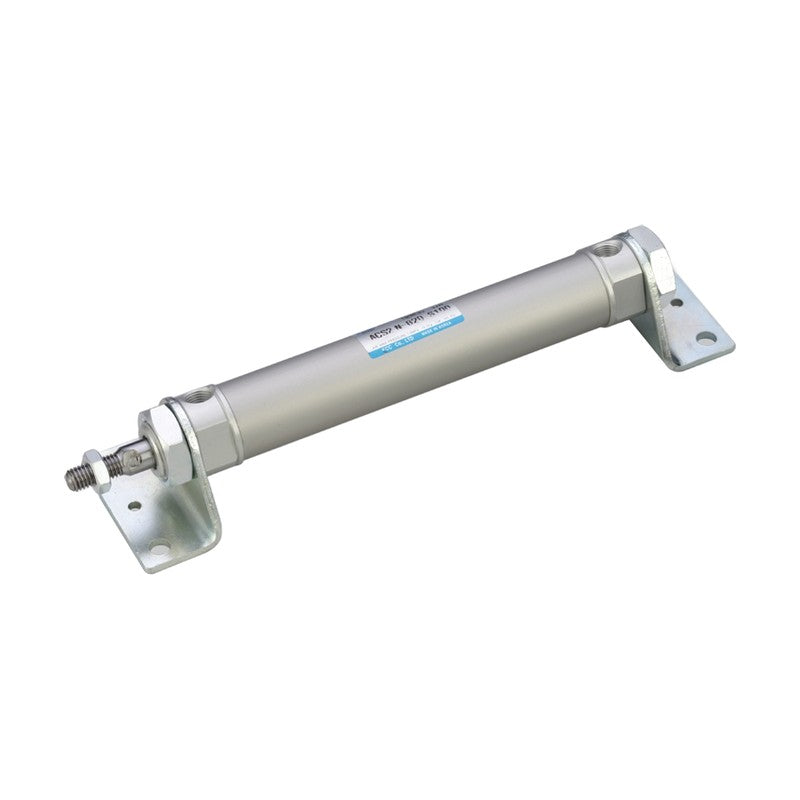

KCC B10-ACS4A Small Cylinder, Air Cushion (Battery Industry Version)

KCC B10-ACS4A series ISO-style small round cylinder with aluminum tube and air cushion, bore 20 to 40 mm, single or double rod, copper/zinc-free for the battery industry.

Key features

Battery industry version: copper and zinc free construction (B10- prefix)
Series: B10-ACS4A single rod and B10-ACS4AW double rod, air cushion, bore 20, 25, 32, 40 mm
Aluminum tube with built-in magnet and non-lube packing as standard; rod seal replaceable
Single rod in 12 mounting styles (B, LB, FA, FB, CA, CB, CD, TR, TH, BC, BF, BT); double rod in B, LB, FA, FB, TR, TH
Standard strokes 10-600 mm (bore 40: 25-600 mm); intermediate strokes made to order
Low-pressure hydraulic type (lube symbol L) available on order

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	Single rod 0.05 MPa, double rod 0.08 MPa
Ambient and fluid temperature	-10 to 70 C (with auto switch -10 to 60 C)
Cushion	Air cushion
Piston speed	50 to 1000 mm/s
Lubrication	Not required (non-lube, type N)
Tube	Aluminum alloy, magnet built in
Thread tolerance	KS class 2
Source	KCC catalog B10_ACS4.pdf, p. 1-14

B10-ACS4A-N-B20-S10		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S15		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S20		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S25		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S30		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S35		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S40		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S45		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S50		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S60		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S75		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S100		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S125		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S150		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S175		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S200		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S250		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S300		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S350		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S400		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S450		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S500		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S550		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-B20-S600		Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S10		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S15		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S20		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S25		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S30		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S35		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S40		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S45		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S50		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S60		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S75		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S100		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S125		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S150		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S175		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S200		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S250		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S300		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S350		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S400		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S450		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S500		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S550		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-B25-S600		Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S10		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S15		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S20		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S25		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S30		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S35		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S40		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S45		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S50		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S60		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S75		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S100		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S125		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S150		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S175		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S200		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S250		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S300		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S350		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S400		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S450		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S500		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S550		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-B32-S600		Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-B40-S25		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S50		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S75		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S100		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S125		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S150		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S175		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S200		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S250		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S300		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S350		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S400		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S450		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S500		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-B40-S600		Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-LB20-S10		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S15		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S20		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S30		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S35		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S40		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S45		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S60		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S550		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-LB20-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S10		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S15		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S20		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S30		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S35		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S40		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S45		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S60		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S550		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-LB25-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S10		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S15		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S20		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S30		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S35		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S40		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S45		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S60		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S550		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-LB32-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-LB40-S25		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S50		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S75		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S100		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S125		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S150		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S175		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S200		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S250		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S300		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S350		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S400		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S450		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S500		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-LB40-S600		Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-FA20-S10		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S15		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S20		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S30		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S35		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S40		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S45		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S60		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S550		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-FA20-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S10		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S15		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S20		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S30		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S35		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S40		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S45		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S60		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S550		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-FA25-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S10		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S15		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S20		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S30		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S35		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S40		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S45		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S60		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S550		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-FA32-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-FA40-S25		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S50		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S75		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S100		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S125		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S150		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S175		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S200		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S250		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S300		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S350		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S400		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S450		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S500		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-FA40-S600		Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-FB20-S10		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S15		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S20		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S30		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S35		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S40		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S45		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S60		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S550		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-FB20-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S10		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S15		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S20		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S30		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S35		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S40		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S45		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S60		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S550		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-FB25-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S10		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S15		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S20		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S30		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S35		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S40		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S45		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S60		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S550		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-FB32-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-FB40-S25		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S50		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S75		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S100		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S125		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S150		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S175		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S200		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S250		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S300		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S350		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S400		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S450		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S500		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-FB40-S600		Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-CA20-S10		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S15		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S20		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S30		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S35		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S40		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S45		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S60		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S550		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CA20-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S10		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S15		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S20		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S30		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S35		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S40		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S45		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S60		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S550		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CA25-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S10		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S15		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S20		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S30		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S35		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S40		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S45		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S60		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S550		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CA32-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CA40-S25		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S50		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S75		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S100		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S125		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S150		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S175		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S200		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S250		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S300		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S350		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S400		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S450		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S500		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-CA40-S600		Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-CB20-S10		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S15		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S20		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S30		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S35		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S40		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S45		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S60		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S550		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CB20-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S10		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S15		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S20		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S30		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S35		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S40		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S45		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S60		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S550		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CB25-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S10		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S15		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S20		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S30		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S35		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S40		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S45		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S60		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S550		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CB32-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CB40-S25		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S50		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S75		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S100		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S125		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S150		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S175		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S200		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S250		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S300		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S350		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S400		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S450		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S500		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-CB40-S600		Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-CD20-S10		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S15		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S20		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S30		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S35		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S40		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S45		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S60		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S550		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CD20-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S10		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S15		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S20		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S30		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S35		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S40		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S45		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S60		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S550		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CD25-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S10		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S15		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S20		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S30		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S35		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S40		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S45		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S60		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S550		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-CD32-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-CD40-S25		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S50		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S75		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S100		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S125		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S150		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S175		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S200		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S250		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S300		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S350		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S400		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S450		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S500		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-CD40-S600		Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-TR20-S10		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S15		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S20		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S30		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S35		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S40		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S45		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S60		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S550		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-TR20-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S10		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S15		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S20		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S30		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S35		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S40		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S45		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S60		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S550		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-TR25-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S10		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S15		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S20		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S30		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S35		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S40		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S45		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S60		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S550		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-TR32-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-TR40-S25		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S50		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S75		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S100		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S125		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S150		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S175		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S200		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S250		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S300		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S350		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S400		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S450		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S500		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-TR40-S600		Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-TH20-S10		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S15		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S20		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S30		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S35		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S40		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S45		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S60		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S550		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-TH20-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S10		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S15		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S20		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S30		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S35		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S40		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S45		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S60		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S550		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-TH25-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S10		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S15		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S20		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S30		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S35		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S40		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S45		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S60		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S550		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
B10-ACS4A-N-TH32-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
B10-ACS4A-N-TH40-S25		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S50		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S75		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S100		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S125		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S150		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S175		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S200		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S250		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S300		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S350		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S400		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S450		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S500		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
B10-ACS4A-N-TH40-S600		Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
B10-ACS4A-N-BC20-S10		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
B10-ACS4A-N-BC20-S15		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
B10-ACS4A-N-BC20-S20		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
B10-ACS4A-N-BC20-S25		Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8

Pneumatic CylindersKCC

787 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC B10-ACS4A Small Cylinder, Air Cushion (Battery Industry Version)

Brand KCC·Pneumatic Cylinders

Available part numbers (787)

B10-ACS4A-N-B20-S10, B10-ACS4A-N-B20-S15, B10-ACS4A-N-B20-S20, B10-ACS4A-N-B20-S25, B10-ACS4A-N-B20-S30, B10-ACS4A-N-B20-S35, B10-ACS4A-N-B20-S40, B10-ACS4A-N-B20-S45, B10-ACS4A-N-B20-S50, B10-ACS4A-N-B20-S60 + 777 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	B10-ACS4A-N-B20-S10	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S15	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S20	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S25	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S30	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S35	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S40	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S45	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S50	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S60	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S75	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S100	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S125	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S150	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S175	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S200	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S250	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S300	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S350	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S400	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S450	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S500	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S550	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-B20-S600	Rod: Single rod \| Mounting: Basic \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S10	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S15	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S20	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S25	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S30	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S35	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S40	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S45	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S50	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S60	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S75	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S100	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S125	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S150	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S175	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S200	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S250	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S300	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S350	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S400	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S450	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S500	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S550	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-B25-S600	Rod: Single rod \| Mounting: Basic \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S10	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S15	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S20	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S25	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S30	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S35	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S40	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S45	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S50	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S60	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S75	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S100	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S125	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S150	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S175	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S200	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S250	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S300	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S350	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S400	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S450	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S500	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S550	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-B32-S600	Rod: Single rod \| Mounting: Basic \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-B40-S25	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S50	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S75	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S100	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S125	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S150	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S175	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S200	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S250	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S300	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S350	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S400	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S450	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S500	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-B40-S600	Rod: Single rod \| Mounting: Basic \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-LB20-S10	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S15	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S20	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S30	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S35	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S40	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S45	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S60	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S550	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-LB20-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S10	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S15	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S20	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S30	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S35	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S40	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S45	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S60	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S550	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-LB25-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S10	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S15	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S20	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S30	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S35	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S40	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S45	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S60	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S550	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-LB32-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-LB40-S25	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S50	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S75	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S100	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S125	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S150	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S175	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S200	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S250	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S300	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S350	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S400	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S450	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S500	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-LB40-S600	Rod: Single rod \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-FA20-S10	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S15	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S20	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S30	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S35	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S40	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S45	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S60	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S550	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-FA20-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S10	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S15	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S20	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S30	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S35	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S40	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S45	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S60	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S550	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-FA25-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S10	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S15	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S20	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S30	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S35	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S40	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S45	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S60	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S550	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-FA32-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-FA40-S25	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S50	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S75	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S100	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S125	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S150	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S175	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S200	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S250	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S300	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S350	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S400	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S450	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S500	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-FA40-S600	Rod: Single rod \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-FB20-S10	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S15	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S20	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S30	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S35	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S40	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S45	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S60	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S550	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-FB20-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S10	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S15	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S20	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S30	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S35	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S40	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S45	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S60	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S550	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-FB25-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S10	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S15	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S20	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S30	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S35	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S40	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S45	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S60	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S550	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-FB32-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-FB40-S25	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S50	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S75	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S100	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S125	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S150	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S175	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S200	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S250	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S300	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S350	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S400	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S450	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S500	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-FB40-S600	Rod: Single rod \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-CA20-S10	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S15	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S20	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S30	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S35	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S40	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S45	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S60	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S550	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CA20-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S10	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S15	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S20	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S30	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S35	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S40	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S45	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S60	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S550	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CA25-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S10	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S15	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S20	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S30	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S35	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S40	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S45	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S60	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S550	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CA32-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CA40-S25	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S50	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S75	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S100	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S125	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S150	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S175	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S200	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S250	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S300	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S350	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S400	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S450	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S500	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-CA40-S600	Rod: Single rod \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-CB20-S10	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S15	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S20	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S30	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S35	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S40	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S45	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S60	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S550	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CB20-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S10	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S15	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S20	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S30	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S35	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S40	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S45	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S60	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S550	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CB25-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S10	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S15	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S20	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S30	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S35	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S40	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S45	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S60	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S550	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CB32-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CB40-S25	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S50	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S75	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S100	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S125	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S150	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S175	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S200	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S250	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S300	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S350	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S400	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S450	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S500	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-CB40-S600	Rod: Single rod \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-CD20-S10	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S15	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S20	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S30	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S35	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S40	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S45	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S60	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S550	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CD20-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S10	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S15	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S20	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S30	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S35	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S40	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S45	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S60	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S550	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CD25-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S10	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S15	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S20	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S30	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S35	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S40	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S45	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S60	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S550	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-CD32-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-CD40-S25	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S50	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S75	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S100	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S125	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S150	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S175	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S200	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S250	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S300	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S350	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S400	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S450	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S500	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-CD40-S600	Rod: Single rod \| Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-TR20-S10	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S15	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S20	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S30	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S35	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S40	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S45	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S60	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S550	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-TR20-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S10	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S15	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S20	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S30	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S35	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S40	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S45	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S60	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S550	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-TR25-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S10	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S15	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S20	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S30	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S35	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S40	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S45	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S60	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S550	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-TR32-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-TR40-S25	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S50	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S75	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S100	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S125	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S150	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S175	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S200	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S250	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S300	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S350	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S400	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S450	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S500	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-TR40-S600	Rod: Single rod \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-TH20-S10	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S15	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S20	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S30	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S35	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S40	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S45	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S60	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S550	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-TH20-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S10	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S15	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S20	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S30	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S35	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S40	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S45	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S60	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S550	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-TH25-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S10	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S15	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S20	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S30	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 30 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S35	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 35 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S40	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 40 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S45	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 45 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S60	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 60 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 175 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 350 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 400 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 450 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 500 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S550	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 550 mm \| Port: Rc1/8
	B10-ACS4A-N-TH32-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 600 mm \| Port: Rc1/8
	B10-ACS4A-N-TH40-S25	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S50	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S75	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S100	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S125	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S150	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S175	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S200	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S250	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S300	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S350	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S400	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S450	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S500	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	B10-ACS4A-N-TH40-S600	Rod: Single rod \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 600 mm \| Port: Rc1/4
	B10-ACS4A-N-BC20-S10	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 10 mm \| Port: Rc1/8
	B10-ACS4A-N-BC20-S15	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 15 mm \| Port: Rc1/8
	B10-ACS4A-N-BC20-S20	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 20 mm \| Port: Rc1/8
	B10-ACS4A-N-BC20-S25	Rod: Single rod \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC B10-ACS4A Small Cylinder, Air Cushion (Battery Industry Version)
