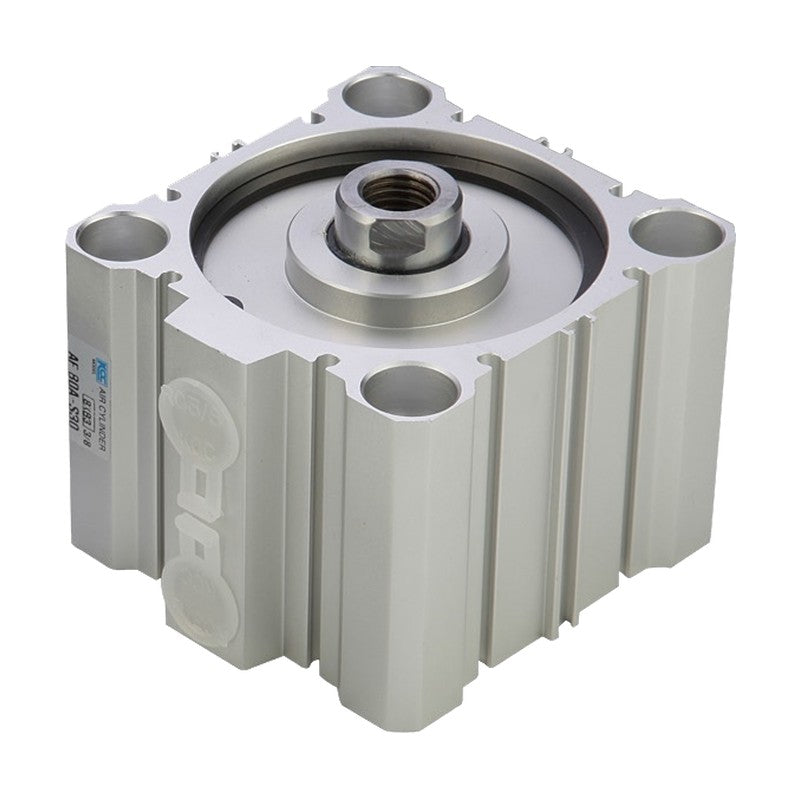

KCC B10-AF/ADF Thin Cylinder (Battery Industry Version, ø40 to ø63)

KCC B10-AF/ADF series thin (compact) pneumatic cylinder in the battery-industry B10 version, single or double rod, with or without magnet, bore ø40 to ø63 mm.

Key features

B10 battery-industry version of the KCC AF/ADF thin cylinder for copper- and zinc-sensitive production lines
Short axial length for press-fit, clamping and short-stroke work in tight spaces; mounts with bolts only
AF/AFW without magnet, ADF/ADFW with built-in magnet for auto switches (A-72 to A-96, F-7NV to F-9B(V)) ordered as a suffix
Mounting: standard, foot LB, rod flange FA, head flange FB, double clevis CB (brackets ø12 to ø100); mounting holes A both ends tapped or B through hole
Options as code suffixes: low-hydraulic type L, male rod end N, knuckle joints I/Y, rubber cushion C, air cushion A (ø32-ø80), MS strong scraper, SS stainless rod, E side-load type
Intermediate strokes 55 to 95 mm are built from the next standard stroke with internal spacers

Specifications

Action	Double acting (single acting S/T on request)
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.07 MPa (ø12, ø16), 0.05 MPa (ø20 to ø200)
Ambient and fluid temperature	-10 to 70°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	None (rubber C / air A cushion optional)
Stroke tolerance	+1.0/0 mm (+1.4/0 mm for ø125 to ø200)
Port	M5x0.8 (ø12-ø25), Rc1/8 (ø32, ø40), Rc1/4 (ø50, ø63), Rc3/8 (ø80-ø160)
Bore sizes in this product	ø40 to ø63 mm
Source	KCC catalog Book01_B10-AF,ADF.pdf, p. 1-23

B10-AF-40A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-40A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-40A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-40A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-40A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-40A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-40A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-40A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-40A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-40A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-40A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-40A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-40B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-40B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-40B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-40B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-40B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-40B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-40B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-40B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-40B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-40B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-40B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-40B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-50A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-50A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-50A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-50A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-50A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-50A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-50A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-50A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-50A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-50A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-50A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-50A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-50B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-50B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-50B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-50B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-50B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-50B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-50B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-50B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-50B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-50B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-50B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-50B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-63A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-63A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-63A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-63A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-63A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-63A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-63A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-63A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-63A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-63A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-63A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-63A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-63B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-63B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-63B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-63B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-63B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-63B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-63B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-63B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-63B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-63B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-63B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-63B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-LB40A-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-LB40A-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-LB40A-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-LB40A-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-LB40A-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-LB40A-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-LB40A-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-LB40A-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-LB40A-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-LB40A-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-LB40A-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-LB40A-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-LB40B-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-LB40B-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-LB40B-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-LB40B-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-LB40B-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-LB40B-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-LB40B-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-LB40B-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-LB40B-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-LB40B-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-LB40B-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-LB40B-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-LB50A-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-LB50A-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-LB50A-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-LB50A-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-LB50A-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-LB50A-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-LB50A-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-LB50A-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-LB50A-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-LB50A-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-LB50A-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-LB50A-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-LB50B-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-LB50B-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-LB50B-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-LB50B-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-LB50B-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-LB50B-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-LB50B-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-LB50B-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-LB50B-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-LB50B-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-LB50B-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-LB50B-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-LB63A-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-LB63A-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-LB63A-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-LB63A-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-LB63A-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-LB63A-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-LB63A-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-LB63A-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-LB63A-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-LB63A-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-LB63A-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-LB63A-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-LB63B-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-LB63B-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-LB63B-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-LB63B-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-LB63B-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-LB63B-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-LB63B-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-LB63B-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-LB63B-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-LB63B-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-LB63B-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-LB63B-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FA40A-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FA40A-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FA40A-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FA40A-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FA40A-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FA40A-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FA40A-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FA40A-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FA40A-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FA40A-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FA40A-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FA40A-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FA40B-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FA40B-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FA40B-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FA40B-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FA40B-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FA40B-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FA40B-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FA40B-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FA40B-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FA40B-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FA40B-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FA40B-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FA50A-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FA50A-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FA50A-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FA50A-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FA50A-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FA50A-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FA50A-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FA50A-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FA50A-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FA50A-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FA50A-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FA50A-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FA50B-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FA50B-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FA50B-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FA50B-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FA50B-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FA50B-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FA50B-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FA50B-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FA50B-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FA50B-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FA50B-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FA50B-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FA63A-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FA63A-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FA63A-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FA63A-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FA63A-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FA63A-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FA63A-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FA63A-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FA63A-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FA63A-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FA63A-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FA63A-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FA63B-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FA63B-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FA63B-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FA63B-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FA63B-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FA63B-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FA63B-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FA63B-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FA63B-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FA63B-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FA63B-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FA63B-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FB40A-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FB40A-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FB40A-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FB40A-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FB40A-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FB40A-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FB40A-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FB40A-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FB40A-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FB40A-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FB40A-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FB40A-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FB40B-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FB40B-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FB40B-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FB40B-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FB40B-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FB40B-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FB40B-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FB40B-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FB40B-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FB40B-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FB40B-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FB40B-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FB50A-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FB50A-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FB50A-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FB50A-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FB50A-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FB50A-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FB50A-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FB50A-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FB50A-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FB50A-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FB50A-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FB50A-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FB50B-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FB50B-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FB50B-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FB50B-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FB50B-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FB50B-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FB50B-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FB50B-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FB50B-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FB50B-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FB50B-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FB50B-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FB63A-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FB63A-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FB63A-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FB63A-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FB63A-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FB63A-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FB63A-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FB63A-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FB63A-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FB63A-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FB63A-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FB63A-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FB63B-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FB63B-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FB63B-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FB63B-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FB63B-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FB63B-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FB63B-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FB63B-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FB63B-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FB63B-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FB63B-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FB63B-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-CB40A-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-CB40A-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-CB40A-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-CB40A-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-CB40A-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-CB40A-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-CB40A-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-CB40A-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-CB40A-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-CB40A-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-CB40A-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-CB40A-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-CB40B-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-CB40B-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-CB40B-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-CB40B-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-CB40B-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-CB40B-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-CB40B-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-CB40B-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-CB40B-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-CB40B-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-CB40B-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-CB40B-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-CB50A-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-CB50A-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-CB50A-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-CB50A-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-CB50A-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-CB50A-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-CB50A-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-CB50A-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-CB50A-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-CB50A-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-CB50A-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-CB50A-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-CB50B-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-CB50B-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-CB50B-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-CB50B-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-CB50B-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-CB50B-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-CB50B-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-CB50B-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-CB50B-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-CB50B-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-CB50B-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-CB50B-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-CB63A-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-CB63A-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-CB63A-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-CB63A-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-CB63A-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-CB63A-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-CB63A-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-CB63A-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-CB63A-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-CB63A-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-CB63A-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-CB63A-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-CB63B-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-CB63B-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-CB63B-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-CB63B-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-CB63B-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-CB63B-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-CB63B-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-CB63B-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-CB63B-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-CB63B-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-CB63B-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-CB63B-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-40A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-40A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-40A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-40A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-40A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-40A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-40A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-40A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-40A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-40A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-40A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-40A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-40B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-40B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-40B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-40B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-40B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-40B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-40B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-40B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-40B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-40B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-40B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-40B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-50A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-50A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-50A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-50A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-50A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-50A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-50A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-50A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-50A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-50A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-50A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-50A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-50B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-50B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-50B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-50B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-50B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-50B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-50B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-50B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-50B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-50B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-50B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-50B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-63A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-63A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-63A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-63A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-63A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-63A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-63A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-63A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-63A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-63A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-63A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-63A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-63B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-63B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-63B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-63B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-63B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-63B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-63B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-63B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-63B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-63B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-63B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-63B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-LB40A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-LB40A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-LB40A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-LB40A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-LB40A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-LB40A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-LB40A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-LB40A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-LB40A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-LB40A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-LB40A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-LB40A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-LB40B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-LB40B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-LB40B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-LB40B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-LB40B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-LB40B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-LB40B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-LB40B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-LB40B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-LB40B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-LB40B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-LB40B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-LB50A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-LB50A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-LB50A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-LB50A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-LB50A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-LB50A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-LB50A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-LB50A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-LB50A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-LB50A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-LB50A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-LB50A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-LB50B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-LB50B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-LB50B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-LB50B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-LB50B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-LB50B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-LB50B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-LB50B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-LB50B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-LB50B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-LB50B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-LB50B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-LB63A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-LB63A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-LB63A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-LB63A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-LB63A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-LB63A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-LB63A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-LB63A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-LB63A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-LB63A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-LB63A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-LB63A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-LB63B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-LB63B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-LB63B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-LB63B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-LB63B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-LB63B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-LB63B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-LB63B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-LB63B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-LB63B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-LB63B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-LB63B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FA40A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FA40A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FA40A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FA40A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FA40A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FA40A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FA40A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FA40A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FA40A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FA40A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FA40A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FA40A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FA40B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FA40B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FA40B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FA40B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FA40B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FA40B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FA40B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FA40B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FA40B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FA40B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FA40B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FA40B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FA50A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FA50A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FA50A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FA50A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FA50A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FA50A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FA50A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FA50A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FA50A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FA50A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FA50A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FA50A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FA50B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FA50B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FA50B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FA50B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FA50B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FA50B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FA50B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FA50B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FA50B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FA50B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FA50B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FA50B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FA63A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FA63A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FA63A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FA63A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FA63A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FA63A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FA63A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FA63A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FA63A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FA63A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FA63A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FA63A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FA63B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FA63B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FA63B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FA63B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FA63B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FA63B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FA63B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FA63B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FA63B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FA63B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FA63B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FA63B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FB40A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FB40A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FB40A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FB40A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FB40A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FB40A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FB40A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FB40A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FB40A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FB40A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FB40A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FB40A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FB40B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FB40B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FB40B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FB40B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FB40B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FB40B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FB40B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FB40B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FB40B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FB40B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FB40B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FB40B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FB50A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FB50A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FB50A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FB50A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FB50A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FB50A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FB50A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FB50A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FB50A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FB50A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FB50A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FB50A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FB50B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FB50B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FB50B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FB50B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FB50B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FB50B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FB50B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FB50B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FB50B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FB50B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FB50B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FB50B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FB63A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FB63A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FB63A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FB63A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FB63A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FB63A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FB63A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FB63A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FB63A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FB63A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FB63A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FB63A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FB63B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FB63B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FB63B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FB63B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FB63B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FB63B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FB63B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FB63B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FB63B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FB63B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FB63B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FB63B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-CB40A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-CB40A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-CB40A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-CB40A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-CB40A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-CB40A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-CB40A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-CB40A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-CB40A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-CB40A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-CB40A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-CB40A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-CB40B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-CB40B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-CB40B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-CB40B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-CB40B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-CB40B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-CB40B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-CB40B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-CB40B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-CB40B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-CB40B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-CB40B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-CB50A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-CB50A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-CB50A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-CB50A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-CB50A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-CB50A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-CB50A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-CB50A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-CB50A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-CB50A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-CB50A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-CB50A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-CB50B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-CB50B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-CB50B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-CB50B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-CB50B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-CB50B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-CB50B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-CB50B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-CB50B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-CB50B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-CB50B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-CB50B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-CB63A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-CB63A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-CB63A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-CB63A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-CB63A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-CB63A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-CB63A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-CB63A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-CB63A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-CB63A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-CB63A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-CB63A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-CB63B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-CB63B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-CB63B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-CB63B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-CB63B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-CB63B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-CB63B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-CB63B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-CB63B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-CB63B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-CB63B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-CB63B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AFW-40A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-40A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-40A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-40A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-40A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-40A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-40A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-40A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-40A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-40A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-40B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-40B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-40B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-40B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-40B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-40B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-40B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-40B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-40B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-40B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-50A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-50A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-50A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-50A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-50A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-50A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-50A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-50A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-50A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-50A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-50B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-50B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-50B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-50B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-50B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-50B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-50B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-50B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-50B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-50B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-63A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-63A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-63A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-63A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-63A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-63A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-63A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-63A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-63A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-63A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-63B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-63B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-63B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-63B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-63B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-63B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-63B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-63B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-63B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-63B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-LB40A-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-LB40A-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-LB40A-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-LB40A-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-LB40A-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-LB40A-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-LB40A-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-LB40A-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-LB40A-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-LB40A-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-LB40B-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-LB40B-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-LB40B-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-LB40B-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-LB40B-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-LB40B-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-LB40B-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-LB40B-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-LB40B-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-LB40B-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-LB50A-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-LB50A-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-LB50A-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-LB50A-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-LB50A-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-LB50A-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-LB50A-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-LB50A-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-LB50A-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-LB50A-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-LB50B-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-LB50B-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-LB50B-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-LB50B-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-LB50B-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-LB50B-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-LB50B-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-LB50B-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-LB50B-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-LB50B-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-LB63A-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-LB63A-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-LB63A-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-LB63A-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-LB63A-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-LB63A-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-LB63A-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-LB63A-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-LB63A-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-LB63A-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-LB63B-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-LB63B-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-LB63B-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-LB63B-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-LB63B-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-LB63B-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-LB63B-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-LB63B-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-LB63B-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-LB63B-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FA40A-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FA40A-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FA40A-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FA40A-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FA40A-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FA40A-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FA40A-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FA40A-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FA40A-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FA40A-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FA40B-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FA40B-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FA40B-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FA40B-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FA40B-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FA40B-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FA40B-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FA40B-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FA40B-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FA40B-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FA50A-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FA50A-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FA50A-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FA50A-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FA50A-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FA50A-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FA50A-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FA50A-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FA50A-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FA50A-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FA50B-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FA50B-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FA50B-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FA50B-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FA50B-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FA50B-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FA50B-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FA50B-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FA50B-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FA50B-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FA63A-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FA63A-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FA63A-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FA63A-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FA63A-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FA63A-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FA63A-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FA63A-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FA63A-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FA63A-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FA63B-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FA63B-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FA63B-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FA63B-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FA63B-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FA63B-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FA63B-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FA63B-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FA63B-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FA63B-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FB40A-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FB40A-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FB40A-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FB40A-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FB40A-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FB40A-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FB40A-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FB40A-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FB40A-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FB40A-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FB40B-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FB40B-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FB40B-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FB40B-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FB40B-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FB40B-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FB40B-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FB40B-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FB40B-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FB40B-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FB50A-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FB50A-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FB50A-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FB50A-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FB50A-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FB50A-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FB50A-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FB50A-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FB50A-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FB50A-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FB50B-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FB50B-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FB50B-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FB50B-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FB50B-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FB50B-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FB50B-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FB50B-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FB50B-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FB50B-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FB63A-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FB63A-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FB63A-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FB63A-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FB63A-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FB63A-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FB63A-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FB63A-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FB63A-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FB63A-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FB63B-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FB63B-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FB63B-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FB63B-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FB63B-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FB63B-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FB63B-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FB63B-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FB63B-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FB63B-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-CB40A-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-CB40A-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-CB40A-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-CB40A-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-CB40A-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-CB40A-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-CB40A-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-CB40A-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-CB40A-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-CB40A-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-CB40B-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-CB40B-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-CB40B-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-CB40B-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-CB40B-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-CB40B-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-CB40B-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-CB40B-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-CB40B-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-CB40B-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-CB50A-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-CB50A-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-CB50A-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-CB50A-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-CB50A-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-CB50A-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-CB50A-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-CB50A-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-CB50A-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-CB50A-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-CB50B-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-CB50B-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-CB50B-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-CB50B-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-CB50B-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-CB50B-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-CB50B-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-CB50B-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-CB50B-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-CB50B-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-CB63A-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-CB63A-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-CB63A-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-CB63A-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-CB63A-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-CB63A-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-CB63A-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-CB63A-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-CB63A-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-CB63A-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-CB63B-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-CB63B-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-CB63B-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-CB63B-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-CB63B-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-CB63B-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-CB63B-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-CB63B-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-CB63B-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-CB63B-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-40A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-40A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-40A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-40A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-40A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-40A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-40A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-40A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-40A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-40A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-40B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-40B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-40B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-40B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-40B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-40B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-40B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-40B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-40B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-40B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-50A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-50A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-50A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-50A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-50A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-50A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-50A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-50A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-50A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-50A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-50B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-50B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-50B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-50B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-50B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-50B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-50B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-50B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-50B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-50B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-63A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-63A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-63A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-63A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-63A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-63A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-63A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-63A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-63A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-63A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-63B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-63B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-63B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-63B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-63B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-63B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-63B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-63B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-63B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-63B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-LB40A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-LB40A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-LB40A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-LB40A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-LB40A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-LB40A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-LB40A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-LB40A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-LB40A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-LB40A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-LB40B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-LB40B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-LB40B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-LB40B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-LB40B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-LB40B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-LB40B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-LB40B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-LB40B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-LB40B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-LB50A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-LB50A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-LB50A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-LB50A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-LB50A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-LB50A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-LB50A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-LB50A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-LB50A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-LB50A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-LB50B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-LB50B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-LB50B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-LB50B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-LB50B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-LB50B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-LB50B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-LB50B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-LB50B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-LB50B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-LB63A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-LB63A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-LB63A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-LB63A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-LB63A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-LB63A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-LB63A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-LB63A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-LB63A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-LB63A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-LB63B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-LB63B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-LB63B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-LB63B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-LB63B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-LB63B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-LB63B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-LB63B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-LB63B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-LB63B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FA40A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FA40A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FA40A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FA40A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FA40A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FA40A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FA40A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FA40A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FA40A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FA40A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FA40B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FA40B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FA40B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FA40B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FA40B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FA40B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FA40B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FA40B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FA40B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FA40B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FA50A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FA50A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FA50A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FA50A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FA50A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FA50A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FA50A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FA50A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FA50A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FA50A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FA50B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FA50B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FA50B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FA50B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FA50B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FA50B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FA50B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FA50B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FA50B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FA50B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FA63A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FA63A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FA63A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FA63A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FA63A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FA63A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FA63A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FA63A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FA63A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FA63A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FA63B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FA63B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FA63B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FA63B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FA63B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FA63B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FA63B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FA63B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FA63B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FA63B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FB40A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FB40A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FB40A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FB40A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FB40A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FB40A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FB40A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FB40A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FB40A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FB40A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FB40B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FB40B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FB40B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FB40B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FB40B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FB40B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FB40B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FB40B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FB40B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FB40B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FB50A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FB50A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FB50A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FB50A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FB50A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FB50A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FB50A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FB50A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FB50A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FB50A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FB50B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FB50B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FB50B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FB50B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FB50B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FB50B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FB50B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FB50B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FB50B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FB50B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FB63A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FB63A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FB63A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FB63A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FB63A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FB63A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FB63A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FB63A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FB63A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FB63A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FB63B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FB63B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FB63B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FB63B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FB63B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FB63B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FB63B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FB63B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FB63B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FB63B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-CB40A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-CB40A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-CB40A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-CB40A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-CB40A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-CB40A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-CB40A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-CB40A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-CB40A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-CB40A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-CB40B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-CB40B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-CB40B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-CB40B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-CB40B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-CB40B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-CB40B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-CB40B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-CB40B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-CB40B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-CB50A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-CB50A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-CB50A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-CB50A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-CB50A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-CB50A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-CB50A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-CB50A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-CB50A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-CB50A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-CB50B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-CB50B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-CB50B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-CB50B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-CB50B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-CB50B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-CB50B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-CB50B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-CB50B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-CB50B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-CB63A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-CB63A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-CB63A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-CB63A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-CB63A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-CB63A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-CB63A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-CB63A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-CB63A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-CB63A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-CB63B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-CB63B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-CB63B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-CB63B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-CB63B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-CB63B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-CB63B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-CB63B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-CB63B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-CB63B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-40		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-50		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-63		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-40		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-50		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-63		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-40		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-50		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-63		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-40		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-50		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-63		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify

Compact CylindersKCC

1332 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC B10-AF/ADF Thin Cylinder (Battery Industry Version, ø40 to ø63)

Brand KCC·Compact Cylinders

Available part numbers (1332)

B10-AF-40A-S5, B10-AF-40A-S10, B10-AF-40A-S15, B10-AF-40A-S20, B10-AF-40A-S25, B10-AF-40A-S30, B10-AF-40A-S35, B10-AF-40A-S40, B10-AF-40A-S45, B10-AF-40A-S50 + 1322 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	B10-AF-40A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-40A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-40A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-40A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-40A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-40A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-40A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-40A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-40A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-40A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-40A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-40A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-40B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-40B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-40B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-40B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-40B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-40B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-40B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-40B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-40B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-40B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-40B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-40B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-50A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-50A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-50A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-50A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-50A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-50A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-50A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-50A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-50A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-50A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-50A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-50A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-50B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-50B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-50B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-50B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-50B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-50B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-50B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-50B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-50B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-50B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-50B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-50B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-63A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-63A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-63A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-63A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-63A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-63A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-63A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-63A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-63A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-63A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-63A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-63A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-63B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-63B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-63B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-63B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-63B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-63B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-63B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-63B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-63B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-63B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-63B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-63B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-LB40A-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-LB40A-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-LB40A-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-LB40A-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-LB40A-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-LB40A-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-LB40A-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-LB40A-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-LB40A-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-LB40A-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-LB40A-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-LB40A-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-LB40B-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-LB40B-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-LB40B-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-LB40B-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-LB40B-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-LB40B-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-LB40B-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-LB40B-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-LB40B-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-LB40B-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-LB40B-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-LB40B-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-LB50A-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-LB50A-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-LB50A-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-LB50A-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-LB50A-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-LB50A-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-LB50A-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-LB50A-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-LB50A-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-LB50A-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-LB50A-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-LB50A-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-LB50B-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-LB50B-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-LB50B-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-LB50B-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-LB50B-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-LB50B-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-LB50B-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-LB50B-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-LB50B-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-LB50B-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-LB50B-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-LB50B-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-LB63A-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-LB63A-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-LB63A-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-LB63A-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-LB63A-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-LB63A-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-LB63A-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-LB63A-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-LB63A-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-LB63A-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-LB63A-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-LB63A-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-LB63B-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-LB63B-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-LB63B-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-LB63B-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-LB63B-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-LB63B-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-LB63B-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-LB63B-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-LB63B-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-LB63B-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-LB63B-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-LB63B-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FA40A-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FA40A-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FA40A-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FA40A-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FA40A-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FA40A-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FA40A-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FA40A-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FA40A-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FA40A-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FA40A-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FA40A-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FA40B-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FA40B-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FA40B-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FA40B-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FA40B-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FA40B-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FA40B-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FA40B-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FA40B-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FA40B-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FA40B-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FA40B-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FA50A-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FA50A-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FA50A-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FA50A-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FA50A-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FA50A-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FA50A-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FA50A-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FA50A-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FA50A-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FA50A-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FA50A-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FA50B-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FA50B-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FA50B-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FA50B-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FA50B-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FA50B-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FA50B-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FA50B-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FA50B-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FA50B-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FA50B-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FA50B-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FA63A-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FA63A-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FA63A-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FA63A-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FA63A-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FA63A-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FA63A-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FA63A-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FA63A-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FA63A-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FA63A-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FA63A-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FA63B-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FA63B-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FA63B-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FA63B-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FA63B-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FA63B-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FA63B-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FA63B-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FA63B-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FA63B-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FA63B-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FA63B-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FB40A-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FB40A-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FB40A-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FB40A-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FB40A-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FB40A-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FB40A-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FB40A-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FB40A-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FB40A-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FB40A-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FB40A-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FB40B-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FB40B-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FB40B-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FB40B-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FB40B-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FB40B-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FB40B-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FB40B-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FB40B-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FB40B-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FB40B-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FB40B-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FB50A-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FB50A-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FB50A-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FB50A-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FB50A-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FB50A-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FB50A-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FB50A-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FB50A-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FB50A-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FB50A-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FB50A-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FB50B-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FB50B-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FB50B-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FB50B-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FB50B-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FB50B-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FB50B-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FB50B-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FB50B-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FB50B-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FB50B-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FB50B-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FB63A-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FB63A-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FB63A-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FB63A-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FB63A-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FB63A-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FB63A-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FB63A-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FB63A-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FB63A-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FB63A-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FB63A-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FB63B-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FB63B-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FB63B-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FB63B-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FB63B-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FB63B-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FB63B-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FB63B-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FB63B-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FB63B-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FB63B-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FB63B-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-CB40A-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-CB40A-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-CB40A-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-CB40A-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-CB40A-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-CB40A-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-CB40A-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-CB40A-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-CB40A-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-CB40A-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-CB40A-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-CB40A-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-CB40B-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-CB40B-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-CB40B-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-CB40B-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-CB40B-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-CB40B-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-CB40B-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-CB40B-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-CB40B-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-CB40B-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-CB40B-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-CB40B-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-CB50A-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-CB50A-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-CB50A-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-CB50A-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-CB50A-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-CB50A-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-CB50A-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-CB50A-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-CB50A-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-CB50A-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-CB50A-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-CB50A-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-CB50B-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-CB50B-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-CB50B-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-CB50B-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-CB50B-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-CB50B-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-CB50B-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-CB50B-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-CB50B-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-CB50B-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-CB50B-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-CB50B-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-CB63A-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-CB63A-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-CB63A-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-CB63A-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-CB63A-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-CB63A-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-CB63A-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-CB63A-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-CB63A-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-CB63A-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-CB63A-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-CB63A-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-CB63B-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-CB63B-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-CB63B-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-CB63B-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-CB63B-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-CB63B-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-CB63B-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-CB63B-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-CB63B-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-CB63B-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-CB63B-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-CB63B-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-40A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-40A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-40A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-40A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-40A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-40A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-40A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-40A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-40A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-40A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-40A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-40A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-40B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-40B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-40B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-40B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-40B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-40B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-40B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-40B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-40B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-40B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-40B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-40B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-50A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-50A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-50A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-50A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-50A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-50A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-50A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-50A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-50A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-50A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-50A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-50A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-50B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-50B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-50B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-50B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-50B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-50B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-50B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-50B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-50B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-50B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-50B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-50B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-63A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-63A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-63A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-63A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-63A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-63A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-63A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-63A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-63A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-63A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-63A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-63A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-63B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-63B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-63B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-63B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-63B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-63B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-63B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-63B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-63B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-63B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-63B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-63B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-LB40A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-LB40A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-LB40A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-LB40A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-LB40A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-LB40A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-LB40A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-LB40A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-LB40A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-LB40A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-LB40A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-LB40A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-LB40B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-LB40B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-LB40B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-LB40B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-LB40B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-LB40B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-LB40B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-LB40B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-LB40B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-LB40B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-LB40B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-LB40B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-LB50A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-LB50A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-LB50A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-LB50A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-LB50A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-LB50A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-LB50A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-LB50A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-LB50A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-LB50A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-LB50A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-LB50A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-LB50B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-LB50B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-LB50B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-LB50B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-LB50B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-LB50B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-LB50B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-LB50B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-LB50B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-LB50B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-LB50B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-LB50B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-LB63A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-LB63A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-LB63A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-LB63A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-LB63A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-LB63A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-LB63A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-LB63A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-LB63A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-LB63A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-LB63A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-LB63A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-LB63B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-LB63B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-LB63B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-LB63B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-LB63B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-LB63B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-LB63B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-LB63B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-LB63B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-LB63B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-LB63B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-LB63B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FA40A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FA40A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FA40A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FA40A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FA40A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FA40A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FA40A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FA40A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FA40A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FA40A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FA40A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FA40A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FA40B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FA40B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FA40B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FA40B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FA40B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FA40B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FA40B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FA40B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FA40B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FA40B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FA40B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FA40B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FA50A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FA50A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FA50A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FA50A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FA50A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FA50A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FA50A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FA50A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FA50A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FA50A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FA50A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FA50A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FA50B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FA50B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FA50B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FA50B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FA50B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FA50B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FA50B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FA50B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FA50B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FA50B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FA50B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FA50B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FA63A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FA63A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FA63A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FA63A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FA63A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FA63A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FA63A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FA63A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FA63A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FA63A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FA63A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FA63A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FA63B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FA63B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FA63B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FA63B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FA63B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FA63B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FA63B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FA63B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FA63B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FA63B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FA63B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FA63B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FB40A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FB40A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FB40A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FB40A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FB40A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FB40A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FB40A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FB40A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FB40A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FB40A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FB40A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FB40A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FB40B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FB40B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FB40B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FB40B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FB40B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FB40B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FB40B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FB40B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FB40B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FB40B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FB40B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FB40B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FB50A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FB50A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FB50A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FB50A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FB50A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FB50A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FB50A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FB50A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FB50A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FB50A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FB50A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FB50A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FB50B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FB50B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FB50B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FB50B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FB50B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FB50B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FB50B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FB50B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FB50B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FB50B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FB50B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FB50B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FB63A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FB63A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FB63A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FB63A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FB63A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FB63A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FB63A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FB63A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FB63A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FB63A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FB63A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FB63A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FB63B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FB63B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FB63B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FB63B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FB63B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FB63B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FB63B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FB63B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FB63B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FB63B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FB63B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FB63B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-CB40A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-CB40A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-CB40A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-CB40A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-CB40A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-CB40A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-CB40A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-CB40A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-CB40A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-CB40A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-CB40A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-CB40A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-CB40B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-CB40B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-CB40B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-CB40B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-CB40B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-CB40B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-CB40B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-CB40B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-CB40B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-CB40B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-CB40B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-CB40B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-CB50A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-CB50A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-CB50A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-CB50A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-CB50A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-CB50A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-CB50A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-CB50A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-CB50A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-CB50A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-CB50A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-CB50A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-CB50B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-CB50B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-CB50B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-CB50B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-CB50B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-CB50B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-CB50B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-CB50B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-CB50B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-CB50B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-CB50B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-CB50B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-CB63A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-CB63A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-CB63A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-CB63A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-CB63A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-CB63A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-CB63A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-CB63A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-CB63A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-CB63A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-CB63A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-CB63A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-CB63B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-CB63B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-CB63B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-CB63B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-CB63B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-CB63B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-CB63B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-CB63B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-CB63B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-CB63B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-CB63B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-CB63B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AFW-40A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-40A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-40A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-40A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-40A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-40A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-40A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-40A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-40A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-40A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-40B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-40B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-40B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-40B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-40B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-40B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-40B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-40B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-40B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-40B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-50A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-50A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-50A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-50A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-50A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-50A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-50A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-50A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-50A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-50A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-50B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-50B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-50B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-50B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-50B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-50B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-50B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-50B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-50B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-50B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-63A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-63A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-63A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-63A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-63A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-63A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-63A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-63A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-63A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-63A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-63B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-63B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-63B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-63B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-63B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-63B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-63B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-63B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-63B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-63B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-LB40A-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-LB40A-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-LB40A-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-LB40A-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-LB40A-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-LB40A-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-LB40A-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-LB40A-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-LB40A-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-LB40A-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-LB40B-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-LB40B-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-LB40B-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-LB40B-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-LB40B-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-LB40B-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-LB40B-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-LB40B-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-LB40B-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-LB40B-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-LB50A-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-LB50A-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-LB50A-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-LB50A-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-LB50A-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-LB50A-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-LB50A-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-LB50A-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-LB50A-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-LB50A-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-LB50B-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-LB50B-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-LB50B-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-LB50B-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-LB50B-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-LB50B-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-LB50B-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-LB50B-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-LB50B-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-LB50B-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-LB63A-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-LB63A-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-LB63A-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-LB63A-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-LB63A-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-LB63A-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-LB63A-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-LB63A-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-LB63A-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-LB63A-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-LB63B-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-LB63B-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-LB63B-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-LB63B-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-LB63B-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-LB63B-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-LB63B-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-LB63B-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-LB63B-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-LB63B-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FA40A-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FA40A-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FA40A-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FA40A-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FA40A-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FA40A-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FA40A-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FA40A-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FA40A-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FA40A-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FA40B-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FA40B-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FA40B-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FA40B-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FA40B-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FA40B-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FA40B-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FA40B-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FA40B-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FA40B-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FA50A-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FA50A-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FA50A-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FA50A-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FA50A-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FA50A-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FA50A-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FA50A-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FA50A-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FA50A-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FA50B-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FA50B-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FA50B-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FA50B-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FA50B-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FA50B-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FA50B-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FA50B-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FA50B-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FA50B-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FA63A-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FA63A-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FA63A-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FA63A-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FA63A-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FA63A-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FA63A-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FA63A-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FA63A-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FA63A-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FA63B-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FA63B-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FA63B-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FA63B-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FA63B-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FA63B-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FA63B-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FA63B-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FA63B-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FA63B-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FB40A-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FB40A-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FB40A-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FB40A-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FB40A-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FB40A-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FB40A-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FB40A-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FB40A-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FB40A-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FB40B-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FB40B-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FB40B-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FB40B-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FB40B-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FB40B-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FB40B-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FB40B-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FB40B-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FB40B-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FB50A-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FB50A-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FB50A-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FB50A-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FB50A-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FB50A-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FB50A-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FB50A-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FB50A-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FB50A-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FB50B-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FB50B-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FB50B-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FB50B-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FB50B-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FB50B-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FB50B-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FB50B-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FB50B-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FB50B-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FB63A-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FB63A-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FB63A-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FB63A-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FB63A-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FB63A-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FB63A-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FB63A-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FB63A-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FB63A-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FB63B-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FB63B-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FB63B-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FB63B-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FB63B-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FB63B-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FB63B-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FB63B-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FB63B-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FB63B-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-CB40A-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-CB40A-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-CB40A-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-CB40A-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-CB40A-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-CB40A-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-CB40A-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-CB40A-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-CB40A-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-CB40A-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-CB40B-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-CB40B-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-CB40B-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-CB40B-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-CB40B-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-CB40B-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-CB40B-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-CB40B-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-CB40B-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-CB40B-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-CB50A-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-CB50A-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-CB50A-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-CB50A-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-CB50A-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-CB50A-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-CB50A-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-CB50A-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-CB50A-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-CB50A-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-CB50B-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-CB50B-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-CB50B-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-CB50B-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-CB50B-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-CB50B-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-CB50B-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-CB50B-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-CB50B-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-CB50B-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-CB63A-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-CB63A-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-CB63A-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-CB63A-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-CB63A-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-CB63A-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-CB63A-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-CB63A-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-CB63A-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-CB63A-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-CB63B-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-CB63B-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-CB63B-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-CB63B-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-CB63B-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-CB63B-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-CB63B-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-CB63B-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-CB63B-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-CB63B-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-40A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-40A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-40A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-40A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-40A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-40A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-40A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-40A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-40A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-40A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-40B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-40B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-40B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-40B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-40B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-40B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-40B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-40B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-40B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-40B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-50A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-50A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-50A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-50A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-50A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-50A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-50A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-50A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-50A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-50A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-50B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-50B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-50B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-50B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-50B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-50B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-50B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-50B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-50B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-50B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-63A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-63A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-63A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-63A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-63A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-63A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-63A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-63A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-63A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-63A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-63B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-63B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-63B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-63B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-63B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-63B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-63B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-63B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-63B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-63B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-LB40A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-LB40A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-LB40A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-LB40A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-LB40A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-LB40A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-LB40A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-LB40A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-LB40A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-LB40A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-LB40B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-LB40B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-LB40B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-LB40B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-LB40B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-LB40B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-LB40B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-LB40B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-LB40B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-LB40B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-LB50A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-LB50A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-LB50A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-LB50A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-LB50A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-LB50A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-LB50A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-LB50A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-LB50A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-LB50A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-LB50B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-LB50B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-LB50B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-LB50B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-LB50B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-LB50B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-LB50B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-LB50B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-LB50B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-LB50B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-LB63A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-LB63A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-LB63A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-LB63A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-LB63A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-LB63A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-LB63A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-LB63A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-LB63A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-LB63A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-LB63B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-LB63B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-LB63B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-LB63B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-LB63B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-LB63B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-LB63B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-LB63B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-LB63B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-LB63B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FA40A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FA40A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FA40A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FA40A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FA40A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FA40A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FA40A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FA40A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FA40A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FA40A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FA40B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FA40B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FA40B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FA40B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FA40B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FA40B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FA40B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FA40B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FA40B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FA40B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FA50A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FA50A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FA50A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FA50A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FA50A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FA50A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FA50A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FA50A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FA50A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FA50A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FA50B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FA50B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FA50B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FA50B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FA50B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FA50B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FA50B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FA50B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FA50B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FA50B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FA63A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FA63A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FA63A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FA63A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FA63A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FA63A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FA63A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FA63A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FA63A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FA63A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FA63B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FA63B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FA63B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FA63B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FA63B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FA63B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FA63B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FA63B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FA63B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FA63B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FB40A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FB40A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FB40A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FB40A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FB40A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FB40A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FB40A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FB40A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FB40A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FB40A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FB40B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FB40B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FB40B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FB40B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FB40B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FB40B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FB40B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FB40B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FB40B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FB40B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FB50A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FB50A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FB50A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FB50A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FB50A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FB50A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FB50A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FB50A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FB50A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FB50A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FB50B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FB50B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FB50B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FB50B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FB50B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FB50B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FB50B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FB50B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FB50B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FB50B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FB63A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FB63A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FB63A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FB63A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FB63A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FB63A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FB63A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FB63A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FB63A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FB63A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FB63B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FB63B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FB63B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FB63B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FB63B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FB63B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FB63B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FB63B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FB63B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FB63B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-CB40A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-CB40A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-CB40A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-CB40A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-CB40A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-CB40A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-CB40A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-CB40A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-CB40A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-CB40A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-CB40B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-CB40B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-CB40B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-CB40B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-CB40B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-CB40B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-CB40B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-CB40B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-CB40B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-CB40B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø40 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-CB50A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-CB50A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-CB50A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-CB50A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-CB50A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-CB50A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-CB50A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-CB50A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-CB50A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-CB50A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-CB50B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-CB50B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-CB50B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-CB50B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-CB50B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-CB50B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-CB50B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-CB50B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-CB50B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-CB50B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø50 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-CB63A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-CB63A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-CB63A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-CB63A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-CB63A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-CB63A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-CB63A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-CB63A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-CB63A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-CB63A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-CB63B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-CB63B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-CB63B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-CB63B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-CB63B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-CB63B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-CB63B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-CB63B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-CB63B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-CB63B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø63 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-40	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-50	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-63	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-40	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-50	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-63	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-40	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-50	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-63	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-40	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø40 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-50	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø50 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-63	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø63 mm \| Mounting holes: Specify \| Stroke: Specify

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC B10-AF/ADF Thin Cylinder (Battery Industry Version, ø40 to ø63)
