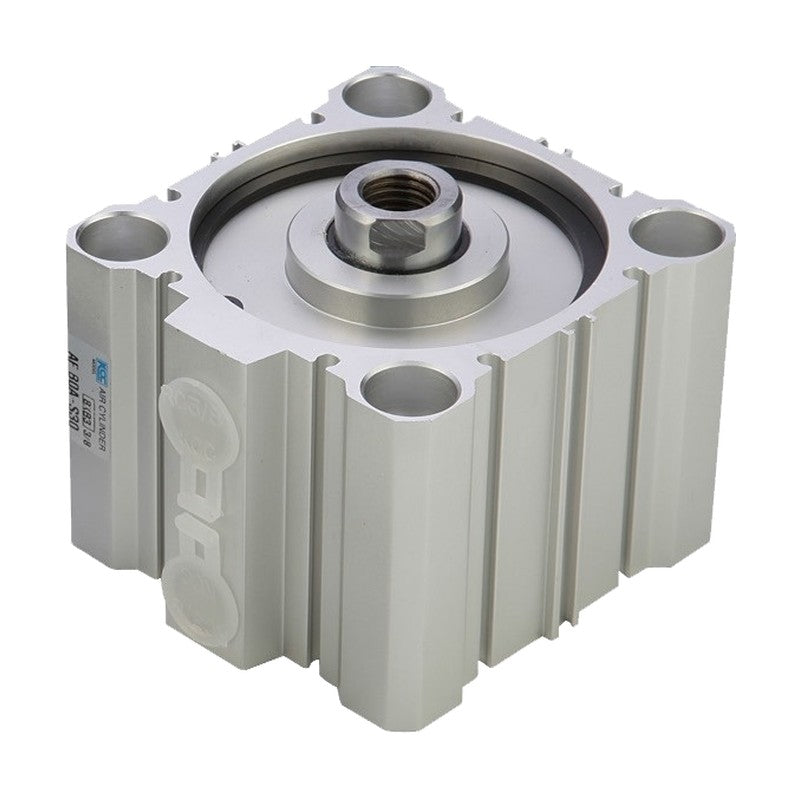

KCC B10-AF/ADF Thin Cylinder (Battery Industry Version, ø80 to ø200)

KCC B10-AF/ADF series thin (compact) pneumatic cylinder in the battery-industry B10 version, single or double rod, with or without magnet, bore ø80 to ø200 mm.

Key features

B10 battery-industry version of the KCC AF/ADF thin cylinder for copper- and zinc-sensitive production lines
Short axial length for press-fit, clamping and short-stroke work in tight spaces; mounts with bolts only
AF/AFW without magnet, ADF/ADFW with built-in magnet for auto switches (A-72 to A-96, F-7NV to F-9B(V)) ordered as a suffix
Mounting: standard, foot LB, rod flange FA, head flange FB, double clevis CB (brackets ø12 to ø100); mounting holes A both ends tapped or B through hole
Options as code suffixes: low-hydraulic type L, male rod end N, knuckle joints I/Y, rubber cushion C, air cushion A (ø32-ø80), MS strong scraper, SS stainless rod, E side-load type
Intermediate strokes 55 to 95 mm are built from the next standard stroke with internal spacers

Specifications

Action	Double acting (single acting S/T on request)
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.07 MPa (ø12, ø16), 0.05 MPa (ø20 to ø200)
Ambient and fluid temperature	-10 to 70°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	None (rubber C / air A cushion optional)
Stroke tolerance	+1.0/0 mm (+1.4/0 mm for ø125 to ø200)
Port	M5x0.8 (ø12-ø25), Rc1/8 (ø32, ø40), Rc1/4 (ø50, ø63), Rc3/8 (ø80-ø160)
Bore sizes in this product	ø80 to ø200 mm
Source	KCC catalog Book01_B10-AF,ADF.pdf, p. 1-23

B10-AF-80A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-80A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-80A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-80A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-80A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-80A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-80A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-80A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-80A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-80A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-80A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-80A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-80B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-80B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-80B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-80B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-80B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-80B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-80B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-80B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-80B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-80B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-80B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-80B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-100A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-100A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-100A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-100A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-100A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-100A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-100A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-100A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-100A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-100A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-100A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-100A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-100B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-100B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-100B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-100B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-100B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-100B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-100B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-100B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-100B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-100B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-100B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-100B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-125A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-125A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-125A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-125A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-125A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-125A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-125A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-125A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-125A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-125A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-125A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-125A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-125B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-125B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-125B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-125B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-125B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-125B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-125B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-125B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-125B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-125B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-125B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-125B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-140A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-140A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-140A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-140A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-140A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-140A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-140A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-140A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-140A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-140A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-140A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-140A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-140B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-140B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-140B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-140B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-140B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-140B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-140B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-140B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-140B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-140B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-140B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-140B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-160A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-160A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-160A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-160A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-160A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-160A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-160A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-160A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-160A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-160A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-160A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-160A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-160B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-160B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-160B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-160B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-160B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-160B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-160B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-160B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-160B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-160B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-160B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-160B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-200A-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-200A-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-200A-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-200A-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-200A-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-200A-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-200A-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-200A-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-200A-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-200A-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-200A-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-200A-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-200B-S5		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-200B-S10		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-200B-S15		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-200B-S20		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-200B-S25		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-200B-S30		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-200B-S35		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-200B-S40		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-200B-S45		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-200B-S50		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-200B-S75		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-200B-S100		Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-LB80A-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-LB80A-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-LB80A-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-LB80A-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-LB80A-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-LB80A-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-LB80A-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-LB80A-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-LB80A-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-LB80A-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-LB80A-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-LB80A-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-LB80B-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-LB80B-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-LB80B-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-LB80B-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-LB80B-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-LB80B-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-LB80B-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-LB80B-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-LB80B-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-LB80B-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-LB80B-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-LB80B-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-LB100A-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-LB100A-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-LB100A-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-LB100A-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-LB100A-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-LB100A-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-LB100A-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-LB100A-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-LB100A-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-LB100A-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-LB100A-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-LB100A-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-LB100B-S5		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-LB100B-S10		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-LB100B-S15		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-LB100B-S20		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-LB100B-S25		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-LB100B-S30		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-LB100B-S35		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-LB100B-S40		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-LB100B-S45		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-LB100B-S50		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-LB100B-S75		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-LB100B-S100		Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FA80A-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FA80A-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FA80A-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FA80A-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FA80A-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FA80A-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FA80A-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FA80A-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FA80A-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FA80A-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FA80A-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FA80A-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FA80B-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FA80B-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FA80B-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FA80B-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FA80B-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FA80B-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FA80B-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FA80B-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FA80B-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FA80B-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FA80B-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FA80B-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FA100A-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FA100A-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FA100A-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FA100A-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FA100A-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FA100A-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FA100A-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FA100A-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FA100A-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FA100A-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FA100A-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FA100A-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FA100B-S5		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FA100B-S10		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FA100B-S15		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FA100B-S20		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FA100B-S25		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FA100B-S30		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FA100B-S35		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FA100B-S40		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FA100B-S45		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FA100B-S50		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FA100B-S75		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FA100B-S100		Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FB80A-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FB80A-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FB80A-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FB80A-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FB80A-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FB80A-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FB80A-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FB80A-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FB80A-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FB80A-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FB80A-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FB80A-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FB80B-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FB80B-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FB80B-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FB80B-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FB80B-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FB80B-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FB80B-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FB80B-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FB80B-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FB80B-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FB80B-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FB80B-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-FB100A-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-FB100A-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-FB100A-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-FB100A-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-FB100A-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-FB100A-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-FB100A-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-FB100A-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-FB100A-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-FB100A-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-FB100A-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-FB100A-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-FB100B-S5		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-FB100B-S10		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-FB100B-S15		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-FB100B-S20		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-FB100B-S25		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-FB100B-S30		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-FB100B-S35		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-FB100B-S40		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-FB100B-S45		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-FB100B-S50		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-FB100B-S75		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-FB100B-S100		Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-CB80A-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-CB80A-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-CB80A-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-CB80A-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-CB80A-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-CB80A-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-CB80A-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-CB80A-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-CB80A-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-CB80A-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-CB80A-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-CB80A-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-CB80B-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-CB80B-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-CB80B-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-CB80B-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-CB80B-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-CB80B-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-CB80B-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-CB80B-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-CB80B-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-CB80B-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-CB80B-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-CB80B-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AF-CB100A-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AF-CB100A-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AF-CB100A-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AF-CB100A-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AF-CB100A-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AF-CB100A-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AF-CB100A-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AF-CB100A-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AF-CB100A-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AF-CB100A-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AF-CB100A-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-AF-CB100A-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-AF-CB100B-S5		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AF-CB100B-S10		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AF-CB100B-S15		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AF-CB100B-S20		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AF-CB100B-S25		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AF-CB100B-S30		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AF-CB100B-S35		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AF-CB100B-S40		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AF-CB100B-S45		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AF-CB100B-S50		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-CB100B-S75		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-AF-CB100B-S100		Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-80A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-80A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-80A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-80A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-80A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-80A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-80A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-80A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-80A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-80A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-80A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-80A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-80B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-80B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-80B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-80B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-80B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-80B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-80B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-80B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-80B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-80B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-80B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-80B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-100A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-100A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-100A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-100A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-100A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-100A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-100A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-100A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-100A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-100A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-100A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-100A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-100B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-100B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-100B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-100B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-100B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-100B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-100B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-100B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-100B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-100B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-100B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-100B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-125A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-125A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-125A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-125A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-125A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-125A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-125A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-125A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-125A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-125A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-125A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-125A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-125B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-125B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-125B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-125B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-125B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-125B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-125B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-125B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-125B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-125B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-125B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-125B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-140A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-140A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-140A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-140A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-140A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-140A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-140A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-140A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-140A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-140A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-140A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-140A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-140B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-140B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-140B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-140B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-140B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-140B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-140B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-140B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-140B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-140B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-140B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-140B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-160A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-160A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-160A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-160A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-160A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-160A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-160A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-160A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-160A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-160A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-160A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-160A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-160B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-160B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-160B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-160B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-160B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-160B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-160B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-160B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-160B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-160B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-160B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-160B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-200A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-200A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-200A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-200A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-200A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-200A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-200A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-200A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-200A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-200A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-200A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-200A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-200B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-200B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-200B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-200B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-200B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-200B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-200B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-200B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-200B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-200B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-200B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-200B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-LB80A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-LB80A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-LB80A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-LB80A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-LB80A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-LB80A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-LB80A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-LB80A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-LB80A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-LB80A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-LB80A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-LB80A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-LB80B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-LB80B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-LB80B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-LB80B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-LB80B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-LB80B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-LB80B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-LB80B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-LB80B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-LB80B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-LB80B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-LB80B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-LB100A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-LB100A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-LB100A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-LB100A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-LB100A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-LB100A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-LB100A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-LB100A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-LB100A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-LB100A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-LB100A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-LB100A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-LB100B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-LB100B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-LB100B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-LB100B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-LB100B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-LB100B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-LB100B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-LB100B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-LB100B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-LB100B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-LB100B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-LB100B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FA80A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FA80A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FA80A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FA80A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FA80A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FA80A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FA80A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FA80A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FA80A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FA80A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FA80A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FA80A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FA80B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FA80B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FA80B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FA80B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FA80B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FA80B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FA80B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FA80B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FA80B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FA80B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FA80B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FA80B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FA100A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FA100A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FA100A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FA100A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FA100A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FA100A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FA100A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FA100A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FA100A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FA100A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FA100A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FA100A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FA100B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FA100B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FA100B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FA100B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FA100B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FA100B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FA100B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FA100B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FA100B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FA100B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FA100B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FA100B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FB80A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FB80A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FB80A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FB80A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FB80A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FB80A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FB80A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FB80A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FB80A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FB80A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FB80A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FB80A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FB80B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FB80B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FB80B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FB80B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FB80B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FB80B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FB80B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FB80B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FB80B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FB80B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FB80B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FB80B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-FB100A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-FB100A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-FB100A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-FB100A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-FB100A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-FB100A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-FB100A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-FB100A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-FB100A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-FB100A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-FB100A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-FB100A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-FB100B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-FB100B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-FB100B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-FB100B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-FB100B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-FB100B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-FB100B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-FB100B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-FB100B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-FB100B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-FB100B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-FB100B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-CB80A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-CB80A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-CB80A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-CB80A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-CB80A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-CB80A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-CB80A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-CB80A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-CB80A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-CB80A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-CB80A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-CB80A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-CB80B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-CB80B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-CB80B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-CB80B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-CB80B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-CB80B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-CB80B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-CB80B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-CB80B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-CB80B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-CB80B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-CB80B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-ADF-CB100A-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADF-CB100A-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADF-CB100A-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADF-CB100A-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADF-CB100A-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADF-CB100A-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADF-CB100A-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADF-CB100A-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADF-CB100A-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADF-CB100A-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADF-CB100A-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
B10-ADF-CB100A-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
B10-ADF-CB100B-S5		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADF-CB100B-S10		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADF-CB100B-S15		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADF-CB100B-S20		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADF-CB100B-S25		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADF-CB100B-S30		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADF-CB100B-S35		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADF-CB100B-S40		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADF-CB100B-S45		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADF-CB100B-S50		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADF-CB100B-S75		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
B10-ADF-CB100B-S100		Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
B10-AFW-80A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-80A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-80A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-80A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-80A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-80A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-80A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-80A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-80A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-80A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-80B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-80B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-80B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-80B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-80B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-80B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-80B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-80B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-80B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-80B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-100A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-100A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-100A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-100A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-100A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-100A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-100A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-100A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-100A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-100A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-100B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-100B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-100B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-100B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-100B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-100B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-100B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-100B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-100B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-100B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-125A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-125A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-125A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-125A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-125A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-125A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-125A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-125A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-125A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-125A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-125B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-125B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-125B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-125B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-125B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-125B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-125B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-125B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-125B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-125B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-140A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-140A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-140A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-140A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-140A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-140A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-140A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-140A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-140A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-140A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-140B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-140B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-140B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-140B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-140B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-140B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-140B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-140B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-140B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-140B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-160A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-160A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-160A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-160A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-160A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-160A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-160A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-160A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-160A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-160A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-160B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-160B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-160B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-160B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-160B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-160B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-160B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-160B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-160B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-160B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-200A-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-200A-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-200A-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-200A-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-200A-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-200A-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-200A-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-200A-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-200A-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-200A-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-200B-S5		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-200B-S10		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-200B-S15		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-200B-S20		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-200B-S25		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-200B-S30		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-200B-S35		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-200B-S40		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-200B-S45		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-200B-S50		Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-LB80A-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-LB80A-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-LB80A-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-LB80A-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-LB80A-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-LB80A-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-LB80A-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-LB80A-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-LB80A-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-LB80A-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-LB80B-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-LB80B-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-LB80B-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-LB80B-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-LB80B-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-LB80B-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-LB80B-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-LB80B-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-LB80B-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-LB80B-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-LB100A-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-LB100A-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-LB100A-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-LB100A-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-LB100A-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-LB100A-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-LB100A-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-LB100A-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-LB100A-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-LB100A-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-LB100B-S5		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-LB100B-S10		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-LB100B-S15		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-LB100B-S20		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-LB100B-S25		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-LB100B-S30		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-LB100B-S35		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-LB100B-S40		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-LB100B-S45		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-LB100B-S50		Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FA80A-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FA80A-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FA80A-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FA80A-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FA80A-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FA80A-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FA80A-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FA80A-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FA80A-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FA80A-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FA80B-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FA80B-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FA80B-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FA80B-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FA80B-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FA80B-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FA80B-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FA80B-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FA80B-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FA80B-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FA100A-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FA100A-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FA100A-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FA100A-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FA100A-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FA100A-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FA100A-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FA100A-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FA100A-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FA100A-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FA100B-S5		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FA100B-S10		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FA100B-S15		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FA100B-S20		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FA100B-S25		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FA100B-S30		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FA100B-S35		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FA100B-S40		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FA100B-S45		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FA100B-S50		Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FB80A-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FB80A-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FB80A-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FB80A-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FB80A-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FB80A-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FB80A-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FB80A-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FB80A-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FB80A-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FB80B-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FB80B-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FB80B-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FB80B-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FB80B-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FB80B-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FB80B-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FB80B-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FB80B-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FB80B-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-FB100A-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-FB100A-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-FB100A-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-FB100A-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-FB100A-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-FB100A-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-FB100A-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-FB100A-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-FB100A-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-FB100A-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-FB100B-S5		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-FB100B-S10		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-FB100B-S15		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-FB100B-S20		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-FB100B-S25		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-FB100B-S30		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-FB100B-S35		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-FB100B-S40		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-FB100B-S45		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-FB100B-S50		Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-CB80A-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-CB80A-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-CB80A-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-CB80A-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-CB80A-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-CB80A-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-CB80A-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-CB80A-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-CB80A-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-CB80A-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-CB80B-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-CB80B-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-CB80B-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-CB80B-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-CB80B-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-CB80B-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-CB80B-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-CB80B-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-CB80B-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-CB80B-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AFW-CB100A-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-AFW-CB100A-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-AFW-CB100A-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-AFW-CB100A-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-AFW-CB100A-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-AFW-CB100A-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-AFW-CB100A-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-AFW-CB100A-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-AFW-CB100A-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-AFW-CB100A-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-AFW-CB100B-S5		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-AFW-CB100B-S10		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-AFW-CB100B-S15		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-AFW-CB100B-S20		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-AFW-CB100B-S25		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-AFW-CB100B-S30		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-AFW-CB100B-S35		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-AFW-CB100B-S40		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-AFW-CB100B-S45		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-AFW-CB100B-S50		Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-80A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-80A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-80A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-80A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-80A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-80A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-80A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-80A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-80A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-80A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-80B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-80B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-80B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-80B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-80B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-80B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-80B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-80B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-80B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-80B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-100A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-100A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-100A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-100A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-100A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-100A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-100A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-100A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-100A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-100A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-100B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-100B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-100B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-100B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-100B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-100B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-100B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-100B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-100B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-100B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-125A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-125A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-125A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-125A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-125A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-125A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-125A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-125A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-125A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-125A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-125B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-125B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-125B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-125B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-125B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-125B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-125B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-125B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-125B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-125B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-140A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-140A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-140A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-140A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-140A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-140A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-140A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-140A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-140A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-140A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-140B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-140B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-140B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-140B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-140B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-140B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-140B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-140B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-140B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-140B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-160A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-160A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-160A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-160A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-160A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-160A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-160A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-160A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-160A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-160A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-160B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-160B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-160B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-160B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-160B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-160B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-160B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-160B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-160B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-160B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-200A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-200A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-200A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-200A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-200A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-200A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-200A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-200A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-200A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-200A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-200B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-200B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-200B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-200B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-200B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-200B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-200B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-200B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-200B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-200B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-LB80A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-LB80A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-LB80A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-LB80A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-LB80A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-LB80A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-LB80A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-LB80A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-LB80A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-LB80A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-LB80B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-LB80B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-LB80B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-LB80B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-LB80B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-LB80B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-LB80B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-LB80B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-LB80B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-LB80B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-LB100A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-LB100A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-LB100A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-LB100A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-LB100A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-LB100A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-LB100A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-LB100A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-LB100A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-LB100A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-LB100B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-LB100B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-LB100B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-LB100B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-LB100B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-LB100B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-LB100B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-LB100B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-LB100B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-LB100B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FA80A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FA80A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FA80A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FA80A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FA80A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FA80A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FA80A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FA80A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FA80A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FA80A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FA80B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FA80B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FA80B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FA80B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FA80B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FA80B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FA80B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FA80B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FA80B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FA80B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FA100A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FA100A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FA100A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FA100A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FA100A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FA100A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FA100A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FA100A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FA100A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FA100A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FA100B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FA100B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FA100B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FA100B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FA100B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FA100B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FA100B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FA100B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FA100B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FA100B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FB80A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FB80A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FB80A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FB80A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FB80A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FB80A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FB80A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FB80A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FB80A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FB80A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FB80B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FB80B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FB80B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FB80B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FB80B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FB80B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FB80B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FB80B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FB80B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FB80B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-FB100A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-FB100A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-FB100A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-FB100A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-FB100A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-FB100A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-FB100A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-FB100A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-FB100A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-FB100A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-FB100B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-FB100B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-FB100B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-FB100B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-FB100B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-FB100B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-FB100B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-FB100B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-FB100B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-FB100B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-CB80A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-CB80A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-CB80A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-CB80A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-CB80A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-CB80A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-CB80A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-CB80A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-CB80A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-CB80A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-CB80B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-CB80B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-CB80B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-CB80B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-CB80B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-CB80B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-CB80B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-CB80B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-CB80B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-CB80B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-ADFW-CB100A-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
B10-ADFW-CB100A-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
B10-ADFW-CB100A-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
B10-ADFW-CB100A-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
B10-ADFW-CB100A-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
B10-ADFW-CB100A-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
B10-ADFW-CB100A-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
B10-ADFW-CB100A-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
B10-ADFW-CB100A-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
B10-ADFW-CB100A-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
B10-ADFW-CB100B-S5		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
B10-ADFW-CB100B-S10		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
B10-ADFW-CB100B-S15		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
B10-ADFW-CB100B-S20		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
B10-ADFW-CB100B-S25		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
B10-ADFW-CB100B-S30		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
B10-ADFW-CB100B-S35		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
B10-ADFW-CB100B-S40		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
B10-ADFW-CB100B-S45		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
B10-ADFW-CB100B-S50		Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
B10-AF-80		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-100		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-125		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-140		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-160		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AF-200		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-80		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-100		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-125		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-140		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-160		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
B10-AFW-200		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-80		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-100		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-125		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-140		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-160		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADF-200		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-80		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-100		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-125		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-140		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-160		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
B10-ADFW-200		Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify

Compact CylindersKCC

1256 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC B10-AF/ADF Thin Cylinder (Battery Industry Version, ø80 to ø200)

Brand KCC·Compact Cylinders

Available part numbers (1256)

B10-AF-80A-S5, B10-AF-80A-S10, B10-AF-80A-S15, B10-AF-80A-S20, B10-AF-80A-S25, B10-AF-80A-S30, B10-AF-80A-S35, B10-AF-80A-S40, B10-AF-80A-S45, B10-AF-80A-S50 + 1246 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	B10-AF-80A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-80A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-80A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-80A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-80A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-80A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-80A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-80A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-80A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-80A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-80A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-80A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-80B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-80B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-80B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-80B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-80B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-80B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-80B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-80B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-80B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-80B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-80B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-80B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-100A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-100A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-100A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-100A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-100A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-100A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-100A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-100A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-100A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-100A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-100A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-100A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-100B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-100B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-100B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-100B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-100B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-100B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-100B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-100B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-100B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-100B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-100B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-100B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-125A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-125A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-125A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-125A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-125A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-125A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-125A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-125A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-125A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-125A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-125A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-125A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-125B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-125B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-125B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-125B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-125B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-125B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-125B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-125B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-125B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-125B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-125B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-125B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-140A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-140A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-140A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-140A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-140A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-140A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-140A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-140A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-140A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-140A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-140A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-140A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-140B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-140B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-140B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-140B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-140B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-140B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-140B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-140B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-140B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-140B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-140B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-140B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-160A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-160A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-160A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-160A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-160A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-160A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-160A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-160A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-160A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-160A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-160A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-160A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-160B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-160B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-160B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-160B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-160B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-160B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-160B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-160B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-160B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-160B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-160B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-160B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-200A-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-200A-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-200A-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-200A-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-200A-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-200A-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-200A-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-200A-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-200A-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-200A-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-200A-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-200A-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-200B-S5	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-200B-S10	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-200B-S15	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-200B-S20	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-200B-S25	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-200B-S30	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-200B-S35	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-200B-S40	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-200B-S45	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-200B-S50	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-200B-S75	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-200B-S100	Rod: Single rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-LB80A-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-LB80A-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-LB80A-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-LB80A-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-LB80A-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-LB80A-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-LB80A-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-LB80A-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-LB80A-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-LB80A-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-LB80A-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-LB80A-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-LB80B-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-LB80B-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-LB80B-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-LB80B-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-LB80B-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-LB80B-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-LB80B-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-LB80B-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-LB80B-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-LB80B-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-LB80B-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-LB80B-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-LB100A-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-LB100A-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-LB100A-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-LB100A-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-LB100A-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-LB100A-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-LB100A-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-LB100A-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-LB100A-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-LB100A-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-LB100A-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-LB100A-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-LB100B-S5	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-LB100B-S10	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-LB100B-S15	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-LB100B-S20	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-LB100B-S25	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-LB100B-S30	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-LB100B-S35	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-LB100B-S40	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-LB100B-S45	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-LB100B-S50	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-LB100B-S75	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-LB100B-S100	Rod: Single rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FA80A-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FA80A-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FA80A-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FA80A-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FA80A-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FA80A-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FA80A-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FA80A-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FA80A-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FA80A-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FA80A-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FA80A-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FA80B-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FA80B-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FA80B-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FA80B-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FA80B-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FA80B-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FA80B-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FA80B-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FA80B-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FA80B-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FA80B-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FA80B-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FA100A-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FA100A-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FA100A-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FA100A-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FA100A-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FA100A-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FA100A-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FA100A-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FA100A-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FA100A-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FA100A-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FA100A-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FA100B-S5	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FA100B-S10	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FA100B-S15	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FA100B-S20	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FA100B-S25	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FA100B-S30	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FA100B-S35	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FA100B-S40	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FA100B-S45	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FA100B-S50	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FA100B-S75	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FA100B-S100	Rod: Single rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FB80A-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FB80A-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FB80A-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FB80A-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FB80A-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FB80A-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FB80A-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FB80A-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FB80A-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FB80A-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FB80A-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FB80A-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FB80B-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FB80B-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FB80B-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FB80B-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FB80B-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FB80B-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FB80B-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FB80B-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FB80B-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FB80B-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FB80B-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FB80B-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-FB100A-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-FB100A-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-FB100A-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-FB100A-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-FB100A-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-FB100A-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-FB100A-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-FB100A-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-FB100A-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-FB100A-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-FB100A-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-FB100A-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-FB100B-S5	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-FB100B-S10	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-FB100B-S15	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-FB100B-S20	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-FB100B-S25	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-FB100B-S30	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-FB100B-S35	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-FB100B-S40	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-FB100B-S45	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-FB100B-S50	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-FB100B-S75	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-FB100B-S100	Rod: Single rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-CB80A-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-CB80A-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-CB80A-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-CB80A-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-CB80A-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-CB80A-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-CB80A-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-CB80A-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-CB80A-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-CB80A-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-CB80A-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-CB80A-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-CB80B-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-CB80B-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-CB80B-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-CB80B-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-CB80B-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-CB80B-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-CB80B-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-CB80B-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-CB80B-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-CB80B-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-CB80B-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-CB80B-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AF-CB100A-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AF-CB100A-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AF-CB100A-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AF-CB100A-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AF-CB100A-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AF-CB100A-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AF-CB100A-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AF-CB100A-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AF-CB100A-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AF-CB100A-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AF-CB100A-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-AF-CB100A-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-AF-CB100B-S5	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AF-CB100B-S10	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AF-CB100B-S15	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AF-CB100B-S20	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AF-CB100B-S25	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AF-CB100B-S30	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AF-CB100B-S35	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AF-CB100B-S40	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AF-CB100B-S45	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AF-CB100B-S50	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-CB100B-S75	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-AF-CB100B-S100	Rod: Single rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-80A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-80A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-80A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-80A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-80A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-80A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-80A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-80A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-80A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-80A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-80A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-80A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-80B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-80B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-80B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-80B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-80B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-80B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-80B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-80B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-80B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-80B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-80B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-80B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-100A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-100A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-100A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-100A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-100A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-100A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-100A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-100A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-100A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-100A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-100A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-100A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-100B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-100B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-100B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-100B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-100B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-100B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-100B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-100B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-100B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-100B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-100B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-100B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-125A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-125A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-125A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-125A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-125A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-125A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-125A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-125A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-125A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-125A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-125A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-125A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-125B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-125B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-125B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-125B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-125B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-125B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-125B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-125B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-125B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-125B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-125B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-125B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-140A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-140A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-140A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-140A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-140A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-140A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-140A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-140A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-140A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-140A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-140A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-140A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-140B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-140B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-140B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-140B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-140B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-140B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-140B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-140B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-140B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-140B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-140B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-140B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-160A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-160A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-160A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-160A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-160A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-160A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-160A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-160A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-160A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-160A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-160A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-160A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-160B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-160B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-160B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-160B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-160B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-160B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-160B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-160B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-160B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-160B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-160B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-160B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-200A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-200A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-200A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-200A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-200A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-200A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-200A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-200A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-200A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-200A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-200A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-200A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-200B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-200B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-200B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-200B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-200B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-200B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-200B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-200B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-200B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-200B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-200B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-200B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-LB80A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-LB80A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-LB80A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-LB80A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-LB80A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-LB80A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-LB80A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-LB80A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-LB80A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-LB80A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-LB80A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-LB80A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-LB80B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-LB80B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-LB80B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-LB80B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-LB80B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-LB80B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-LB80B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-LB80B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-LB80B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-LB80B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-LB80B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-LB80B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-LB100A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-LB100A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-LB100A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-LB100A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-LB100A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-LB100A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-LB100A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-LB100A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-LB100A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-LB100A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-LB100A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-LB100A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-LB100B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-LB100B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-LB100B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-LB100B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-LB100B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-LB100B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-LB100B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-LB100B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-LB100B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-LB100B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-LB100B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-LB100B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FA80A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FA80A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FA80A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FA80A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FA80A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FA80A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FA80A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FA80A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FA80A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FA80A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FA80A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FA80A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FA80B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FA80B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FA80B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FA80B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FA80B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FA80B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FA80B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FA80B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FA80B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FA80B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FA80B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FA80B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FA100A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FA100A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FA100A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FA100A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FA100A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FA100A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FA100A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FA100A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FA100A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FA100A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FA100A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FA100A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FA100B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FA100B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FA100B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FA100B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FA100B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FA100B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FA100B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FA100B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FA100B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FA100B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FA100B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FA100B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FB80A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FB80A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FB80A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FB80A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FB80A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FB80A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FB80A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FB80A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FB80A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FB80A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FB80A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FB80A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FB80B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FB80B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FB80B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FB80B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FB80B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FB80B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FB80B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FB80B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FB80B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FB80B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FB80B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FB80B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-FB100A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-FB100A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-FB100A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-FB100A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-FB100A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-FB100A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-FB100A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-FB100A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-FB100A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-FB100A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-FB100A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-FB100A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-FB100B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-FB100B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-FB100B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-FB100B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-FB100B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-FB100B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-FB100B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-FB100B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-FB100B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-FB100B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-FB100B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-FB100B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-CB80A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-CB80A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-CB80A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-CB80A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-CB80A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-CB80A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-CB80A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-CB80A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-CB80A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-CB80A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-CB80A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-CB80A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-CB80B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-CB80B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-CB80B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-CB80B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-CB80B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-CB80B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-CB80B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-CB80B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-CB80B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-CB80B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-CB80B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-CB80B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-ADF-CB100A-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADF-CB100A-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADF-CB100A-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADF-CB100A-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADF-CB100A-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADF-CB100A-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADF-CB100A-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADF-CB100A-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADF-CB100A-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADF-CB100A-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADF-CB100A-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 75 mm
	B10-ADF-CB100A-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 100 mm
	B10-ADF-CB100B-S5	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADF-CB100B-S10	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADF-CB100B-S15	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADF-CB100B-S20	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADF-CB100B-S25	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADF-CB100B-S30	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADF-CB100B-S35	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADF-CB100B-S40	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADF-CB100B-S45	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADF-CB100B-S50	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADF-CB100B-S75	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 75 mm
	B10-ADF-CB100B-S100	Rod: Single rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 100 mm
	B10-AFW-80A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-80A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-80A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-80A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-80A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-80A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-80A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-80A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-80A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-80A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-80B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-80B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-80B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-80B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-80B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-80B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-80B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-80B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-80B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-80B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-100A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-100A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-100A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-100A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-100A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-100A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-100A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-100A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-100A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-100A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-100B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-100B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-100B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-100B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-100B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-100B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-100B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-100B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-100B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-100B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-125A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-125A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-125A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-125A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-125A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-125A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-125A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-125A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-125A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-125A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-125B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-125B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-125B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-125B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-125B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-125B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-125B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-125B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-125B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-125B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-140A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-140A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-140A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-140A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-140A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-140A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-140A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-140A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-140A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-140A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-140B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-140B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-140B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-140B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-140B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-140B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-140B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-140B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-140B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-140B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-160A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-160A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-160A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-160A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-160A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-160A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-160A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-160A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-160A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-160A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-160B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-160B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-160B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-160B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-160B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-160B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-160B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-160B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-160B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-160B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-200A-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-200A-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-200A-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-200A-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-200A-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-200A-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-200A-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-200A-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-200A-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-200A-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-200B-S5	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-200B-S10	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-200B-S15	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-200B-S20	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-200B-S25	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-200B-S30	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-200B-S35	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-200B-S40	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-200B-S45	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-200B-S50	Rod: Double rod \| Magnet: No \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-LB80A-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-LB80A-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-LB80A-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-LB80A-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-LB80A-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-LB80A-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-LB80A-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-LB80A-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-LB80A-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-LB80A-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-LB80B-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-LB80B-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-LB80B-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-LB80B-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-LB80B-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-LB80B-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-LB80B-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-LB80B-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-LB80B-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-LB80B-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-LB100A-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-LB100A-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-LB100A-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-LB100A-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-LB100A-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-LB100A-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-LB100A-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-LB100A-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-LB100A-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-LB100A-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-LB100B-S5	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-LB100B-S10	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-LB100B-S15	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-LB100B-S20	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-LB100B-S25	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-LB100B-S30	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-LB100B-S35	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-LB100B-S40	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-LB100B-S45	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-LB100B-S50	Rod: Double rod \| Magnet: No \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FA80A-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FA80A-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FA80A-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FA80A-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FA80A-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FA80A-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FA80A-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FA80A-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FA80A-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FA80A-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FA80B-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FA80B-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FA80B-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FA80B-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FA80B-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FA80B-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FA80B-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FA80B-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FA80B-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FA80B-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FA100A-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FA100A-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FA100A-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FA100A-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FA100A-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FA100A-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FA100A-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FA100A-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FA100A-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FA100A-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FA100B-S5	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FA100B-S10	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FA100B-S15	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FA100B-S20	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FA100B-S25	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FA100B-S30	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FA100B-S35	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FA100B-S40	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FA100B-S45	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FA100B-S50	Rod: Double rod \| Magnet: No \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FB80A-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FB80A-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FB80A-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FB80A-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FB80A-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FB80A-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FB80A-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FB80A-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FB80A-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FB80A-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FB80B-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FB80B-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FB80B-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FB80B-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FB80B-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FB80B-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FB80B-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FB80B-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FB80B-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FB80B-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-FB100A-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-FB100A-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-FB100A-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-FB100A-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-FB100A-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-FB100A-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-FB100A-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-FB100A-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-FB100A-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-FB100A-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-FB100B-S5	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-FB100B-S10	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-FB100B-S15	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-FB100B-S20	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-FB100B-S25	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-FB100B-S30	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-FB100B-S35	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-FB100B-S40	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-FB100B-S45	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-FB100B-S50	Rod: Double rod \| Magnet: No \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-CB80A-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-CB80A-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-CB80A-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-CB80A-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-CB80A-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-CB80A-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-CB80A-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-CB80A-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-CB80A-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-CB80A-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-CB80B-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-CB80B-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-CB80B-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-CB80B-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-CB80B-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-CB80B-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-CB80B-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-CB80B-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-CB80B-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-CB80B-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AFW-CB100A-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-AFW-CB100A-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-AFW-CB100A-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-AFW-CB100A-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-AFW-CB100A-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-AFW-CB100A-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-AFW-CB100A-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-AFW-CB100A-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-AFW-CB100A-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-AFW-CB100A-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-AFW-CB100B-S5	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-AFW-CB100B-S10	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-AFW-CB100B-S15	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-AFW-CB100B-S20	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-AFW-CB100B-S25	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-AFW-CB100B-S30	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-AFW-CB100B-S35	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-AFW-CB100B-S40	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-AFW-CB100B-S45	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-AFW-CB100B-S50	Rod: Double rod \| Magnet: No \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-80A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-80A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-80A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-80A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-80A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-80A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-80A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-80A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-80A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-80A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-80B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-80B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-80B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-80B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-80B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-80B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-80B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-80B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-80B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-80B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-100A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-100A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-100A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-100A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-100A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-100A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-100A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-100A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-100A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-100A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-100B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-100B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-100B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-100B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-100B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-100B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-100B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-100B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-100B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-100B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-125A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-125A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-125A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-125A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-125A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-125A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-125A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-125A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-125A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-125A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-125B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-125B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-125B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-125B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-125B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-125B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-125B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-125B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-125B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-125B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø125 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-140A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-140A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-140A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-140A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-140A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-140A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-140A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-140A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-140A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-140A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-140B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-140B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-140B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-140B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-140B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-140B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-140B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-140B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-140B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-140B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø140 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-160A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-160A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-160A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-160A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-160A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-160A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-160A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-160A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-160A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-160A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-160B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-160B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-160B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-160B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-160B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-160B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-160B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-160B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-160B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-160B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø160 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-200A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-200A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-200A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-200A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-200A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-200A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-200A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-200A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-200A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-200A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-200B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-200B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-200B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-200B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-200B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-200B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-200B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-200B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-200B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-200B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Standard \| Bore: ø200 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-LB80A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-LB80A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-LB80A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-LB80A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-LB80A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-LB80A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-LB80A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-LB80A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-LB80A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-LB80A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-LB80B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-LB80B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-LB80B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-LB80B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-LB80B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-LB80B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-LB80B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-LB80B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-LB80B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-LB80B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-LB100A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-LB100A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-LB100A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-LB100A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-LB100A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-LB100A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-LB100A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-LB100A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-LB100A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-LB100A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-LB100B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-LB100B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-LB100B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-LB100B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-LB100B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-LB100B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-LB100B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-LB100B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-LB100B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-LB100B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Foot \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FA80A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FA80A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FA80A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FA80A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FA80A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FA80A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FA80A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FA80A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FA80A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FA80A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FA80B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FA80B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FA80B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FA80B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FA80B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FA80B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FA80B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FA80B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FA80B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FA80B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FA100A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FA100A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FA100A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FA100A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FA100A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FA100A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FA100A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FA100A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FA100A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FA100A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FA100B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FA100B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FA100B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FA100B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FA100B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FA100B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FA100B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FA100B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FA100B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FA100B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Rod flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FB80A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FB80A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FB80A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FB80A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FB80A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FB80A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FB80A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FB80A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FB80A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FB80A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FB80B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FB80B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FB80B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FB80B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FB80B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FB80B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FB80B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FB80B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FB80B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FB80B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-FB100A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-FB100A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-FB100A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-FB100A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-FB100A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-FB100A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-FB100A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-FB100A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-FB100A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-FB100A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-FB100B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-FB100B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-FB100B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-FB100B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-FB100B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-FB100B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-FB100B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-FB100B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-FB100B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-FB100B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Head flange \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-CB80A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-CB80A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-CB80A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-CB80A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-CB80A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-CB80A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-CB80A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-CB80A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-CB80A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-CB80A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-CB80B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-CB80B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-CB80B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-CB80B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-CB80B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-CB80B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-CB80B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-CB80B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-CB80B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-CB80B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø80 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-ADFW-CB100A-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 5 mm
	B10-ADFW-CB100A-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 10 mm
	B10-ADFW-CB100A-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 15 mm
	B10-ADFW-CB100A-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 20 mm
	B10-ADFW-CB100A-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 25 mm
	B10-ADFW-CB100A-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 30 mm
	B10-ADFW-CB100A-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 35 mm
	B10-ADFW-CB100A-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 40 mm
	B10-ADFW-CB100A-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 45 mm
	B10-ADFW-CB100A-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Both ends tapped \| Stroke: 50 mm
	B10-ADFW-CB100B-S5	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 5 mm
	B10-ADFW-CB100B-S10	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 10 mm
	B10-ADFW-CB100B-S15	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 15 mm
	B10-ADFW-CB100B-S20	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 20 mm
	B10-ADFW-CB100B-S25	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 25 mm
	B10-ADFW-CB100B-S30	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 30 mm
	B10-ADFW-CB100B-S35	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 35 mm
	B10-ADFW-CB100B-S40	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 40 mm
	B10-ADFW-CB100B-S45	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 45 mm
	B10-ADFW-CB100B-S50	Rod: Double rod \| Magnet: Yes \| Mounting: Double clevis \| Bore: ø100 mm \| Mounting holes: Through hole \| Stroke: 50 mm
	B10-AF-80	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-100	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-125	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-140	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-160	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AF-200	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: No \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-80	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-100	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-125	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-140	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-160	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-AFW-200	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: No \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-80	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-100	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-125	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-140	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-160	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADF-200	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Single rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-80	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø80 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-100	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø100 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-125	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø125 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-140	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø140 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-160	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø160 mm \| Mounting holes: Specify \| Stroke: Specify
	B10-ADFW-200	Legacy code, base model (specify mounting, holes, stroke) \| Rod: Double rod \| Magnet: Yes \| Mounting: Specify \| Bore: ø200 mm \| Mounting holes: Specify \| Stroke: Specify

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC B10-AF/ADF Thin Cylinder (Battery Industry Version, ø80 to ø200)
