KCC E Compact One-Touch Fitting (Tube 3-6 mm, 1/8-1/4 in)

KCC E Compact One-Touch Fitting (Tube 3-6 mm, 1/8-1/4 in)

KCC E series compact one-touch (push-to-connect) fittings in 15 body styles for 3, 4 and 6 mm and 1/8, 5/32 and 1/4 in tubes, sized for tight spaces on small pneumatic equipment.

Key features

  • 15 styles: male/female connectors, elbows, tees, two-way elbow, unions, reducers and bulkhead union
  • Smaller than standard one-touch fittings with the same flow; oval release sleeve for easy tube removal in tight spaces
  • Threads: M3, M5, M6, R(PT)1/8, G1/8 (metric tube) and 10-32 UNF, NPT1/16, NPT1/8, NPT1/4 (inch tube)
  • Nickel-plated metal parts for corrosion resistance; gasket or O-ring fitted on the thread
  • ELC and ELLC bodies swivel; EOCC has an internal hex socket for wrench mounting
  • Packed 100 pcs per box

Specifications

Fluid Air
Operating pressure 0 to 0.99 MPa (0 to 150 psi)
Vacuum -750 mmHg (-29.5 inHg)
Operating temperature 0 to 60 C (32 to 140 F)
Applicable tube Polyurethane, nylon
Surface treatment Nickel plated
Packing 100 pcs per box
Source KCC catalog compact+one+touch+fitting.pdf, p. 1-20

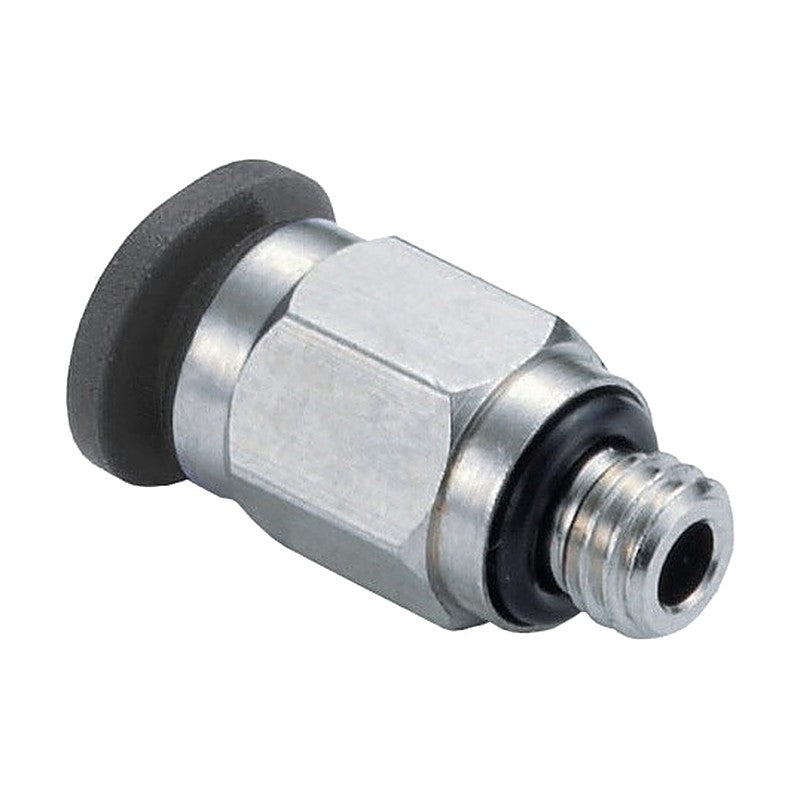

ECC04G01 Type: Male connector | Tube OD: 4 mm | Connection: G1/8
ECC06G01 Type: Male connector | Tube OD: 6 mm | Connection: G1/8
ECC03M3 Type: Male connector | Tube OD: 3 mm | Connection: M3x0.5
ECC03M5 Type: Male connector | Tube OD: 3 mm | Connection: M5x0.8
ECC03M6 Type: Male connector | Tube OD: 3 mm | Connection: M6x1.0
ECC0301 Type: Male connector | Tube OD: 3 mm | Connection: R1/8
ECC04M3 Type: Male connector | Tube OD: 4 mm | Connection: M3x0.5
ECC04M5 Type: Male connector | Tube OD: 4 mm | Connection: M5x0.8
ECC04M6 Type: Male connector | Tube OD: 4 mm | Connection: M6x1.0
ECC0401 Type: Male connector | Tube OD: 4 mm | Connection: R1/8
ECC06M5 Type: Male connector | Tube OD: 6 mm | Connection: M5x0.8
ECC06M6 Type: Male connector | Tube OD: 6 mm | Connection: M6x1.0
ECC0601 Type: Male connector | Tube OD: 6 mm | Connection: R1/8
ECC1/8U Type: Male connector | Tube OD: 1/8 in | Connection: 10-32 UNF
ECC1/8N0 Type: Male connector | Tube OD: 1/8 in | Connection: NPT1/16
ECC1/8N1 Type: Male connector | Tube OD: 1/8 in | Connection: NPT1/8
ECC1/8N2 Type: Male connector | Tube OD: 1/8 in | Connection: NPT1/4
ECC5/32U Type: Male connector | Tube OD: 5/32 in | Connection: 10-32 UNF
ECC5/32N0 Type: Male connector | Tube OD: 5/32 in | Connection: NPT1/16
ECC5/32N1 Type: Male connector | Tube OD: 5/32 in | Connection: NPT1/8
ECC1/4U Type: Male connector | Tube OD: 1/4 in | Connection: 10-32 UNF
ECC1/4N0 Type: Male connector | Tube OD: 1/4 in | Connection: NPT1/16
ECC1/4N1 Type: Male connector | Tube OD: 1/4 in | Connection: NPT1/8
ELC03M3 Type: Male elbow | Tube OD: 3 mm | Connection: M3x0.5
ELC03M5 Type: Male elbow | Tube OD: 3 mm | Connection: M5x0.8
ELC03M6 Type: Male elbow | Tube OD: 3 mm | Connection: M6x1.0
ELC04M3 Type: Male elbow | Tube OD: 4 mm | Connection: M3x0.5
ELC04M5 Type: Male elbow | Tube OD: 4 mm | Connection: M5x0.8
ELC04M6 Type: Male elbow | Tube OD: 4 mm | Connection: M6x1.0
ELC0401 Type: Male elbow | Tube OD: 4 mm | Connection: R1/8
ELC06M5 Type: Male elbow | Tube OD: 6 mm | Connection: M5x0.8
ELC06M6 Type: Male elbow | Tube OD: 6 mm | Connection: M6x1.0
ELC0601 Type: Male elbow | Tube OD: 6 mm | Connection: R1/8
ELC1/8U Type: Male elbow | Tube OD: 1/8 in | Connection: 10-32 UNF
ELC1/8N0 Type: Male elbow | Tube OD: 1/8 in | Connection: NPT1/16
ELC1/8N1 Type: Male elbow | Tube OD: 1/8 in | Connection: NPT1/8
ELC1/8N2 Type: Male elbow | Tube OD: 1/8 in | Connection: NPT1/4
ELC5/32U Type: Male elbow | Tube OD: 5/32 in | Connection: 10-32 UNF
ELC5/32N0 Type: Male elbow | Tube OD: 5/32 in | Connection: NPT1/16
ELC5/32N1 Type: Male elbow | Tube OD: 5/32 in | Connection: NPT1/8
ELC1/4U Type: Male elbow | Tube OD: 1/4 in | Connection: 10-32 UNF
ELC1/4N0 Type: Male elbow | Tube OD: 1/4 in | Connection: NPT1/16
ELC1/4N1 Type: Male elbow | Tube OD: 1/4 in | Connection: NPT1/8
ELC04G01 Type: Male elbow | Tube OD: 4 mm | Connection: G1/8
ELC06G01 Type: Male elbow | Tube OD: 6 mm | Connection: G1/8
EFCC03M3 Type: Female connector | Tube OD: 3 mm | Connection: M3x0.5 (female)
EFCC03M5 Type: Female connector | Tube OD: 3 mm | Connection: M5x0.8 (female)
EFCC03M6 Type: Female connector | Tube OD: 3 mm | Connection: M6x1.0 (female)
EFCC04M3 Type: Female connector | Tube OD: 4 mm | Connection: M3x0.5 (female)
EFCC04M5 Type: Female connector | Tube OD: 4 mm | Connection: M5x0.8 (female)
EFCC04M6 Type: Female connector | Tube OD: 4 mm | Connection: M6x1.0 (female)
EFCC0401 Type: Female connector | Tube OD: 4 mm | Connection: Rc1/8 (female)
EFCC06M5 Type: Female connector | Tube OD: 6 mm | Connection: M5x0.8 (female)
EFCC06M6 Type: Female connector | Tube OD: 6 mm | Connection: M6x1.0 (female)
EFCC0601 Type: Female connector | Tube OD: 6 mm | Connection: Rc1/8 (female)
EFCC1/8U Type: Female connector | Tube OD: 1/8 in | Connection: 10-32 UNF (female)
EFCC1/8N0 Type: Female connector | Tube OD: 1/8 in | Connection: NPT1/16 (female)
EFCC1/8N1 Type: Female connector | Tube OD: 1/8 in | Connection: NPT1/8 (female)
EFCC1/8N2 Type: Female connector | Tube OD: 1/8 in | Connection: NPT1/4 (female)
EFCC5/32U Type: Female connector | Tube OD: 5/32 in | Connection: 10-32 UNF (female)
EFCC5/32N0 Type: Female connector | Tube OD: 5/32 in | Connection: NPT1/16 (female)
EFCC5/32N1 Type: Female connector | Tube OD: 5/32 in | Connection: NPT1/8 (female)
EFCC1/4U Type: Female connector | Tube OD: 1/4 in | Connection: 10-32 UNF (female)
EFCC1/4N0 Type: Female connector | Tube OD: 1/4 in | Connection: NPT1/16 (female)
EFCC1/4N1 Type: Female connector | Tube OD: 1/4 in | Connection: NPT1/8 (female)
ELLC03M3 Type: Extended male elbow | Tube OD: 3 mm | Connection: M3x0.5
ELLC03M5 Type: Extended male elbow | Tube OD: 3 mm | Connection: M5x0.8
ELLC03M6 Type: Extended male elbow | Tube OD: 3 mm | Connection: M6x1.0
ELLC04M3 Type: Extended male elbow | Tube OD: 4 mm | Connection: M3x0.5
ELLC04M5 Type: Extended male elbow | Tube OD: 4 mm | Connection: M5x0.8
ELLC04M6 Type: Extended male elbow | Tube OD: 4 mm | Connection: M6x1.0
ELLC0401 Type: Extended male elbow | Tube OD: 4 mm | Connection: R1/8
ELLC06M5 Type: Extended male elbow | Tube OD: 6 mm | Connection: M5x0.8
ELLC06M6 Type: Extended male elbow | Tube OD: 6 mm | Connection: M6x1.0
ELLC0601 Type: Extended male elbow | Tube OD: 6 mm | Connection: R1/8
ELLC1/8U Type: Extended male elbow | Tube OD: 1/8 in | Connection: 10-32 UNF
ELLC1/8N0 Type: Extended male elbow | Tube OD: 1/8 in | Connection: NPT1/16
ELLC1/8N1 Type: Extended male elbow | Tube OD: 1/8 in | Connection: NPT1/8
ELLC5/32U Type: Extended male elbow | Tube OD: 5/32 in | Connection: 10-32 UNF
ELLC5/32N0 Type: Extended male elbow | Tube OD: 5/32 in | Connection: NPT1/16
ELLC5/32N1 Type: Extended male elbow | Tube OD: 5/32 in | Connection: NPT1/8
ELLC1/4U Type: Extended male elbow | Tube OD: 1/4 in | Connection: 10-32 UNF
ELLC1/4N0 Type: Extended male elbow | Tube OD: 1/4 in | Connection: NPT1/16
ELLC1/4N1 Type: Extended male elbow | Tube OD: 1/4 in | Connection: NPT1/8
ETC03M3 Type: Male branch tee | Tube OD: 3 mm | Connection: M3x0.5
ETC03M5 Type: Male branch tee | Tube OD: 3 mm | Connection: M5x0.8
ETC03M6 Type: Male branch tee | Tube OD: 3 mm | Connection: M6x1.0
ETC04M3 Type: Male branch tee | Tube OD: 4 mm | Connection: M3x0.5
ETC04M5 Type: Male branch tee | Tube OD: 4 mm | Connection: M5x0.8
ETC04M6 Type: Male branch tee | Tube OD: 4 mm | Connection: M6x1.0
ETC0401 Type: Male branch tee | Tube OD: 4 mm | Connection: R1/8
ETC06M5 Type: Male branch tee | Tube OD: 6 mm | Connection: M5x0.8
ETC06M6 Type: Male branch tee | Tube OD: 6 mm | Connection: M6x1.0
ETC0601 Type: Male branch tee | Tube OD: 6 mm | Connection: R1/8
ETC1/8U Type: Male branch tee | Tube OD: 1/8 in | Connection: 10-32 UNF
ETC1/8N0 Type: Male branch tee | Tube OD: 1/8 in | Connection: NPT1/16
ETC1/8N1 Type: Male branch tee | Tube OD: 1/8 in | Connection: NPT1/8
ETC5/32U Type: Male branch tee | Tube OD: 5/32 in | Connection: 10-32 UNF
ETC5/32N0 Type: Male branch tee | Tube OD: 5/32 in | Connection: NPT1/16
ETC5/32N1 Type: Male branch tee | Tube OD: 5/32 in | Connection: NPT1/8
ETC1/4U Type: Male branch tee | Tube OD: 1/4 in | Connection: 10-32 UNF
ETC1/4N0 Type: Male branch tee | Tube OD: 1/4 in | Connection: NPT1/16
ETC1/4N1 Type: Male branch tee | Tube OD: 1/4 in | Connection: NPT1/8
EOCC03M3 Type: Hex-socket round male connector | Tube OD: 3 mm | Connection: M3x0.5
EOCC03M5 Type: Hex-socket round male connector | Tube OD: 3 mm | Connection: M5x0.8
EOCC03M6 Type: Hex-socket round male connector | Tube OD: 3 mm | Connection: M6x1.0
EOCC04M3 Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: M3x0.5
EOCC04M5 Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: M5x0.8
EOCC04M6 Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: M6x1.0
EOCC0401 Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: R1/8
EOCC06M5 Type: Hex-socket round male connector | Tube OD: 6 mm | Connection: M5x0.8
EOCC06M6 Type: Hex-socket round male connector | Tube OD: 6 mm | Connection: M6x1.0
EOCC0601 Type: Hex-socket round male connector | Tube OD: 6 mm | Connection: R1/8
EOCC1/8U Type: Hex-socket round male connector | Tube OD: 1/8 in | Connection: 10-32 UNF
EOCC1/8N0 Type: Hex-socket round male connector | Tube OD: 1/8 in | Connection: NPT1/16
EOCC1/8N1 Type: Hex-socket round male connector | Tube OD: 1/8 in | Connection: NPT1/8
EOCC5/32U Type: Hex-socket round male connector | Tube OD: 5/32 in | Connection: 10-32 UNF
EOCC5/32N0 Type: Hex-socket round male connector | Tube OD: 5/32 in | Connection: NPT1/16
EOCC5/32N1 Type: Hex-socket round male connector | Tube OD: 5/32 in | Connection: NPT1/8
EOCC1/4U Type: Hex-socket round male connector | Tube OD: 1/4 in | Connection: 10-32 UNF
EOCC1/4N0 Type: Hex-socket round male connector | Tube OD: 1/4 in | Connection: NPT1/16
EOCC1/4N1 Type: Hex-socket round male connector | Tube OD: 1/4 in | Connection: NPT1/8
ESTC03M3 Type: Male two-way elbow | Tube OD: 3 mm | Connection: M3x0.5
ESTC03M5 Type: Male two-way elbow | Tube OD: 3 mm | Connection: M5x0.8
ESTC03M6 Type: Male two-way elbow | Tube OD: 3 mm | Connection: M6x1.0
ESTC04M3 Type: Male two-way elbow | Tube OD: 4 mm | Connection: M3x0.5
ESTC04M5 Type: Male two-way elbow | Tube OD: 4 mm | Connection: M5x0.8
ESTC04M6 Type: Male two-way elbow | Tube OD: 4 mm | Connection: M6x1.0
ESTC0401 Type: Male two-way elbow | Tube OD: 4 mm | Connection: R1/8
ESTC06M5 Type: Male two-way elbow | Tube OD: 6 mm | Connection: M5x0.8
ESTC06M6 Type: Male two-way elbow | Tube OD: 6 mm | Connection: M6x1.0
ESTC0601 Type: Male two-way elbow | Tube OD: 6 mm | Connection: R1/8
ESTC1/8U Type: Male two-way elbow | Tube OD: 1/8 in | Connection: 10-32 UNF
ESTC1/8N0 Type: Male two-way elbow | Tube OD: 1/8 in | Connection: NPT1/16
ESTC1/8N1 Type: Male two-way elbow | Tube OD: 1/8 in | Connection: NPT1/8
ESTC5/32U Type: Male two-way elbow | Tube OD: 5/32 in | Connection: 10-32 UNF
ESTC5/32N0 Type: Male two-way elbow | Tube OD: 5/32 in | Connection: NPT1/16
ESTC5/32N1 Type: Male two-way elbow | Tube OD: 5/32 in | Connection: NPT1/8
ESTC1/4U Type: Male two-way elbow | Tube OD: 1/4 in | Connection: 10-32 UNF
ESTC1/4N0 Type: Male two-way elbow | Tube OD: 1/4 in | Connection: NPT1/16
ESTC1/4N1 Type: Male two-way elbow | Tube OD: 1/4 in | Connection: NPT1/8
EURC0304 Type: Reducing union straight | Tube OD: 3 mm / 4 mm | Connection: Tube to tube (reducing)
EURC0306 Type: Reducing union straight | Tube OD: 3 mm / 6 mm | Connection: Tube to tube (reducing)
EURC0406 Type: Reducing union straight | Tube OD: 4 mm / 6 mm | Connection: Tube to tube (reducing)
EURC5/321/8 Type: Reducing union straight | Tube OD: 5/32 in / 1/8 in | Connection: Tube to tube (reducing)
EURC1/41/8 Type: Reducing union straight | Tube OD: 1/4 in / 1/8 in | Connection: Tube to tube (reducing)
EURC1/45/32 Type: Reducing union straight | Tube OD: 1/4 in / 5/32 in | Connection: Tube to tube (reducing)
ERYC0304 Type: Reducing union Y | Tube OD: 3 mm / 4 mm | Connection: Tube to tube (reducing)
ERYC0306 Type: Reducing union Y | Tube OD: 3 mm / 6 mm | Connection: Tube to tube (reducing)
ERYC0406 Type: Reducing union Y | Tube OD: 4 mm / 6 mm | Connection: Tube to tube (reducing)
ERYC5/321/8 Type: Reducing union Y | Tube OD: 5/32 in / 1/8 in | Connection: Tube to tube (reducing)
ERYC1/41/8 Type: Reducing union Y | Tube OD: 1/4 in / 1/8 in | Connection: Tube to tube (reducing)
ERYC1/45/32 Type: Reducing union Y | Tube OD: 1/4 in / 5/32 in | Connection: Tube to tube (reducing)
ERC0304 Type: Reducer (plug-in) | Tube OD: 3 mm / 4 mm | Connection: Tube to tube (reducing)
ERC0306 Type: Reducer (plug-in) | Tube OD: 3 mm / 6 mm | Connection: Tube to tube (reducing)
ERC0406 Type: Reducer (plug-in) | Tube OD: 4 mm / 6 mm | Connection: Tube to tube (reducing)
ERC5/321/8 Type: Reducer (plug-in) | Tube OD: 5/32 in / 1/8 in | Connection: Tube to tube (reducing)
ERC1/41/8 Type: Reducer (plug-in) | Tube OD: 1/4 in / 1/8 in | Connection: Tube to tube (reducing)
ERC1/45/32 Type: Reducer (plug-in) | Tube OD: 1/4 in / 5/32 in | Connection: Tube to tube (reducing)
EUTC03 Type: Union tee | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EUTC04 Type: Union tee | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EUTC06 Type: Union tee | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EUTC1/8 Type: Union tee | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EUTC5/32 Type: Union tee | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EUTC1/4 Type: Union tee | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EUYC03 Type: Union Y | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EUYC04 Type: Union Y | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EUYC06 Type: Union Y | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EUYC1/8 Type: Union Y | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EUYC5/32 Type: Union Y | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EUYC1/4 Type: Union Y | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EUCC03 Type: Union straight | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EUCC04 Type: Union straight | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EUCC06 Type: Union straight | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EUCC1/8 Type: Union straight | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EUCC5/32 Type: Union straight | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EUCC1/4 Type: Union straight | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EULC03 Type: Union elbow | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EULC04 Type: Union elbow | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EULC06 Type: Union elbow | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EULC1/8 Type: Union elbow | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EULC5/32 Type: Union elbow | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EULC1/4 Type: Union elbow | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EPCC03 Type: Bulkhead union | Tube OD: 3 mm | Connection: Tube, panel nut M8x0.75
EPCC04 Type: Bulkhead union | Tube OD: 4 mm | Connection: Tube, panel nut M10x1.0
EPCC06 Type: Bulkhead union | Tube OD: 6 mm | Connection: Tube, panel nut M12x1.0
Push-to-Connect FittingsKCC
186 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC E Compact One-Touch Fitting (Tube 3-6 mm, 1/8-1/4 in)

Brand KCC·Push-to-Connect Fittings

Available part numbers (186)

ECC04G01, ECC06G01, ECC03M3, ECC03M5, ECC03M6, ECC0301, ECC04M3, ECC04M5, ECC04M6, ECC0401 + 176 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ECC04G01Type: Male connector | Tube OD: 4 mm | Connection: G1/8
ECC06G01Type: Male connector | Tube OD: 6 mm | Connection: G1/8
ECC03M3Type: Male connector | Tube OD: 3 mm | Connection: M3x0.5
ECC03M5Type: Male connector | Tube OD: 3 mm | Connection: M5x0.8
ECC03M6Type: Male connector | Tube OD: 3 mm | Connection: M6x1.0
ECC0301Type: Male connector | Tube OD: 3 mm | Connection: R1/8
ECC04M3Type: Male connector | Tube OD: 4 mm | Connection: M3x0.5
ECC04M5Type: Male connector | Tube OD: 4 mm | Connection: M5x0.8
ECC04M6Type: Male connector | Tube OD: 4 mm | Connection: M6x1.0
ECC0401Type: Male connector | Tube OD: 4 mm | Connection: R1/8
ECC06M5Type: Male connector | Tube OD: 6 mm | Connection: M5x0.8
ECC06M6Type: Male connector | Tube OD: 6 mm | Connection: M6x1.0
ECC0601Type: Male connector | Tube OD: 6 mm | Connection: R1/8
ECC1/8UType: Male connector | Tube OD: 1/8 in | Connection: 10-32 UNF
ECC1/8N0Type: Male connector | Tube OD: 1/8 in | Connection: NPT1/16
ECC1/8N1Type: Male connector | Tube OD: 1/8 in | Connection: NPT1/8
ECC1/8N2Type: Male connector | Tube OD: 1/8 in | Connection: NPT1/4
ECC5/32UType: Male connector | Tube OD: 5/32 in | Connection: 10-32 UNF
ECC5/32N0Type: Male connector | Tube OD: 5/32 in | Connection: NPT1/16
ECC5/32N1Type: Male connector | Tube OD: 5/32 in | Connection: NPT1/8
ECC1/4UType: Male connector | Tube OD: 1/4 in | Connection: 10-32 UNF
ECC1/4N0Type: Male connector | Tube OD: 1/4 in | Connection: NPT1/16
ECC1/4N1Type: Male connector | Tube OD: 1/4 in | Connection: NPT1/8
ELC03M3Type: Male elbow | Tube OD: 3 mm | Connection: M3x0.5
ELC03M5Type: Male elbow | Tube OD: 3 mm | Connection: M5x0.8
ELC03M6Type: Male elbow | Tube OD: 3 mm | Connection: M6x1.0
ELC04M3Type: Male elbow | Tube OD: 4 mm | Connection: M3x0.5
ELC04M5Type: Male elbow | Tube OD: 4 mm | Connection: M5x0.8
ELC04M6Type: Male elbow | Tube OD: 4 mm | Connection: M6x1.0
ELC0401Type: Male elbow | Tube OD: 4 mm | Connection: R1/8
ELC06M5Type: Male elbow | Tube OD: 6 mm | Connection: M5x0.8
ELC06M6Type: Male elbow | Tube OD: 6 mm | Connection: M6x1.0
ELC0601Type: Male elbow | Tube OD: 6 mm | Connection: R1/8
ELC1/8UType: Male elbow | Tube OD: 1/8 in | Connection: 10-32 UNF
ELC1/8N0Type: Male elbow | Tube OD: 1/8 in | Connection: NPT1/16
ELC1/8N1Type: Male elbow | Tube OD: 1/8 in | Connection: NPT1/8
ELC1/8N2Type: Male elbow | Tube OD: 1/8 in | Connection: NPT1/4
ELC5/32UType: Male elbow | Tube OD: 5/32 in | Connection: 10-32 UNF
ELC5/32N0Type: Male elbow | Tube OD: 5/32 in | Connection: NPT1/16
ELC5/32N1Type: Male elbow | Tube OD: 5/32 in | Connection: NPT1/8
ELC1/4UType: Male elbow | Tube OD: 1/4 in | Connection: 10-32 UNF
ELC1/4N0Type: Male elbow | Tube OD: 1/4 in | Connection: NPT1/16
ELC1/4N1Type: Male elbow | Tube OD: 1/4 in | Connection: NPT1/8
ELC04G01Type: Male elbow | Tube OD: 4 mm | Connection: G1/8
ELC06G01Type: Male elbow | Tube OD: 6 mm | Connection: G1/8
EFCC03M3Type: Female connector | Tube OD: 3 mm | Connection: M3x0.5 (female)
EFCC03M5Type: Female connector | Tube OD: 3 mm | Connection: M5x0.8 (female)
EFCC03M6Type: Female connector | Tube OD: 3 mm | Connection: M6x1.0 (female)
EFCC04M3Type: Female connector | Tube OD: 4 mm | Connection: M3x0.5 (female)
EFCC04M5Type: Female connector | Tube OD: 4 mm | Connection: M5x0.8 (female)
EFCC04M6Type: Female connector | Tube OD: 4 mm | Connection: M6x1.0 (female)
EFCC0401Type: Female connector | Tube OD: 4 mm | Connection: Rc1/8 (female)
EFCC06M5Type: Female connector | Tube OD: 6 mm | Connection: M5x0.8 (female)
EFCC06M6Type: Female connector | Tube OD: 6 mm | Connection: M6x1.0 (female)
EFCC0601Type: Female connector | Tube OD: 6 mm | Connection: Rc1/8 (female)
EFCC1/8UType: Female connector | Tube OD: 1/8 in | Connection: 10-32 UNF (female)
EFCC1/8N0Type: Female connector | Tube OD: 1/8 in | Connection: NPT1/16 (female)
EFCC1/8N1Type: Female connector | Tube OD: 1/8 in | Connection: NPT1/8 (female)
EFCC1/8N2Type: Female connector | Tube OD: 1/8 in | Connection: NPT1/4 (female)
EFCC5/32UType: Female connector | Tube OD: 5/32 in | Connection: 10-32 UNF (female)
EFCC5/32N0Type: Female connector | Tube OD: 5/32 in | Connection: NPT1/16 (female)
EFCC5/32N1Type: Female connector | Tube OD: 5/32 in | Connection: NPT1/8 (female)
EFCC1/4UType: Female connector | Tube OD: 1/4 in | Connection: 10-32 UNF (female)
EFCC1/4N0Type: Female connector | Tube OD: 1/4 in | Connection: NPT1/16 (female)
EFCC1/4N1Type: Female connector | Tube OD: 1/4 in | Connection: NPT1/8 (female)
ELLC03M3Type: Extended male elbow | Tube OD: 3 mm | Connection: M3x0.5
ELLC03M5Type: Extended male elbow | Tube OD: 3 mm | Connection: M5x0.8
ELLC03M6Type: Extended male elbow | Tube OD: 3 mm | Connection: M6x1.0
ELLC04M3Type: Extended male elbow | Tube OD: 4 mm | Connection: M3x0.5
ELLC04M5Type: Extended male elbow | Tube OD: 4 mm | Connection: M5x0.8
ELLC04M6Type: Extended male elbow | Tube OD: 4 mm | Connection: M6x1.0
ELLC0401Type: Extended male elbow | Tube OD: 4 mm | Connection: R1/8
ELLC06M5Type: Extended male elbow | Tube OD: 6 mm | Connection: M5x0.8
ELLC06M6Type: Extended male elbow | Tube OD: 6 mm | Connection: M6x1.0
ELLC0601Type: Extended male elbow | Tube OD: 6 mm | Connection: R1/8
ELLC1/8UType: Extended male elbow | Tube OD: 1/8 in | Connection: 10-32 UNF
ELLC1/8N0Type: Extended male elbow | Tube OD: 1/8 in | Connection: NPT1/16
ELLC1/8N1Type: Extended male elbow | Tube OD: 1/8 in | Connection: NPT1/8
ELLC5/32UType: Extended male elbow | Tube OD: 5/32 in | Connection: 10-32 UNF
ELLC5/32N0Type: Extended male elbow | Tube OD: 5/32 in | Connection: NPT1/16
ELLC5/32N1Type: Extended male elbow | Tube OD: 5/32 in | Connection: NPT1/8
ELLC1/4UType: Extended male elbow | Tube OD: 1/4 in | Connection: 10-32 UNF
ELLC1/4N0Type: Extended male elbow | Tube OD: 1/4 in | Connection: NPT1/16
ELLC1/4N1Type: Extended male elbow | Tube OD: 1/4 in | Connection: NPT1/8
ETC03M3Type: Male branch tee | Tube OD: 3 mm | Connection: M3x0.5
ETC03M5Type: Male branch tee | Tube OD: 3 mm | Connection: M5x0.8
ETC03M6Type: Male branch tee | Tube OD: 3 mm | Connection: M6x1.0
ETC04M3Type: Male branch tee | Tube OD: 4 mm | Connection: M3x0.5
ETC04M5Type: Male branch tee | Tube OD: 4 mm | Connection: M5x0.8
ETC04M6Type: Male branch tee | Tube OD: 4 mm | Connection: M6x1.0
ETC0401Type: Male branch tee | Tube OD: 4 mm | Connection: R1/8
ETC06M5Type: Male branch tee | Tube OD: 6 mm | Connection: M5x0.8
ETC06M6Type: Male branch tee | Tube OD: 6 mm | Connection: M6x1.0
ETC0601Type: Male branch tee | Tube OD: 6 mm | Connection: R1/8
ETC1/8UType: Male branch tee | Tube OD: 1/8 in | Connection: 10-32 UNF
ETC1/8N0Type: Male branch tee | Tube OD: 1/8 in | Connection: NPT1/16
ETC1/8N1Type: Male branch tee | Tube OD: 1/8 in | Connection: NPT1/8
ETC5/32UType: Male branch tee | Tube OD: 5/32 in | Connection: 10-32 UNF
ETC5/32N0Type: Male branch tee | Tube OD: 5/32 in | Connection: NPT1/16
ETC5/32N1Type: Male branch tee | Tube OD: 5/32 in | Connection: NPT1/8
ETC1/4UType: Male branch tee | Tube OD: 1/4 in | Connection: 10-32 UNF
ETC1/4N0Type: Male branch tee | Tube OD: 1/4 in | Connection: NPT1/16
ETC1/4N1Type: Male branch tee | Tube OD: 1/4 in | Connection: NPT1/8
EOCC03M3Type: Hex-socket round male connector | Tube OD: 3 mm | Connection: M3x0.5
EOCC03M5Type: Hex-socket round male connector | Tube OD: 3 mm | Connection: M5x0.8
EOCC03M6Type: Hex-socket round male connector | Tube OD: 3 mm | Connection: M6x1.0
EOCC04M3Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: M3x0.5
EOCC04M5Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: M5x0.8
EOCC04M6Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: M6x1.0
EOCC0401Type: Hex-socket round male connector | Tube OD: 4 mm | Connection: R1/8
EOCC06M5Type: Hex-socket round male connector | Tube OD: 6 mm | Connection: M5x0.8
EOCC06M6Type: Hex-socket round male connector | Tube OD: 6 mm | Connection: M6x1.0
EOCC0601Type: Hex-socket round male connector | Tube OD: 6 mm | Connection: R1/8
EOCC1/8UType: Hex-socket round male connector | Tube OD: 1/8 in | Connection: 10-32 UNF
EOCC1/8N0Type: Hex-socket round male connector | Tube OD: 1/8 in | Connection: NPT1/16
EOCC1/8N1Type: Hex-socket round male connector | Tube OD: 1/8 in | Connection: NPT1/8
EOCC5/32UType: Hex-socket round male connector | Tube OD: 5/32 in | Connection: 10-32 UNF
EOCC5/32N0Type: Hex-socket round male connector | Tube OD: 5/32 in | Connection: NPT1/16
EOCC5/32N1Type: Hex-socket round male connector | Tube OD: 5/32 in | Connection: NPT1/8
EOCC1/4UType: Hex-socket round male connector | Tube OD: 1/4 in | Connection: 10-32 UNF
EOCC1/4N0Type: Hex-socket round male connector | Tube OD: 1/4 in | Connection: NPT1/16
EOCC1/4N1Type: Hex-socket round male connector | Tube OD: 1/4 in | Connection: NPT1/8
ESTC03M3Type: Male two-way elbow | Tube OD: 3 mm | Connection: M3x0.5
ESTC03M5Type: Male two-way elbow | Tube OD: 3 mm | Connection: M5x0.8
ESTC03M6Type: Male two-way elbow | Tube OD: 3 mm | Connection: M6x1.0
ESTC04M3Type: Male two-way elbow | Tube OD: 4 mm | Connection: M3x0.5
ESTC04M5Type: Male two-way elbow | Tube OD: 4 mm | Connection: M5x0.8
ESTC04M6Type: Male two-way elbow | Tube OD: 4 mm | Connection: M6x1.0
ESTC0401Type: Male two-way elbow | Tube OD: 4 mm | Connection: R1/8
ESTC06M5Type: Male two-way elbow | Tube OD: 6 mm | Connection: M5x0.8
ESTC06M6Type: Male two-way elbow | Tube OD: 6 mm | Connection: M6x1.0
ESTC0601Type: Male two-way elbow | Tube OD: 6 mm | Connection: R1/8
ESTC1/8UType: Male two-way elbow | Tube OD: 1/8 in | Connection: 10-32 UNF
ESTC1/8N0Type: Male two-way elbow | Tube OD: 1/8 in | Connection: NPT1/16
ESTC1/8N1Type: Male two-way elbow | Tube OD: 1/8 in | Connection: NPT1/8
ESTC5/32UType: Male two-way elbow | Tube OD: 5/32 in | Connection: 10-32 UNF
ESTC5/32N0Type: Male two-way elbow | Tube OD: 5/32 in | Connection: NPT1/16
ESTC5/32N1Type: Male two-way elbow | Tube OD: 5/32 in | Connection: NPT1/8
ESTC1/4UType: Male two-way elbow | Tube OD: 1/4 in | Connection: 10-32 UNF
ESTC1/4N0Type: Male two-way elbow | Tube OD: 1/4 in | Connection: NPT1/16
ESTC1/4N1Type: Male two-way elbow | Tube OD: 1/4 in | Connection: NPT1/8
EURC0304Type: Reducing union straight | Tube OD: 3 mm / 4 mm | Connection: Tube to tube (reducing)
EURC0306Type: Reducing union straight | Tube OD: 3 mm / 6 mm | Connection: Tube to tube (reducing)
EURC0406Type: Reducing union straight | Tube OD: 4 mm / 6 mm | Connection: Tube to tube (reducing)
EURC5/321/8Type: Reducing union straight | Tube OD: 5/32 in / 1/8 in | Connection: Tube to tube (reducing)
EURC1/41/8Type: Reducing union straight | Tube OD: 1/4 in / 1/8 in | Connection: Tube to tube (reducing)
EURC1/45/32Type: Reducing union straight | Tube OD: 1/4 in / 5/32 in | Connection: Tube to tube (reducing)
ERYC0304Type: Reducing union Y | Tube OD: 3 mm / 4 mm | Connection: Tube to tube (reducing)
ERYC0306Type: Reducing union Y | Tube OD: 3 mm / 6 mm | Connection: Tube to tube (reducing)
ERYC0406Type: Reducing union Y | Tube OD: 4 mm / 6 mm | Connection: Tube to tube (reducing)
ERYC5/321/8Type: Reducing union Y | Tube OD: 5/32 in / 1/8 in | Connection: Tube to tube (reducing)
ERYC1/41/8Type: Reducing union Y | Tube OD: 1/4 in / 1/8 in | Connection: Tube to tube (reducing)
ERYC1/45/32Type: Reducing union Y | Tube OD: 1/4 in / 5/32 in | Connection: Tube to tube (reducing)
ERC0304Type: Reducer (plug-in) | Tube OD: 3 mm / 4 mm | Connection: Tube to tube (reducing)
ERC0306Type: Reducer (plug-in) | Tube OD: 3 mm / 6 mm | Connection: Tube to tube (reducing)
ERC0406Type: Reducer (plug-in) | Tube OD: 4 mm / 6 mm | Connection: Tube to tube (reducing)
ERC5/321/8Type: Reducer (plug-in) | Tube OD: 5/32 in / 1/8 in | Connection: Tube to tube (reducing)
ERC1/41/8Type: Reducer (plug-in) | Tube OD: 1/4 in / 1/8 in | Connection: Tube to tube (reducing)
ERC1/45/32Type: Reducer (plug-in) | Tube OD: 1/4 in / 5/32 in | Connection: Tube to tube (reducing)
EUTC03Type: Union tee | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EUTC04Type: Union tee | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EUTC06Type: Union tee | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EUTC1/8Type: Union tee | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EUTC5/32Type: Union tee | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EUTC1/4Type: Union tee | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EUYC03Type: Union Y | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EUYC04Type: Union Y | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EUYC06Type: Union Y | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EUYC1/8Type: Union Y | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EUYC5/32Type: Union Y | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EUYC1/4Type: Union Y | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EUCC03Type: Union straight | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EUCC04Type: Union straight | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EUCC06Type: Union straight | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EUCC1/8Type: Union straight | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EUCC5/32Type: Union straight | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EUCC1/4Type: Union straight | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EULC03Type: Union elbow | Tube OD: 3 mm | Connection: Tube to tube (same OD)
EULC04Type: Union elbow | Tube OD: 4 mm | Connection: Tube to tube (same OD)
EULC06Type: Union elbow | Tube OD: 6 mm | Connection: Tube to tube (same OD)
EULC1/8Type: Union elbow | Tube OD: 1/8 in | Connection: Tube to tube (same OD)
EULC5/32Type: Union elbow | Tube OD: 5/32 in | Connection: Tube to tube (same OD)
EULC1/4Type: Union elbow | Tube OD: 1/4 in | Connection: Tube to tube (same OD)
EPCC03Type: Bulkhead union | Tube OD: 3 mm | Connection: Tube, panel nut M8x0.75
EPCC04Type: Bulkhead union | Tube OD: 4 mm | Connection: Tube, panel nut M10x1.0
EPCC06Type: Bulkhead union | Tube OD: 6 mm | Connection: Tube, panel nut M12x1.0

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
