KCC E Series One-Touch Fitting (Triple Branch, Plug and Tube Cap)

KCC E Series One-Touch Fitting (Triple Branch, Plug and Tube Cap)

KCC E series special one-touch fittings: EKD/EKDG male triple branch manifolds, EBC fitting plugs and EPF tube caps.

Key features

  • One-push tube connection and release with stainless steel lock claws
  • Metric tube Ø3-Ø16 and inch tube 1/8-1/2 in

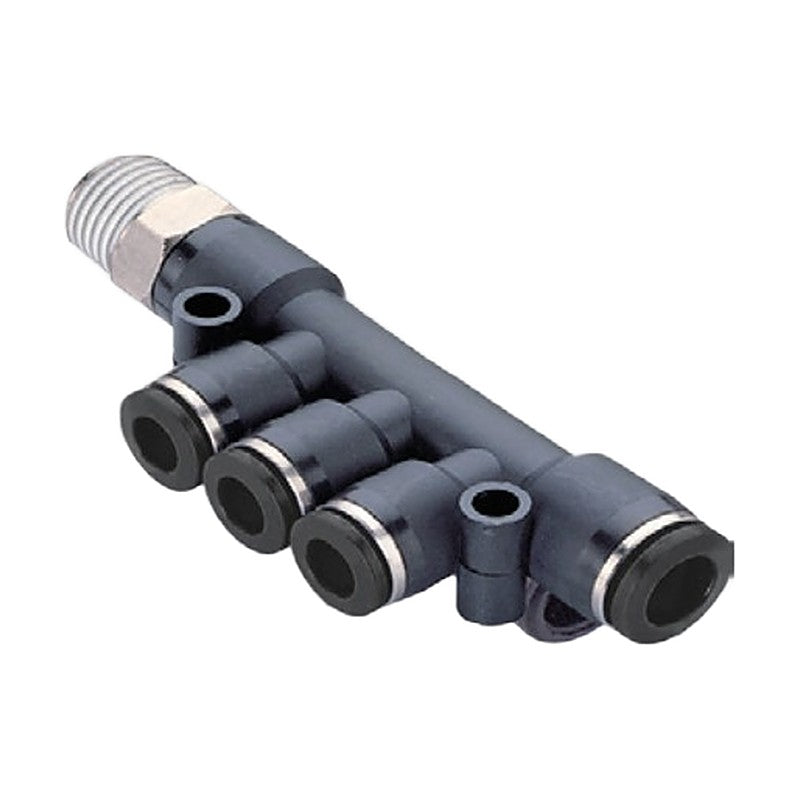

  • EKD male triple branch: one main tube, three branch tubes and a male thread (R, G or NPT)
  • EKDG = G-thread version of EKD; inch EKD with NPT threads
  • EBC plug blanks off an unused one-touch port; EPF caps the end of a tube

Specifications

Fluid Air
Operating pressure 0-150 PSI (0-0.99 MPa)
Vacuum -29.5 inHg (-750 mmHg)
Operating temperature 32-140°F (0-60°C)
Applicable tube Polyurethane and nylon
Materials Brass/PBT body, POM release sleeve, stainless lock claw, NBR O-ring
Plating Standard; N suffix = nickel plated (on request)
Source KCC catalog one+touch+fitting.pdf, p. 2-40 (catalog p. 9-5 to 9-46)
EKD060401 Type: Male triple branch | Tube OD: 6 mm | Branch tube OD: 4 mm | Thread: R1/8
EKD080401 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 4 mm | Thread: R1/8
EKD080402 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 4 mm | Thread: R1/4
EKD080601 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 6 mm | Thread: R1/8
EKD080602 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 6 mm | Thread: R1/4
EKD100602 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 6 mm | Thread: R1/4
EKD100603 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 6 mm | Thread: R3/8
EKD100802 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 8 mm | Thread: R1/4
EKD100803 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 8 mm | Thread: R3/8
EKDG060401 Type: Male triple branch | Tube OD: 6 mm | Branch tube OD: 4 mm | Thread: G1/8
EKDG080401 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 4 mm | Thread: G1/8
EKDG080402 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 4 mm | Thread: G1/4
EKDG080601 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 6 mm | Thread: G1/8
EKDG080602 Type: Male triple branch | Tube OD: 8 mm | Branch tube OD: 6 mm | Thread: G1/4
EKDG100602 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 6 mm | Thread: G1/4
EKDG100603 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 6 mm | Thread: G3/8
EKDG100802 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 8 mm | Thread: G1/4
EKDG100803 Type: Male triple branch | Tube OD: 10 mm | Branch tube OD: 8 mm | Thread: G3/8
EKD3/165/32N1 Type: Male triple branch | Tube OD: 3/16 in | Branch tube OD: 5/32 in | Thread: NPT 1/8
EKD1/45/32N1 Type: Male triple branch | Tube OD: 1/4 in | Branch tube OD: 5/32 in | Thread: NPT 1/8
EKD5/165/32N2 Type: Male triple branch | Tube OD: 5/16 in | Branch tube OD: 5/32 in | Thread: NPT 1/4
EKD5/163/16N2 Type: Male triple branch | Tube OD: 5/16 in | Branch tube OD: 3/16 in | Thread: NPT 1/4
EKD5/161/4N2 Type: Male triple branch | Tube OD: 5/16 in | Branch tube OD: 1/4 in | Thread: NPT 1/4
EKD3/81/4N3 Type: Male triple branch | Tube OD: 3/8 in | Branch tube OD: 1/4 in | Thread: NPT 3/8
EKD3/85/16N3 Type: Male triple branch | Tube OD: 3/8 in | Branch tube OD: 5/16 in | Thread: NPT 3/8
EBC04 Type: Fitting plug | Tube OD: 4 mm | Branch tube OD: - | Thread: -
EBC06 Type: Fitting plug | Tube OD: 6 mm | Branch tube OD: - | Thread: -
EBC08 Type: Fitting plug | Tube OD: 8 mm | Branch tube OD: - | Thread: -
EBC10 Type: Fitting plug | Tube OD: 10 mm | Branch tube OD: - | Thread: -
EBC12 Type: Fitting plug | Tube OD: 12 mm | Branch tube OD: - | Thread: -
EBC16 Type: Fitting plug | Tube OD: 16 mm | Branch tube OD: - | Thread: -
EBC5/32 Type: Fitting plug | Tube OD: 5/32 in | Branch tube OD: - | Thread: -
EBC3/16 Type: Fitting plug | Tube OD: 3/16 in | Branch tube OD: - | Thread: -
EBC1/4 Type: Fitting plug | Tube OD: 1/4 in | Branch tube OD: - | Thread: -
EBC5/16 Type: Fitting plug | Tube OD: 5/16 in | Branch tube OD: - | Thread: -
EBC3/8 Type: Fitting plug | Tube OD: 3/8 in | Branch tube OD: - | Thread: -
EBC1/2 Type: Fitting plug | Tube OD: 1/2 in | Branch tube OD: - | Thread: -
EPF04 Type: Tube cap | Tube OD: 4 mm | Branch tube OD: - | Thread: -
EPF06 Type: Tube cap | Tube OD: 6 mm | Branch tube OD: - | Thread: -
EPF08 Type: Tube cap | Tube OD: 8 mm | Branch tube OD: - | Thread: -
EPF10 Type: Tube cap | Tube OD: 10 mm | Branch tube OD: - | Thread: -
EPF12 Type: Tube cap | Tube OD: 12 mm | Branch tube OD: - | Thread: -
EPF16 Type: Tube cap | Tube OD: 16 mm | Branch tube OD: - | Thread: -
EPF5/32 Type: Tube cap | Tube OD: 5/32 in | Branch tube OD: - | Thread: -
EPF3/16 Type: Tube cap | Tube OD: 3/16 in | Branch tube OD: - | Thread: -
EPF1/4 Type: Tube cap | Tube OD: 1/4 in | Branch tube OD: - | Thread: -
EPF5/16 Type: Tube cap | Tube OD: 5/16 in | Branch tube OD: - | Thread: -
EPF3/8 Type: Tube cap | Tube OD: 3/8 in | Branch tube OD: - | Thread: -
EPF1/2 Type: Tube cap | Tube OD: 1/2 in | Branch tube OD: - | Thread: -
EKD3/16-5/32N1 Legacy code | Superseded by EKD3/16 5/32N1 | Type: Male triple branch | Tube OD: 3/16 in | Branch tube OD: 5/32 in | Thread: NPT 1/8
EKD1/4-5/32N1 Legacy code | Superseded by EKD1/4 5/32N1 | Type: Male triple branch | Tube OD: 1/4 in | Branch tube OD: 5/32 in | Thread: NPT 1/8
EKD5/16-5/32N2 Legacy code | Superseded by EKD5/16 5/32N2 | Type: Male triple branch | Tube OD: 5/16 in | Branch tube OD: 5/32 in | Thread: NPT 1/4
EKD5/16-3/16N2 Legacy code | Superseded by EKD5/16 3/16N2 | Type: Male triple branch | Tube OD: 5/16 in | Branch tube OD: 3/16 in | Thread: NPT 1/4
EKD5/16-1/4N2 Legacy code | Superseded by EKD5/16 1/4N2 | Type: Male triple branch | Tube OD: 5/16 in | Branch tube OD: 1/4 in | Thread: NPT 1/4
EKD3/8-1/4N3 Legacy code | Superseded by EKD3/8 1/4N3 | Type: Male triple branch | Tube OD: 3/8 in | Branch tube OD: 1/4 in | Thread: NPT 3/8
EKD3/8-5/16N3 Legacy code | Superseded by EKD3/8 5/16N3 | Type: Male triple branch | Tube OD: 3/8 in | Branch tube OD: 5/16 in | Thread: NPT 3/8
