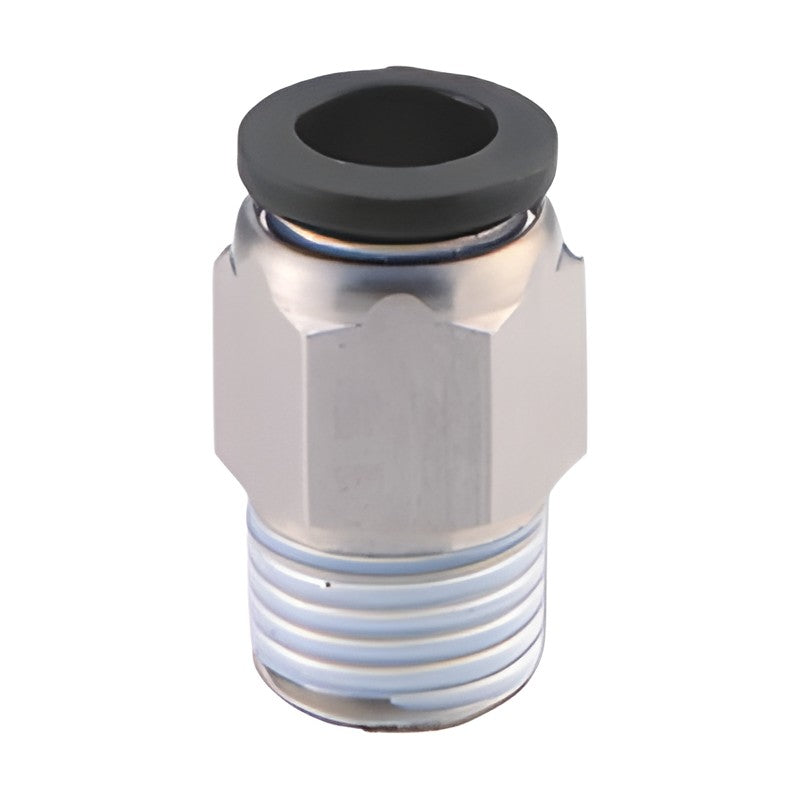

KCC E Series One-Touch Fitting (Male and Female Threaded Types)

KCC E Series One-Touch Fitting (Male and Female Threaded Types)

KCC E series brass one-touch (push-to-connect) fittings with male or female threads: straight, elbow, tee, Y, extended elbow, run tee, hex-head elbow and bulkhead connectors.

Key features

  • One-push tube connection and release with stainless steel lock claws
  • Metric tube Ø3-Ø16 and inch tube 1/8-1/2 in
  • Male threads R (PT), G (PF), M5/M6, UNF 10-32 and NPT; female Rc (PT), G and NPT
  • Male threads come with pre-applied sealant; EL and ET bodies rotate for easy piping
  • Types EC, EL, ET, EY, ELL, EST, EPFC, EFC, EH, EOC as printed in the catalog tables
  • Code format: E + type + tube size + thread (e.g. EC0802, EL04G01, EC1/4N2)

Specifications

Fluid Air
Operating pressure 0-150 PSI (0-0.99 MPa)
Vacuum -29.5 inHg (-750 mmHg)
Operating temperature 32-140°F (0-60°C)
Applicable tube Polyurethane and nylon
Materials Brass/PBT body, POM release sleeve, stainless lock claw, NBR O-ring
Plating Standard; N suffix = nickel plated (on request)
Source KCC catalog one+touch+fitting.pdf, p. 2-22 (catalog p. 9-5 to 9-46)
EC04M5 Type: Male connector | Tube OD: 4 mm | Thread: M5x0.8
EC04M6 Type: Male connector | Tube OD: 4 mm | Thread: M6x1.0
EC0401 Type: Male connector | Tube OD: 4 mm | Thread: R1/8
EC0402 Type: Male connector | Tube OD: 4 mm | Thread: R1/4
EC0403 Type: Male connector | Tube OD: 4 mm | Thread: R3/8
EC06M5 Type: Male connector | Tube OD: 6 mm | Thread: M5x0.8
EC06M6 Type: Male connector | Tube OD: 6 mm | Thread: M6x1.0
EC0601 Type: Male connector | Tube OD: 6 mm | Thread: R1/8
EC0602 Type: Male connector | Tube OD: 6 mm | Thread: R1/4
EC0603 Type: Male connector | Tube OD: 6 mm | Thread: R3/8
EC0604 Type: Male connector | Tube OD: 6 mm | Thread: R1/2
EC0801 Type: Male connector | Tube OD: 8 mm | Thread: R1/8
EC0802 Type: Male connector | Tube OD: 8 mm | Thread: R1/4
EC0803 Type: Male connector | Tube OD: 8 mm | Thread: R3/8
EC0804 Type: Male connector | Tube OD: 8 mm | Thread: R1/2
EC1001 Type: Male connector | Tube OD: 10 mm | Thread: R1/8
EC1002 Type: Male connector | Tube OD: 10 mm | Thread: R1/4
EC1003 Type: Male connector | Tube OD: 10 mm | Thread: R3/8
EC1004 Type: Male connector | Tube OD: 10 mm | Thread: R1/2
EC1201 Type: Male connector | Tube OD: 12 mm | Thread: R1/8
EC1202 Type: Male connector | Tube OD: 12 mm | Thread: R1/4
EC1203 Type: Male connector | Tube OD: 12 mm | Thread: R3/8
EC1204 Type: Male connector | Tube OD: 12 mm | Thread: R1/2
EC1603 Type: Male connector | Tube OD: 16 mm | Thread: R3/8
EC1604 Type: Male connector | Tube OD: 16 mm | Thread: R1/2
EC04G01 Type: Male connector | Tube OD: 4 mm | Thread: G1/8
EC04G02 Type: Male connector | Tube OD: 4 mm | Thread: G1/4
EC04G03 Type: Male connector | Tube OD: 4 mm | Thread: G3/8
EC06G01 Type: Male connector | Tube OD: 6 mm | Thread: G1/8
EC06G02 Type: Male connector | Tube OD: 6 mm | Thread: G1/4
EC06G03 Type: Male connector | Tube OD: 6 mm | Thread: G3/8
EC08G01 Type: Male connector | Tube OD: 8 mm | Thread: G1/8
EC08G02 Type: Male connector | Tube OD: 8 mm | Thread: G1/4
EC08G03 Type: Male connector | Tube OD: 8 mm | Thread: G3/8
EC08G04 Type: Male connector | Tube OD: 8 mm | Thread: G1/2
EC10G01 Type: Male connector | Tube OD: 10 mm | Thread: G1/8
EC10G02 Type: Male connector | Tube OD: 10 mm | Thread: G1/4
EC10G03 Type: Male connector | Tube OD: 10 mm | Thread: G3/8
EC10G04 Type: Male connector | Tube OD: 10 mm | Thread: G1/2
EC12G02 Type: Male connector | Tube OD: 12 mm | Thread: G1/4
EC12G03 Type: Male connector | Tube OD: 12 mm | Thread: G3/8
EC12G04 Type: Male connector | Tube OD: 12 mm | Thread: G1/2
EC16G03 Type: Male connector | Tube OD: 16 mm | Thread: G3/8
EC16G04 Type: Male connector | Tube OD: 16 mm | Thread: G1/2
EC5/32U Type: Male connector | Tube OD: 5/32 in | Thread: UNF 10-32
EC5/32N1 Type: Male connector | Tube OD: 5/32 in | Thread: NPT 1/8
EC5/32N2 Type: Male connector | Tube OD: 5/32 in | Thread: NPT 1/4
EC5/32N3 Type: Male connector | Tube OD: 5/32 in | Thread: NPT 3/8
EC3/16U Type: Male connector | Tube OD: 3/16 in | Thread: UNF 10-32
EC3/16N1 Type: Male connector | Tube OD: 3/16 in | Thread: NPT 1/8
EC3/16N2 Type: Male connector | Tube OD: 3/16 in | Thread: NPT 1/4
EC3/16N3 Type: Male connector | Tube OD: 3/16 in | Thread: NPT 3/8
EC1/4U Type: Male connector | Tube OD: 1/4 in | Thread: UNF 10-32
EC1/4N1 Type: Male connector | Tube OD: 1/4 in | Thread: NPT 1/8
EC1/4N2 Type: Male connector | Tube OD: 1/4 in | Thread: NPT 1/4
EC1/4N3 Type: Male connector | Tube OD: 1/4 in | Thread: NPT 3/8
EC1/4N4 Type: Male connector | Tube OD: 1/4 in | Thread: NPT 1/2
EC5/16N1 Type: Male connector | Tube OD: 5/16 in | Thread: NPT 1/8
EC5/16N2 Type: Male connector | Tube OD: 5/16 in | Thread: NPT 1/4
EC5/16N3 Type: Male connector | Tube OD: 5/16 in | Thread: NPT 3/8
EC5/16N4 Type: Male connector | Tube OD: 5/16 in | Thread: NPT 1/2
EC3/8N1 Type: Male connector | Tube OD: 3/8 in | Thread: NPT 1/8
EC3/8N2 Type: Male connector | Tube OD: 3/8 in | Thread: NPT 1/4
EC3/8N3 Type: Male connector | Tube OD: 3/8 in | Thread: NPT 3/8
EC3/8N4 Type: Male connector | Tube OD: 3/8 in | Thread: NPT 1/2
EC1/2N1 Type: Male connector | Tube OD: 1/2 in | Thread: NPT 1/8
EC1/2N2 Type: Male connector | Tube OD: 1/2 in | Thread: NPT 1/4
EC1/2N3 Type: Male connector | Tube OD: 1/2 in | Thread: NPT 3/8
EC1/2N4 Type: Male connector | Tube OD: 1/2 in | Thread: NPT 1/2
EL04M5 Type: Male elbow | Tube OD: 4 mm | Thread: M5x0.8
EL04M6 Type: Male elbow | Tube OD: 4 mm | Thread: M6x1.0
EL0401 Type: Male elbow | Tube OD: 4 mm | Thread: R1/8
EL0402 Type: Male elbow | Tube OD: 4 mm | Thread: R1/4
EL0403 Type: Male elbow | Tube OD: 4 mm | Thread: R3/8
EL06M5 Type: Male elbow | Tube OD: 6 mm | Thread: M5x0.8
EL06M6 Type: Male elbow | Tube OD: 6 mm | Thread: M6x1.0
EL0601 Type: Male elbow | Tube OD: 6 mm | Thread: R1/8
EL0602 Type: Male elbow | Tube OD: 6 mm | Thread: R1/4
EL0603 Type: Male elbow | Tube OD: 6 mm | Thread: R3/8
EL0604 Type: Male elbow | Tube OD: 6 mm | Thread: R1/2
EL0801 Type: Male elbow | Tube OD: 8 mm | Thread: R1/8
EL0802 Type: Male elbow | Tube OD: 8 mm | Thread: R1/4
EL0803 Type: Male elbow | Tube OD: 8 mm | Thread: R3/8
EL0804 Type: Male elbow | Tube OD: 8 mm | Thread: R1/2
EL1001 Type: Male elbow | Tube OD: 10 mm | Thread: R1/8
EL1002 Type: Male elbow | Tube OD: 10 mm | Thread: R1/4
EL1003 Type: Male elbow | Tube OD: 10 mm | Thread: R3/8
EL1004 Type: Male elbow | Tube OD: 10 mm | Thread: R1/2
EL1201 Type: Male elbow | Tube OD: 12 mm | Thread: R1/8
EL1202 Type: Male elbow | Tube OD: 12 mm | Thread: R1/4
EL1203 Type: Male elbow | Tube OD: 12 mm | Thread: R3/8
EL1204 Type: Male elbow | Tube OD: 12 mm | Thread: R1/2
EL1603 Type: Male elbow | Tube OD: 16 mm | Thread: R3/8
EL1604 Type: Male elbow | Tube OD: 16 mm | Thread: R1/2
EL04G01 Type: Male elbow | Tube OD: 4 mm | Thread: G1/8
EL04G02 Type: Male elbow | Tube OD: 4 mm | Thread: G1/4
EL04G03 Type: Male elbow | Tube OD: 4 mm | Thread: G3/8
EL06G01 Type: Male elbow | Tube OD: 6 mm | Thread: G1/8
EL06G02 Type: Male elbow | Tube OD: 6 mm | Thread: G1/4
EL06G03 Type: Male elbow | Tube OD: 6 mm | Thread: G3/8
EL08G01 Type: Male elbow | Tube OD: 8 mm | Thread: G1/8
EL08G02 Type: Male elbow | Tube OD: 8 mm | Thread: G1/4
EL08G03 Type: Male elbow | Tube OD: 8 mm | Thread: G3/8
EL08G04 Type: Male elbow | Tube OD: 8 mm | Thread: G1/2
EL10G01 Type: Male elbow | Tube OD: 10 mm | Thread: G1/8
EL10G02 Type: Male elbow | Tube OD: 10 mm | Thread: G1/4
EL10G03 Type: Male elbow | Tube OD: 10 mm | Thread: G3/8
EL10G04 Type: Male elbow | Tube OD: 10 mm | Thread: G1/2
EL12G02 Type: Male elbow | Tube OD: 12 mm | Thread: G1/4
EL12G03 Type: Male elbow | Tube OD: 12 mm | Thread: G3/8
EL12G04 Type: Male elbow | Tube OD: 12 mm | Thread: G1/2
EL16G03 Type: Male elbow | Tube OD: 16 mm | Thread: G3/8
EL16G04 Type: Male elbow | Tube OD: 16 mm | Thread: G1/2
EL5/32U Type: Male elbow | Tube OD: 5/32 in | Thread: UNF 10-32
EL5/32N1 Type: Male elbow | Tube OD: 5/32 in | Thread: NPT 1/8
EL5/32N2 Type: Male elbow | Tube OD: 5/32 in | Thread: NPT 1/4
EL3/16U Type: Male elbow | Tube OD: 3/16 in | Thread: UNF 10-32
EL3/16N1 Type: Male elbow | Tube OD: 3/16 in | Thread: NPT 1/8
EL3/16N2 Type: Male elbow | Tube OD: 3/16 in | Thread: NPT 1/4
EL3/16N3 Type: Male elbow | Tube OD: 3/16 in | Thread: NPT 3/8
EL1/4U Type: Male elbow | Tube OD: 1/4 in | Thread: UNF 10-32
EL1/4N1 Type: Male elbow | Tube OD: 1/4 in | Thread: NPT 1/8
EL1/4N2 Type: Male elbow | Tube OD: 1/4 in | Thread: NPT 1/4
EL1/4N3 Type: Male elbow | Tube OD: 1/4 in | Thread: NPT 3/8
EL5/16N1 Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 1/8
EL5/16N2 Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 1/4
EL5/16N3 Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 3/8
EL5/16N4 Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 1/2
EL3/8N1 Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 1/8
EL3/8N2 Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 1/4
EL3/8N3 Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 3/8
EL3/8N4 Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 1/2
EL1/2N2 Type: Male elbow | Tube OD: 1/2 in | Thread: NPT 1/4
EL1/2N3 Type: Male elbow | Tube OD: 1/2 in | Thread: NPT 3/8
EL1/2N4 Type: Male elbow | Tube OD: 1/2 in | Thread: NPT 1/2
ET04M5 Type: Male branch tee | Tube OD: 4 mm | Thread: M5x0.8
ET04M6 Type: Male branch tee | Tube OD: 4 mm | Thread: M6x1.0
ET0401 Type: Male branch tee | Tube OD: 4 mm | Thread: R1/8
ET0402 Type: Male branch tee | Tube OD: 4 mm | Thread: R1/4
ET0403 Type: Male branch tee | Tube OD: 4 mm | Thread: R3/8
ET06M5 Type: Male branch tee | Tube OD: 6 mm | Thread: M5x0.8
ET06M6 Type: Male branch tee | Tube OD: 6 mm | Thread: M6x1.0
ET0601 Type: Male branch tee | Tube OD: 6 mm | Thread: R1/8
ET0602 Type: Male branch tee | Tube OD: 6 mm | Thread: R1/4
ET0603 Type: Male branch tee | Tube OD: 6 mm | Thread: R3/8
ET0604 Type: Male branch tee | Tube OD: 6 mm | Thread: R1/2
ET0801 Type: Male branch tee | Tube OD: 8 mm | Thread: R1/8
ET0802 Type: Male branch tee | Tube OD: 8 mm | Thread: R1/4
ET0803 Type: Male branch tee | Tube OD: 8 mm | Thread: R3/8
ET0804 Type: Male branch tee | Tube OD: 8 mm | Thread: R1/2
ET1001 Type: Male branch tee | Tube OD: 10 mm | Thread: R1/8
ET1002 Type: Male branch tee | Tube OD: 10 mm | Thread: R1/4
ET1003 Type: Male branch tee | Tube OD: 10 mm | Thread: R3/8
ET1004 Type: Male branch tee | Tube OD: 10 mm | Thread: R1/2
ET1201 Type: Male branch tee | Tube OD: 12 mm | Thread: R1/8
ET1202 Type: Male branch tee | Tube OD: 12 mm | Thread: R1/4
ET1203 Type: Male branch tee | Tube OD: 12 mm | Thread: R3/8
ET1204 Type: Male branch tee | Tube OD: 12 mm | Thread: R1/2
ET1603 Type: Male branch tee | Tube OD: 16 mm | Thread: R3/8
ET1604 Type: Male branch tee | Tube OD: 16 mm | Thread: R1/2
ET04G01 Type: Male branch tee | Tube OD: 4 mm | Thread: G1/8
ET04G02 Type: Male branch tee | Tube OD: 4 mm | Thread: G1/4
ET04G03 Type: Male branch tee | Tube OD: 4 mm | Thread: G3/8
ET06G01 Type: Male branch tee | Tube OD: 6 mm | Thread: G1/8
ET06G02 Type: Male branch tee | Tube OD: 6 mm | Thread: G1/4
ET06G03 Type: Male branch tee | Tube OD: 6 mm | Thread: G3/8
ET08G01 Type: Male branch tee | Tube OD: 8 mm | Thread: G1/8
ET08G02 Type: Male branch tee | Tube OD: 8 mm | Thread: G1/4
ET08G03 Type: Male branch tee | Tube OD: 8 mm | Thread: G3/8
ET08G04 Type: Male branch tee | Tube OD: 8 mm | Thread: G1/2
ET10G01 Type: Male branch tee | Tube OD: 10 mm | Thread: G1/8
ET10G02 Type: Male branch tee | Tube OD: 10 mm | Thread: G1/4
ET10G03 Type: Male branch tee | Tube OD: 10 mm | Thread: G3/8
ET10G04 Type: Male branch tee | Tube OD: 10 mm | Thread: G1/2
ET12G02 Type: Male branch tee | Tube OD: 12 mm | Thread: G1/4
ET12G03 Type: Male branch tee | Tube OD: 12 mm | Thread: G3/8
ET12G04 Type: Male branch tee | Tube OD: 12 mm | Thread: G1/2
ET16G03 Type: Male branch tee | Tube OD: 16 mm | Thread: G3/8
ET16G04 Type: Male branch tee | Tube OD: 16 mm | Thread: G1/2
ET5/32U Type: Male branch tee | Tube OD: 5/32 in | Thread: UNF 10-32
ET5/32N1 Type: Male branch tee | Tube OD: 5/32 in | Thread: NPT 1/8
ET5/32N2 Type: Male branch tee | Tube OD: 5/32 in | Thread: NPT 1/4
ET3/16U Type: Male branch tee | Tube OD: 3/16 in | Thread: UNF 10-32
ET3/16N1 Type: Male branch tee | Tube OD: 3/16 in | Thread: NPT 1/8
ET3/16N2 Type: Male branch tee | Tube OD: 3/16 in | Thread: NPT 1/4
ET3/16N3 Type: Male branch tee | Tube OD: 3/16 in | Thread: NPT 3/8
ET1/4U Type: Male branch tee | Tube OD: 1/4 in | Thread: UNF 10-32
ET1/4N1 Type: Male branch tee | Tube OD: 1/4 in | Thread: NPT 1/8
ET1/4N2 Type: Male branch tee | Tube OD: 1/4 in | Thread: NPT 1/4
ET1/4N3 Type: Male branch tee | Tube OD: 1/4 in | Thread: NPT 3/8
ET5/16N1 Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 1/8
ET5/16N2 Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 1/4
ET5/16N3 Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 3/8
ET5/16N4 Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 1/2
ET3/8N1 Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 1/8
ET3/8N2 Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 1/4
ET3/8N3 Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 3/8
ET3/8N4 Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 1/2
ET1/2N2 Type: Male branch tee | Tube OD: 1/2 in | Thread: NPT 1/4
ET1/2N3 Type: Male branch tee | Tube OD: 1/2 in | Thread: NPT 3/8
ET1/2N4 Type: Male branch tee | Tube OD: 1/2 in | Thread: NPT 1/2
EY04M5 Type: Male Y connector | Tube OD: 4 mm | Thread: M5x0.8
EY04M6 Type: Male Y connector | Tube OD: 4 mm | Thread: M6x1.0
EY0401 Type: Male Y connector | Tube OD: 4 mm | Thread: R1/8
EY0402 Type: Male Y connector | Tube OD: 4 mm | Thread: R1/4
EY0403 Type: Male Y connector | Tube OD: 4 mm | Thread: R3/8
EY06M5 Type: Male Y connector | Tube OD: 6 mm | Thread: M5x0.8
EY06M6 Type: Male Y connector | Tube OD: 6 mm | Thread: M6x1.0
EY0601 Type: Male Y connector | Tube OD: 6 mm | Thread: R1/8
EY0602 Type: Male Y connector | Tube OD: 6 mm | Thread: R1/4
EY0603 Type: Male Y connector | Tube OD: 6 mm | Thread: R3/8
EY0604 Type: Male Y connector | Tube OD: 6 mm | Thread: R1/2
EY0801 Type: Male Y connector | Tube OD: 8 mm | Thread: R1/8
EY0802 Type: Male Y connector | Tube OD: 8 mm | Thread: R1/4
EY0803 Type: Male Y connector | Tube OD: 8 mm | Thread: R3/8
EY0804 Type: Male Y connector | Tube OD: 8 mm | Thread: R1/2
EY1001 Type: Male Y connector | Tube OD: 10 mm | Thread: R1/8
EY1002 Type: Male Y connector | Tube OD: 10 mm | Thread: R1/4
EY1003 Type: Male Y connector | Tube OD: 10 mm | Thread: R3/8
EY1004 Type: Male Y connector | Tube OD: 10 mm | Thread: R1/2
EY1201 Type: Male Y connector | Tube OD: 12 mm | Thread: R1/8
EY1202 Type: Male Y connector | Tube OD: 12 mm | Thread: R1/4
EY1203 Type: Male Y connector | Tube OD: 12 mm | Thread: R3/8
EY1204 Type: Male Y connector | Tube OD: 12 mm | Thread: R1/2
EY04G01 Type: Male Y connector | Tube OD: 4 mm | Thread: G1/8
EY04G02 Type: Male Y connector | Tube OD: 4 mm | Thread: G1/4
EY04G03 Type: Male Y connector | Tube OD: 4 mm | Thread: G3/8
EY06G01 Type: Male Y connector | Tube OD: 6 mm | Thread: G1/8
EY06G02 Type: Male Y connector | Tube OD: 6 mm | Thread: G1/4
EY06G03 Type: Male Y connector | Tube OD: 6 mm | Thread: G3/8
EY06G04 Type: Male Y connector | Tube OD: 6 mm | Thread: G1/2
EY08G01 Type: Male Y connector | Tube OD: 8 mm | Thread: G1/8
EY08G02 Type: Male Y connector | Tube OD: 8 mm | Thread: G1/4
EY08G03 Type: Male Y connector | Tube OD: 8 mm | Thread: G3/8
EY08G04 Type: Male Y connector | Tube OD: 8 mm | Thread: G1/2
EY10G01 Type: Male Y connector | Tube OD: 10 mm | Thread: G1/8
EY10G02 Type: Male Y connector | Tube OD: 10 mm | Thread: G1/4
EY10G03 Type: Male Y connector | Tube OD: 10 mm | Thread: G3/8
EY10G04 Type: Male Y connector | Tube OD: 10 mm | Thread: G1/2
EY12G02 Type: Male Y connector | Tube OD: 12 mm | Thread: G1/4
EY12G03 Type: Male Y connector | Tube OD: 12 mm | Thread: G3/8
EY12G04 Type: Male Y connector | Tube OD: 12 mm | Thread: G1/2
EY5/32U Type: Male Y connector | Tube OD: 5/32 in | Thread: UNF 10-32
EY5/32N1 Type: Male Y connector | Tube OD: 5/32 in | Thread: NPT 1/8
EY5/32N2 Type: Male Y connector | Tube OD: 5/32 in | Thread: NPT 1/4
EY3/16U Type: Male Y connector | Tube OD: 3/16 in | Thread: UNF 10-32
EY3/16N1 Type: Male Y connector | Tube OD: 3/16 in | Thread: NPT 1/8
EY3/16N2 Type: Male Y connector | Tube OD: 3/16 in | Thread: NPT 1/4
EY3/16N3 Type: Male Y connector | Tube OD: 3/16 in | Thread: NPT 3/8
EY1/4U Type: Male Y connector | Tube OD: 1/4 in | Thread: UNF 10-32
EY1/4N1 Type: Male Y connector | Tube OD: 1/4 in | Thread: NPT 1/8
EY1/4N2 Type: Male Y connector | Tube OD: 1/4 in | Thread: NPT 1/4
EY1/4N3 Type: Male Y connector | Tube OD: 1/4 in | Thread: NPT 3/8
EY5/16N1 Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 1/8
EY5/16N2 Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 1/4
EY5/16N3 Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 3/8
EY5/16N4 Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 1/2
EY3/8N1 Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 1/8
EY3/8N2 Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 1/4
EY3/8N3 Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 3/8
EY3/8N4 Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 1/2
EY1/2N2 Type: Male Y connector | Tube OD: 1/2 in | Thread: NPT 1/4
EY1/2N3 Type: Male Y connector | Tube OD: 1/2 in | Thread: NPT 3/8
EY1/2N4 Type: Male Y connector | Tube OD: 1/2 in | Thread: NPT 1/2
ELL04M5 Type: Extended male elbow | Tube OD: 4 mm | Thread: M5x0.8
ELL04M6 Type: Extended male elbow | Tube OD: 4 mm | Thread: M6x1.0
ELL0401 Type: Extended male elbow | Tube OD: 4 mm | Thread: R1/8
ELL0402 Type: Extended male elbow | Tube OD: 4 mm | Thread: R1/4
ELL0403 Type: Extended male elbow | Tube OD: 4 mm | Thread: R3/8
ELL06M5 Type: Extended male elbow | Tube OD: 6 mm | Thread: M5x0.8
ELL06M6 Type: Extended male elbow | Tube OD: 6 mm | Thread: M6x1.0
ELL0601 Type: Extended male elbow | Tube OD: 6 mm | Thread: R1/8
ELL0602 Type: Extended male elbow | Tube OD: 6 mm | Thread: R1/4
ELL0603 Type: Extended male elbow | Tube OD: 6 mm | Thread: R3/8
ELL0604 Type: Extended male elbow | Tube OD: 6 mm | Thread: R1/2
ELL0801 Type: Extended male elbow | Tube OD: 8 mm | Thread: R1/8
ELL0802 Type: Extended male elbow | Tube OD: 8 mm | Thread: R1/4
ELL0803 Type: Extended male elbow | Tube OD: 8 mm | Thread: R3/8
ELL0804 Type: Extended male elbow | Tube OD: 8 mm | Thread: R1/2
ELL1001 Type: Extended male elbow | Tube OD: 10 mm | Thread: R1/8
ELL1002 Type: Extended male elbow | Tube OD: 10 mm | Thread: R1/4
ELL1003 Type: Extended male elbow | Tube OD: 10 mm | Thread: R3/8
ELL1004 Type: Extended male elbow | Tube OD: 10 mm | Thread: R1/2
ELL1201 Type: Extended male elbow | Tube OD: 12 mm | Thread: R1/8
ELL1202 Type: Extended male elbow | Tube OD: 12 mm | Thread: R1/4
ELL1203 Type: Extended male elbow | Tube OD: 12 mm | Thread: R3/8
ELL1204 Type: Extended male elbow | Tube OD: 12 mm | Thread: R1/2
ELL04G01 Type: Extended male elbow | Tube OD: 4 mm | Thread: G1/8
ELL04G02 Type: Extended male elbow | Tube OD: 4 mm | Thread: G1/4
ELL04G03 Type: Extended male elbow | Tube OD: 4 mm | Thread: G3/8
ELL06G01 Type: Extended male elbow | Tube OD: 6 mm | Thread: G1/8
ELL06G02 Type: Extended male elbow | Tube OD: 6 mm | Thread: G1/4
ELL06G03 Type: Extended male elbow | Tube OD: 6 mm | Thread: G3/8
ELL08G01 Type: Extended male elbow | Tube OD: 8 mm | Thread: G1/8
ELL08G02 Type: Extended male elbow | Tube OD: 8 mm | Thread: G1/4
ELL08G03 Type: Extended male elbow | Tube OD: 8 mm | Thread: G3/8
ELL08G04 Type: Extended male elbow | Tube OD: 8 mm | Thread: G1/2
ELL10G01 Type: Extended male elbow | Tube OD: 10 mm | Thread: G1/8
ELL10G02 Type: Extended male elbow | Tube OD: 10 mm | Thread: G1/4
ELL10G03 Type: Extended male elbow | Tube OD: 10 mm | Thread: G3/8
ELL10G04 Type: Extended male elbow | Tube OD: 10 mm | Thread: G1/2
ELL12G02 Type: Extended male elbow | Tube OD: 12 mm | Thread: G1/4
ELL12G03 Type: Extended male elbow | Tube OD: 12 mm | Thread: G3/8
ELL12G04 Type: Extended male elbow | Tube OD: 12 mm | Thread: G1/2
ELL5/32U Type: Extended male elbow | Tube OD: 5/32 in | Thread: UNF 10-32
ELL5/32N1 Type: Extended male elbow | Tube OD: 5/32 in | Thread: NPT 1/8
ELL5/32N2 Type: Extended male elbow | Tube OD: 5/32 in | Thread: NPT 1/4
ELL3/16U Type: Extended male elbow | Tube OD: 3/16 in | Thread: UNF 10-32
ELL3/16N1 Type: Extended male elbow | Tube OD: 3/16 in | Thread: NPT 1/8
ELL3/16N2 Type: Extended male elbow | Tube OD: 3/16 in | Thread: NPT 1/4
ELL3/16N3 Type: Extended male elbow | Tube OD: 3/16 in | Thread: NPT 3/8
ELL1/4U Type: Extended male elbow | Tube OD: 1/4 in | Thread: UNF 10-32
ELL1/4N1 Type: Extended male elbow | Tube OD: 1/4 in | Thread: NPT 1/8
ELL1/4N2 Type: Extended male elbow | Tube OD: 1/4 in | Thread: NPT 1/4
ELL1/4N3 Type: Extended male elbow | Tube OD: 1/4 in | Thread: NPT 3/8
ELL5/16N1 Type: Extended male elbow | Tube OD: 5/16 in | Thread: NPT 1/8
ELL5/16N2 Type: Extended male elbow | Tube OD: 5/16 in | Thread: NPT 1/4
ELL5/16N3 Type: Extended male elbow | Tube OD: 5/16 in | Thread: NPT 3/8
ELL3/8N2 Type: Extended male elbow | Tube OD: 3/8 in | Thread: NPT 1/4
ELL3/8N3 Type: Extended male elbow | Tube OD: 3/8 in | Thread: NPT 3/8
ELL3/8N4 Type: Extended male elbow | Tube OD: 3/8 in | Thread: NPT 1/2
ELL1/2N2 Type: Extended male elbow | Tube OD: 1/2 in | Thread: NPT 1/4
ELL1/2N3 Type: Extended male elbow | Tube OD: 1/2 in | Thread: NPT 3/8
ELL1/2N4 Type: Extended male elbow | Tube OD: 1/2 in | Thread: NPT 1/2
EST04M5 Type: Male run tee | Tube OD: 4 mm | Thread: M5x0.8
EST04M6 Type: Male run tee | Tube OD: 4 mm | Thread: M6x1.0
EST0401 Type: Male run tee | Tube OD: 4 mm | Thread: R1/8
EST0402 Type: Male run tee | Tube OD: 4 mm | Thread: R1/4
EST0403 Type: Male run tee | Tube OD: 4 mm | Thread: R3/8
EST06M5 Type: Male run tee | Tube OD: 6 mm | Thread: M5x0.8
EST06M6 Type: Male run tee | Tube OD: 6 mm | Thread: M6x1.0
EST0601 Type: Male run tee | Tube OD: 6 mm | Thread: R1/8
EST0602 Type: Male run tee | Tube OD: 6 mm | Thread: R1/4
EST0603 Type: Male run tee | Tube OD: 6 mm | Thread: R3/8
EST0604 Type: Male run tee | Tube OD: 6 mm | Thread: R1/2
EST0801 Type: Male run tee | Tube OD: 8 mm | Thread: R1/8
EST0802 Type: Male run tee | Tube OD: 8 mm | Thread: R1/4
EST0803 Type: Male run tee | Tube OD: 8 mm | Thread: R3/8
EST0804 Type: Male run tee | Tube OD: 8 mm | Thread: R1/2
EST1001 Type: Male run tee | Tube OD: 10 mm | Thread: R1/8
EST1002 Type: Male run tee | Tube OD: 10 mm | Thread: R1/4
EST1003 Type: Male run tee | Tube OD: 10 mm | Thread: R3/8
EST1004 Type: Male run tee | Tube OD: 10 mm | Thread: R1/2
EST1201 Type: Male run tee | Tube OD: 12 mm | Thread: R1/8
EST1202 Type: Male run tee | Tube OD: 12 mm | Thread: R1/4
EST1203 Type: Male run tee | Tube OD: 12 mm | Thread: R3/8
EST1204 Type: Male run tee | Tube OD: 12 mm | Thread: R1/2
EST04G01 Type: Male run tee | Tube OD: 4 mm | Thread: G1/8
EST04G02 Type: Male run tee | Tube OD: 4 mm | Thread: G1/4
EST04G03 Type: Male run tee | Tube OD: 4 mm | Thread: G3/8
EST06G01 Type: Male run tee | Tube OD: 6 mm | Thread: G1/8
EST06G02 Type: Male run tee | Tube OD: 6 mm | Thread: G1/4
EST06G03 Type: Male run tee | Tube OD: 6 mm | Thread: G3/8
EST08G01 Type: Male run tee | Tube OD: 8 mm | Thread: G1/8
EST08G02 Type: Male run tee | Tube OD: 8 mm | Thread: G1/4
EST08G03 Type: Male run tee | Tube OD: 8 mm | Thread: G3/8
EST08G04 Type: Male run tee | Tube OD: 8 mm | Thread: G1/2
EST10G01 Type: Male run tee | Tube OD: 10 mm | Thread: G1/8
EST10G02 Type: Male run tee | Tube OD: 10 mm | Thread: G1/4
EST10G03 Type: Male run tee | Tube OD: 10 mm | Thread: G3/8
EST10G04 Type: Male run tee | Tube OD: 10 mm | Thread: G1/2
EST12G02 Type: Male run tee | Tube OD: 12 mm | Thread: G1/4
EST12G03 Type: Male run tee | Tube OD: 12 mm | Thread: G3/8
EST12G04 Type: Male run tee | Tube OD: 12 mm | Thread: G1/2
EST5/32U Type: Male run tee | Tube OD: 5/32 in | Thread: UNF 10-32
EST5/32N1 Type: Male run tee | Tube OD: 5/32 in | Thread: NPT 1/8
EST5/32N2 Type: Male run tee | Tube OD: 5/32 in | Thread: NPT 1/4
EST3/16U Type: Male run tee | Tube OD: 3/16 in | Thread: UNF 10-32
EST3/16N1 Type: Male run tee | Tube OD: 3/16 in | Thread: NPT 1/8
EST3/16N2 Type: Male run tee | Tube OD: 3/16 in | Thread: NPT 1/4
EST3/16N3 Type: Male run tee | Tube OD: 3/16 in | Thread: NPT 3/8
EST1/4U Type: Male run tee | Tube OD: 1/4 in | Thread: UNF 10-32
EST1/4N1 Type: Male run tee | Tube OD: 1/4 in | Thread: NPT 1/8
EST1/4N2 Type: Male run tee | Tube OD: 1/4 in | Thread: NPT 1/4
EST1/4N3 Type: Male run tee | Tube OD: 1/4 in | Thread: NPT 3/8
EST5/16N1 Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 1/8
EST5/16N2 Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 1/4
EST5/16N3 Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 3/8
EST5/16N4 Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 1/2
EST3/8N1 Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 1/8
EST3/8N2 Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 1/4
EST3/8N3 Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 3/8
EST3/8N4 Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 1/2
EST1/2N2 Type: Male run tee | Tube OD: 1/2 in | Thread: NPT 1/4
EST1/2N3 Type: Male run tee | Tube OD: 1/2 in | Thread: NPT 3/8
EST1/2N4 Type: Male run tee | Tube OD: 1/2 in | Thread: NPT 1/2
EPFC0401 Type: Female bulkhead connector | Tube OD: 4 mm | Thread: Rc1/8
EPFC0402 Type: Female bulkhead connector | Tube OD: 4 mm | Thread: Rc1/4
EPFC0403 Type: Female bulkhead connector | Tube OD: 4 mm | Thread: Rc3/8
EPFC0601 Type: Female bulkhead connector | Tube OD: 6 mm | Thread: Rc1/8
EPFC0602 Type: Female bulkhead connector | Tube OD: 6 mm | Thread: Rc1/4
EPFC0603 Type: Female bulkhead connector | Tube OD: 6 mm | Thread: Rc3/8
EPFC0801 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc1/8
EPFC0802 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc1/4
EPFC0803 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc3/8
EPFC0804 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc1/2
EPFC1001 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc1/8
EPFC1002 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc1/4
EPFC1003 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc3/8
EPFC1004 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc1/2
EPFC1202 Type: Female bulkhead connector | Tube OD: 12 mm | Thread: Rc1/4
EPFC1203 Type: Female bulkhead connector | Tube OD: 12 mm | Thread: Rc3/8
EPFC1204 Type: Female bulkhead connector | Tube OD: 12 mm | Thread: Rc1/2
EPFC04G01 Type: Female bulkhead connector | Tube OD: 4 mm | Thread: G1/8
EPFC04G02 Type: Female bulkhead connector | Tube OD: 4 mm | Thread: G1/4
EPFC04G03 Type: Female bulkhead connector | Tube OD: 4 mm | Thread: G3/8
EPFC06G01 Type: Female bulkhead connector | Tube OD: 6 mm | Thread: G1/8
EPFC06G02 Type: Female bulkhead connector | Tube OD: 6 mm | Thread: G1/4
EPFC06G03 Type: Female bulkhead connector | Tube OD: 6 mm | Thread: G3/8
EPFC08G01 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: G1/8
EPFC08G02 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: G1/4
EPFC08G03 Type: Female bulkhead connector | Tube OD: 8 mm | Thread: G3/8
EPFC10G02 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: G1/4
EPFC10G03 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: G3/8
EPFC10G04 Type: Female bulkhead connector | Tube OD: 10 mm | Thread: G1/2
EPFC12G02 Type: Female bulkhead connector | Tube OD: 12 mm | Thread: G1/4
EPFC12G03 Type: Female bulkhead connector | Tube OD: 12 mm | Thread: G3/8
EPFC12G04 Type: Female bulkhead connector | Tube OD: 12 mm | Thread: G1/2
EPFC5/32N1 Type: Female bulkhead connector | Tube OD: 5/32 in | Thread: NPT 1/8
EPFC3/16N1 Type: Female bulkhead connector | Tube OD: 3/16 in | Thread: NPT 1/8
EPFC3/16N2 Type: Female bulkhead connector | Tube OD: 3/16 in | Thread: NPT 1/4
EPFC1/4N1 Type: Female bulkhead connector | Tube OD: 1/4 in | Thread: NPT 1/8
EPFC1/4N2 Type: Female bulkhead connector | Tube OD: 1/4 in | Thread: NPT 1/4
EPFC5/16N1 Type: Female bulkhead connector | Tube OD: 5/16 in | Thread: NPT 1/8
EPFC5/16N2 Type: Female bulkhead connector | Tube OD: 5/16 in | Thread: NPT 1/4
EPFC5/16N3 Type: Female bulkhead connector | Tube OD: 5/16 in | Thread: NPT 3/8
EPFC3/8N2 Type: Female bulkhead connector | Tube OD: 3/8 in | Thread: NPT 1/4
EPFC3/8N3 Type: Female bulkhead connector | Tube OD: 3/8 in | Thread: NPT 3/8
EPFC1/2N2 Type: Female bulkhead connector | Tube OD: 1/2 in | Thread: NPT 1/4
EPFC1/2N3 Type: Female bulkhead connector | Tube OD: 1/2 in | Thread: NPT 3/8
EPFC1/2N4 Type: Female bulkhead connector | Tube OD: 1/2 in | Thread: NPT 1/2
EFC04M5 Type: Female connector | Tube OD: 4 mm | Thread: M5x0.8
EFC0401 Type: Female connector | Tube OD: 4 mm | Thread: Rc1/8
EFC0402 Type: Female connector | Tube OD: 4 mm | Thread: Rc1/4
EFC0403 Type: Female connector | Tube OD: 4 mm | Thread: Rc3/8
EFC06M5 Type: Female connector | Tube OD: 6 mm | Thread: M5x0.8
EFC0601 Type: Female connector | Tube OD: 6 mm | Thread: Rc1/8
EFC0602 Type: Female connector | Tube OD: 6 mm | Thread: Rc1/4
EFC0603 Type: Female connector | Tube OD: 6 mm | Thread: Rc3/8
EFC0604 Type: Female connector | Tube OD: 6 mm | Thread: Rc1/2
EFC0801 Type: Female connector | Tube OD: 8 mm | Thread: Rc1/8
EFC0802 Type: Female connector | Tube OD: 8 mm | Thread: Rc1/4
EFC0803 Type: Female connector | Tube OD: 8 mm | Thread: Rc3/8
EFC0804 Type: Female connector | Tube OD: 8 mm | Thread: Rc1/2
EFC1001 Type: Female connector | Tube OD: 10 mm | Thread: Rc1/8
EFC1002 Type: Female connector | Tube OD: 10 mm | Thread: Rc1/4
EFC1003 Type: Female connector | Tube OD: 10 mm | Thread: Rc3/8
EFC1004 Type: Female connector | Tube OD: 10 mm | Thread: Rc1/2
EFC1202 Type: Female connector | Tube OD: 12 mm | Thread: Rc1/4
EFC1203 Type: Female connector | Tube OD: 12 mm | Thread: Rc3/8
EFC1204 Type: Female connector | Tube OD: 12 mm | Thread: Rc1/2
EFC04G01 Type: Female connector | Tube OD: 4 mm | Thread: G1/8
EFC04G02 Type: Female connector | Tube OD: 4 mm | Thread: G1/4
EFC04G03 Type: Female connector | Tube OD: 4 mm | Thread: G3/8
EFC06G01 Type: Female connector | Tube OD: 6 mm | Thread: G1/8
EFC06G02 Type: Female connector | Tube OD: 6 mm | Thread: G1/4
EFC06G03 Type: Female connector | Tube OD: 6 mm | Thread: G3/8
EFC08G01 Type: Female connector | Tube OD: 8 mm | Thread: G1/8
EFC08G02 Type: Female connector | Tube OD: 8 mm | Thread: G1/4
EFC08G03 Type: Female connector | Tube OD: 8 mm | Thread: G3/8
EFC08G04 Type: Female connector | Tube OD: 8 mm | Thread: G1/2
EFC10G01 Type: Female connector | Tube OD: 10 mm | Thread: G1/8
EFC10G02 Type: Female connector | Tube OD: 10 mm | Thread: G1/4
EFC10G03 Type: Female connector | Tube OD: 10 mm | Thread: G3/8
EFC10G04 Type: Female connector | Tube OD: 10 mm | Thread: G1/2
EFC12G02 Type: Female connector | Tube OD: 12 mm | Thread: G1/4
EFC12G03 Type: Female connector | Tube OD: 12 mm | Thread: G3/8
EFC12G04 Type: Female connector | Tube OD: 12 mm | Thread: G1/2
EFC5/32N1 Type: Female connector | Tube OD: 5/32 in | Thread: NPT 1/8
EFC5/32N2 Type: Female connector | Tube OD: 5/32 in | Thread: NPT 1/4
EFC3/16N1 Type: Female connector | Tube OD: 3/16 in | Thread: NPT 1/8
EFC3/16N2 Type: Female connector | Tube OD: 3/16 in | Thread: NPT 1/4
EFC1/4N1 Type: Female connector | Tube OD: 1/4 in | Thread: NPT 1/8
EFC1/4N2 Type: Female connector | Tube OD: 1/4 in | Thread: NPT 1/4
EFC1/4N3 Type: Female connector | Tube OD: 1/4 in | Thread: NPT 3/8
EFC5/16N1 Type: Female connector | Tube OD: 5/16 in | Thread: NPT 1/8
EFC5/16N2 Type: Female connector | Tube OD: 5/16 in | Thread: NPT 1/4
EFC5/16N3 Type: Female connector | Tube OD: 5/16 in | Thread: NPT 3/8
EFC5/16N4 Type: Female connector | Tube OD: 5/16 in | Thread: NPT 1/2
EFC3/8N1 Type: Female connector | Tube OD: 3/8 in | Thread: NPT 1/8
EFC3/8N2 Type: Female connector | Tube OD: 3/8 in | Thread: NPT 1/4
EFC3/8N3 Type: Female connector | Tube OD: 3/8 in | Thread: NPT 3/8
EFC3/8N4 Type: Female connector | Tube OD: 3/8 in | Thread: NPT 1/2
EFC1/2N2 Type: Female connector | Tube OD: 1/2 in | Thread: NPT 1/4
EFC1/2N3 Type: Female connector | Tube OD: 1/2 in | Thread: NPT 3/8
EH03M5 Type: Hex-head male elbow | Tube OD: 3 mm | Thread: M5x0.8
EH04M5 Type: Hex-head male elbow | Tube OD: 4 mm | Thread: M5x0.8
EH04M6 Type: Hex-head male elbow | Tube OD: 4 mm | Thread: M6x1.0
EH0401 Type: Hex-head male elbow | Tube OD: 4 mm | Thread: R1/8
EH0402 Type: Hex-head male elbow | Tube OD: 4 mm | Thread: R1/4
EH06M5 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: M5x0.8
EH06M6 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: M6x1.0
EH0601 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R1/8
EH0602 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R1/4
EH0603 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R3/8
EH0604 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R1/2
EH0801 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R1/8
EH0802 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R1/4
EH0803 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R3/8
EH0804 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R1/2
EH1001 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R1/8
EH1002 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R1/4
EH1003 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R3/8
EH1004 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R1/2
EH1202 Type: Hex-head male elbow | Tube OD: 12 mm | Thread: R1/4
EH1203 Type: Hex-head male elbow | Tube OD: 12 mm | Thread: R3/8
EH1204 Type: Hex-head male elbow | Tube OD: 12 mm | Thread: R1/2
EH04G01 Type: Hex-head male elbow | Tube OD: 4 mm | Thread: G1/8
EH04G02 Type: Hex-head male elbow | Tube OD: 4 mm | Thread: G1/4
EH06G01 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: G1/8
EH06G02 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: G1/4
EH06G03 Type: Hex-head male elbow | Tube OD: 6 mm | Thread: G3/8
EH08G01 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G1/8
EH08G02 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G1/4
EH08G03 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G3/8
EH08G04 Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G1/2
EH10G02 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: G1/4
EH10G03 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: G3/8
EH10G04 Type: Hex-head male elbow | Tube OD: 10 mm | Thread: G1/2
EH12G03 Type: Hex-head male elbow | Tube OD: 12 mm | Thread: G3/8
EH12G04 Type: Hex-head male elbow | Tube OD: 12 mm | Thread: G1/2
EH1/8U Type: Hex-head male elbow | Tube OD: 1/8 in | Thread: UNF 10-32
EH5/32U Type: Hex-head male elbow | Tube OD: 5/32 in | Thread: UNF 10-32
EH5/32N1 Type: Hex-head male elbow | Tube OD: 5/32 in | Thread: NPT 1/8
EH5/32N2 Type: Hex-head male elbow | Tube OD: 5/32 in | Thread: NPT 1/4
EH3/16U Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: UNF 10-32
EH3/16N1 Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: NPT 1/8
EH3/16N2 Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: NPT 1/4
EH3/16N3 Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: NPT 3/8
EH1/4U Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: UNF 10-32
EH1/4N1 Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: NPT 1/8
EH1/4N2 Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: NPT 1/4
EH1/4N3 Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: NPT 3/8
EH5/16N1 Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 1/8
EH5/16N2 Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 1/4
EH5/16N3 Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 3/8
EH5/16N4 Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 1/2
EH3/8N2 Type: Hex-head male elbow | Tube OD: 3/8 in | Thread: NPT 1/4
EH3/8N3 Type: Hex-head male elbow | Tube OD: 3/8 in | Thread: NPT 3/8
EH3/8N4 Type: Hex-head male elbow | Tube OD: 3/8 in | Thread: NPT 1/2
EH1/2N3 Type: Hex-head male elbow | Tube OD: 1/2 in | Thread: NPT 3/8
EH1/2N4 Type: Hex-head male elbow | Tube OD: 1/2 in | Thread: NPT 1/2
EOC04M5 Type: Round-body male connector | Tube OD: 4 mm | Thread: M5x0.8
EOC04M6 Type: Round-body male connector | Tube OD: 4 mm | Thread: M6x1.0
EOC0401 Type: Round-body male connector | Tube OD: 4 mm | Thread: R1/8
EOC0402 Type: Round-body male connector | Tube OD: 4 mm | Thread: R1/4
EOC0403 Type: Round-body male connector | Tube OD: 4 mm | Thread: R3/8
EOC06M5 Type: Round-body male connector | Tube OD: 6 mm | Thread: M5x0.8
EOC06M6 Type: Round-body male connector | Tube OD: 6 mm | Thread: M6x1.0
EOC0601 Type: Round-body male connector | Tube OD: 6 mm | Thread: R1/8
EOC0602 Type: Round-body male connector | Tube OD: 6 mm | Thread: R1/4
EOC0603 Type: Round-body male connector | Tube OD: 6 mm | Thread: R3/8
EOC0801 Type: Round-body male connector | Tube OD: 8 mm | Thread: R1/8
EOC0802 Type: Round-body male connector | Tube OD: 8 mm | Thread: R1/4
EOC0803 Type: Round-body male connector | Tube OD: 8 mm | Thread: R3/8
EOC0804 Type: Round-body male connector | Tube OD: 8 mm | Thread: R1/2
EOC1001 Type: Round-body male connector | Tube OD: 10 mm | Thread: R1/8
EOC1002 Type: Round-body male connector | Tube OD: 10 mm | Thread: R1/4
EOC1003 Type: Round-body male connector | Tube OD: 10 mm | Thread: R3/8
EOC1004 Type: Round-body male connector | Tube OD: 10 mm | Thread: R1/2
EOC1201 Type: Round-body male connector | Tube OD: 12 mm | Thread: R1/8
EOC1202 Type: Round-body male connector | Tube OD: 12 mm | Thread: R1/4
EOC1203 Type: Round-body male connector | Tube OD: 12 mm | Thread: R3/8
EOC1204 Type: Round-body male connector | Tube OD: 12 mm | Thread: R1/2
EOC5/32U Type: Round-body male connector | Tube OD: 5/32 in | Thread: UNF 10-32
EOC5/32N1 Type: Round-body male connector | Tube OD: 5/32 in | Thread: NPT 1/8
EOC5/32N2 Type: Round-body male connector | Tube OD: 5/32 in | Thread: NPT 1/4
EOC3/16U Type: Round-body male connector | Tube OD: 3/16 in | Thread: UNF 10-32
EOC3/16N1 Type: Round-body male connector | Tube OD: 3/16 in | Thread: NPT 1/8
EOC3/16N2 Type: Round-body male connector | Tube OD: 3/16 in | Thread: NPT 1/4
EOC1/4U Type: Round-body male connector | Tube OD: 1/4 in | Thread: UNF 10-32
EOC1/4N1 Type: Round-body male connector | Tube OD: 1/4 in | Thread: NPT 1/8
EOC1/4N2 Type: Round-body male connector | Tube OD: 1/4 in | Thread: NPT 1/4
EOC5/16N1 Type: Round-body male connector | Tube OD: 5/16 in | Thread: NPT 1/8
EOC5/16N2 Type: Round-body male connector | Tube OD: 5/16 in | Thread: NPT 1/4
EOC5/16N3 Type: Round-body male connector | Tube OD: 5/16 in | Thread: NPT 3/8
EOC3/8N1 Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 1/8
EOC3/8N2 Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 1/4
EOC3/8N3 Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 3/8
EOC3/8N4 Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 1/2
EOC1/2N2 Type: Round-body male connector | Tube OD: 1/2 in | Thread: NPT 1/4
EOC1/2N3 Type: Round-body male connector | Tube OD: 1/2 in | Thread: NPT 3/8
EOC1/2N4 Type: Round-body male connector | Tube OD: 1/2 in | Thread: NPT 1/2
Push-to-Connect FittingsKCC
583 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC E Series One-Touch Fitting (Male and Female Threaded Types)

Brand KCC·Push-to-Connect Fittings

Available part numbers (583)

EC04M5, EC04M6, EC0401, EC0402, EC0403, EC06M5, EC06M6, EC0601, EC0602, EC0603 + 573 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EC04M5Type: Male connector | Tube OD: 4 mm | Thread: M5x0.8
EC04M6Type: Male connector | Tube OD: 4 mm | Thread: M6x1.0
EC0401Type: Male connector | Tube OD: 4 mm | Thread: R1/8
EC0402Type: Male connector | Tube OD: 4 mm | Thread: R1/4
EC0403Type: Male connector | Tube OD: 4 mm | Thread: R3/8
EC06M5Type: Male connector | Tube OD: 6 mm | Thread: M5x0.8
EC06M6Type: Male connector | Tube OD: 6 mm | Thread: M6x1.0
EC0601Type: Male connector | Tube OD: 6 mm | Thread: R1/8
EC0602Type: Male connector | Tube OD: 6 mm | Thread: R1/4
EC0603Type: Male connector | Tube OD: 6 mm | Thread: R3/8
EC0604Type: Male connector | Tube OD: 6 mm | Thread: R1/2
EC0801Type: Male connector | Tube OD: 8 mm | Thread: R1/8
EC0802Type: Male connector | Tube OD: 8 mm | Thread: R1/4
EC0803Type: Male connector | Tube OD: 8 mm | Thread: R3/8
EC0804Type: Male connector | Tube OD: 8 mm | Thread: R1/2
EC1001Type: Male connector | Tube OD: 10 mm | Thread: R1/8
EC1002Type: Male connector | Tube OD: 10 mm | Thread: R1/4
EC1003Type: Male connector | Tube OD: 10 mm | Thread: R3/8
EC1004Type: Male connector | Tube OD: 10 mm | Thread: R1/2
EC1201Type: Male connector | Tube OD: 12 mm | Thread: R1/8
EC1202Type: Male connector | Tube OD: 12 mm | Thread: R1/4
EC1203Type: Male connector | Tube OD: 12 mm | Thread: R3/8
EC1204Type: Male connector | Tube OD: 12 mm | Thread: R1/2
EC1603Type: Male connector | Tube OD: 16 mm | Thread: R3/8
EC1604Type: Male connector | Tube OD: 16 mm | Thread: R1/2
EC04G01Type: Male connector | Tube OD: 4 mm | Thread: G1/8
EC04G02Type: Male connector | Tube OD: 4 mm | Thread: G1/4
EC04G03Type: Male connector | Tube OD: 4 mm | Thread: G3/8
EC06G01Type: Male connector | Tube OD: 6 mm | Thread: G1/8
EC06G02Type: Male connector | Tube OD: 6 mm | Thread: G1/4
EC06G03Type: Male connector | Tube OD: 6 mm | Thread: G3/8
EC08G01Type: Male connector | Tube OD: 8 mm | Thread: G1/8
EC08G02Type: Male connector | Tube OD: 8 mm | Thread: G1/4
EC08G03Type: Male connector | Tube OD: 8 mm | Thread: G3/8
EC08G04Type: Male connector | Tube OD: 8 mm | Thread: G1/2
EC10G01Type: Male connector | Tube OD: 10 mm | Thread: G1/8
EC10G02Type: Male connector | Tube OD: 10 mm | Thread: G1/4
EC10G03Type: Male connector | Tube OD: 10 mm | Thread: G3/8
EC10G04Type: Male connector | Tube OD: 10 mm | Thread: G1/2
EC12G02Type: Male connector | Tube OD: 12 mm | Thread: G1/4
EC12G03Type: Male connector | Tube OD: 12 mm | Thread: G3/8
EC12G04Type: Male connector | Tube OD: 12 mm | Thread: G1/2
EC16G03Type: Male connector | Tube OD: 16 mm | Thread: G3/8
EC16G04Type: Male connector | Tube OD: 16 mm | Thread: G1/2
EC5/32UType: Male connector | Tube OD: 5/32 in | Thread: UNF 10-32
EC5/32N1Type: Male connector | Tube OD: 5/32 in | Thread: NPT 1/8
EC5/32N2Type: Male connector | Tube OD: 5/32 in | Thread: NPT 1/4
EC5/32N3Type: Male connector | Tube OD: 5/32 in | Thread: NPT 3/8
EC3/16UType: Male connector | Tube OD: 3/16 in | Thread: UNF 10-32
EC3/16N1Type: Male connector | Tube OD: 3/16 in | Thread: NPT 1/8
EC3/16N2Type: Male connector | Tube OD: 3/16 in | Thread: NPT 1/4
EC3/16N3Type: Male connector | Tube OD: 3/16 in | Thread: NPT 3/8
EC1/4UType: Male connector | Tube OD: 1/4 in | Thread: UNF 10-32
EC1/4N1Type: Male connector | Tube OD: 1/4 in | Thread: NPT 1/8
EC1/4N2Type: Male connector | Tube OD: 1/4 in | Thread: NPT 1/4
EC1/4N3Type: Male connector | Tube OD: 1/4 in | Thread: NPT 3/8
EC1/4N4Type: Male connector | Tube OD: 1/4 in | Thread: NPT 1/2
EC5/16N1Type: Male connector | Tube OD: 5/16 in | Thread: NPT 1/8
EC5/16N2Type: Male connector | Tube OD: 5/16 in | Thread: NPT 1/4
EC5/16N3Type: Male connector | Tube OD: 5/16 in | Thread: NPT 3/8
EC5/16N4Type: Male connector | Tube OD: 5/16 in | Thread: NPT 1/2
EC3/8N1Type: Male connector | Tube OD: 3/8 in | Thread: NPT 1/8
EC3/8N2Type: Male connector | Tube OD: 3/8 in | Thread: NPT 1/4
EC3/8N3Type: Male connector | Tube OD: 3/8 in | Thread: NPT 3/8
EC3/8N4Type: Male connector | Tube OD: 3/8 in | Thread: NPT 1/2
EC1/2N1Type: Male connector | Tube OD: 1/2 in | Thread: NPT 1/8
EC1/2N2Type: Male connector | Tube OD: 1/2 in | Thread: NPT 1/4
EC1/2N3Type: Male connector | Tube OD: 1/2 in | Thread: NPT 3/8
EC1/2N4Type: Male connector | Tube OD: 1/2 in | Thread: NPT 1/2
EL04M5Type: Male elbow | Tube OD: 4 mm | Thread: M5x0.8
EL04M6Type: Male elbow | Tube OD: 4 mm | Thread: M6x1.0
EL0401Type: Male elbow | Tube OD: 4 mm | Thread: R1/8
EL0402Type: Male elbow | Tube OD: 4 mm | Thread: R1/4
EL0403Type: Male elbow | Tube OD: 4 mm | Thread: R3/8
EL06M5Type: Male elbow | Tube OD: 6 mm | Thread: M5x0.8
EL06M6Type: Male elbow | Tube OD: 6 mm | Thread: M6x1.0
EL0601Type: Male elbow | Tube OD: 6 mm | Thread: R1/8
EL0602Type: Male elbow | Tube OD: 6 mm | Thread: R1/4
EL0603Type: Male elbow | Tube OD: 6 mm | Thread: R3/8
EL0604Type: Male elbow | Tube OD: 6 mm | Thread: R1/2
EL0801Type: Male elbow | Tube OD: 8 mm | Thread: R1/8
EL0802Type: Male elbow | Tube OD: 8 mm | Thread: R1/4
EL0803Type: Male elbow | Tube OD: 8 mm | Thread: R3/8
EL0804Type: Male elbow | Tube OD: 8 mm | Thread: R1/2
EL1001Type: Male elbow | Tube OD: 10 mm | Thread: R1/8
EL1002Type: Male elbow | Tube OD: 10 mm | Thread: R1/4
EL1003Type: Male elbow | Tube OD: 10 mm | Thread: R3/8
EL1004Type: Male elbow | Tube OD: 10 mm | Thread: R1/2
EL1201Type: Male elbow | Tube OD: 12 mm | Thread: R1/8
EL1202Type: Male elbow | Tube OD: 12 mm | Thread: R1/4
EL1203Type: Male elbow | Tube OD: 12 mm | Thread: R3/8
EL1204Type: Male elbow | Tube OD: 12 mm | Thread: R1/2
EL1603Type: Male elbow | Tube OD: 16 mm | Thread: R3/8
EL1604Type: Male elbow | Tube OD: 16 mm | Thread: R1/2
EL04G01Type: Male elbow | Tube OD: 4 mm | Thread: G1/8
EL04G02Type: Male elbow | Tube OD: 4 mm | Thread: G1/4
EL04G03Type: Male elbow | Tube OD: 4 mm | Thread: G3/8
EL06G01Type: Male elbow | Tube OD: 6 mm | Thread: G1/8
EL06G02Type: Male elbow | Tube OD: 6 mm | Thread: G1/4
EL06G03Type: Male elbow | Tube OD: 6 mm | Thread: G3/8
EL08G01Type: Male elbow | Tube OD: 8 mm | Thread: G1/8
EL08G02Type: Male elbow | Tube OD: 8 mm | Thread: G1/4
EL08G03Type: Male elbow | Tube OD: 8 mm | Thread: G3/8
EL08G04Type: Male elbow | Tube OD: 8 mm | Thread: G1/2
EL10G01Type: Male elbow | Tube OD: 10 mm | Thread: G1/8
EL10G02Type: Male elbow | Tube OD: 10 mm | Thread: G1/4
EL10G03Type: Male elbow | Tube OD: 10 mm | Thread: G3/8
EL10G04Type: Male elbow | Tube OD: 10 mm | Thread: G1/2
EL12G02Type: Male elbow | Tube OD: 12 mm | Thread: G1/4
EL12G03Type: Male elbow | Tube OD: 12 mm | Thread: G3/8
EL12G04Type: Male elbow | Tube OD: 12 mm | Thread: G1/2
EL16G03Type: Male elbow | Tube OD: 16 mm | Thread: G3/8
EL16G04Type: Male elbow | Tube OD: 16 mm | Thread: G1/2
EL5/32UType: Male elbow | Tube OD: 5/32 in | Thread: UNF 10-32
EL5/32N1Type: Male elbow | Tube OD: 5/32 in | Thread: NPT 1/8
EL5/32N2Type: Male elbow | Tube OD: 5/32 in | Thread: NPT 1/4
EL3/16UType: Male elbow | Tube OD: 3/16 in | Thread: UNF 10-32
EL3/16N1Type: Male elbow | Tube OD: 3/16 in | Thread: NPT 1/8
EL3/16N2Type: Male elbow | Tube OD: 3/16 in | Thread: NPT 1/4
EL3/16N3Type: Male elbow | Tube OD: 3/16 in | Thread: NPT 3/8
EL1/4UType: Male elbow | Tube OD: 1/4 in | Thread: UNF 10-32
EL1/4N1Type: Male elbow | Tube OD: 1/4 in | Thread: NPT 1/8
EL1/4N2Type: Male elbow | Tube OD: 1/4 in | Thread: NPT 1/4
EL1/4N3Type: Male elbow | Tube OD: 1/4 in | Thread: NPT 3/8
EL5/16N1Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 1/8
EL5/16N2Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 1/4
EL5/16N3Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 3/8
EL5/16N4Type: Male elbow | Tube OD: 5/16 in | Thread: NPT 1/2
EL3/8N1Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 1/8
EL3/8N2Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 1/4
EL3/8N3Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 3/8
EL3/8N4Type: Male elbow | Tube OD: 3/8 in | Thread: NPT 1/2
EL1/2N2Type: Male elbow | Tube OD: 1/2 in | Thread: NPT 1/4
EL1/2N3Type: Male elbow | Tube OD: 1/2 in | Thread: NPT 3/8
EL1/2N4Type: Male elbow | Tube OD: 1/2 in | Thread: NPT 1/2
ET04M5Type: Male branch tee | Tube OD: 4 mm | Thread: M5x0.8
ET04M6Type: Male branch tee | Tube OD: 4 mm | Thread: M6x1.0
ET0401Type: Male branch tee | Tube OD: 4 mm | Thread: R1/8
ET0402Type: Male branch tee | Tube OD: 4 mm | Thread: R1/4
ET0403Type: Male branch tee | Tube OD: 4 mm | Thread: R3/8
ET06M5Type: Male branch tee | Tube OD: 6 mm | Thread: M5x0.8
ET06M6Type: Male branch tee | Tube OD: 6 mm | Thread: M6x1.0
ET0601Type: Male branch tee | Tube OD: 6 mm | Thread: R1/8
ET0602Type: Male branch tee | Tube OD: 6 mm | Thread: R1/4
ET0603Type: Male branch tee | Tube OD: 6 mm | Thread: R3/8
ET0604Type: Male branch tee | Tube OD: 6 mm | Thread: R1/2
ET0801Type: Male branch tee | Tube OD: 8 mm | Thread: R1/8
ET0802Type: Male branch tee | Tube OD: 8 mm | Thread: R1/4
ET0803Type: Male branch tee | Tube OD: 8 mm | Thread: R3/8
ET0804Type: Male branch tee | Tube OD: 8 mm | Thread: R1/2
ET1001Type: Male branch tee | Tube OD: 10 mm | Thread: R1/8
ET1002Type: Male branch tee | Tube OD: 10 mm | Thread: R1/4
ET1003Type: Male branch tee | Tube OD: 10 mm | Thread: R3/8
ET1004Type: Male branch tee | Tube OD: 10 mm | Thread: R1/2
ET1201Type: Male branch tee | Tube OD: 12 mm | Thread: R1/8
ET1202Type: Male branch tee | Tube OD: 12 mm | Thread: R1/4
ET1203Type: Male branch tee | Tube OD: 12 mm | Thread: R3/8
ET1204Type: Male branch tee | Tube OD: 12 mm | Thread: R1/2
ET1603Type: Male branch tee | Tube OD: 16 mm | Thread: R3/8
ET1604Type: Male branch tee | Tube OD: 16 mm | Thread: R1/2
ET04G01Type: Male branch tee | Tube OD: 4 mm | Thread: G1/8
ET04G02Type: Male branch tee | Tube OD: 4 mm | Thread: G1/4
ET04G03Type: Male branch tee | Tube OD: 4 mm | Thread: G3/8
ET06G01Type: Male branch tee | Tube OD: 6 mm | Thread: G1/8
ET06G02Type: Male branch tee | Tube OD: 6 mm | Thread: G1/4
ET06G03Type: Male branch tee | Tube OD: 6 mm | Thread: G3/8
ET08G01Type: Male branch tee | Tube OD: 8 mm | Thread: G1/8
ET08G02Type: Male branch tee | Tube OD: 8 mm | Thread: G1/4
ET08G03Type: Male branch tee | Tube OD: 8 mm | Thread: G3/8
ET08G04Type: Male branch tee | Tube OD: 8 mm | Thread: G1/2
ET10G01Type: Male branch tee | Tube OD: 10 mm | Thread: G1/8
ET10G02Type: Male branch tee | Tube OD: 10 mm | Thread: G1/4
ET10G03Type: Male branch tee | Tube OD: 10 mm | Thread: G3/8
ET10G04Type: Male branch tee | Tube OD: 10 mm | Thread: G1/2
ET12G02Type: Male branch tee | Tube OD: 12 mm | Thread: G1/4
ET12G03Type: Male branch tee | Tube OD: 12 mm | Thread: G3/8
ET12G04Type: Male branch tee | Tube OD: 12 mm | Thread: G1/2
ET16G03Type: Male branch tee | Tube OD: 16 mm | Thread: G3/8
ET16G04Type: Male branch tee | Tube OD: 16 mm | Thread: G1/2
ET5/32UType: Male branch tee | Tube OD: 5/32 in | Thread: UNF 10-32
ET5/32N1Type: Male branch tee | Tube OD: 5/32 in | Thread: NPT 1/8
ET5/32N2Type: Male branch tee | Tube OD: 5/32 in | Thread: NPT 1/4
ET3/16UType: Male branch tee | Tube OD: 3/16 in | Thread: UNF 10-32
ET3/16N1Type: Male branch tee | Tube OD: 3/16 in | Thread: NPT 1/8
ET3/16N2Type: Male branch tee | Tube OD: 3/16 in | Thread: NPT 1/4
ET3/16N3Type: Male branch tee | Tube OD: 3/16 in | Thread: NPT 3/8
ET1/4UType: Male branch tee | Tube OD: 1/4 in | Thread: UNF 10-32
ET1/4N1Type: Male branch tee | Tube OD: 1/4 in | Thread: NPT 1/8
ET1/4N2Type: Male branch tee | Tube OD: 1/4 in | Thread: NPT 1/4
ET1/4N3Type: Male branch tee | Tube OD: 1/4 in | Thread: NPT 3/8
ET5/16N1Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 1/8
ET5/16N2Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 1/4
ET5/16N3Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 3/8
ET5/16N4Type: Male branch tee | Tube OD: 5/16 in | Thread: NPT 1/2
ET3/8N1Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 1/8
ET3/8N2Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 1/4
ET3/8N3Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 3/8
ET3/8N4Type: Male branch tee | Tube OD: 3/8 in | Thread: NPT 1/2
ET1/2N2Type: Male branch tee | Tube OD: 1/2 in | Thread: NPT 1/4
ET1/2N3Type: Male branch tee | Tube OD: 1/2 in | Thread: NPT 3/8
ET1/2N4Type: Male branch tee | Tube OD: 1/2 in | Thread: NPT 1/2
EY04M5Type: Male Y connector | Tube OD: 4 mm | Thread: M5x0.8
EY04M6Type: Male Y connector | Tube OD: 4 mm | Thread: M6x1.0
EY0401Type: Male Y connector | Tube OD: 4 mm | Thread: R1/8
EY0402Type: Male Y connector | Tube OD: 4 mm | Thread: R1/4
EY0403Type: Male Y connector | Tube OD: 4 mm | Thread: R3/8
EY06M5Type: Male Y connector | Tube OD: 6 mm | Thread: M5x0.8
EY06M6Type: Male Y connector | Tube OD: 6 mm | Thread: M6x1.0
EY0601Type: Male Y connector | Tube OD: 6 mm | Thread: R1/8
EY0602Type: Male Y connector | Tube OD: 6 mm | Thread: R1/4
EY0603Type: Male Y connector | Tube OD: 6 mm | Thread: R3/8
EY0604Type: Male Y connector | Tube OD: 6 mm | Thread: R1/2
EY0801Type: Male Y connector | Tube OD: 8 mm | Thread: R1/8
EY0802Type: Male Y connector | Tube OD: 8 mm | Thread: R1/4
EY0803Type: Male Y connector | Tube OD: 8 mm | Thread: R3/8
EY0804Type: Male Y connector | Tube OD: 8 mm | Thread: R1/2
EY1001Type: Male Y connector | Tube OD: 10 mm | Thread: R1/8
EY1002Type: Male Y connector | Tube OD: 10 mm | Thread: R1/4
EY1003Type: Male Y connector | Tube OD: 10 mm | Thread: R3/8
EY1004Type: Male Y connector | Tube OD: 10 mm | Thread: R1/2
EY1201Type: Male Y connector | Tube OD: 12 mm | Thread: R1/8
EY1202Type: Male Y connector | Tube OD: 12 mm | Thread: R1/4
EY1203Type: Male Y connector | Tube OD: 12 mm | Thread: R3/8
EY1204Type: Male Y connector | Tube OD: 12 mm | Thread: R1/2
EY04G01Type: Male Y connector | Tube OD: 4 mm | Thread: G1/8
EY04G02Type: Male Y connector | Tube OD: 4 mm | Thread: G1/4
EY04G03Type: Male Y connector | Tube OD: 4 mm | Thread: G3/8
EY06G01Type: Male Y connector | Tube OD: 6 mm | Thread: G1/8
EY06G02Type: Male Y connector | Tube OD: 6 mm | Thread: G1/4
EY06G03Type: Male Y connector | Tube OD: 6 mm | Thread: G3/8
EY06G04Type: Male Y connector | Tube OD: 6 mm | Thread: G1/2
EY08G01Type: Male Y connector | Tube OD: 8 mm | Thread: G1/8
EY08G02Type: Male Y connector | Tube OD: 8 mm | Thread: G1/4
EY08G03Type: Male Y connector | Tube OD: 8 mm | Thread: G3/8
EY08G04Type: Male Y connector | Tube OD: 8 mm | Thread: G1/2
EY10G01Type: Male Y connector | Tube OD: 10 mm | Thread: G1/8
EY10G02Type: Male Y connector | Tube OD: 10 mm | Thread: G1/4
EY10G03Type: Male Y connector | Tube OD: 10 mm | Thread: G3/8
EY10G04Type: Male Y connector | Tube OD: 10 mm | Thread: G1/2
EY12G02Type: Male Y connector | Tube OD: 12 mm | Thread: G1/4
EY12G03Type: Male Y connector | Tube OD: 12 mm | Thread: G3/8
EY12G04Type: Male Y connector | Tube OD: 12 mm | Thread: G1/2
EY5/32UType: Male Y connector | Tube OD: 5/32 in | Thread: UNF 10-32
EY5/32N1Type: Male Y connector | Tube OD: 5/32 in | Thread: NPT 1/8
EY5/32N2Type: Male Y connector | Tube OD: 5/32 in | Thread: NPT 1/4
EY3/16UType: Male Y connector | Tube OD: 3/16 in | Thread: UNF 10-32
EY3/16N1Type: Male Y connector | Tube OD: 3/16 in | Thread: NPT 1/8
EY3/16N2Type: Male Y connector | Tube OD: 3/16 in | Thread: NPT 1/4
EY3/16N3Type: Male Y connector | Tube OD: 3/16 in | Thread: NPT 3/8
EY1/4UType: Male Y connector | Tube OD: 1/4 in | Thread: UNF 10-32
EY1/4N1Type: Male Y connector | Tube OD: 1/4 in | Thread: NPT 1/8
EY1/4N2Type: Male Y connector | Tube OD: 1/4 in | Thread: NPT 1/4
EY1/4N3Type: Male Y connector | Tube OD: 1/4 in | Thread: NPT 3/8
EY5/16N1Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 1/8
EY5/16N2Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 1/4
EY5/16N3Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 3/8
EY5/16N4Type: Male Y connector | Tube OD: 5/16 in | Thread: NPT 1/2
EY3/8N1Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 1/8
EY3/8N2Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 1/4
EY3/8N3Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 3/8
EY3/8N4Type: Male Y connector | Tube OD: 3/8 in | Thread: NPT 1/2
EY1/2N2Type: Male Y connector | Tube OD: 1/2 in | Thread: NPT 1/4
EY1/2N3Type: Male Y connector | Tube OD: 1/2 in | Thread: NPT 3/8
EY1/2N4Type: Male Y connector | Tube OD: 1/2 in | Thread: NPT 1/2
ELL04M5Type: Extended male elbow | Tube OD: 4 mm | Thread: M5x0.8
ELL04M6Type: Extended male elbow | Tube OD: 4 mm | Thread: M6x1.0
ELL0401Type: Extended male elbow | Tube OD: 4 mm | Thread: R1/8
ELL0402Type: Extended male elbow | Tube OD: 4 mm | Thread: R1/4
ELL0403Type: Extended male elbow | Tube OD: 4 mm | Thread: R3/8
ELL06M5Type: Extended male elbow | Tube OD: 6 mm | Thread: M5x0.8
ELL06M6Type: Extended male elbow | Tube OD: 6 mm | Thread: M6x1.0
ELL0601Type: Extended male elbow | Tube OD: 6 mm | Thread: R1/8
ELL0602Type: Extended male elbow | Tube OD: 6 mm | Thread: R1/4
ELL0603Type: Extended male elbow | Tube OD: 6 mm | Thread: R3/8
ELL0604Type: Extended male elbow | Tube OD: 6 mm | Thread: R1/2
ELL0801Type: Extended male elbow | Tube OD: 8 mm | Thread: R1/8
ELL0802Type: Extended male elbow | Tube OD: 8 mm | Thread: R1/4
ELL0803Type: Extended male elbow | Tube OD: 8 mm | Thread: R3/8
ELL0804Type: Extended male elbow | Tube OD: 8 mm | Thread: R1/2
ELL1001Type: Extended male elbow | Tube OD: 10 mm | Thread: R1/8
ELL1002Type: Extended male elbow | Tube OD: 10 mm | Thread: R1/4
ELL1003Type: Extended male elbow | Tube OD: 10 mm | Thread: R3/8
ELL1004Type: Extended male elbow | Tube OD: 10 mm | Thread: R1/2
ELL1201Type: Extended male elbow | Tube OD: 12 mm | Thread: R1/8
ELL1202Type: Extended male elbow | Tube OD: 12 mm | Thread: R1/4
ELL1203Type: Extended male elbow | Tube OD: 12 mm | Thread: R3/8
ELL1204Type: Extended male elbow | Tube OD: 12 mm | Thread: R1/2
ELL04G01Type: Extended male elbow | Tube OD: 4 mm | Thread: G1/8
ELL04G02Type: Extended male elbow | Tube OD: 4 mm | Thread: G1/4
ELL04G03Type: Extended male elbow | Tube OD: 4 mm | Thread: G3/8
ELL06G01Type: Extended male elbow | Tube OD: 6 mm | Thread: G1/8
ELL06G02Type: Extended male elbow | Tube OD: 6 mm | Thread: G1/4
ELL06G03Type: Extended male elbow | Tube OD: 6 mm | Thread: G3/8
ELL08G01Type: Extended male elbow | Tube OD: 8 mm | Thread: G1/8
ELL08G02Type: Extended male elbow | Tube OD: 8 mm | Thread: G1/4
ELL08G03Type: Extended male elbow | Tube OD: 8 mm | Thread: G3/8
ELL08G04Type: Extended male elbow | Tube OD: 8 mm | Thread: G1/2
ELL10G01Type: Extended male elbow | Tube OD: 10 mm | Thread: G1/8
ELL10G02Type: Extended male elbow | Tube OD: 10 mm | Thread: G1/4
ELL10G03Type: Extended male elbow | Tube OD: 10 mm | Thread: G3/8
ELL10G04Type: Extended male elbow | Tube OD: 10 mm | Thread: G1/2
ELL12G02Type: Extended male elbow | Tube OD: 12 mm | Thread: G1/4
ELL12G03Type: Extended male elbow | Tube OD: 12 mm | Thread: G3/8
ELL12G04Type: Extended male elbow | Tube OD: 12 mm | Thread: G1/2
ELL5/32UType: Extended male elbow | Tube OD: 5/32 in | Thread: UNF 10-32
ELL5/32N1Type: Extended male elbow | Tube OD: 5/32 in | Thread: NPT 1/8
ELL5/32N2Type: Extended male elbow | Tube OD: 5/32 in | Thread: NPT 1/4
ELL3/16UType: Extended male elbow | Tube OD: 3/16 in | Thread: UNF 10-32
ELL3/16N1Type: Extended male elbow | Tube OD: 3/16 in | Thread: NPT 1/8
ELL3/16N2Type: Extended male elbow | Tube OD: 3/16 in | Thread: NPT 1/4
ELL3/16N3Type: Extended male elbow | Tube OD: 3/16 in | Thread: NPT 3/8
ELL1/4UType: Extended male elbow | Tube OD: 1/4 in | Thread: UNF 10-32
ELL1/4N1Type: Extended male elbow | Tube OD: 1/4 in | Thread: NPT 1/8
ELL1/4N2Type: Extended male elbow | Tube OD: 1/4 in | Thread: NPT 1/4
ELL1/4N3Type: Extended male elbow | Tube OD: 1/4 in | Thread: NPT 3/8
ELL5/16N1Type: Extended male elbow | Tube OD: 5/16 in | Thread: NPT 1/8
ELL5/16N2Type: Extended male elbow | Tube OD: 5/16 in | Thread: NPT 1/4
ELL5/16N3Type: Extended male elbow | Tube OD: 5/16 in | Thread: NPT 3/8
ELL3/8N2Type: Extended male elbow | Tube OD: 3/8 in | Thread: NPT 1/4
ELL3/8N3Type: Extended male elbow | Tube OD: 3/8 in | Thread: NPT 3/8
ELL3/8N4Type: Extended male elbow | Tube OD: 3/8 in | Thread: NPT 1/2
ELL1/2N2Type: Extended male elbow | Tube OD: 1/2 in | Thread: NPT 1/4
ELL1/2N3Type: Extended male elbow | Tube OD: 1/2 in | Thread: NPT 3/8
ELL1/2N4Type: Extended male elbow | Tube OD: 1/2 in | Thread: NPT 1/2
EST04M5Type: Male run tee | Tube OD: 4 mm | Thread: M5x0.8
EST04M6Type: Male run tee | Tube OD: 4 mm | Thread: M6x1.0
EST0401Type: Male run tee | Tube OD: 4 mm | Thread: R1/8
EST0402Type: Male run tee | Tube OD: 4 mm | Thread: R1/4
EST0403Type: Male run tee | Tube OD: 4 mm | Thread: R3/8
EST06M5Type: Male run tee | Tube OD: 6 mm | Thread: M5x0.8
EST06M6Type: Male run tee | Tube OD: 6 mm | Thread: M6x1.0
EST0601Type: Male run tee | Tube OD: 6 mm | Thread: R1/8
EST0602Type: Male run tee | Tube OD: 6 mm | Thread: R1/4
EST0603Type: Male run tee | Tube OD: 6 mm | Thread: R3/8
EST0604Type: Male run tee | Tube OD: 6 mm | Thread: R1/2
EST0801Type: Male run tee | Tube OD: 8 mm | Thread: R1/8
EST0802Type: Male run tee | Tube OD: 8 mm | Thread: R1/4
EST0803Type: Male run tee | Tube OD: 8 mm | Thread: R3/8
EST0804Type: Male run tee | Tube OD: 8 mm | Thread: R1/2
EST1001Type: Male run tee | Tube OD: 10 mm | Thread: R1/8
EST1002Type: Male run tee | Tube OD: 10 mm | Thread: R1/4
EST1003Type: Male run tee | Tube OD: 10 mm | Thread: R3/8
EST1004Type: Male run tee | Tube OD: 10 mm | Thread: R1/2
EST1201Type: Male run tee | Tube OD: 12 mm | Thread: R1/8
EST1202Type: Male run tee | Tube OD: 12 mm | Thread: R1/4
EST1203Type: Male run tee | Tube OD: 12 mm | Thread: R3/8
EST1204Type: Male run tee | Tube OD: 12 mm | Thread: R1/2
EST04G01Type: Male run tee | Tube OD: 4 mm | Thread: G1/8
EST04G02Type: Male run tee | Tube OD: 4 mm | Thread: G1/4
EST04G03Type: Male run tee | Tube OD: 4 mm | Thread: G3/8
EST06G01Type: Male run tee | Tube OD: 6 mm | Thread: G1/8
EST06G02Type: Male run tee | Tube OD: 6 mm | Thread: G1/4
EST06G03Type: Male run tee | Tube OD: 6 mm | Thread: G3/8
EST08G01Type: Male run tee | Tube OD: 8 mm | Thread: G1/8
EST08G02Type: Male run tee | Tube OD: 8 mm | Thread: G1/4
EST08G03Type: Male run tee | Tube OD: 8 mm | Thread: G3/8
EST08G04Type: Male run tee | Tube OD: 8 mm | Thread: G1/2
EST10G01Type: Male run tee | Tube OD: 10 mm | Thread: G1/8
EST10G02Type: Male run tee | Tube OD: 10 mm | Thread: G1/4
EST10G03Type: Male run tee | Tube OD: 10 mm | Thread: G3/8
EST10G04Type: Male run tee | Tube OD: 10 mm | Thread: G1/2
EST12G02Type: Male run tee | Tube OD: 12 mm | Thread: G1/4
EST12G03Type: Male run tee | Tube OD: 12 mm | Thread: G3/8
EST12G04Type: Male run tee | Tube OD: 12 mm | Thread: G1/2
EST5/32UType: Male run tee | Tube OD: 5/32 in | Thread: UNF 10-32
EST5/32N1Type: Male run tee | Tube OD: 5/32 in | Thread: NPT 1/8
EST5/32N2Type: Male run tee | Tube OD: 5/32 in | Thread: NPT 1/4
EST3/16UType: Male run tee | Tube OD: 3/16 in | Thread: UNF 10-32
EST3/16N1Type: Male run tee | Tube OD: 3/16 in | Thread: NPT 1/8
EST3/16N2Type: Male run tee | Tube OD: 3/16 in | Thread: NPT 1/4
EST3/16N3Type: Male run tee | Tube OD: 3/16 in | Thread: NPT 3/8
EST1/4UType: Male run tee | Tube OD: 1/4 in | Thread: UNF 10-32
EST1/4N1Type: Male run tee | Tube OD: 1/4 in | Thread: NPT 1/8
EST1/4N2Type: Male run tee | Tube OD: 1/4 in | Thread: NPT 1/4
EST1/4N3Type: Male run tee | Tube OD: 1/4 in | Thread: NPT 3/8
EST5/16N1Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 1/8
EST5/16N2Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 1/4
EST5/16N3Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 3/8
EST5/16N4Type: Male run tee | Tube OD: 5/16 in | Thread: NPT 1/2
EST3/8N1Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 1/8
EST3/8N2Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 1/4
EST3/8N3Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 3/8
EST3/8N4Type: Male run tee | Tube OD: 3/8 in | Thread: NPT 1/2
EST1/2N2Type: Male run tee | Tube OD: 1/2 in | Thread: NPT 1/4
EST1/2N3Type: Male run tee | Tube OD: 1/2 in | Thread: NPT 3/8
EST1/2N4Type: Male run tee | Tube OD: 1/2 in | Thread: NPT 1/2
EPFC0401Type: Female bulkhead connector | Tube OD: 4 mm | Thread: Rc1/8
EPFC0402Type: Female bulkhead connector | Tube OD: 4 mm | Thread: Rc1/4
EPFC0403Type: Female bulkhead connector | Tube OD: 4 mm | Thread: Rc3/8
EPFC0601Type: Female bulkhead connector | Tube OD: 6 mm | Thread: Rc1/8
EPFC0602Type: Female bulkhead connector | Tube OD: 6 mm | Thread: Rc1/4
EPFC0603Type: Female bulkhead connector | Tube OD: 6 mm | Thread: Rc3/8
EPFC0801Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc1/8
EPFC0802Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc1/4
EPFC0803Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc3/8
EPFC0804Type: Female bulkhead connector | Tube OD: 8 mm | Thread: Rc1/2
EPFC1001Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc1/8
EPFC1002Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc1/4
EPFC1003Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc3/8
EPFC1004Type: Female bulkhead connector | Tube OD: 10 mm | Thread: Rc1/2
EPFC1202Type: Female bulkhead connector | Tube OD: 12 mm | Thread: Rc1/4
EPFC1203Type: Female bulkhead connector | Tube OD: 12 mm | Thread: Rc3/8
EPFC1204Type: Female bulkhead connector | Tube OD: 12 mm | Thread: Rc1/2
EPFC04G01Type: Female bulkhead connector | Tube OD: 4 mm | Thread: G1/8
EPFC04G02Type: Female bulkhead connector | Tube OD: 4 mm | Thread: G1/4
EPFC04G03Type: Female bulkhead connector | Tube OD: 4 mm | Thread: G3/8
EPFC06G01Type: Female bulkhead connector | Tube OD: 6 mm | Thread: G1/8
EPFC06G02Type: Female bulkhead connector | Tube OD: 6 mm | Thread: G1/4
EPFC06G03Type: Female bulkhead connector | Tube OD: 6 mm | Thread: G3/8
EPFC08G01Type: Female bulkhead connector | Tube OD: 8 mm | Thread: G1/8
EPFC08G02Type: Female bulkhead connector | Tube OD: 8 mm | Thread: G1/4
EPFC08G03Type: Female bulkhead connector | Tube OD: 8 mm | Thread: G3/8
EPFC10G02Type: Female bulkhead connector | Tube OD: 10 mm | Thread: G1/4
EPFC10G03Type: Female bulkhead connector | Tube OD: 10 mm | Thread: G3/8
EPFC10G04Type: Female bulkhead connector | Tube OD: 10 mm | Thread: G1/2
EPFC12G02Type: Female bulkhead connector | Tube OD: 12 mm | Thread: G1/4
EPFC12G03Type: Female bulkhead connector | Tube OD: 12 mm | Thread: G3/8
EPFC12G04Type: Female bulkhead connector | Tube OD: 12 mm | Thread: G1/2
EPFC5/32N1Type: Female bulkhead connector | Tube OD: 5/32 in | Thread: NPT 1/8
EPFC3/16N1Type: Female bulkhead connector | Tube OD: 3/16 in | Thread: NPT 1/8
EPFC3/16N2Type: Female bulkhead connector | Tube OD: 3/16 in | Thread: NPT 1/4
EPFC1/4N1Type: Female bulkhead connector | Tube OD: 1/4 in | Thread: NPT 1/8
EPFC1/4N2Type: Female bulkhead connector | Tube OD: 1/4 in | Thread: NPT 1/4
EPFC5/16N1Type: Female bulkhead connector | Tube OD: 5/16 in | Thread: NPT 1/8
EPFC5/16N2Type: Female bulkhead connector | Tube OD: 5/16 in | Thread: NPT 1/4
EPFC5/16N3Type: Female bulkhead connector | Tube OD: 5/16 in | Thread: NPT 3/8
EPFC3/8N2Type: Female bulkhead connector | Tube OD: 3/8 in | Thread: NPT 1/4
EPFC3/8N3Type: Female bulkhead connector | Tube OD: 3/8 in | Thread: NPT 3/8
EPFC1/2N2Type: Female bulkhead connector | Tube OD: 1/2 in | Thread: NPT 1/4
EPFC1/2N3Type: Female bulkhead connector | Tube OD: 1/2 in | Thread: NPT 3/8
EPFC1/2N4Type: Female bulkhead connector | Tube OD: 1/2 in | Thread: NPT 1/2
EFC04M5Type: Female connector | Tube OD: 4 mm | Thread: M5x0.8
EFC0401Type: Female connector | Tube OD: 4 mm | Thread: Rc1/8
EFC0402Type: Female connector | Tube OD: 4 mm | Thread: Rc1/4
EFC0403Type: Female connector | Tube OD: 4 mm | Thread: Rc3/8
EFC06M5Type: Female connector | Tube OD: 6 mm | Thread: M5x0.8
EFC0601Type: Female connector | Tube OD: 6 mm | Thread: Rc1/8
EFC0602Type: Female connector | Tube OD: 6 mm | Thread: Rc1/4
EFC0603Type: Female connector | Tube OD: 6 mm | Thread: Rc3/8
EFC0604Type: Female connector | Tube OD: 6 mm | Thread: Rc1/2
EFC0801Type: Female connector | Tube OD: 8 mm | Thread: Rc1/8
EFC0802Type: Female connector | Tube OD: 8 mm | Thread: Rc1/4
EFC0803Type: Female connector | Tube OD: 8 mm | Thread: Rc3/8
EFC0804Type: Female connector | Tube OD: 8 mm | Thread: Rc1/2
EFC1001Type: Female connector | Tube OD: 10 mm | Thread: Rc1/8
EFC1002Type: Female connector | Tube OD: 10 mm | Thread: Rc1/4
EFC1003Type: Female connector | Tube OD: 10 mm | Thread: Rc3/8
EFC1004Type: Female connector | Tube OD: 10 mm | Thread: Rc1/2
EFC1202Type: Female connector | Tube OD: 12 mm | Thread: Rc1/4
EFC1203Type: Female connector | Tube OD: 12 mm | Thread: Rc3/8
EFC1204Type: Female connector | Tube OD: 12 mm | Thread: Rc1/2
EFC04G01Type: Female connector | Tube OD: 4 mm | Thread: G1/8
EFC04G02Type: Female connector | Tube OD: 4 mm | Thread: G1/4
EFC04G03Type: Female connector | Tube OD: 4 mm | Thread: G3/8
EFC06G01Type: Female connector | Tube OD: 6 mm | Thread: G1/8
EFC06G02Type: Female connector | Tube OD: 6 mm | Thread: G1/4
EFC06G03Type: Female connector | Tube OD: 6 mm | Thread: G3/8
EFC08G01Type: Female connector | Tube OD: 8 mm | Thread: G1/8
EFC08G02Type: Female connector | Tube OD: 8 mm | Thread: G1/4
EFC08G03Type: Female connector | Tube OD: 8 mm | Thread: G3/8
EFC08G04Type: Female connector | Tube OD: 8 mm | Thread: G1/2
EFC10G01Type: Female connector | Tube OD: 10 mm | Thread: G1/8
EFC10G02Type: Female connector | Tube OD: 10 mm | Thread: G1/4
EFC10G03Type: Female connector | Tube OD: 10 mm | Thread: G3/8
EFC10G04Type: Female connector | Tube OD: 10 mm | Thread: G1/2
EFC12G02Type: Female connector | Tube OD: 12 mm | Thread: G1/4
EFC12G03Type: Female connector | Tube OD: 12 mm | Thread: G3/8
EFC12G04Type: Female connector | Tube OD: 12 mm | Thread: G1/2
EFC5/32N1Type: Female connector | Tube OD: 5/32 in | Thread: NPT 1/8
EFC5/32N2Type: Female connector | Tube OD: 5/32 in | Thread: NPT 1/4
EFC3/16N1Type: Female connector | Tube OD: 3/16 in | Thread: NPT 1/8
EFC3/16N2Type: Female connector | Tube OD: 3/16 in | Thread: NPT 1/4
EFC1/4N1Type: Female connector | Tube OD: 1/4 in | Thread: NPT 1/8
EFC1/4N2Type: Female connector | Tube OD: 1/4 in | Thread: NPT 1/4
EFC1/4N3Type: Female connector | Tube OD: 1/4 in | Thread: NPT 3/8
EFC5/16N1Type: Female connector | Tube OD: 5/16 in | Thread: NPT 1/8
EFC5/16N2Type: Female connector | Tube OD: 5/16 in | Thread: NPT 1/4
EFC5/16N3Type: Female connector | Tube OD: 5/16 in | Thread: NPT 3/8
EFC5/16N4Type: Female connector | Tube OD: 5/16 in | Thread: NPT 1/2
EFC3/8N1Type: Female connector | Tube OD: 3/8 in | Thread: NPT 1/8
EFC3/8N2Type: Female connector | Tube OD: 3/8 in | Thread: NPT 1/4
EFC3/8N3Type: Female connector | Tube OD: 3/8 in | Thread: NPT 3/8
EFC3/8N4Type: Female connector | Tube OD: 3/8 in | Thread: NPT 1/2
EFC1/2N2Type: Female connector | Tube OD: 1/2 in | Thread: NPT 1/4
EFC1/2N3Type: Female connector | Tube OD: 1/2 in | Thread: NPT 3/8
EH03M5Type: Hex-head male elbow | Tube OD: 3 mm | Thread: M5x0.8
EH04M5Type: Hex-head male elbow | Tube OD: 4 mm | Thread: M5x0.8
EH04M6Type: Hex-head male elbow | Tube OD: 4 mm | Thread: M6x1.0
EH0401Type: Hex-head male elbow | Tube OD: 4 mm | Thread: R1/8
EH0402Type: Hex-head male elbow | Tube OD: 4 mm | Thread: R1/4
EH06M5Type: Hex-head male elbow | Tube OD: 6 mm | Thread: M5x0.8
EH06M6Type: Hex-head male elbow | Tube OD: 6 mm | Thread: M6x1.0
EH0601Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R1/8
EH0602Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R1/4
EH0603Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R3/8
EH0604Type: Hex-head male elbow | Tube OD: 6 mm | Thread: R1/2
EH0801Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R1/8
EH0802Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R1/4
EH0803Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R3/8
EH0804Type: Hex-head male elbow | Tube OD: 8 mm | Thread: R1/2
EH1001Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R1/8
EH1002Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R1/4
EH1003Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R3/8
EH1004Type: Hex-head male elbow | Tube OD: 10 mm | Thread: R1/2
EH1202Type: Hex-head male elbow | Tube OD: 12 mm | Thread: R1/4
EH1203Type: Hex-head male elbow | Tube OD: 12 mm | Thread: R3/8
EH1204Type: Hex-head male elbow | Tube OD: 12 mm | Thread: R1/2
EH04G01Type: Hex-head male elbow | Tube OD: 4 mm | Thread: G1/8
EH04G02Type: Hex-head male elbow | Tube OD: 4 mm | Thread: G1/4
EH06G01Type: Hex-head male elbow | Tube OD: 6 mm | Thread: G1/8
EH06G02Type: Hex-head male elbow | Tube OD: 6 mm | Thread: G1/4
EH06G03Type: Hex-head male elbow | Tube OD: 6 mm | Thread: G3/8
EH08G01Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G1/8
EH08G02Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G1/4
EH08G03Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G3/8
EH08G04Type: Hex-head male elbow | Tube OD: 8 mm | Thread: G1/2
EH10G02Type: Hex-head male elbow | Tube OD: 10 mm | Thread: G1/4
EH10G03Type: Hex-head male elbow | Tube OD: 10 mm | Thread: G3/8
EH10G04Type: Hex-head male elbow | Tube OD: 10 mm | Thread: G1/2
EH12G03Type: Hex-head male elbow | Tube OD: 12 mm | Thread: G3/8
EH12G04Type: Hex-head male elbow | Tube OD: 12 mm | Thread: G1/2
EH1/8UType: Hex-head male elbow | Tube OD: 1/8 in | Thread: UNF 10-32
EH5/32UType: Hex-head male elbow | Tube OD: 5/32 in | Thread: UNF 10-32
EH5/32N1Type: Hex-head male elbow | Tube OD: 5/32 in | Thread: NPT 1/8
EH5/32N2Type: Hex-head male elbow | Tube OD: 5/32 in | Thread: NPT 1/4
EH3/16UType: Hex-head male elbow | Tube OD: 3/16 in | Thread: UNF 10-32
EH3/16N1Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: NPT 1/8
EH3/16N2Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: NPT 1/4
EH3/16N3Type: Hex-head male elbow | Tube OD: 3/16 in | Thread: NPT 3/8
EH1/4UType: Hex-head male elbow | Tube OD: 1/4 in | Thread: UNF 10-32
EH1/4N1Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: NPT 1/8
EH1/4N2Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: NPT 1/4
EH1/4N3Type: Hex-head male elbow | Tube OD: 1/4 in | Thread: NPT 3/8
EH5/16N1Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 1/8
EH5/16N2Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 1/4
EH5/16N3Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 3/8
EH5/16N4Type: Hex-head male elbow | Tube OD: 5/16 in | Thread: NPT 1/2
EH3/8N2Type: Hex-head male elbow | Tube OD: 3/8 in | Thread: NPT 1/4
EH3/8N3Type: Hex-head male elbow | Tube OD: 3/8 in | Thread: NPT 3/8
EH3/8N4Type: Hex-head male elbow | Tube OD: 3/8 in | Thread: NPT 1/2
EH1/2N3Type: Hex-head male elbow | Tube OD: 1/2 in | Thread: NPT 3/8
EH1/2N4Type: Hex-head male elbow | Tube OD: 1/2 in | Thread: NPT 1/2
EOC04M5Type: Round-body male connector | Tube OD: 4 mm | Thread: M5x0.8
EOC04M6Type: Round-body male connector | Tube OD: 4 mm | Thread: M6x1.0
EOC0401Type: Round-body male connector | Tube OD: 4 mm | Thread: R1/8
EOC0402Type: Round-body male connector | Tube OD: 4 mm | Thread: R1/4
EOC0403Type: Round-body male connector | Tube OD: 4 mm | Thread: R3/8
EOC06M5Type: Round-body male connector | Tube OD: 6 mm | Thread: M5x0.8
EOC06M6Type: Round-body male connector | Tube OD: 6 mm | Thread: M6x1.0
EOC0601Type: Round-body male connector | Tube OD: 6 mm | Thread: R1/8
EOC0602Type: Round-body male connector | Tube OD: 6 mm | Thread: R1/4
EOC0603Type: Round-body male connector | Tube OD: 6 mm | Thread: R3/8
EOC0801Type: Round-body male connector | Tube OD: 8 mm | Thread: R1/8
EOC0802Type: Round-body male connector | Tube OD: 8 mm | Thread: R1/4
EOC0803Type: Round-body male connector | Tube OD: 8 mm | Thread: R3/8
EOC0804Type: Round-body male connector | Tube OD: 8 mm | Thread: R1/2
EOC1001Type: Round-body male connector | Tube OD: 10 mm | Thread: R1/8
EOC1002Type: Round-body male connector | Tube OD: 10 mm | Thread: R1/4
EOC1003Type: Round-body male connector | Tube OD: 10 mm | Thread: R3/8
EOC1004Type: Round-body male connector | Tube OD: 10 mm | Thread: R1/2
EOC1201Type: Round-body male connector | Tube OD: 12 mm | Thread: R1/8
EOC1202Type: Round-body male connector | Tube OD: 12 mm | Thread: R1/4
EOC1203Type: Round-body male connector | Tube OD: 12 mm | Thread: R3/8
EOC1204Type: Round-body male connector | Tube OD: 12 mm | Thread: R1/2
EOC5/32UType: Round-body male connector | Tube OD: 5/32 in | Thread: UNF 10-32
EOC5/32N1Type: Round-body male connector | Tube OD: 5/32 in | Thread: NPT 1/8
EOC5/32N2Type: Round-body male connector | Tube OD: 5/32 in | Thread: NPT 1/4
EOC3/16UType: Round-body male connector | Tube OD: 3/16 in | Thread: UNF 10-32
EOC3/16N1Type: Round-body male connector | Tube OD: 3/16 in | Thread: NPT 1/8
EOC3/16N2Type: Round-body male connector | Tube OD: 3/16 in | Thread: NPT 1/4
EOC1/4UType: Round-body male connector | Tube OD: 1/4 in | Thread: UNF 10-32
EOC1/4N1Type: Round-body male connector | Tube OD: 1/4 in | Thread: NPT 1/8
EOC1/4N2Type: Round-body male connector | Tube OD: 1/4 in | Thread: NPT 1/4
EOC5/16N1Type: Round-body male connector | Tube OD: 5/16 in | Thread: NPT 1/8
EOC5/16N2Type: Round-body male connector | Tube OD: 5/16 in | Thread: NPT 1/4
EOC5/16N3Type: Round-body male connector | Tube OD: 5/16 in | Thread: NPT 3/8
EOC3/8N1Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 1/8
EOC3/8N2Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 1/4
EOC3/8N3Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 3/8
EOC3/8N4Type: Round-body male connector | Tube OD: 3/8 in | Thread: NPT 1/2
EOC1/2N2Type: Round-body male connector | Tube OD: 1/2 in | Thread: NPT 1/4
EOC1/2N3Type: Round-body male connector | Tube OD: 1/2 in | Thread: NPT 3/8
EOC1/2N4Type: Round-body male connector | Tube OD: 1/2 in | Thread: NPT 1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
