KCC E Series One-Touch Fitting (Tube-to-Tube Unions and Reducers)

KCC E Series One-Touch Fitting (Tube-to-Tube Unions and Reducers)

KCC E series one-touch tube-to-tube fittings: unions, reducing unions, plug-in reducers, tees, Y, triple branch, cross and bulkhead unions.

Key features

  • One-push tube connection and release with stainless steel lock claws
  • Metric tube Ø3-Ø16 and inch tube 1/8-1/2 in
  • Union straight, elbow, tee, Y and cross for equal tube sizes
  • Reducing unions and plug-in (stem) reducers for joining different tube sizes; Tube OD 1 = stem/main size
  • EPC and EMP bulkhead unions mount through panels with a lock nut
  • Inch reducer codes printed with a space, e.g. ER1/4 5/32

Specifications

Fluid Air
Operating pressure 0-150 PSI (0-0.99 MPa)
Vacuum -29.5 inHg (-750 mmHg)
Operating temperature 32-140°F (0-60°C)
Applicable tube Polyurethane and nylon
Materials Brass/PBT body, POM release sleeve, stainless lock claw, NBR O-ring
Plating Standard; N suffix = nickel plated (on request)
Source KCC catalog one+touch+fitting.pdf, p. 2-43 (catalog p. 9-5 to 9-46)

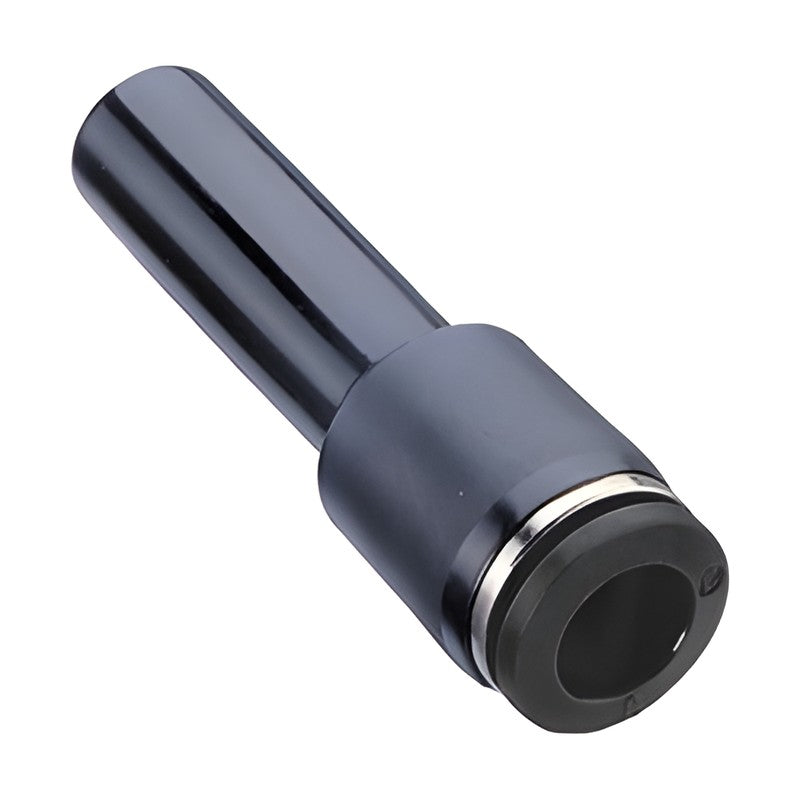

ER0604 Type: Plug-in reducer | Tube OD 1: 6 mm | Tube OD 2: 4 mm
ER0804 Type: Plug-in reducer | Tube OD 1: 8 mm | Tube OD 2: 4 mm
ER0806 Type: Plug-in reducer | Tube OD 1: 8 mm | Tube OD 2: 6 mm
ER1006 Type: Plug-in reducer | Tube OD 1: 10 mm | Tube OD 2: 6 mm
ER1008 Type: Plug-in reducer | Tube OD 1: 10 mm | Tube OD 2: 8 mm
ER1206 Type: Plug-in reducer | Tube OD 1: 12 mm | Tube OD 2: 6 mm
ER1208 Type: Plug-in reducer | Tube OD 1: 12 mm | Tube OD 2: 8 mm
ER1210 Type: Plug-in reducer | Tube OD 1: 12 mm | Tube OD 2: 10 mm
ER1/81/4 Type: Plug-in reducer | Tube OD 1: 1/8 in | Tube OD 2: 1/4 in
ER5/321/8 Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/8 in
ER5/321/4 Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/4 in
ER1/41/8 Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 1/8 in
ER1/45/32 Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ER5/165/32 Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ER5/161/4 Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ER3/81/4 Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ER3/85/16 Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ER1/21/4 Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 1/4 in
ER1/25/16 Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ER1/23/8 Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
ERL0604 Type: Plug-in reducing elbow | Tube OD 1: 6 mm | Tube OD 2: 4 mm
ERL0806 Type: Plug-in reducing elbow | Tube OD 1: 8 mm | Tube OD 2: 6 mm
ERL1008 Type: Plug-in reducing elbow | Tube OD 1: 10 mm | Tube OD 2: 8 mm
ERL1210 Type: Plug-in reducing elbow | Tube OD 1: 12 mm | Tube OD 2: 10 mm
ERL1/45/32 Type: Plug-in reducing elbow | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERL5/161/4 Type: Plug-in reducing elbow | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERL3/81/4 Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERL3/85/16 Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR0604 Type: Reducing straight union | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EUR0804 Type: Reducing straight union | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EUR0806 Type: Reducing straight union | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EUR1006 Type: Reducing straight union | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EUR1008 Type: Reducing straight union | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EUR1208 Type: Reducing straight union | Tube OD 1: 12 mm | Tube OD 2: 8 mm
EUR1210 Type: Reducing straight union | Tube OD 1: 12 mm | Tube OD 2: 10 mm
EUR1612 Type: Reducing straight union | Tube OD 1: 16 mm | Tube OD 2: 12 mm
EUR3/165/32 Type: Reducing straight union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EUR1/45/32 Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EUR1/43/16 Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
EUR5/165/32 Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EUR5/161/4 Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EUR3/81/4 Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EUR3/85/16 Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR1/23/8 Type: Reducing straight union | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EGT0604 Type: Reducing union tee | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EGT0804 Type: Reducing union tee | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EGT1006 Type: Reducing union tee | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EGT1008 Type: Reducing union tee | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EGT1208 Type: Reducing union tee | Tube OD 1: 12 mm | Tube OD 2: 8 mm
EGT1210 Type: Reducing union tee | Tube OD 1: 12 mm | Tube OD 2: 10 mm
EGT1610 Type: Reducing union tee | Tube OD 1: 16 mm | Tube OD 2: 10 mm
EGT1612 Type: Reducing union tee | Tube OD 1: 16 mm | Tube OD 2: 12 mm
EGT1/45/32 Type: Reducing union tee | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EGT5/161/4 Type: Reducing union tee | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EGT3/81/4 Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EGT3/85/16 Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EGT1/23/8 Type: Reducing union tee | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EWJ0604 Type: Plug-in reducing Y | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EWJ0806 Type: Plug-in reducing Y | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EWJ1008 Type: Plug-in reducing Y | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EWJ1210 Type: Plug-in reducing Y | Tube OD 1: 12 mm | Tube OD 2: 10 mm
EWJ1/45/32 Type: Plug-in reducing Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EWJ5/161/4 Type: Plug-in reducing Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EWJ3/81/4 Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EWJ3/85/16 Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY0604 Type: Reducing union Y | Tube OD 1: 6 mm | Tube OD 2: 4 mm
ERY0804 Type: Reducing union Y | Tube OD 1: 8 mm | Tube OD 2: 4 mm
ERY0806 Type: Reducing union Y | Tube OD 1: 8 mm | Tube OD 2: 6 mm
ERY1006 Type: Reducing union Y | Tube OD 1: 10 mm | Tube OD 2: 6 mm
ERY1008 Type: Reducing union Y | Tube OD 1: 10 mm | Tube OD 2: 8 mm
ERY1208 Type: Reducing union Y | Tube OD 1: 12 mm | Tube OD 2: 8 mm
ERY1210 Type: Reducing union Y | Tube OD 1: 12 mm | Tube OD 2: 10 mm
ERY3/165/32 Type: Reducing union Y | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
ERY1/45/32 Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERY1/43/16 Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
ERY5/165/32 Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ERY5/161/4 Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERY3/81/4 Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERY3/85/16 Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY1/25/16 Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ERY1/23/8 Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EKG0604 Type: Reducing triple branch union | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EKG0804 Type: Reducing triple branch union | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EKG0806 Type: Reducing triple branch union | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EKG1006 Type: Reducing triple branch union | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EKG1008 Type: Reducing triple branch union | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EKG3/165/32 Type: Reducing triple branch union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKG1/45/32 Type: Reducing triple branch union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKG5/165/32 Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKG5/163/16 Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKG5/161/4 Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKG3/81/4 Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKG3/85/16 Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EKJ0604 Type: Plug-in triple branch | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EKJ0804 Type: Plug-in triple branch | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EKJ0806 Type: Plug-in triple branch | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EKJ1006 Type: Plug-in triple branch | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EKJ1008 Type: Plug-in triple branch | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EKJ3/165/32 Type: Plug-in triple branch | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKJ1/45/32 Type: Plug-in triple branch | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKJ5/165/32 Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKJ5/163/16 Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKJ5/161/4 Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKJ3/81/4 Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKJ3/85/16 Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUT04 Type: Union tee | Tube OD 1: 4 mm | Tube OD 2: Same
EUT06 Type: Union tee | Tube OD 1: 6 mm | Tube OD 2: Same
EUT08 Type: Union tee | Tube OD 1: 8 mm | Tube OD 2: Same
EUT10 Type: Union tee | Tube OD 1: 10 mm | Tube OD 2: Same
EUT12 Type: Union tee | Tube OD 1: 12 mm | Tube OD 2: Same
EUT16 Type: Union tee | Tube OD 1: 16 mm | Tube OD 2: Same
EUT5/32 Type: Union tee | Tube OD 1: 5/32 in | Tube OD 2: Same
EUT3/16 Type: Union tee | Tube OD 1: 3/16 in | Tube OD 2: Same
EUT1/4 Type: Union tee | Tube OD 1: 1/4 in | Tube OD 2: Same
EUT5/16 Type: Union tee | Tube OD 1: 5/16 in | Tube OD 2: Same
EUT3/8 Type: Union tee | Tube OD 1: 3/8 in | Tube OD 2: Same
EUT1/2 Type: Union tee | Tube OD 1: 1/2 in | Tube OD 2: Same
EUY04 Type: Union Y | Tube OD 1: 4 mm | Tube OD 2: Same
EUY06 Type: Union Y | Tube OD 1: 6 mm | Tube OD 2: Same
EUY08 Type: Union Y | Tube OD 1: 8 mm | Tube OD 2: Same
EUY10 Type: Union Y | Tube OD 1: 10 mm | Tube OD 2: Same
EUY12 Type: Union Y | Tube OD 1: 12 mm | Tube OD 2: Same
EUY5/32 Type: Union Y | Tube OD 1: 5/32 in | Tube OD 2: Same
EUY3/16 Type: Union Y | Tube OD 1: 3/16 in | Tube OD 2: Same
EUY1/4 Type: Union Y | Tube OD 1: 1/4 in | Tube OD 2: Same
EUY5/16 Type: Union Y | Tube OD 1: 5/16 in | Tube OD 2: Same
EUY3/8 Type: Union Y | Tube OD 1: 3/8 in | Tube OD 2: Same
EUY1/2 Type: Union Y | Tube OD 1: 1/2 in | Tube OD 2: Same
EUC04 Type: Union straight | Tube OD 1: 4 mm | Tube OD 2: Same
EUC06 Type: Union straight | Tube OD 1: 6 mm | Tube OD 2: Same
EUC08 Type: Union straight | Tube OD 1: 8 mm | Tube OD 2: Same
EUC10 Type: Union straight | Tube OD 1: 10 mm | Tube OD 2: Same
EUC12 Type: Union straight | Tube OD 1: 12 mm | Tube OD 2: Same
EUC16 Type: Union straight | Tube OD 1: 16 mm | Tube OD 2: Same
EUC5/32 Type: Union straight | Tube OD 1: 5/32 in | Tube OD 2: Same
EUC3/16 Type: Union straight | Tube OD 1: 3/16 in | Tube OD 2: Same
EUC1/4 Type: Union straight | Tube OD 1: 1/4 in | Tube OD 2: Same
EUC5/16 Type: Union straight | Tube OD 1: 5/16 in | Tube OD 2: Same
EUC3/8 Type: Union straight | Tube OD 1: 3/8 in | Tube OD 2: Same
EUC1/2 Type: Union straight | Tube OD 1: 1/2 in | Tube OD 2: Same
EUL04 Type: Union elbow | Tube OD 1: 4 mm | Tube OD 2: Same
EUL06 Type: Union elbow | Tube OD 1: 6 mm | Tube OD 2: Same
EUL08 Type: Union elbow | Tube OD 1: 8 mm | Tube OD 2: Same
EUL10 Type: Union elbow | Tube OD 1: 10 mm | Tube OD 2: Same
EUL12 Type: Union elbow | Tube OD 1: 12 mm | Tube OD 2: Same
EUL16 Type: Union elbow | Tube OD 1: 16 mm | Tube OD 2: Same
EUL5/32 Type: Union elbow | Tube OD 1: 5/32 in | Tube OD 2: Same
EUL3/16 Type: Union elbow | Tube OD 1: 3/16 in | Tube OD 2: Same
EUL1/4 Type: Union elbow | Tube OD 1: 1/4 in | Tube OD 2: Same
EUL5/16 Type: Union elbow | Tube OD 1: 5/16 in | Tube OD 2: Same
EUL3/8 Type: Union elbow | Tube OD 1: 3/8 in | Tube OD 2: Same
EUL1/2 Type: Union elbow | Tube OD 1: 1/2 in | Tube OD 2: Same
EPC04 Type: Bulkhead union | Tube OD 1: 4 mm | Tube OD 2: Same
EPC06 Type: Bulkhead union | Tube OD 1: 6 mm | Tube OD 2: Same
EPC08 Type: Bulkhead union | Tube OD 1: 8 mm | Tube OD 2: Same
EPC10 Type: Bulkhead union | Tube OD 1: 10 mm | Tube OD 2: Same
EPC12 Type: Bulkhead union | Tube OD 1: 12 mm | Tube OD 2: Same
EPC5/32 Type: Bulkhead union | Tube OD 1: 5/32 in | Tube OD 2: Same
EPC3/16 Type: Bulkhead union | Tube OD 1: 3/16 in | Tube OD 2: Same
EPC1/4 Type: Bulkhead union | Tube OD 1: 1/4 in | Tube OD 2: Same
EPC5/16 Type: Bulkhead union | Tube OD 1: 5/16 in | Tube OD 2: Same
EPC3/8 Type: Bulkhead union | Tube OD 1: 3/8 in | Tube OD 2: Same
EPC1/2 Type: Bulkhead union | Tube OD 1: 1/2 in | Tube OD 2: Same
EMP04 Type: Lightweight bulkhead union | Tube OD 1: 4 mm | Tube OD 2: Same
EMP06 Type: Lightweight bulkhead union | Tube OD 1: 6 mm | Tube OD 2: Same
EMP08 Type: Lightweight bulkhead union | Tube OD 1: 8 mm | Tube OD 2: Same
EMP10 Type: Lightweight bulkhead union | Tube OD 1: 10 mm | Tube OD 2: Same
EMP12 Type: Lightweight bulkhead union | Tube OD 1: 12 mm | Tube OD 2: Same
EYA04 Type: Plug-in Y | Tube OD 1: 4 mm | Tube OD 2: Same
EYA06 Type: Plug-in Y | Tube OD 1: 6 mm | Tube OD 2: Same
EYA08 Type: Plug-in Y | Tube OD 1: 8 mm | Tube OD 2: Same
EYA10 Type: Plug-in Y | Tube OD 1: 10 mm | Tube OD 2: Same
EYA12 Type: Plug-in Y | Tube OD 1: 12 mm | Tube OD 2: Same
EYA5/32 Type: Plug-in Y | Tube OD 1: 5/32 in | Tube OD 2: Same
EYA3/16 Type: Plug-in Y | Tube OD 1: 3/16 in | Tube OD 2: Same
EYA1/4 Type: Plug-in Y | Tube OD 1: 1/4 in | Tube OD 2: Same
EYA5/16 Type: Plug-in Y | Tube OD 1: 5/16 in | Tube OD 2: Same
EYA3/8 Type: Plug-in Y | Tube OD 1: 3/8 in | Tube OD 2: Same
EYA1/2 Type: Plug-in Y | Tube OD 1: 1/2 in | Tube OD 2: Same
EAL04 Type: Plug-in elbow | Tube OD 1: 4 mm | Tube OD 2: Same
EAL06 Type: Plug-in elbow | Tube OD 1: 6 mm | Tube OD 2: Same
EAL08 Type: Plug-in elbow | Tube OD 1: 8 mm | Tube OD 2: Same
EAL10 Type: Plug-in elbow | Tube OD 1: 10 mm | Tube OD 2: Same
EAL12 Type: Plug-in elbow | Tube OD 1: 12 mm | Tube OD 2: Same
EAL16 Type: Plug-in elbow | Tube OD 1: 16 mm | Tube OD 2: Same
EAL5/32 Type: Plug-in elbow | Tube OD 1: 5/32 in | Tube OD 2: Same
EAL3/16 Type: Plug-in elbow | Tube OD 1: 3/16 in | Tube OD 2: Same
EAL1/4 Type: Plug-in elbow | Tube OD 1: 1/4 in | Tube OD 2: Same
EAL5/16 Type: Plug-in elbow | Tube OD 1: 5/16 in | Tube OD 2: Same
EAL3/8 Type: Plug-in elbow | Tube OD 1: 3/8 in | Tube OD 2: Same
EAL1/2 Type: Plug-in elbow | Tube OD 1: 1/2 in | Tube OD 2: Same
EZA04 Type: Union cross | Tube OD 1: 4 mm | Tube OD 2: Same
EZA06 Type: Union cross | Tube OD 1: 6 mm | Tube OD 2: Same
EZA08 Type: Union cross | Tube OD 1: 8 mm | Tube OD 2: Same
EZA10 Type: Union cross | Tube OD 1: 10 mm | Tube OD 2: Same
EZA12 Type: Union cross | Tube OD 1: 12 mm | Tube OD 2: Same
EZA5/32 Type: Union cross | Tube OD 1: 5/32 in | Tube OD 2: Same
EZA3/16 Type: Union cross | Tube OD 1: 3/16 in | Tube OD 2: Same
EZA1/4 Type: Union cross | Tube OD 1: 1/4 in | Tube OD 2: Same
EZA5/16 Type: Union cross | Tube OD 1: 5/16 in | Tube OD 2: Same
EZA3/8 Type: Union cross | Tube OD 1: 3/8 in | Tube OD 2: Same
EZA1/2 Type: Union cross | Tube OD 1: 1/2 in | Tube OD 2: Same
ER1/8-1/4 Legacy code | Superseded by ER1/8 1/4 | Type: Plug-in reducer | Tube OD 1: 1/8 in | Tube OD 2: 1/4 in
ER5/32-1/8 Legacy code | Superseded by ER5/32 1/8 | Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/8 in
ER5/32-1/4 Legacy code | Superseded by ER5/32 1/4 | Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/4 in
ER1/4-1/8 Legacy code | Superseded by ER1/4 1/8 | Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 1/8 in
ER1/4-5/32 Legacy code | Superseded by ER1/4 5/32 | Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ER5/16-5/32 Legacy code | Superseded by ER5/16 5/32 | Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ER5/16-1/4 Legacy code | Superseded by ER5/16 1/4 | Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ER3/8-1/4 Legacy code | Superseded by ER3/8 1/4 | Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ER3/8-5/16 Legacy code | Superseded by ER3/8 5/16 | Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ER1/2-1/4 Legacy code | Superseded by ER1/2 1/4 | Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 1/4 in
ER1/2-5/16 Legacy code | Superseded by ER1/2 5/16 | Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ER1/2-3/8 Legacy code | Superseded by ER1/2 3/8 | Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
ERL1/4-5/32 Legacy code | Superseded by ERL1/4 5/32 | Type: Plug-in reducing elbow | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERL5/16-1/4 Legacy code | Superseded by ERL5/16 1/4 | Type: Plug-in reducing elbow | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERL3/8-1/4 Legacy code | Superseded by ERL3/8 1/4 | Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERL3/8-5/16 Legacy code | Superseded by ERL3/8 5/16 | Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR3/16-5/32 Legacy code | Superseded by EUR3/16 5/32 | Type: Reducing straight union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EUR1/4-5/32 Legacy code | Superseded by EUR1/4 5/32 | Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EUR1/4-3/16 Legacy code | Superseded by EUR1/4 3/16 | Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
EUR5/16-5/32 Legacy code | Superseded by EUR5/16 5/32 | Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EUR5/16-1/4 Legacy code | Superseded by EUR5/16 1/4 | Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EUR3/8-1/4 Legacy code | Superseded by EUR3/8 1/4 | Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EUR3/8-5/16 Legacy code | Superseded by EUR3/8 5/16 | Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR1/2-3/8 Legacy code | Superseded by EUR1/2 3/8 | Type: Reducing straight union | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EGT1/4-5/32 Legacy code | Superseded by EGT1/4 5/32 | Type: Reducing union tee | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EGT5/16-1/4 Legacy code | Superseded by EGT5/16 1/4 | Type: Reducing union tee | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EGT3/8-1/4 Legacy code | Superseded by EGT3/8 1/4 | Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EGT3/8-5/16 Legacy code | Superseded by EGT3/8 5/16 | Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EGT1/2-3/8 Legacy code | Superseded by EGT1/2 3/8 | Type: Reducing union tee | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EWJ1/4-5/32 Legacy code | Superseded by EWJ1/4 5/32 | Type: Plug-in reducing Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EWJ5/16-1/4 Legacy code | Superseded by EWJ5/16 1/4 | Type: Plug-in reducing Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EWJ3/8-1/4 Legacy code | Superseded by EWJ3/8 1/4 | Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EWJ3/8-5/16 Legacy code | Superseded by EWJ3/8 5/16 | Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY3/16-5/32 Legacy code | Superseded by ERY3/16 5/32 | Type: Reducing union Y | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
ERY1/4-5/32 Legacy code | Superseded by ERY1/4 5/32 | Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERY1/4-3/16 Legacy code | Superseded by ERY1/4 3/16 | Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
ERY5/16-5/32 Legacy code | Superseded by ERY5/16 5/32 | Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ERY5/16-1/4 Legacy code | Superseded by ERY5/16 1/4 | Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERY3/8-1/4 Legacy code | Superseded by ERY3/8 1/4 | Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERY3/8-5/16 Legacy code | Superseded by ERY3/8 5/16 | Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY1/2-5/16 Legacy code | Superseded by ERY1/2 5/16 | Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ERY1/2-3/8 Legacy code | Superseded by ERY1/2 3/8 | Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EKG3/16-5/32 Legacy code | Superseded by EKG3/16 5/32 | Type: Reducing triple branch union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKG1/4-5/32 Legacy code | Superseded by EKG1/4 5/32 | Type: Reducing triple branch union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKG5/16-5/32 Legacy code | Superseded by EKG5/16 5/32 | Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKG5/16-3/16 Legacy code | Superseded by EKG5/16 3/16 | Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKG5/16-1/4 Legacy code | Superseded by EKG5/16 1/4 | Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKG3/8-1/4 Legacy code | Superseded by EKG3/8 1/4 | Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKG3/8-5/16 Legacy code | Superseded by EKG3/8 5/16 | Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EKJ3/16-5/32 Legacy code | Superseded by EKJ3/16 5/32 | Type: Plug-in triple branch | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKJ1/4-5/32 Legacy code | Superseded by EKJ1/4 5/32 | Type: Plug-in triple branch | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKJ5/16-5/32 Legacy code | Superseded by EKJ5/16 5/32 | Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKJ5/16-3/16 Legacy code | Superseded by EKJ5/16 3/16 | Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKJ5/16-1/4 Legacy code | Superseded by EKJ5/16 1/4 | Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKJ3/8-1/4 Legacy code | Superseded by EKJ3/8 1/4 | Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKJ3/8-5/16 Legacy code | Superseded by EKJ3/8 5/16 | Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
Push-to-Connect FittingsKCC
258 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC E Series One-Touch Fitting (Tube-to-Tube Unions and Reducers)

Brand KCC·Push-to-Connect Fittings

Available part numbers (258)

ER0604, ER0804, ER0806, ER1006, ER1008, ER1206, ER1208, ER1210, ER1/81/4, ER5/321/8 + 248 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER0604Type: Plug-in reducer | Tube OD 1: 6 mm | Tube OD 2: 4 mm
ER0804Type: Plug-in reducer | Tube OD 1: 8 mm | Tube OD 2: 4 mm
ER0806Type: Plug-in reducer | Tube OD 1: 8 mm | Tube OD 2: 6 mm
ER1006Type: Plug-in reducer | Tube OD 1: 10 mm | Tube OD 2: 6 mm
ER1008Type: Plug-in reducer | Tube OD 1: 10 mm | Tube OD 2: 8 mm
ER1206Type: Plug-in reducer | Tube OD 1: 12 mm | Tube OD 2: 6 mm
ER1208Type: Plug-in reducer | Tube OD 1: 12 mm | Tube OD 2: 8 mm
ER1210Type: Plug-in reducer | Tube OD 1: 12 mm | Tube OD 2: 10 mm
ER1/81/4Type: Plug-in reducer | Tube OD 1: 1/8 in | Tube OD 2: 1/4 in
ER5/321/8Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/8 in
ER5/321/4Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/4 in
ER1/41/8Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 1/8 in
ER1/45/32Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ER5/165/32Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ER5/161/4Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ER3/81/4Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ER3/85/16Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ER1/21/4Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 1/4 in
ER1/25/16Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ER1/23/8Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
ERL0604Type: Plug-in reducing elbow | Tube OD 1: 6 mm | Tube OD 2: 4 mm
ERL0806Type: Plug-in reducing elbow | Tube OD 1: 8 mm | Tube OD 2: 6 mm
ERL1008Type: Plug-in reducing elbow | Tube OD 1: 10 mm | Tube OD 2: 8 mm
ERL1210Type: Plug-in reducing elbow | Tube OD 1: 12 mm | Tube OD 2: 10 mm
ERL1/45/32Type: Plug-in reducing elbow | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERL5/161/4Type: Plug-in reducing elbow | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERL3/81/4Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERL3/85/16Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR0604Type: Reducing straight union | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EUR0804Type: Reducing straight union | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EUR0806Type: Reducing straight union | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EUR1006Type: Reducing straight union | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EUR1008Type: Reducing straight union | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EUR1208Type: Reducing straight union | Tube OD 1: 12 mm | Tube OD 2: 8 mm
EUR1210Type: Reducing straight union | Tube OD 1: 12 mm | Tube OD 2: 10 mm
EUR1612Type: Reducing straight union | Tube OD 1: 16 mm | Tube OD 2: 12 mm
EUR3/165/32Type: Reducing straight union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EUR1/45/32Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EUR1/43/16Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
EUR5/165/32Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EUR5/161/4Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EUR3/81/4Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EUR3/85/16Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR1/23/8Type: Reducing straight union | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EGT0604Type: Reducing union tee | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EGT0804Type: Reducing union tee | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EGT1006Type: Reducing union tee | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EGT1008Type: Reducing union tee | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EGT1208Type: Reducing union tee | Tube OD 1: 12 mm | Tube OD 2: 8 mm
EGT1210Type: Reducing union tee | Tube OD 1: 12 mm | Tube OD 2: 10 mm
EGT1610Type: Reducing union tee | Tube OD 1: 16 mm | Tube OD 2: 10 mm
EGT1612Type: Reducing union tee | Tube OD 1: 16 mm | Tube OD 2: 12 mm
EGT1/45/32Type: Reducing union tee | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EGT5/161/4Type: Reducing union tee | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EGT3/81/4Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EGT3/85/16Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EGT1/23/8Type: Reducing union tee | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EWJ0604Type: Plug-in reducing Y | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EWJ0806Type: Plug-in reducing Y | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EWJ1008Type: Plug-in reducing Y | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EWJ1210Type: Plug-in reducing Y | Tube OD 1: 12 mm | Tube OD 2: 10 mm
EWJ1/45/32Type: Plug-in reducing Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EWJ5/161/4Type: Plug-in reducing Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EWJ3/81/4Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EWJ3/85/16Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY0604Type: Reducing union Y | Tube OD 1: 6 mm | Tube OD 2: 4 mm
ERY0804Type: Reducing union Y | Tube OD 1: 8 mm | Tube OD 2: 4 mm
ERY0806Type: Reducing union Y | Tube OD 1: 8 mm | Tube OD 2: 6 mm
ERY1006Type: Reducing union Y | Tube OD 1: 10 mm | Tube OD 2: 6 mm
ERY1008Type: Reducing union Y | Tube OD 1: 10 mm | Tube OD 2: 8 mm
ERY1208Type: Reducing union Y | Tube OD 1: 12 mm | Tube OD 2: 8 mm
ERY1210Type: Reducing union Y | Tube OD 1: 12 mm | Tube OD 2: 10 mm
ERY3/165/32Type: Reducing union Y | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
ERY1/45/32Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERY1/43/16Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
ERY5/165/32Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ERY5/161/4Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERY3/81/4Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERY3/85/16Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY1/25/16Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ERY1/23/8Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EKG0604Type: Reducing triple branch union | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EKG0804Type: Reducing triple branch union | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EKG0806Type: Reducing triple branch union | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EKG1006Type: Reducing triple branch union | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EKG1008Type: Reducing triple branch union | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EKG3/165/32Type: Reducing triple branch union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKG1/45/32Type: Reducing triple branch union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKG5/165/32Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKG5/163/16Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKG5/161/4Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKG3/81/4Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKG3/85/16Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EKJ0604Type: Plug-in triple branch | Tube OD 1: 6 mm | Tube OD 2: 4 mm
EKJ0804Type: Plug-in triple branch | Tube OD 1: 8 mm | Tube OD 2: 4 mm
EKJ0806Type: Plug-in triple branch | Tube OD 1: 8 mm | Tube OD 2: 6 mm
EKJ1006Type: Plug-in triple branch | Tube OD 1: 10 mm | Tube OD 2: 6 mm
EKJ1008Type: Plug-in triple branch | Tube OD 1: 10 mm | Tube OD 2: 8 mm
EKJ3/165/32Type: Plug-in triple branch | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKJ1/45/32Type: Plug-in triple branch | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKJ5/165/32Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKJ5/163/16Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKJ5/161/4Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKJ3/81/4Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKJ3/85/16Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUT04Type: Union tee | Tube OD 1: 4 mm | Tube OD 2: Same
EUT06Type: Union tee | Tube OD 1: 6 mm | Tube OD 2: Same
EUT08Type: Union tee | Tube OD 1: 8 mm | Tube OD 2: Same
EUT10Type: Union tee | Tube OD 1: 10 mm | Tube OD 2: Same
EUT12Type: Union tee | Tube OD 1: 12 mm | Tube OD 2: Same
EUT16Type: Union tee | Tube OD 1: 16 mm | Tube OD 2: Same
EUT5/32Type: Union tee | Tube OD 1: 5/32 in | Tube OD 2: Same
EUT3/16Type: Union tee | Tube OD 1: 3/16 in | Tube OD 2: Same
EUT1/4Type: Union tee | Tube OD 1: 1/4 in | Tube OD 2: Same
EUT5/16Type: Union tee | Tube OD 1: 5/16 in | Tube OD 2: Same
EUT3/8Type: Union tee | Tube OD 1: 3/8 in | Tube OD 2: Same
EUT1/2Type: Union tee | Tube OD 1: 1/2 in | Tube OD 2: Same
EUY04Type: Union Y | Tube OD 1: 4 mm | Tube OD 2: Same
EUY06Type: Union Y | Tube OD 1: 6 mm | Tube OD 2: Same
EUY08Type: Union Y | Tube OD 1: 8 mm | Tube OD 2: Same
EUY10Type: Union Y | Tube OD 1: 10 mm | Tube OD 2: Same
EUY12Type: Union Y | Tube OD 1: 12 mm | Tube OD 2: Same
EUY5/32Type: Union Y | Tube OD 1: 5/32 in | Tube OD 2: Same
EUY3/16Type: Union Y | Tube OD 1: 3/16 in | Tube OD 2: Same
EUY1/4Type: Union Y | Tube OD 1: 1/4 in | Tube OD 2: Same
EUY5/16Type: Union Y | Tube OD 1: 5/16 in | Tube OD 2: Same
EUY3/8Type: Union Y | Tube OD 1: 3/8 in | Tube OD 2: Same
EUY1/2Type: Union Y | Tube OD 1: 1/2 in | Tube OD 2: Same
EUC04Type: Union straight | Tube OD 1: 4 mm | Tube OD 2: Same
EUC06Type: Union straight | Tube OD 1: 6 mm | Tube OD 2: Same
EUC08Type: Union straight | Tube OD 1: 8 mm | Tube OD 2: Same
EUC10Type: Union straight | Tube OD 1: 10 mm | Tube OD 2: Same
EUC12Type: Union straight | Tube OD 1: 12 mm | Tube OD 2: Same
EUC16Type: Union straight | Tube OD 1: 16 mm | Tube OD 2: Same
EUC5/32Type: Union straight | Tube OD 1: 5/32 in | Tube OD 2: Same
EUC3/16Type: Union straight | Tube OD 1: 3/16 in | Tube OD 2: Same
EUC1/4Type: Union straight | Tube OD 1: 1/4 in | Tube OD 2: Same
EUC5/16Type: Union straight | Tube OD 1: 5/16 in | Tube OD 2: Same
EUC3/8Type: Union straight | Tube OD 1: 3/8 in | Tube OD 2: Same
EUC1/2Type: Union straight | Tube OD 1: 1/2 in | Tube OD 2: Same
EUL04Type: Union elbow | Tube OD 1: 4 mm | Tube OD 2: Same
EUL06Type: Union elbow | Tube OD 1: 6 mm | Tube OD 2: Same
EUL08Type: Union elbow | Tube OD 1: 8 mm | Tube OD 2: Same
EUL10Type: Union elbow | Tube OD 1: 10 mm | Tube OD 2: Same
EUL12Type: Union elbow | Tube OD 1: 12 mm | Tube OD 2: Same
EUL16Type: Union elbow | Tube OD 1: 16 mm | Tube OD 2: Same
EUL5/32Type: Union elbow | Tube OD 1: 5/32 in | Tube OD 2: Same
EUL3/16Type: Union elbow | Tube OD 1: 3/16 in | Tube OD 2: Same
EUL1/4Type: Union elbow | Tube OD 1: 1/4 in | Tube OD 2: Same
EUL5/16Type: Union elbow | Tube OD 1: 5/16 in | Tube OD 2: Same
EUL3/8Type: Union elbow | Tube OD 1: 3/8 in | Tube OD 2: Same
EUL1/2Type: Union elbow | Tube OD 1: 1/2 in | Tube OD 2: Same
EPC04Type: Bulkhead union | Tube OD 1: 4 mm | Tube OD 2: Same
EPC06Type: Bulkhead union | Tube OD 1: 6 mm | Tube OD 2: Same
EPC08Type: Bulkhead union | Tube OD 1: 8 mm | Tube OD 2: Same
EPC10Type: Bulkhead union | Tube OD 1: 10 mm | Tube OD 2: Same
EPC12Type: Bulkhead union | Tube OD 1: 12 mm | Tube OD 2: Same
EPC5/32Type: Bulkhead union | Tube OD 1: 5/32 in | Tube OD 2: Same
EPC3/16Type: Bulkhead union | Tube OD 1: 3/16 in | Tube OD 2: Same
EPC1/4Type: Bulkhead union | Tube OD 1: 1/4 in | Tube OD 2: Same
EPC5/16Type: Bulkhead union | Tube OD 1: 5/16 in | Tube OD 2: Same
EPC3/8Type: Bulkhead union | Tube OD 1: 3/8 in | Tube OD 2: Same
EPC1/2Type: Bulkhead union | Tube OD 1: 1/2 in | Tube OD 2: Same
EMP04Type: Lightweight bulkhead union | Tube OD 1: 4 mm | Tube OD 2: Same
EMP06Type: Lightweight bulkhead union | Tube OD 1: 6 mm | Tube OD 2: Same
EMP08Type: Lightweight bulkhead union | Tube OD 1: 8 mm | Tube OD 2: Same
EMP10Type: Lightweight bulkhead union | Tube OD 1: 10 mm | Tube OD 2: Same
EMP12Type: Lightweight bulkhead union | Tube OD 1: 12 mm | Tube OD 2: Same
EYA04Type: Plug-in Y | Tube OD 1: 4 mm | Tube OD 2: Same
EYA06Type: Plug-in Y | Tube OD 1: 6 mm | Tube OD 2: Same
EYA08Type: Plug-in Y | Tube OD 1: 8 mm | Tube OD 2: Same
EYA10Type: Plug-in Y | Tube OD 1: 10 mm | Tube OD 2: Same
EYA12Type: Plug-in Y | Tube OD 1: 12 mm | Tube OD 2: Same
EYA5/32Type: Plug-in Y | Tube OD 1: 5/32 in | Tube OD 2: Same
EYA3/16Type: Plug-in Y | Tube OD 1: 3/16 in | Tube OD 2: Same
EYA1/4Type: Plug-in Y | Tube OD 1: 1/4 in | Tube OD 2: Same
EYA5/16Type: Plug-in Y | Tube OD 1: 5/16 in | Tube OD 2: Same
EYA3/8Type: Plug-in Y | Tube OD 1: 3/8 in | Tube OD 2: Same
EYA1/2Type: Plug-in Y | Tube OD 1: 1/2 in | Tube OD 2: Same
EAL04Type: Plug-in elbow | Tube OD 1: 4 mm | Tube OD 2: Same
EAL06Type: Plug-in elbow | Tube OD 1: 6 mm | Tube OD 2: Same
EAL08Type: Plug-in elbow | Tube OD 1: 8 mm | Tube OD 2: Same
EAL10Type: Plug-in elbow | Tube OD 1: 10 mm | Tube OD 2: Same
EAL12Type: Plug-in elbow | Tube OD 1: 12 mm | Tube OD 2: Same
EAL16Type: Plug-in elbow | Tube OD 1: 16 mm | Tube OD 2: Same
EAL5/32Type: Plug-in elbow | Tube OD 1: 5/32 in | Tube OD 2: Same
EAL3/16Type: Plug-in elbow | Tube OD 1: 3/16 in | Tube OD 2: Same
EAL1/4Type: Plug-in elbow | Tube OD 1: 1/4 in | Tube OD 2: Same
EAL5/16Type: Plug-in elbow | Tube OD 1: 5/16 in | Tube OD 2: Same
EAL3/8Type: Plug-in elbow | Tube OD 1: 3/8 in | Tube OD 2: Same
EAL1/2Type: Plug-in elbow | Tube OD 1: 1/2 in | Tube OD 2: Same
EZA04Type: Union cross | Tube OD 1: 4 mm | Tube OD 2: Same
EZA06Type: Union cross | Tube OD 1: 6 mm | Tube OD 2: Same
EZA08Type: Union cross | Tube OD 1: 8 mm | Tube OD 2: Same
EZA10Type: Union cross | Tube OD 1: 10 mm | Tube OD 2: Same
EZA12Type: Union cross | Tube OD 1: 12 mm | Tube OD 2: Same
EZA5/32Type: Union cross | Tube OD 1: 5/32 in | Tube OD 2: Same
EZA3/16Type: Union cross | Tube OD 1: 3/16 in | Tube OD 2: Same
EZA1/4Type: Union cross | Tube OD 1: 1/4 in | Tube OD 2: Same
EZA5/16Type: Union cross | Tube OD 1: 5/16 in | Tube OD 2: Same
EZA3/8Type: Union cross | Tube OD 1: 3/8 in | Tube OD 2: Same
EZA1/2Type: Union cross | Tube OD 1: 1/2 in | Tube OD 2: Same
ER1/8-1/4Legacy code | Superseded by ER1/8 1/4 | Type: Plug-in reducer | Tube OD 1: 1/8 in | Tube OD 2: 1/4 in
ER5/32-1/8Legacy code | Superseded by ER5/32 1/8 | Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/8 in
ER5/32-1/4Legacy code | Superseded by ER5/32 1/4 | Type: Plug-in reducer | Tube OD 1: 5/32 in | Tube OD 2: 1/4 in
ER1/4-1/8Legacy code | Superseded by ER1/4 1/8 | Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 1/8 in
ER1/4-5/32Legacy code | Superseded by ER1/4 5/32 | Type: Plug-in reducer | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ER5/16-5/32Legacy code | Superseded by ER5/16 5/32 | Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ER5/16-1/4Legacy code | Superseded by ER5/16 1/4 | Type: Plug-in reducer | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ER3/8-1/4Legacy code | Superseded by ER3/8 1/4 | Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ER3/8-5/16Legacy code | Superseded by ER3/8 5/16 | Type: Plug-in reducer | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ER1/2-1/4Legacy code | Superseded by ER1/2 1/4 | Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 1/4 in
ER1/2-5/16Legacy code | Superseded by ER1/2 5/16 | Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ER1/2-3/8Legacy code | Superseded by ER1/2 3/8 | Type: Plug-in reducer | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
ERL1/4-5/32Legacy code | Superseded by ERL1/4 5/32 | Type: Plug-in reducing elbow | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERL5/16-1/4Legacy code | Superseded by ERL5/16 1/4 | Type: Plug-in reducing elbow | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERL3/8-1/4Legacy code | Superseded by ERL3/8 1/4 | Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERL3/8-5/16Legacy code | Superseded by ERL3/8 5/16 | Type: Plug-in reducing elbow | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR3/16-5/32Legacy code | Superseded by EUR3/16 5/32 | Type: Reducing straight union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EUR1/4-5/32Legacy code | Superseded by EUR1/4 5/32 | Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EUR1/4-3/16Legacy code | Superseded by EUR1/4 3/16 | Type: Reducing straight union | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
EUR5/16-5/32Legacy code | Superseded by EUR5/16 5/32 | Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EUR5/16-1/4Legacy code | Superseded by EUR5/16 1/4 | Type: Reducing straight union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EUR3/8-1/4Legacy code | Superseded by EUR3/8 1/4 | Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EUR3/8-5/16Legacy code | Superseded by EUR3/8 5/16 | Type: Reducing straight union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EUR1/2-3/8Legacy code | Superseded by EUR1/2 3/8 | Type: Reducing straight union | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EGT1/4-5/32Legacy code | Superseded by EGT1/4 5/32 | Type: Reducing union tee | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EGT5/16-1/4Legacy code | Superseded by EGT5/16 1/4 | Type: Reducing union tee | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EGT3/8-1/4Legacy code | Superseded by EGT3/8 1/4 | Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EGT3/8-5/16Legacy code | Superseded by EGT3/8 5/16 | Type: Reducing union tee | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EGT1/2-3/8Legacy code | Superseded by EGT1/2 3/8 | Type: Reducing union tee | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EWJ1/4-5/32Legacy code | Superseded by EWJ1/4 5/32 | Type: Plug-in reducing Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EWJ5/16-1/4Legacy code | Superseded by EWJ5/16 1/4 | Type: Plug-in reducing Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EWJ3/8-1/4Legacy code | Superseded by EWJ3/8 1/4 | Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EWJ3/8-5/16Legacy code | Superseded by EWJ3/8 5/16 | Type: Plug-in reducing Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY3/16-5/32Legacy code | Superseded by ERY3/16 5/32 | Type: Reducing union Y | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
ERY1/4-5/32Legacy code | Superseded by ERY1/4 5/32 | Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
ERY1/4-3/16Legacy code | Superseded by ERY1/4 3/16 | Type: Reducing union Y | Tube OD 1: 1/4 in | Tube OD 2: 3/16 in
ERY5/16-5/32Legacy code | Superseded by ERY5/16 5/32 | Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
ERY5/16-1/4Legacy code | Superseded by ERY5/16 1/4 | Type: Reducing union Y | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
ERY3/8-1/4Legacy code | Superseded by ERY3/8 1/4 | Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
ERY3/8-5/16Legacy code | Superseded by ERY3/8 5/16 | Type: Reducing union Y | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
ERY1/2-5/16Legacy code | Superseded by ERY1/2 5/16 | Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 5/16 in
ERY1/2-3/8Legacy code | Superseded by ERY1/2 3/8 | Type: Reducing union Y | Tube OD 1: 1/2 in | Tube OD 2: 3/8 in
EKG3/16-5/32Legacy code | Superseded by EKG3/16 5/32 | Type: Reducing triple branch union | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKG1/4-5/32Legacy code | Superseded by EKG1/4 5/32 | Type: Reducing triple branch union | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKG5/16-5/32Legacy code | Superseded by EKG5/16 5/32 | Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKG5/16-3/16Legacy code | Superseded by EKG5/16 3/16 | Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKG5/16-1/4Legacy code | Superseded by EKG5/16 1/4 | Type: Reducing triple branch union | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKG3/8-1/4Legacy code | Superseded by EKG3/8 1/4 | Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKG3/8-5/16Legacy code | Superseded by EKG3/8 5/16 | Type: Reducing triple branch union | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in
EKJ3/16-5/32Legacy code | Superseded by EKJ3/16 5/32 | Type: Plug-in triple branch | Tube OD 1: 3/16 in | Tube OD 2: 5/32 in
EKJ1/4-5/32Legacy code | Superseded by EKJ1/4 5/32 | Type: Plug-in triple branch | Tube OD 1: 1/4 in | Tube OD 2: 5/32 in
EKJ5/16-5/32Legacy code | Superseded by EKJ5/16 5/32 | Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 5/32 in
EKJ5/16-3/16Legacy code | Superseded by EKJ5/16 3/16 | Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 3/16 in
EKJ5/16-1/4Legacy code | Superseded by EKJ5/16 1/4 | Type: Plug-in triple branch | Tube OD 1: 5/16 in | Tube OD 2: 1/4 in
EKJ3/8-1/4Legacy code | Superseded by EKJ3/8 1/4 | Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 1/4 in
EKJ3/8-5/16Legacy code | Superseded by EKJ3/8 5/16 | Type: Plug-in triple branch | Tube OD 1: 3/8 in | Tube OD 2: 5/16 in

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
