KCC E2 One-Touch Fitting, Threaded Types (Male/Female)

KCC E2 series one-touch push-to-connect fittings with male (R, M) or female (Rc, M) threads for Ø4 to Ø16 tube.

Key features

Compact, lightweight design saves installation space
Tube is connected and released with a single push
23 body styles: straight, elbows, universal elbows, tees, branches and bulkhead types
Male R threads with sealant pre-applied (suffix S); studs in nickel-plated brass
Tube OD Ø4, 6, 8, 10, 12, 16 mm; threads M3 to R3/4

Specifications

Fluid	Air, water
Operating pressure	-100 kPa to 1 MPa
Proof pressure	1.5 MPa (23°C)
Ambient and fluid temperature	-5 to 60°C (water 0 to 40°C, no freezing)
Applicable tube	Polyurethane, nylon
Body material	PBT
Release ring / clip	Aluminum or zinc alloy / STS303
Seal	NBR packing and O-ring
Stud material	Brass (electroless nickel), STS304, Al alloy
Source	KCC catalog e2.pdf, p. 2-18 (PDF pages)

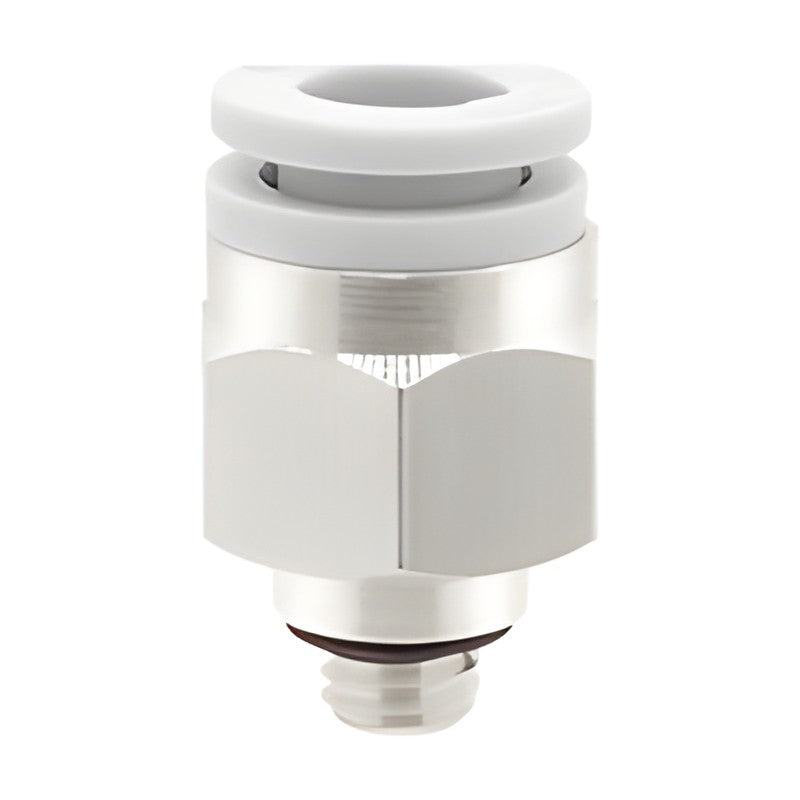

E2H04-M5		Type: Half union (male connector) \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2H04-01S		Type: Half union (male connector) \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2H04-02S		Type: Half union (male connector) \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2H06-M5		Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2H06-01S		Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2H06-02S		Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2H06-03S		Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2H06-04S		Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
E2H08-M5		Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: M5x0.8 male
E2H08-01S		Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2H08-02S		Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2H08-03S		Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2H08-04S		Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2H10-01S		Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2H10-02S		Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2H10-03S		Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2H10-04S		Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2H12-01S		Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
E2H12-02S		Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2H12-03S		Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2H12-04S		Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2H16-02S		Type: Half union (male connector) \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
E2H16-03S		Type: Half union (male connector) \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2H16-04S		Type: Half union (male connector) \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2S04-M5		Type: Hex-socket half union \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2S04-01S		Type: Hex-socket half union \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2S04-02S		Type: Hex-socket half union \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2S06-M5		Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2S06-01S		Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2S06-02S		Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2S06-03S		Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2S08-01S		Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2S08-02S		Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2S08-03S		Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2S08-04S		Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2S10-01S		Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2S10-02S		Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2S10-03S		Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2S10-04S		Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2S12-02S		Type: Hex-socket half union \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2S12-03S		Type: Hex-socket half union \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2S12-04S		Type: Hex-socket half union \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2S16-03S		Type: Hex-socket half union \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2S16-04S		Type: Hex-socket half union \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2F04-M5		Type: Female union \| Tube OD: Ø4 mm \| Thread: M5x0.8 female
E2F04-01		Type: Female union \| Tube OD: Ø4 mm \| Thread: Rc1/8 female
E2F04-02		Type: Female union \| Tube OD: Ø4 mm \| Thread: Rc1/4 female
E2F04-03		Type: Female union \| Tube OD: Ø4 mm \| Thread: Rc3/8 female
E2F06-M5		Type: Female union \| Tube OD: Ø6 mm \| Thread: M5x0.8 female
E2F06-01		Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc1/8 female
E2F06-02		Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc1/4 female
E2F06-03		Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc3/8 female
E2F06-04		Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc1/2 female
E2F08-01		Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc1/8 female
E2F08-02		Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc1/4 female
E2F08-03		Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc3/8 female
E2F08-04		Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc1/2 female
E2F10-01		Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc1/8 female
E2F10-02		Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc1/4 female
E2F10-03		Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc3/8 female
E2F10-04		Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc1/2 female
E2F12-01		Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc1/8 female
E2F12-02		Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc1/4 female
E2F12-03		Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc3/8 female
E2F12-04		Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc1/2 female
E2F16-02		Type: Female union \| Tube OD: Ø16 mm \| Thread: Rc1/4 female
E2F16-03		Type: Female union \| Tube OD: Ø16 mm \| Thread: Rc3/8 female
E2F16-04		Type: Female union \| Tube OD: Ø16 mm \| Thread: Rc1/2 female
E2E04-M5		Type: Bulkhead female union \| Tube OD: Ø4 mm \| Thread: M5x0.8 female
E2E04-01		Type: Bulkhead female union \| Tube OD: Ø4 mm \| Thread: Rc1/8 female
E2E04-02		Type: Bulkhead female union \| Tube OD: Ø4 mm \| Thread: Rc1/4 female
E2E06-M5		Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: M5x0.8 female
E2E06-01		Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: Rc1/8 female
E2E06-02		Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: Rc1/4 female
E2E06-03		Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: Rc3/8 female
E2E08-01		Type: Bulkhead female union \| Tube OD: Ø8 mm \| Thread: Rc1/8 female
E2E08-02		Type: Bulkhead female union \| Tube OD: Ø8 mm \| Thread: Rc1/4 female
E2E08-03		Type: Bulkhead female union \| Tube OD: Ø8 mm \| Thread: Rc3/8 female
E2E10-02		Type: Bulkhead female union \| Tube OD: Ø10 mm \| Thread: Rc1/4 female
E2E10-03		Type: Bulkhead female union \| Tube OD: Ø10 mm \| Thread: Rc3/8 female
E2E12-02		Type: Bulkhead female union \| Tube OD: Ø12 mm \| Thread: Rc1/4 female
E2E12-03		Type: Bulkhead female union \| Tube OD: Ø12 mm \| Thread: Rc3/8 female
E2E12-04		Type: Bulkhead female union \| Tube OD: Ø12 mm \| Thread: Rc1/2 female
E2E16-03		Type: Bulkhead female union \| Tube OD: Ø16 mm \| Thread: Rc3/8 female
E2E16-04		Type: Bulkhead female union \| Tube OD: Ø16 mm \| Thread: Rc1/2 female
E2L04-M5		Type: Male elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2L04-01S		Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2L04-02S		Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2L04-03S		Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
E2L04-04S		Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R1/2 male, sealant
E2L06-M5		Type: Male elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2L06-01S		Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2L06-02S		Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2L06-03S		Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2L06-04S		Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
E2L08-M5		Type: Male elbow \| Tube OD: Ø8 mm \| Thread: M5x0.8 male
E2L08-01S		Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2L08-02S		Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2L08-03S		Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2L08-04S		Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2L10-01S		Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2L10-02S		Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2L10-03S		Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2L10-04S		Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2L12-01S		Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
E2L12-02S		Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2L12-03S		Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2L12-04S		Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2L16-02S		Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
E2L16-03S		Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2L16-04S		Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2L16-06S		Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R3/4 male, sealant
E2W04-M5		Type: Long elbow union \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2W04-01S		Type: Long elbow union \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2W04-02S		Type: Long elbow union \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2W06-M5		Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2W06-01S		Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2W06-02S		Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2W06-03S		Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2W08-01S		Type: Long elbow union \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2W08-02S		Type: Long elbow union \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2W08-03S		Type: Long elbow union \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2W10-01S		Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2W10-02S		Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2W10-03S		Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2W10-04S		Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2W12-01S		Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
E2W12-02S		Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2W12-03S		Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2W12-04S		Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2W16-03S		Type: Long elbow union \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2W16-04S		Type: Long elbow union \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2LF04-M5		Type: Female elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 female
E2LF04-M6		Type: Female elbow \| Tube OD: Ø4 mm \| Thread: M6x1.0 female
E2LF04-01		Type: Female elbow \| Tube OD: Ø4 mm \| Thread: Rc1/8 female
E2LF04-02		Type: Female elbow \| Tube OD: Ø4 mm \| Thread: Rc1/4 female
E2LF06-M5		Type: Female elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 female
E2LF06-M6		Type: Female elbow \| Tube OD: Ø6 mm \| Thread: M6x1.0 female
E2LF06-01		Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc1/8 female
E2LF06-02		Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc1/4 female
E2LF06-03		Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc3/8 female
E2LF06-04		Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc1/2 female
E2LF08-01		Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc1/8 female
E2LF08-02		Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc1/4 female
E2LF08-03		Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc3/8 female
E2LF08-04		Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc1/2 female
E2LF10-01		Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc1/8 female
E2LF10-02		Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc1/4 female
E2LF10-03		Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc3/8 female
E2LF10-04		Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc1/2 female
E2LF12-01		Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc1/8 female
E2LF12-02		Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc1/4 female
E2LF12-03		Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc3/8 female
E2LF12-04		Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc1/2 female
E2V04-M3		Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
E2V04-M5		Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2V04-01S		Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2V04-02S		Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2V06-M3		Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
E2V06-M5		Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2V06-01S		Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2V06-02S		Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2V06-03S		Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2V08-01S		Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2V08-02S		Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2V08-03S		Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2V08-04S		Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2V10-01S		Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2V10-02S		Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2V10-03S		Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2V10-04S		Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2V12-01S		Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
E2V12-02S		Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2V12-03S		Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2V12-04S		Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2Z04-M5		Type: Branch universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2Z04-01S		Type: Branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2Z04-02S		Type: Branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2Z06-M5		Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2Z06-01S		Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2Z06-02S		Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2Z06-03S		Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2Z08-01S		Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2Z08-02S		Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2Z08-03S		Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2Z08-04S		Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2Z10-01S		Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2Z10-02S		Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2Z10-03S		Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2Z10-04S		Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2Z12-01S		Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
E2Z12-02S		Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2Z12-03S		Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2Z12-04S		Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2LU04-M5		Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2LU04-M6		Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
E2LU04-01S		Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2LU04-02S		Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2LU06-M5		Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2LU06-M6		Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
E2LU06-01S		Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2LU06-02S		Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2LU06-03S		Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2LU08-01S		Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2LU08-02S		Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2LU08-03S		Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2LU08-04S		Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2LU10-01S		Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2LU10-02S		Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2LU10-03S		Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2LU10-04S		Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2LU12-02S		Type: Branch elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2LU12-03S		Type: Branch elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2LU12-04S		Type: Branch elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2D04-M5		Type: Delta union \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2D04-M6		Type: Delta union \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
E2D04-01S		Type: Delta union \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2D04-02S		Type: Delta union \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2D06-M5		Type: Delta union \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2D06-M6		Type: Delta union \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
E2D06-01S		Type: Delta union \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2D06-02S		Type: Delta union \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2D06-03S		Type: Delta union \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2D08-01S		Type: Delta union \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2D08-02S		Type: Delta union \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2D08-03S		Type: Delta union \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2D08-04S		Type: Delta union \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2D10-01S		Type: Delta union \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2D10-02S		Type: Delta union \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2D10-03S		Type: Delta union \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2D10-04S		Type: Delta union \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2D12-02S		Type: Delta union \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2D12-03S		Type: Delta union \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2D12-04S		Type: Delta union \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2U04-M5		Type: Branch Y \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2U04-M6		Type: Branch Y \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
E2U04-01S		Type: Branch Y \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2U04-02S		Type: Branch Y \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2U06-M5		Type: Branch Y \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2U06-M6		Type: Branch Y \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
E2U06-01S		Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2U06-02S		Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2U06-03S		Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2U06-04S		Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
E2U08-01S		Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2U08-02S		Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2U08-03S		Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2U08-04S		Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2U10-01S		Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2U10-02S		Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2U10-03S		Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2U10-04S		Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2U12-02S		Type: Branch Y \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2U12-03S		Type: Branch Y \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2U12-04S		Type: Branch Y \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2U16-02S		Type: Branch Y \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
E2U16-03S		Type: Branch Y \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2U16-04S		Type: Branch Y \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2T04-M5		Type: Run tee \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2T04-M6		Type: Run tee \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
E2T04-01S		Type: Run tee \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2T04-02S		Type: Run tee \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2T06-M5		Type: Run tee \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2T06-M6		Type: Run tee \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
E2T06-01S		Type: Run tee \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2T06-02S		Type: Run tee \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2T06-03S		Type: Run tee \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2T06-04S		Type: Run tee \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
E2T08-01S		Type: Run tee \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2T08-02S		Type: Run tee \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2T08-03S		Type: Run tee \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2T08-04S		Type: Run tee \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2T10-01S		Type: Run tee \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2T10-02S		Type: Run tee \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2T10-03S		Type: Run tee \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2T10-04S		Type: Run tee \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2T12-02S		Type: Run tee \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2T12-03S		Type: Run tee \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2T12-04S		Type: Run tee \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2T16-02S		Type: Run tee \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
E2T16-03S		Type: Run tee \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2T16-04S		Type: Run tee \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2Y04-M5		Type: Service tee \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2Y04-M6		Type: Service tee \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
E2Y04-01S		Type: Service tee \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2Y04-02S		Type: Service tee \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2Y06-M5		Type: Service tee \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2Y06-M6		Type: Service tee \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
E2Y06-01S		Type: Service tee \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2Y06-02S		Type: Service tee \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2Y06-03S		Type: Service tee \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2Y06-04S		Type: Service tee \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
E2Y08-01S		Type: Service tee \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2Y08-02S		Type: Service tee \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2Y08-03S		Type: Service tee \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2Y08-04S		Type: Service tee \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2Y10-01S		Type: Service tee \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2Y10-02S		Type: Service tee \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2Y10-03S		Type: Service tee \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2Y10-04S		Type: Service tee \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2Y12-02S		Type: Service tee \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2Y12-03S		Type: Service tee \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2Y12-04S		Type: Service tee \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2Y16-02S		Type: Service tee \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
E2Y16-03S		Type: Service tee \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
E2Y16-04S		Type: Service tee \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
E2UD04-M5		Type: Double branch \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2UD04-01S		Type: Double branch \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2UD04-02S		Type: Double branch \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2UD04-03S		Type: Double branch \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
E2UD06-01S		Type: Double branch \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2UD06-02S		Type: Double branch \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2UD06-03S		Type: Double branch \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2UD06-04S		Type: Double branch \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
E2UD08-01S		Type: Double branch \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2UD08-02S		Type: Double branch \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2UD08-03S		Type: Double branch \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2UD08-04S		Type: Double branch \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2UD10-01S		Type: Double branch \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2UD10-02S		Type: Double branch \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2UD10-03S		Type: Double branch \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2UD10-04S		Type: Double branch \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2VF04-M3		Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
E2VF04-M5		Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2VF04-01S		Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2VF04-02S		Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2VF06-M3		Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
E2VF06-M5		Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2VF06-01S		Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2VF06-02S		Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2VF06-03S		Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2VF08-01S		Type: Universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2VF08-02S		Type: Universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2VF08-03S		Type: Universal female elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2VF10-02S		Type: Universal female elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2VF10-03S		Type: Universal female elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2VF12-02S		Type: Universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2VF12-03S		Type: Universal female elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2VF12-04S		Type: Universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2ZF04-M3		Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
E2ZF04-M5		Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2ZF04-01S		Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2ZF04-02S		Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2ZF06-M3		Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
E2ZF06-M5		Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2ZF06-01S		Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2ZF06-02S		Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2ZF06-03S		Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2ZF08-01S		Type: Branch universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2ZF08-02S		Type: Branch universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2ZF08-03S		Type: Branch universal female elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2ZF10-02S		Type: Branch universal female elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2ZF10-03S		Type: Branch universal female elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2ZF12-02S		Type: Branch universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2ZF12-03S		Type: Branch universal female elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2ZF12-04S		Type: Branch universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2VS04-M3		Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
E2VS04-M5		Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2VS04-01S		Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2VS04-02S		Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2VS06-M3		Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
E2VS06-M5		Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2VS06-01S		Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2VS06-02S		Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2VS08-01S		Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2VS08-02S		Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2VS08-03S		Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2VS08-04S		Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2VS10-01S		Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2VS10-02S		Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2VS10-03S		Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2VS10-04S		Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2VS12-02S		Type: Hex-socket universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2VS12-03S		Type: Hex-socket universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2VS12-04S		Type: Hex-socket universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2ZS04-M3		Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
E2ZS04-M5		Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2ZS04-01S		Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2ZS04-02S		Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2ZS06-M3		Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
E2ZS06-M5		Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2ZS06-01S		Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2ZS06-02S		Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2ZS08-01S		Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2ZS08-02S		Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2ZS08-03S		Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2ZS08-04S		Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2ZS10-01S		Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
E2ZS10-02S		Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2ZS10-03S		Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2ZS10-04S		Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2ZS12-02S		Type: Hex-socket branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2ZS12-03S		Type: Hex-socket branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2ZS12-04S		Type: Hex-socket branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2VD04-M5		Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2VD04-01S		Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2VD04-02S		Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2VD04-03S		Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
E2VD06-M5		Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2VD06-01S		Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2VD06-02S		Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2VD06-03S		Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2VD08-01S		Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2VD08-02S		Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2VD08-03S		Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2VD08-04S		Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2VD10-02S		Type: Double universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2VD10-03S		Type: Double universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2VD10-04S		Type: Double universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2VD12-02S		Type: Double universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2VD12-03S		Type: Double universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2VD12-04S		Type: Double universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2VT04-01S		Type: Triple universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2VT04-02S		Type: Triple universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2VT04-03S		Type: Triple universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
E2VT06-01S		Type: Triple universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2VT06-02S		Type: Triple universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2VT06-03S		Type: Triple universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2VT08-01S		Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2VT08-02S		Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2VT08-03S		Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2VT08-04S		Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2VT10-02S		Type: Triple universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2VT10-03S		Type: Triple universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2VT10-04S		Type: Triple universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2VT12-02S		Type: Triple universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2VT12-03S		Type: Triple universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2VT12-04S		Type: Triple universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2ZD04-M5		Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
E2ZD04-01S		Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2ZD04-02S		Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2ZD04-03S		Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
E2ZD06-M5		Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
E2ZD06-01S		Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2ZD06-02S		Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2ZD06-03S		Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2ZD08-01S		Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2ZD08-02S		Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2ZD08-03S		Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2ZD08-04S		Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2ZD10-02S		Type: Double branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2ZD10-03S		Type: Double branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2ZD10-04S		Type: Double branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2ZD12-02S		Type: Double branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2ZD12-03S		Type: Double branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2ZD12-04S		Type: Double branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
E2ZT04-01S		Type: Triple branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
E2ZT04-02S		Type: Triple branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
E2ZT04-03S		Type: Triple branch universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
E2ZT06-01S		Type: Triple branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
E2ZT06-02S		Type: Triple branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
E2ZT06-03S		Type: Triple branch universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
E2ZT08-01S		Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
E2ZT08-02S		Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
E2ZT08-03S		Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
E2ZT08-04S		Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
E2ZT10-02S		Type: Triple branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
E2ZT10-03S		Type: Triple branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
E2ZT10-04S		Type: Triple branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
E2ZT12-02S		Type: Triple branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
E2ZT12-03S		Type: Triple branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
E2ZT12-04S		Type: Triple branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant

Push-to-Connect FittingsKCC

462 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC E2 One-Touch Fitting, Threaded Types (Male/Female)

Brand KCC·Push-to-Connect Fittings

Available part numbers (462)

E2H04-M5, E2H04-01S, E2H04-02S, E2H06-M5, E2H06-01S, E2H06-02S, E2H06-03S, E2H06-04S, E2H08-M5, E2H08-01S + 452 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2H04-M5	Type: Half union (male connector) \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2H04-01S	Type: Half union (male connector) \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2H04-02S	Type: Half union (male connector) \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2H06-M5	Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2H06-01S	Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2H06-02S	Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2H06-03S	Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2H06-04S	Type: Half union (male connector) \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
	E2H08-M5	Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: M5x0.8 male
	E2H08-01S	Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2H08-02S	Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2H08-03S	Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2H08-04S	Type: Half union (male connector) \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2H10-01S	Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2H10-02S	Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2H10-03S	Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2H10-04S	Type: Half union (male connector) \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2H12-01S	Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
	E2H12-02S	Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2H12-03S	Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2H12-04S	Type: Half union (male connector) \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2H16-02S	Type: Half union (male connector) \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
	E2H16-03S	Type: Half union (male connector) \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2H16-04S	Type: Half union (male connector) \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2S04-M5	Type: Hex-socket half union \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2S04-01S	Type: Hex-socket half union \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2S04-02S	Type: Hex-socket half union \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2S06-M5	Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2S06-01S	Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2S06-02S	Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2S06-03S	Type: Hex-socket half union \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2S08-01S	Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2S08-02S	Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2S08-03S	Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2S08-04S	Type: Hex-socket half union \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2S10-01S	Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2S10-02S	Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2S10-03S	Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2S10-04S	Type: Hex-socket half union \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2S12-02S	Type: Hex-socket half union \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2S12-03S	Type: Hex-socket half union \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2S12-04S	Type: Hex-socket half union \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2S16-03S	Type: Hex-socket half union \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2S16-04S	Type: Hex-socket half union \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2F04-M5	Type: Female union \| Tube OD: Ø4 mm \| Thread: M5x0.8 female
	E2F04-01	Type: Female union \| Tube OD: Ø4 mm \| Thread: Rc1/8 female
	E2F04-02	Type: Female union \| Tube OD: Ø4 mm \| Thread: Rc1/4 female
	E2F04-03	Type: Female union \| Tube OD: Ø4 mm \| Thread: Rc3/8 female
	E2F06-M5	Type: Female union \| Tube OD: Ø6 mm \| Thread: M5x0.8 female
	E2F06-01	Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc1/8 female
	E2F06-02	Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc1/4 female
	E2F06-03	Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc3/8 female
	E2F06-04	Type: Female union \| Tube OD: Ø6 mm \| Thread: Rc1/2 female
	E2F08-01	Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc1/8 female
	E2F08-02	Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc1/4 female
	E2F08-03	Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc3/8 female
	E2F08-04	Type: Female union \| Tube OD: Ø8 mm \| Thread: Rc1/2 female
	E2F10-01	Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc1/8 female
	E2F10-02	Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc1/4 female
	E2F10-03	Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc3/8 female
	E2F10-04	Type: Female union \| Tube OD: Ø10 mm \| Thread: Rc1/2 female
	E2F12-01	Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc1/8 female
	E2F12-02	Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc1/4 female
	E2F12-03	Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc3/8 female
	E2F12-04	Type: Female union \| Tube OD: Ø12 mm \| Thread: Rc1/2 female
	E2F16-02	Type: Female union \| Tube OD: Ø16 mm \| Thread: Rc1/4 female
	E2F16-03	Type: Female union \| Tube OD: Ø16 mm \| Thread: Rc3/8 female
	E2F16-04	Type: Female union \| Tube OD: Ø16 mm \| Thread: Rc1/2 female
	E2E04-M5	Type: Bulkhead female union \| Tube OD: Ø4 mm \| Thread: M5x0.8 female
	E2E04-01	Type: Bulkhead female union \| Tube OD: Ø4 mm \| Thread: Rc1/8 female
	E2E04-02	Type: Bulkhead female union \| Tube OD: Ø4 mm \| Thread: Rc1/4 female
	E2E06-M5	Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: M5x0.8 female
	E2E06-01	Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: Rc1/8 female
	E2E06-02	Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: Rc1/4 female
	E2E06-03	Type: Bulkhead female union \| Tube OD: Ø6 mm \| Thread: Rc3/8 female
	E2E08-01	Type: Bulkhead female union \| Tube OD: Ø8 mm \| Thread: Rc1/8 female
	E2E08-02	Type: Bulkhead female union \| Tube OD: Ø8 mm \| Thread: Rc1/4 female
	E2E08-03	Type: Bulkhead female union \| Tube OD: Ø8 mm \| Thread: Rc3/8 female
	E2E10-02	Type: Bulkhead female union \| Tube OD: Ø10 mm \| Thread: Rc1/4 female
	E2E10-03	Type: Bulkhead female union \| Tube OD: Ø10 mm \| Thread: Rc3/8 female
	E2E12-02	Type: Bulkhead female union \| Tube OD: Ø12 mm \| Thread: Rc1/4 female
	E2E12-03	Type: Bulkhead female union \| Tube OD: Ø12 mm \| Thread: Rc3/8 female
	E2E12-04	Type: Bulkhead female union \| Tube OD: Ø12 mm \| Thread: Rc1/2 female
	E2E16-03	Type: Bulkhead female union \| Tube OD: Ø16 mm \| Thread: Rc3/8 female
	E2E16-04	Type: Bulkhead female union \| Tube OD: Ø16 mm \| Thread: Rc1/2 female
	E2L04-M5	Type: Male elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2L04-01S	Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2L04-02S	Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2L04-03S	Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
	E2L04-04S	Type: Male elbow \| Tube OD: Ø4 mm \| Thread: R1/2 male, sealant
	E2L06-M5	Type: Male elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2L06-01S	Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2L06-02S	Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2L06-03S	Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2L06-04S	Type: Male elbow \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
	E2L08-M5	Type: Male elbow \| Tube OD: Ø8 mm \| Thread: M5x0.8 male
	E2L08-01S	Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2L08-02S	Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2L08-03S	Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2L08-04S	Type: Male elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2L10-01S	Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2L10-02S	Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2L10-03S	Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2L10-04S	Type: Male elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2L12-01S	Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
	E2L12-02S	Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2L12-03S	Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2L12-04S	Type: Male elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2L16-02S	Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
	E2L16-03S	Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2L16-04S	Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2L16-06S	Type: Male elbow \| Tube OD: Ø16 mm \| Thread: R3/4 male, sealant
	E2W04-M5	Type: Long elbow union \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2W04-01S	Type: Long elbow union \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2W04-02S	Type: Long elbow union \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2W06-M5	Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2W06-01S	Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2W06-02S	Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2W06-03S	Type: Long elbow union \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2W08-01S	Type: Long elbow union \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2W08-02S	Type: Long elbow union \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2W08-03S	Type: Long elbow union \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2W10-01S	Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2W10-02S	Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2W10-03S	Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2W10-04S	Type: Long elbow union \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2W12-01S	Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
	E2W12-02S	Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2W12-03S	Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2W12-04S	Type: Long elbow union \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2W16-03S	Type: Long elbow union \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2W16-04S	Type: Long elbow union \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2LF04-M5	Type: Female elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 female
	E2LF04-M6	Type: Female elbow \| Tube OD: Ø4 mm \| Thread: M6x1.0 female
	E2LF04-01	Type: Female elbow \| Tube OD: Ø4 mm \| Thread: Rc1/8 female
	E2LF04-02	Type: Female elbow \| Tube OD: Ø4 mm \| Thread: Rc1/4 female
	E2LF06-M5	Type: Female elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 female
	E2LF06-M6	Type: Female elbow \| Tube OD: Ø6 mm \| Thread: M6x1.0 female
	E2LF06-01	Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc1/8 female
	E2LF06-02	Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc1/4 female
	E2LF06-03	Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc3/8 female
	E2LF06-04	Type: Female elbow \| Tube OD: Ø6 mm \| Thread: Rc1/2 female
	E2LF08-01	Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc1/8 female
	E2LF08-02	Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc1/4 female
	E2LF08-03	Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc3/8 female
	E2LF08-04	Type: Female elbow \| Tube OD: Ø8 mm \| Thread: Rc1/2 female
	E2LF10-01	Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc1/8 female
	E2LF10-02	Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc1/4 female
	E2LF10-03	Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc3/8 female
	E2LF10-04	Type: Female elbow \| Tube OD: Ø10 mm \| Thread: Rc1/2 female
	E2LF12-01	Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc1/8 female
	E2LF12-02	Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc1/4 female
	E2LF12-03	Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc3/8 female
	E2LF12-04	Type: Female elbow \| Tube OD: Ø12 mm \| Thread: Rc1/2 female
	E2V04-M3	Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
	E2V04-M5	Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2V04-01S	Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2V04-02S	Type: Universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2V06-M3	Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
	E2V06-M5	Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2V06-01S	Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2V06-02S	Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2V06-03S	Type: Universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2V08-01S	Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2V08-02S	Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2V08-03S	Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2V08-04S	Type: Universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2V10-01S	Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2V10-02S	Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2V10-03S	Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2V10-04S	Type: Universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2V12-01S	Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
	E2V12-02S	Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2V12-03S	Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2V12-04S	Type: Universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2Z04-M5	Type: Branch universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2Z04-01S	Type: Branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2Z04-02S	Type: Branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2Z06-M5	Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2Z06-01S	Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2Z06-02S	Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2Z06-03S	Type: Branch universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2Z08-01S	Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2Z08-02S	Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2Z08-03S	Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2Z08-04S	Type: Branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2Z10-01S	Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2Z10-02S	Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2Z10-03S	Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2Z10-04S	Type: Branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2Z12-01S	Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/8 male, sealant
	E2Z12-02S	Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2Z12-03S	Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2Z12-04S	Type: Branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2LU04-M5	Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2LU04-M6	Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
	E2LU04-01S	Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2LU04-02S	Type: Branch elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2LU06-M5	Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2LU06-M6	Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
	E2LU06-01S	Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2LU06-02S	Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2LU06-03S	Type: Branch elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2LU08-01S	Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2LU08-02S	Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2LU08-03S	Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2LU08-04S	Type: Branch elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2LU10-01S	Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2LU10-02S	Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2LU10-03S	Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2LU10-04S	Type: Branch elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2LU12-02S	Type: Branch elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2LU12-03S	Type: Branch elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2LU12-04S	Type: Branch elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2D04-M5	Type: Delta union \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2D04-M6	Type: Delta union \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
	E2D04-01S	Type: Delta union \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2D04-02S	Type: Delta union \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2D06-M5	Type: Delta union \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2D06-M6	Type: Delta union \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
	E2D06-01S	Type: Delta union \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2D06-02S	Type: Delta union \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2D06-03S	Type: Delta union \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2D08-01S	Type: Delta union \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2D08-02S	Type: Delta union \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2D08-03S	Type: Delta union \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2D08-04S	Type: Delta union \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2D10-01S	Type: Delta union \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2D10-02S	Type: Delta union \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2D10-03S	Type: Delta union \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2D10-04S	Type: Delta union \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2D12-02S	Type: Delta union \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2D12-03S	Type: Delta union \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2D12-04S	Type: Delta union \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2U04-M5	Type: Branch Y \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2U04-M6	Type: Branch Y \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
	E2U04-01S	Type: Branch Y \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2U04-02S	Type: Branch Y \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2U06-M5	Type: Branch Y \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2U06-M6	Type: Branch Y \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
	E2U06-01S	Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2U06-02S	Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2U06-03S	Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2U06-04S	Type: Branch Y \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
	E2U08-01S	Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2U08-02S	Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2U08-03S	Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2U08-04S	Type: Branch Y \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2U10-01S	Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2U10-02S	Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2U10-03S	Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2U10-04S	Type: Branch Y \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2U12-02S	Type: Branch Y \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2U12-03S	Type: Branch Y \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2U12-04S	Type: Branch Y \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2U16-02S	Type: Branch Y \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
	E2U16-03S	Type: Branch Y \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2U16-04S	Type: Branch Y \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2T04-M5	Type: Run tee \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2T04-M6	Type: Run tee \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
	E2T04-01S	Type: Run tee \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2T04-02S	Type: Run tee \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2T06-M5	Type: Run tee \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2T06-M6	Type: Run tee \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
	E2T06-01S	Type: Run tee \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2T06-02S	Type: Run tee \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2T06-03S	Type: Run tee \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2T06-04S	Type: Run tee \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
	E2T08-01S	Type: Run tee \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2T08-02S	Type: Run tee \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2T08-03S	Type: Run tee \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2T08-04S	Type: Run tee \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2T10-01S	Type: Run tee \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2T10-02S	Type: Run tee \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2T10-03S	Type: Run tee \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2T10-04S	Type: Run tee \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2T12-02S	Type: Run tee \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2T12-03S	Type: Run tee \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2T12-04S	Type: Run tee \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2T16-02S	Type: Run tee \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
	E2T16-03S	Type: Run tee \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2T16-04S	Type: Run tee \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2Y04-M5	Type: Service tee \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2Y04-M6	Type: Service tee \| Tube OD: Ø4 mm \| Thread: M6x1.0 male
	E2Y04-01S	Type: Service tee \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2Y04-02S	Type: Service tee \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2Y06-M5	Type: Service tee \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2Y06-M6	Type: Service tee \| Tube OD: Ø6 mm \| Thread: M6x1.0 male
	E2Y06-01S	Type: Service tee \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2Y06-02S	Type: Service tee \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2Y06-03S	Type: Service tee \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2Y06-04S	Type: Service tee \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
	E2Y08-01S	Type: Service tee \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2Y08-02S	Type: Service tee \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2Y08-03S	Type: Service tee \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2Y08-04S	Type: Service tee \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2Y10-01S	Type: Service tee \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2Y10-02S	Type: Service tee \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2Y10-03S	Type: Service tee \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2Y10-04S	Type: Service tee \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2Y12-02S	Type: Service tee \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2Y12-03S	Type: Service tee \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2Y12-04S	Type: Service tee \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2Y16-02S	Type: Service tee \| Tube OD: Ø16 mm \| Thread: R1/4 male, sealant
	E2Y16-03S	Type: Service tee \| Tube OD: Ø16 mm \| Thread: R3/8 male, sealant
	E2Y16-04S	Type: Service tee \| Tube OD: Ø16 mm \| Thread: R1/2 male, sealant
	E2UD04-M5	Type: Double branch \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2UD04-01S	Type: Double branch \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2UD04-02S	Type: Double branch \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2UD04-03S	Type: Double branch \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
	E2UD06-01S	Type: Double branch \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2UD06-02S	Type: Double branch \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2UD06-03S	Type: Double branch \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2UD06-04S	Type: Double branch \| Tube OD: Ø6 mm \| Thread: R1/2 male, sealant
	E2UD08-01S	Type: Double branch \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2UD08-02S	Type: Double branch \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2UD08-03S	Type: Double branch \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2UD08-04S	Type: Double branch \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2UD10-01S	Type: Double branch \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2UD10-02S	Type: Double branch \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2UD10-03S	Type: Double branch \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2UD10-04S	Type: Double branch \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2VF04-M3	Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
	E2VF04-M5	Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2VF04-01S	Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2VF04-02S	Type: Universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2VF06-M3	Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
	E2VF06-M5	Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2VF06-01S	Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2VF06-02S	Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2VF06-03S	Type: Universal female elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2VF08-01S	Type: Universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2VF08-02S	Type: Universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2VF08-03S	Type: Universal female elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2VF10-02S	Type: Universal female elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2VF10-03S	Type: Universal female elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2VF12-02S	Type: Universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2VF12-03S	Type: Universal female elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2VF12-04S	Type: Universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2ZF04-M3	Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
	E2ZF04-M5	Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2ZF04-01S	Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2ZF04-02S	Type: Branch universal female elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2ZF06-M3	Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
	E2ZF06-M5	Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2ZF06-01S	Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2ZF06-02S	Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2ZF06-03S	Type: Branch universal female elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2ZF08-01S	Type: Branch universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2ZF08-02S	Type: Branch universal female elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2ZF08-03S	Type: Branch universal female elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2ZF10-02S	Type: Branch universal female elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2ZF10-03S	Type: Branch universal female elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2ZF12-02S	Type: Branch universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2ZF12-03S	Type: Branch universal female elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2ZF12-04S	Type: Branch universal female elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2VS04-M3	Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
	E2VS04-M5	Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2VS04-01S	Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2VS04-02S	Type: Hex-socket universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2VS06-M3	Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
	E2VS06-M5	Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2VS06-01S	Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2VS06-02S	Type: Hex-socket universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2VS08-01S	Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2VS08-02S	Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2VS08-03S	Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2VS08-04S	Type: Hex-socket universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2VS10-01S	Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2VS10-02S	Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2VS10-03S	Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2VS10-04S	Type: Hex-socket universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2VS12-02S	Type: Hex-socket universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2VS12-03S	Type: Hex-socket universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2VS12-04S	Type: Hex-socket universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2ZS04-M3	Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: M3x0.5 male
	E2ZS04-M5	Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2ZS04-01S	Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2ZS04-02S	Type: Hex-socket branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2ZS06-M3	Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: M3x0.5 male
	E2ZS06-M5	Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2ZS06-01S	Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2ZS06-02S	Type: Hex-socket branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2ZS08-01S	Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2ZS08-02S	Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2ZS08-03S	Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2ZS08-04S	Type: Hex-socket branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2ZS10-01S	Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/8 male, sealant
	E2ZS10-02S	Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2ZS10-03S	Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2ZS10-04S	Type: Hex-socket branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2ZS12-02S	Type: Hex-socket branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2ZS12-03S	Type: Hex-socket branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2ZS12-04S	Type: Hex-socket branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2VD04-M5	Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2VD04-01S	Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2VD04-02S	Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2VD04-03S	Type: Double universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
	E2VD06-M5	Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2VD06-01S	Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2VD06-02S	Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2VD06-03S	Type: Double universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2VD08-01S	Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2VD08-02S	Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2VD08-03S	Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2VD08-04S	Type: Double universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2VD10-02S	Type: Double universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2VD10-03S	Type: Double universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2VD10-04S	Type: Double universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2VD12-02S	Type: Double universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2VD12-03S	Type: Double universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2VD12-04S	Type: Double universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2VT04-01S	Type: Triple universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2VT04-02S	Type: Triple universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2VT04-03S	Type: Triple universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
	E2VT06-01S	Type: Triple universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2VT06-02S	Type: Triple universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2VT06-03S	Type: Triple universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2VT08-01S	Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2VT08-02S	Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2VT08-03S	Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2VT08-04S	Type: Triple universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2VT10-02S	Type: Triple universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2VT10-03S	Type: Triple universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2VT10-04S	Type: Triple universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2VT12-02S	Type: Triple universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2VT12-03S	Type: Triple universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2VT12-04S	Type: Triple universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2ZD04-M5	Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: M5x0.8 male
	E2ZD04-01S	Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2ZD04-02S	Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2ZD04-03S	Type: Double branch universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
	E2ZD06-M5	Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: M5x0.8 male
	E2ZD06-01S	Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2ZD06-02S	Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2ZD06-03S	Type: Double branch universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2ZD08-01S	Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2ZD08-02S	Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2ZD08-03S	Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2ZD08-04S	Type: Double branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2ZD10-02S	Type: Double branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2ZD10-03S	Type: Double branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2ZD10-04S	Type: Double branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2ZD12-02S	Type: Double branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2ZD12-03S	Type: Double branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2ZD12-04S	Type: Double branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant
	E2ZT04-01S	Type: Triple branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/8 male, sealant
	E2ZT04-02S	Type: Triple branch universal elbow \| Tube OD: Ø4 mm \| Thread: R1/4 male, sealant
	E2ZT04-03S	Type: Triple branch universal elbow \| Tube OD: Ø4 mm \| Thread: R3/8 male, sealant
	E2ZT06-01S	Type: Triple branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/8 male, sealant
	E2ZT06-02S	Type: Triple branch universal elbow \| Tube OD: Ø6 mm \| Thread: R1/4 male, sealant
	E2ZT06-03S	Type: Triple branch universal elbow \| Tube OD: Ø6 mm \| Thread: R3/8 male, sealant
	E2ZT08-01S	Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/8 male, sealant
	E2ZT08-02S	Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/4 male, sealant
	E2ZT08-03S	Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R3/8 male, sealant
	E2ZT08-04S	Type: Triple branch universal elbow \| Tube OD: Ø8 mm \| Thread: R1/2 male, sealant
	E2ZT10-02S	Type: Triple branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/4 male, sealant
	E2ZT10-03S	Type: Triple branch universal elbow \| Tube OD: Ø10 mm \| Thread: R3/8 male, sealant
	E2ZT10-04S	Type: Triple branch universal elbow \| Tube OD: Ø10 mm \| Thread: R1/2 male, sealant
	E2ZT12-02S	Type: Triple branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/4 male, sealant
	E2ZT12-03S	Type: Triple branch universal elbow \| Tube OD: Ø12 mm \| Thread: R3/8 male, sealant
	E2ZT12-04S	Type: Triple branch universal elbow \| Tube OD: Ø12 mm \| Thread: R1/2 male, sealant

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

KCC E2 One-Touch Fitting, Threaded Types (Male/Female)
