KCC E2 One-Touch Fitting, Tube-to-Tube and Plug-In Types

KCC E2 One-Touch Fitting, Tube-to-Tube and Plug-In Types

KCC E2 series one-touch push-to-connect union, reducing, plug-in, bulkhead, cap and plug fittings for Ø4 to Ø16 tube.

Key features

  • Union straight, elbow, tee, Y, cross and delta styles for equal tube sizes (-00)
  • Reducing styles connect two tube sizes; plug-in types (-99 or stem size) insert into a one-touch port
  • Bulkhead union and bulkhead elbow for panel mounting
  • Tube caps (E2C) and plugs (E2P) for blanking ports
  • Single-push connection and release, compact PBT body

Specifications

Fluid Air, water
Operating pressure -100 kPa to 1 MPa
Proof pressure 1.5 MPa (23°C)
Ambient and fluid temperature -5 to 60°C (water 0 to 40°C, no freezing)
Applicable tube Polyurethane, nylon
Body material PBT
Release ring / clip Aluminum or zinc alloy / STS303
Seal NBR packing and O-ring
Source KCC catalog e2.pdf, p. 3-23 (PDF pages)

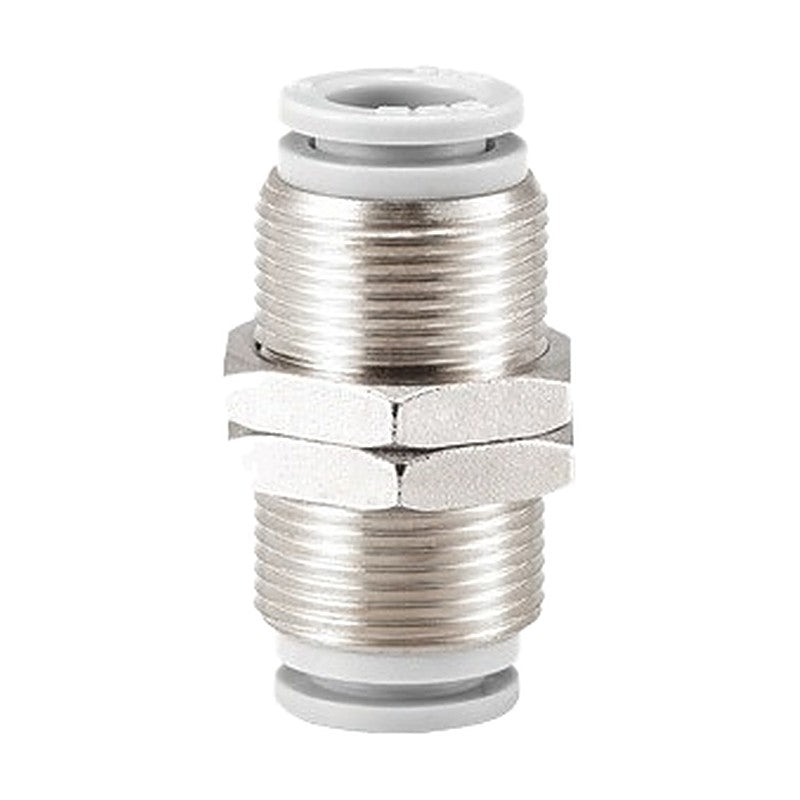

E2E04-00 Type: Bulkhead union | Tube OD: Ø4 mm | Second end: Same tube OD
E2E06-00 Type: Bulkhead union | Tube OD: Ø6 mm | Second end: Same tube OD
E2E08-00 Type: Bulkhead union | Tube OD: Ø8 mm | Second end: Same tube OD
E2E10-00 Type: Bulkhead union | Tube OD: Ø10 mm | Second end: Same tube OD
E2E12-00 Type: Bulkhead union | Tube OD: Ø12 mm | Second end: Same tube OD
E2E16-00 Type: Bulkhead union | Tube OD: Ø16 mm | Second end: Same tube OD
E2LE04-00 Type: Bulkhead union elbow | Tube OD: Ø4 mm | Second end: Same tube OD
E2LE06-00 Type: Bulkhead union elbow | Tube OD: Ø6 mm | Second end: Same tube OD
E2LE08-00 Type: Bulkhead union elbow | Tube OD: Ø8 mm | Second end: Same tube OD
E2LE10-00 Type: Bulkhead union elbow | Tube OD: Ø10 mm | Second end: Same tube OD
E2LE12-00 Type: Bulkhead union elbow | Tube OD: Ø12 mm | Second end: Same tube OD
E2LE16-00 Type: Bulkhead union elbow | Tube OD: Ø16 mm | Second end: Same tube OD
E2LE06-04 Type: Bulkhead union elbow | Tube OD: Ø6 mm | Second end: Ø4 mm
E2LE08-06 Type: Bulkhead union elbow | Tube OD: Ø8 mm | Second end: Ø6 mm
E2L04-06 Type: Plug-in reducing elbow | Tube OD: Ø4 mm | Second end: Ø6 mm
E2L04-08 Type: Plug-in reducing elbow | Tube OD: Ø4 mm | Second end: Ø8 mm
E2L06-08 Type: Plug-in reducing elbow | Tube OD: Ø6 mm | Second end: Ø8 mm
E2L06-10 Type: Plug-in reducing elbow | Tube OD: Ø6 mm | Second end: Ø10 mm
E2L08-10 Type: Plug-in reducing elbow | Tube OD: Ø8 mm | Second end: Ø10 mm
E2L08-12 Type: Plug-in reducing elbow | Tube OD: Ø8 mm | Second end: Ø12 mm
E2L10-12 Type: Plug-in reducing elbow | Tube OD: Ø10 mm | Second end: Ø12 mm
E2L12-16 Type: Plug-in reducing elbow | Tube OD: Ø12 mm | Second end: Ø16 mm
E2L04-99 Type: Plug-in elbow | Tube OD: Ø4 mm | Second end: Plug-in stem, same OD
E2L06-99 Type: Plug-in elbow | Tube OD: Ø6 mm | Second end: Plug-in stem, same OD
E2L08-99 Type: Plug-in elbow | Tube OD: Ø8 mm | Second end: Plug-in stem, same OD
E2L10-99 Type: Plug-in elbow | Tube OD: Ø10 mm | Second end: Plug-in stem, same OD
E2L12-99 Type: Plug-in elbow | Tube OD: Ø12 mm | Second end: Plug-in stem, same OD
E2XD04-06 Type: Double branch union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2XD04-08 Type: Double branch union Y | Tube OD: Ø4 mm | Second end: Ø8 mm
E2XD06-08 Type: Double branch union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2XD06-10 Type: Double branch union Y | Tube OD: Ø6 mm | Second end: Ø10 mm
E2XD08-10 Type: Double branch union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2XD08-12 Type: Double branch union Y | Tube OD: Ø8 mm | Second end: Ø12 mm
E2XD10-12 Type: Double branch union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2U04-99 Type: Branch union Y (plug-in) | Tube OD: Ø4 mm | Second end: Plug-in stem, same OD
E2U06-99 Type: Branch union Y (plug-in) | Tube OD: Ø6 mm | Second end: Plug-in stem, same OD
E2U08-99 Type: Branch union Y (plug-in) | Tube OD: Ø8 mm | Second end: Plug-in stem, same OD
E2U10-99 Type: Branch union Y (plug-in) | Tube OD: Ø10 mm | Second end: Plug-in stem, same OD
E2U12-99 Type: Branch union Y (plug-in) | Tube OD: Ø12 mm | Second end: Plug-in stem, same OD
E2U16-99 Type: Branch union Y (plug-in) | Tube OD: Ø16 mm | Second end: Plug-in stem, same OD
E2X04-06 Type: Reducing branch union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2X06-08 Type: Reducing branch union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2X08-10 Type: Reducing branch union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2X10-12 Type: Reducing branch union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2X12-16 Type: Reducing branch union Y | Tube OD: Ø12 mm | Second end: Ø16 mm
E2H04-00 Type: Union straight | Tube OD: Ø4 mm | Second end: Same tube OD
E2H06-00 Type: Union straight | Tube OD: Ø6 mm | Second end: Same tube OD
E2H08-00 Type: Union straight | Tube OD: Ø8 mm | Second end: Same tube OD
E2H10-00 Type: Union straight | Tube OD: Ø10 mm | Second end: Same tube OD
E2H12-00 Type: Union straight | Tube OD: Ø12 mm | Second end: Same tube OD
E2H16-00 Type: Union straight | Tube OD: Ø16 mm | Second end: Same tube OD
E2H04-06 Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø6 mm
E2H04-08 Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø8 mm
E2H04-10 Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø10 mm
E2H04-12 Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø12 mm
E2H06-08 Type: Reducing straight | Tube OD: Ø6 mm | Second end: Ø8 mm
E2H06-10 Type: Reducing straight | Tube OD: Ø6 mm | Second end: Ø10 mm
E2H06-12 Type: Reducing straight | Tube OD: Ø6 mm | Second end: Ø12 mm
E2H08-10 Type: Reducing straight | Tube OD: Ø8 mm | Second end: Ø10 mm
E2H08-12 Type: Reducing straight | Tube OD: Ø8 mm | Second end: Ø12 mm
E2H10-12 Type: Reducing straight | Tube OD: Ø10 mm | Second end: Ø12 mm
E2H10-16 Type: Reducing straight | Tube OD: Ø10 mm | Second end: Ø16 mm
E2H12-16 Type: Reducing straight | Tube OD: Ø12 mm | Second end: Ø16 mm
E2L04-00 Type: Union elbow | Tube OD: Ø4 mm | Second end: Same tube OD
E2L06-00 Type: Union elbow | Tube OD: Ø6 mm | Second end: Same tube OD
E2L08-00 Type: Union elbow | Tube OD: Ø8 mm | Second end: Same tube OD
E2L10-00 Type: Union elbow | Tube OD: Ø10 mm | Second end: Same tube OD
E2L12-00 Type: Union elbow | Tube OD: Ø12 mm | Second end: Same tube OD
E2L16-00 Type: Union elbow | Tube OD: Ø16 mm | Second end: Same tube OD
E2L06-04 Type: Reducing union elbow | Tube OD: Ø6 mm | Second end: Ø4 mm
E2L08-04 Type: Reducing union elbow | Tube OD: Ø8 mm | Second end: Ø4 mm
E2L08-06 Type: Reducing union elbow | Tube OD: Ø8 mm | Second end: Ø6 mm
E2L10-06 Type: Reducing union elbow | Tube OD: Ø10 mm | Second end: Ø6 mm
E2L10-08 Type: Reducing union elbow | Tube OD: Ø10 mm | Second end: Ø8 mm
E2L12-08 Type: Reducing union elbow | Tube OD: Ø12 mm | Second end: Ø8 mm
E2L12-10 Type: Reducing union elbow | Tube OD: Ø12 mm | Second end: Ø10 mm
E2U04-00 Type: Union Y | Tube OD: Ø4 mm | Second end: Same tube OD
E2U06-00 Type: Union Y | Tube OD: Ø6 mm | Second end: Same tube OD
E2U08-00 Type: Union Y | Tube OD: Ø8 mm | Second end: Same tube OD
E2U10-00 Type: Union Y | Tube OD: Ø10 mm | Second end: Same tube OD
E2U12-00 Type: Union Y | Tube OD: Ø12 mm | Second end: Same tube OD
E2U16-00 Type: Union Y | Tube OD: Ø16 mm | Second end: Same tube OD
E2U04-06 Type: Reducing union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2U04-08 Type: Reducing union Y | Tube OD: Ø4 mm | Second end: Ø8 mm
E2U06-08 Type: Reducing union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2U06-10 Type: Reducing union Y | Tube OD: Ø6 mm | Second end: Ø10 mm
E2U06-12 Type: Reducing union Y | Tube OD: Ø6 mm | Second end: Ø12 mm
E2U08-06 Type: Reducing union Y | Tube OD: Ø8 mm | Second end: Ø6 mm
E2U08-10 Type: Reducing union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2U08-12 Type: Reducing union Y | Tube OD: Ø8 mm | Second end: Ø12 mm
E2U10-12 Type: Reducing union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2T04-00 Type: Union tee | Tube OD: Ø4 mm | Second end: Same tube OD
E2T06-00 Type: Union tee | Tube OD: Ø6 mm | Second end: Same tube OD
E2T08-00 Type: Union tee | Tube OD: Ø8 mm | Second end: Same tube OD
E2T10-00 Type: Union tee | Tube OD: Ø10 mm | Second end: Same tube OD
E2T12-00 Type: Union tee | Tube OD: Ø12 mm | Second end: Same tube OD
E2T16-00 Type: Union tee | Tube OD: Ø16 mm | Second end: Same tube OD
E2T04-06 Type: Reducing tee | Tube OD: Ø4 mm | Second end: Ø6 mm
E2T04-08 Type: Reducing tee | Tube OD: Ø4 mm | Second end: Ø8 mm
E2T06-04 Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø4 mm
E2T06-08 Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø8 mm
E2T06-10 Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø10 mm
E2T06-12 Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø12 mm
E2T08-04 Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø4 mm
E2T08-06 Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø6 mm
E2T08-10 Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø10 mm
E2T08-12 Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø12 mm
E2T10-06 Type: Reducing tee | Tube OD: Ø10 mm | Second end: Ø6 mm
E2T10-08 Type: Reducing tee | Tube OD: Ø10 mm | Second end: Ø8 mm
E2T10-12 Type: Reducing tee | Tube OD: Ø10 mm | Second end: Ø12 mm
E2T12-06 Type: Reducing tee | Tube OD: Ø12 mm | Second end: Ø6 mm
E2T12-08 Type: Reducing tee | Tube OD: Ø12 mm | Second end: Ø8 mm
E2T12-10 Type: Reducing tee | Tube OD: Ø12 mm | Second end: Ø10 mm
E2T16-10 Type: Reducing tee | Tube OD: Ø16 mm | Second end: Ø10 mm
E2T16-12 Type: Reducing tee | Tube OD: Ø16 mm | Second end: Ø12 mm
E2LU04-00 Type: Branch union elbow | Tube OD: Ø4 mm | Second end: Same tube OD
E2LU06-00 Type: Branch union elbow | Tube OD: Ø6 mm | Second end: Same tube OD
E2LU08-00 Type: Branch union elbow | Tube OD: Ø8 mm | Second end: Same tube OD
E2LU10-00 Type: Branch union elbow | Tube OD: Ø10 mm | Second end: Same tube OD
E2LU12-00 Type: Branch union elbow | Tube OD: Ø12 mm | Second end: Same tube OD
E2D04-00 Type: Delta union | Tube OD: Ø4 mm | Second end: Same tube OD
E2D06-00 Type: Delta union | Tube OD: Ø6 mm | Second end: Same tube OD
E2D08-00 Type: Delta union | Tube OD: Ø8 mm | Second end: Same tube OD
E2D10-00 Type: Delta union | Tube OD: Ø10 mm | Second end: Same tube OD
E2D12-00 Type: Delta union | Tube OD: Ø12 mm | Second end: Same tube OD
E2UD04-00 Type: Double union Y | Tube OD: Ø4 mm | Second end: Same tube OD
E2UD06-00 Type: Double union Y | Tube OD: Ø6 mm | Second end: Same tube OD
E2UD08-00 Type: Double union Y | Tube OD: Ø8 mm | Second end: Same tube OD
E2UD10-00 Type: Double union Y | Tube OD: Ø10 mm | Second end: Same tube OD
E2UD04-06 Type: Reducing double union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2UD04-08 Type: Reducing double union Y | Tube OD: Ø4 mm | Second end: Ø8 mm
E2UD06-08 Type: Reducing double union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2UD06-10 Type: Reducing double union Y | Tube OD: Ø6 mm | Second end: Ø10 mm
E2UD06-12 Type: Reducing double union Y | Tube OD: Ø6 mm | Second end: Ø12 mm
E2UD08-10 Type: Reducing double union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2UD08-12 Type: Reducing double union Y | Tube OD: Ø8 mm | Second end: Ø12 mm
E2UD10-12 Type: Reducing double union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2TW04-00 Type: Union cross | Tube OD: Ø4 mm | Second end: Same tube OD
E2TW06-00 Type: Union cross | Tube OD: Ø6 mm | Second end: Same tube OD
E2TW08-00 Type: Union cross | Tube OD: Ø8 mm | Second end: Same tube OD
E2TW10-00 Type: Union cross | Tube OD: Ø10 mm | Second end: Same tube OD
E2TW12-00 Type: Union cross | Tube OD: Ø12 mm | Second end: Same tube OD
E2TY04-06 Type: Reducing cross | Tube OD: Ø4 mm | Second end: Ø6 mm
E2TY04-08 Type: Reducing cross | Tube OD: Ø4 mm | Second end: Ø8 mm
E2TY06-04 Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø4 mm
E2TY06-08 Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø8 mm
E2TY06-10 Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø10 mm
E2TY08-04 Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø4 mm
E2TY08-06 Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø6 mm
E2TY08-10 Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø10 mm
E2TY08-12 Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø12 mm
E2TY10-06 Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø6 mm
E2TY10-08 Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø8 mm
E2TY10-12 Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø12 mm
E2TY12-08 Type: Reducing cross | Tube OD: Ø12 mm | Second end: Ø8 mm
E2TY12-10 Type: Reducing cross | Tube OD: Ø12 mm | Second end: Ø10 mm
E2TX04-06 Type: Reducing cross | Tube OD: Ø4 mm | Second end: Ø6 mm
E2TX06-08 Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø8 mm
E2TX08-10 Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø10 mm
E2TX10-12 Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø12 mm
E2R04-06 Type: Reducer | Tube OD: Ø4 mm | Second end: Ø6 mm
E2R04-08 Type: Reducer | Tube OD: Ø4 mm | Second end: Ø8 mm
E2R06-04 Type: Reducer | Tube OD: Ø6 mm | Second end: Ø4 mm
E2R06-08 Type: Reducer | Tube OD: Ø6 mm | Second end: Ø8 mm
E2R06-10 Type: Reducer | Tube OD: Ø6 mm | Second end: Ø10 mm
E2R08-06 Type: Reducer | Tube OD: Ø8 mm | Second end: Ø6 mm
E2R08-10 Type: Reducer | Tube OD: Ø8 mm | Second end: Ø10 mm
E2R08-12 Type: Reducer | Tube OD: Ø8 mm | Second end: Ø12 mm
E2R10-08 Type: Reducer | Tube OD: Ø10 mm | Second end: Ø8 mm
E2R10-12 Type: Reducer | Tube OD: Ø10 mm | Second end: Ø12 mm
E2R10-16 Type: Reducer | Tube OD: Ø10 mm | Second end: Ø16 mm
E2R12-10 Type: Reducer | Tube OD: Ø12 mm | Second end: Ø10 mm
E2R12-16 Type: Reducer | Tube OD: Ø12 mm | Second end: Ø16 mm
E2C04-00 Type: Tube cap | Tube OD: Ø4 mm | Second end: Closed (cap)
E2C06-00 Type: Tube cap | Tube OD: Ø6 mm | Second end: Closed (cap)
E2C08-00 Type: Tube cap | Tube OD: Ø8 mm | Second end: Closed (cap)
E2C10-00 Type: Tube cap | Tube OD: Ø10 mm | Second end: Closed (cap)
E2C12-00 Type: Tube cap | Tube OD: Ø12 mm | Second end: Closed (cap)
E2C16-00 Type: Tube cap | Tube OD: Ø16 mm | Second end: Closed (cap)
E2P-04 Type: Plug | Tube OD: Ø4 mm | Second end: Plug-in stem
E2P-06 Type: Plug | Tube OD: Ø6 mm | Second end: Plug-in stem
E2P-08 Type: Plug | Tube OD: Ø8 mm | Second end: Plug-in stem
E2P-10 Type: Plug | Tube OD: Ø10 mm | Second end: Plug-in stem
E2P-12 Type: Plug | Tube OD: Ø12 mm | Second end: Plug-in stem
E2P-16 Type: Plug | Tube OD: Ø16 mm | Second end: Plug-in stem
Push-to-Connect FittingsKCC
185 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC E2 One-Touch Fitting, Tube-to-Tube and Plug-In Types

Brand KCC·Push-to-Connect Fittings

Available part numbers (185)

E2E04-00, E2E06-00, E2E08-00, E2E10-00, E2E12-00, E2E16-00, E2LE04-00, E2LE06-00, E2LE08-00, E2LE10-00 + 175 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2E04-00Type: Bulkhead union | Tube OD: Ø4 mm | Second end: Same tube OD
E2E06-00Type: Bulkhead union | Tube OD: Ø6 mm | Second end: Same tube OD
E2E08-00Type: Bulkhead union | Tube OD: Ø8 mm | Second end: Same tube OD
E2E10-00Type: Bulkhead union | Tube OD: Ø10 mm | Second end: Same tube OD
E2E12-00Type: Bulkhead union | Tube OD: Ø12 mm | Second end: Same tube OD
E2E16-00Type: Bulkhead union | Tube OD: Ø16 mm | Second end: Same tube OD
E2LE04-00Type: Bulkhead union elbow | Tube OD: Ø4 mm | Second end: Same tube OD
E2LE06-00Type: Bulkhead union elbow | Tube OD: Ø6 mm | Second end: Same tube OD
E2LE08-00Type: Bulkhead union elbow | Tube OD: Ø8 mm | Second end: Same tube OD
E2LE10-00Type: Bulkhead union elbow | Tube OD: Ø10 mm | Second end: Same tube OD
E2LE12-00Type: Bulkhead union elbow | Tube OD: Ø12 mm | Second end: Same tube OD
E2LE16-00Type: Bulkhead union elbow | Tube OD: Ø16 mm | Second end: Same tube OD
E2LE06-04Type: Bulkhead union elbow | Tube OD: Ø6 mm | Second end: Ø4 mm
E2LE08-06Type: Bulkhead union elbow | Tube OD: Ø8 mm | Second end: Ø6 mm
E2L04-06Type: Plug-in reducing elbow | Tube OD: Ø4 mm | Second end: Ø6 mm
E2L04-08Type: Plug-in reducing elbow | Tube OD: Ø4 mm | Second end: Ø8 mm
E2L06-08Type: Plug-in reducing elbow | Tube OD: Ø6 mm | Second end: Ø8 mm
E2L06-10Type: Plug-in reducing elbow | Tube OD: Ø6 mm | Second end: Ø10 mm
E2L08-10Type: Plug-in reducing elbow | Tube OD: Ø8 mm | Second end: Ø10 mm
E2L08-12Type: Plug-in reducing elbow | Tube OD: Ø8 mm | Second end: Ø12 mm
E2L10-12Type: Plug-in reducing elbow | Tube OD: Ø10 mm | Second end: Ø12 mm
E2L12-16Type: Plug-in reducing elbow | Tube OD: Ø12 mm | Second end: Ø16 mm
E2L04-99Type: Plug-in elbow | Tube OD: Ø4 mm | Second end: Plug-in stem, same OD
E2L06-99Type: Plug-in elbow | Tube OD: Ø6 mm | Second end: Plug-in stem, same OD
E2L08-99Type: Plug-in elbow | Tube OD: Ø8 mm | Second end: Plug-in stem, same OD
E2L10-99Type: Plug-in elbow | Tube OD: Ø10 mm | Second end: Plug-in stem, same OD
E2L12-99Type: Plug-in elbow | Tube OD: Ø12 mm | Second end: Plug-in stem, same OD
E2XD04-06Type: Double branch union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2XD04-08Type: Double branch union Y | Tube OD: Ø4 mm | Second end: Ø8 mm
E2XD06-08Type: Double branch union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2XD06-10Type: Double branch union Y | Tube OD: Ø6 mm | Second end: Ø10 mm
E2XD08-10Type: Double branch union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2XD08-12Type: Double branch union Y | Tube OD: Ø8 mm | Second end: Ø12 mm
E2XD10-12Type: Double branch union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2U04-99Type: Branch union Y (plug-in) | Tube OD: Ø4 mm | Second end: Plug-in stem, same OD
E2U06-99Type: Branch union Y (plug-in) | Tube OD: Ø6 mm | Second end: Plug-in stem, same OD
E2U08-99Type: Branch union Y (plug-in) | Tube OD: Ø8 mm | Second end: Plug-in stem, same OD
E2U10-99Type: Branch union Y (plug-in) | Tube OD: Ø10 mm | Second end: Plug-in stem, same OD
E2U12-99Type: Branch union Y (plug-in) | Tube OD: Ø12 mm | Second end: Plug-in stem, same OD
E2U16-99Type: Branch union Y (plug-in) | Tube OD: Ø16 mm | Second end: Plug-in stem, same OD
E2X04-06Type: Reducing branch union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2X06-08Type: Reducing branch union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2X08-10Type: Reducing branch union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2X10-12Type: Reducing branch union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2X12-16Type: Reducing branch union Y | Tube OD: Ø12 mm | Second end: Ø16 mm
E2H04-00Type: Union straight | Tube OD: Ø4 mm | Second end: Same tube OD
E2H06-00Type: Union straight | Tube OD: Ø6 mm | Second end: Same tube OD
E2H08-00Type: Union straight | Tube OD: Ø8 mm | Second end: Same tube OD
E2H10-00Type: Union straight | Tube OD: Ø10 mm | Second end: Same tube OD
E2H12-00Type: Union straight | Tube OD: Ø12 mm | Second end: Same tube OD
E2H16-00Type: Union straight | Tube OD: Ø16 mm | Second end: Same tube OD
E2H04-06Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø6 mm
E2H04-08Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø8 mm
E2H04-10Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø10 mm
E2H04-12Type: Reducing straight | Tube OD: Ø4 mm | Second end: Ø12 mm
E2H06-08Type: Reducing straight | Tube OD: Ø6 mm | Second end: Ø8 mm
E2H06-10Type: Reducing straight | Tube OD: Ø6 mm | Second end: Ø10 mm
E2H06-12Type: Reducing straight | Tube OD: Ø6 mm | Second end: Ø12 mm
E2H08-10Type: Reducing straight | Tube OD: Ø8 mm | Second end: Ø10 mm
E2H08-12Type: Reducing straight | Tube OD: Ø8 mm | Second end: Ø12 mm
E2H10-12Type: Reducing straight | Tube OD: Ø10 mm | Second end: Ø12 mm
E2H10-16Type: Reducing straight | Tube OD: Ø10 mm | Second end: Ø16 mm
E2H12-16Type: Reducing straight | Tube OD: Ø12 mm | Second end: Ø16 mm
E2L04-00Type: Union elbow | Tube OD: Ø4 mm | Second end: Same tube OD
E2L06-00Type: Union elbow | Tube OD: Ø6 mm | Second end: Same tube OD
E2L08-00Type: Union elbow | Tube OD: Ø8 mm | Second end: Same tube OD
E2L10-00Type: Union elbow | Tube OD: Ø10 mm | Second end: Same tube OD
E2L12-00Type: Union elbow | Tube OD: Ø12 mm | Second end: Same tube OD
E2L16-00Type: Union elbow | Tube OD: Ø16 mm | Second end: Same tube OD
E2L06-04Type: Reducing union elbow | Tube OD: Ø6 mm | Second end: Ø4 mm
E2L08-04Type: Reducing union elbow | Tube OD: Ø8 mm | Second end: Ø4 mm
E2L08-06Type: Reducing union elbow | Tube OD: Ø8 mm | Second end: Ø6 mm
E2L10-06Type: Reducing union elbow | Tube OD: Ø10 mm | Second end: Ø6 mm
E2L10-08Type: Reducing union elbow | Tube OD: Ø10 mm | Second end: Ø8 mm
E2L12-08Type: Reducing union elbow | Tube OD: Ø12 mm | Second end: Ø8 mm
E2L12-10Type: Reducing union elbow | Tube OD: Ø12 mm | Second end: Ø10 mm
E2U04-00Type: Union Y | Tube OD: Ø4 mm | Second end: Same tube OD
E2U06-00Type: Union Y | Tube OD: Ø6 mm | Second end: Same tube OD
E2U08-00Type: Union Y | Tube OD: Ø8 mm | Second end: Same tube OD
E2U10-00Type: Union Y | Tube OD: Ø10 mm | Second end: Same tube OD
E2U12-00Type: Union Y | Tube OD: Ø12 mm | Second end: Same tube OD
E2U16-00Type: Union Y | Tube OD: Ø16 mm | Second end: Same tube OD
E2U04-06Type: Reducing union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2U04-08Type: Reducing union Y | Tube OD: Ø4 mm | Second end: Ø8 mm
E2U06-08Type: Reducing union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2U06-10Type: Reducing union Y | Tube OD: Ø6 mm | Second end: Ø10 mm
E2U06-12Type: Reducing union Y | Tube OD: Ø6 mm | Second end: Ø12 mm
E2U08-06Type: Reducing union Y | Tube OD: Ø8 mm | Second end: Ø6 mm
E2U08-10Type: Reducing union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2U08-12Type: Reducing union Y | Tube OD: Ø8 mm | Second end: Ø12 mm
E2U10-12Type: Reducing union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2T04-00Type: Union tee | Tube OD: Ø4 mm | Second end: Same tube OD
E2T06-00Type: Union tee | Tube OD: Ø6 mm | Second end: Same tube OD
E2T08-00Type: Union tee | Tube OD: Ø8 mm | Second end: Same tube OD
E2T10-00Type: Union tee | Tube OD: Ø10 mm | Second end: Same tube OD
E2T12-00Type: Union tee | Tube OD: Ø12 mm | Second end: Same tube OD
E2T16-00Type: Union tee | Tube OD: Ø16 mm | Second end: Same tube OD
E2T04-06Type: Reducing tee | Tube OD: Ø4 mm | Second end: Ø6 mm
E2T04-08Type: Reducing tee | Tube OD: Ø4 mm | Second end: Ø8 mm
E2T06-04Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø4 mm
E2T06-08Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø8 mm
E2T06-10Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø10 mm
E2T06-12Type: Reducing tee | Tube OD: Ø6 mm | Second end: Ø12 mm
E2T08-04Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø4 mm
E2T08-06Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø6 mm
E2T08-10Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø10 mm
E2T08-12Type: Reducing tee | Tube OD: Ø8 mm | Second end: Ø12 mm
E2T10-06Type: Reducing tee | Tube OD: Ø10 mm | Second end: Ø6 mm
E2T10-08Type: Reducing tee | Tube OD: Ø10 mm | Second end: Ø8 mm
E2T10-12Type: Reducing tee | Tube OD: Ø10 mm | Second end: Ø12 mm
E2T12-06Type: Reducing tee | Tube OD: Ø12 mm | Second end: Ø6 mm
E2T12-08Type: Reducing tee | Tube OD: Ø12 mm | Second end: Ø8 mm
E2T12-10Type: Reducing tee | Tube OD: Ø12 mm | Second end: Ø10 mm
E2T16-10Type: Reducing tee | Tube OD: Ø16 mm | Second end: Ø10 mm
E2T16-12Type: Reducing tee | Tube OD: Ø16 mm | Second end: Ø12 mm
E2LU04-00Type: Branch union elbow | Tube OD: Ø4 mm | Second end: Same tube OD
E2LU06-00Type: Branch union elbow | Tube OD: Ø6 mm | Second end: Same tube OD
E2LU08-00Type: Branch union elbow | Tube OD: Ø8 mm | Second end: Same tube OD
E2LU10-00Type: Branch union elbow | Tube OD: Ø10 mm | Second end: Same tube OD
E2LU12-00Type: Branch union elbow | Tube OD: Ø12 mm | Second end: Same tube OD
E2D04-00Type: Delta union | Tube OD: Ø4 mm | Second end: Same tube OD
E2D06-00Type: Delta union | Tube OD: Ø6 mm | Second end: Same tube OD
E2D08-00Type: Delta union | Tube OD: Ø8 mm | Second end: Same tube OD
E2D10-00Type: Delta union | Tube OD: Ø10 mm | Second end: Same tube OD
E2D12-00Type: Delta union | Tube OD: Ø12 mm | Second end: Same tube OD
E2UD04-00Type: Double union Y | Tube OD: Ø4 mm | Second end: Same tube OD
E2UD06-00Type: Double union Y | Tube OD: Ø6 mm | Second end: Same tube OD
E2UD08-00Type: Double union Y | Tube OD: Ø8 mm | Second end: Same tube OD
E2UD10-00Type: Double union Y | Tube OD: Ø10 mm | Second end: Same tube OD
E2UD04-06Type: Reducing double union Y | Tube OD: Ø4 mm | Second end: Ø6 mm
E2UD04-08Type: Reducing double union Y | Tube OD: Ø4 mm | Second end: Ø8 mm
E2UD06-08Type: Reducing double union Y | Tube OD: Ø6 mm | Second end: Ø8 mm
E2UD06-10Type: Reducing double union Y | Tube OD: Ø6 mm | Second end: Ø10 mm
E2UD06-12Type: Reducing double union Y | Tube OD: Ø6 mm | Second end: Ø12 mm
E2UD08-10Type: Reducing double union Y | Tube OD: Ø8 mm | Second end: Ø10 mm
E2UD08-12Type: Reducing double union Y | Tube OD: Ø8 mm | Second end: Ø12 mm
E2UD10-12Type: Reducing double union Y | Tube OD: Ø10 mm | Second end: Ø12 mm
E2TW04-00Type: Union cross | Tube OD: Ø4 mm | Second end: Same tube OD
E2TW06-00Type: Union cross | Tube OD: Ø6 mm | Second end: Same tube OD
E2TW08-00Type: Union cross | Tube OD: Ø8 mm | Second end: Same tube OD
E2TW10-00Type: Union cross | Tube OD: Ø10 mm | Second end: Same tube OD
E2TW12-00Type: Union cross | Tube OD: Ø12 mm | Second end: Same tube OD
E2TY04-06Type: Reducing cross | Tube OD: Ø4 mm | Second end: Ø6 mm
E2TY04-08Type: Reducing cross | Tube OD: Ø4 mm | Second end: Ø8 mm
E2TY06-04Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø4 mm
E2TY06-08Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø8 mm
E2TY06-10Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø10 mm
E2TY08-04Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø4 mm
E2TY08-06Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø6 mm
E2TY08-10Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø10 mm
E2TY08-12Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø12 mm
E2TY10-06Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø6 mm
E2TY10-08Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø8 mm
E2TY10-12Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø12 mm
E2TY12-08Type: Reducing cross | Tube OD: Ø12 mm | Second end: Ø8 mm
E2TY12-10Type: Reducing cross | Tube OD: Ø12 mm | Second end: Ø10 mm
E2TX04-06Type: Reducing cross | Tube OD: Ø4 mm | Second end: Ø6 mm
E2TX06-08Type: Reducing cross | Tube OD: Ø6 mm | Second end: Ø8 mm
E2TX08-10Type: Reducing cross | Tube OD: Ø8 mm | Second end: Ø10 mm
E2TX10-12Type: Reducing cross | Tube OD: Ø10 mm | Second end: Ø12 mm
E2R04-06Type: Reducer | Tube OD: Ø4 mm | Second end: Ø6 mm
E2R04-08Type: Reducer | Tube OD: Ø4 mm | Second end: Ø8 mm
E2R06-04Type: Reducer | Tube OD: Ø6 mm | Second end: Ø4 mm
E2R06-08Type: Reducer | Tube OD: Ø6 mm | Second end: Ø8 mm
E2R06-10Type: Reducer | Tube OD: Ø6 mm | Second end: Ø10 mm
E2R08-06Type: Reducer | Tube OD: Ø8 mm | Second end: Ø6 mm
E2R08-10Type: Reducer | Tube OD: Ø8 mm | Second end: Ø10 mm
E2R08-12Type: Reducer | Tube OD: Ø8 mm | Second end: Ø12 mm
E2R10-08Type: Reducer | Tube OD: Ø10 mm | Second end: Ø8 mm
E2R10-12Type: Reducer | Tube OD: Ø10 mm | Second end: Ø12 mm
E2R10-16Type: Reducer | Tube OD: Ø10 mm | Second end: Ø16 mm
E2R12-10Type: Reducer | Tube OD: Ø12 mm | Second end: Ø10 mm
E2R12-16Type: Reducer | Tube OD: Ø12 mm | Second end: Ø16 mm
E2C04-00Type: Tube cap | Tube OD: Ø4 mm | Second end: Closed (cap)
E2C06-00Type: Tube cap | Tube OD: Ø6 mm | Second end: Closed (cap)
E2C08-00Type: Tube cap | Tube OD: Ø8 mm | Second end: Closed (cap)
E2C10-00Type: Tube cap | Tube OD: Ø10 mm | Second end: Closed (cap)
E2C12-00Type: Tube cap | Tube OD: Ø12 mm | Second end: Closed (cap)
E2C16-00Type: Tube cap | Tube OD: Ø16 mm | Second end: Closed (cap)
E2P-04Type: Plug | Tube OD: Ø4 mm | Second end: Plug-in stem
E2P-06Type: Plug | Tube OD: Ø6 mm | Second end: Plug-in stem
E2P-08Type: Plug | Tube OD: Ø8 mm | Second end: Plug-in stem
E2P-10Type: Plug | Tube OD: Ø10 mm | Second end: Plug-in stem
E2P-12Type: Plug | Tube OD: Ø12 mm | Second end: Plug-in stem
E2P-16Type: Plug | Tube OD: Ø16 mm | Second end: Plug-in stem

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
