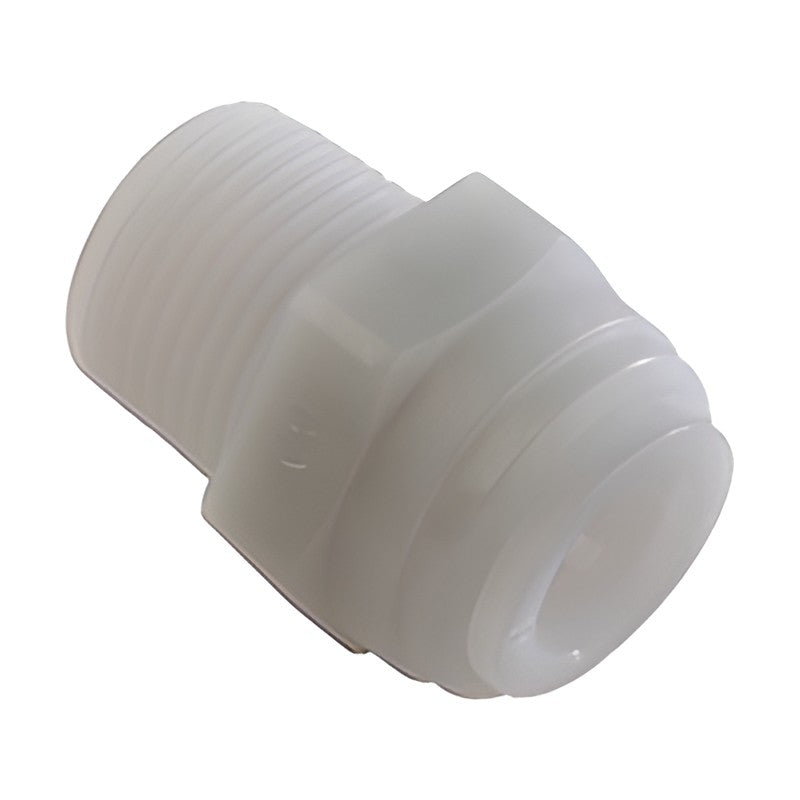

KCC HE Water One-Touch Fitting (Food and Beverage)

KCC HE Water One-Touch Fitting (Food and Beverage)

KCC HE series one-touch push-in fittings for water and beverage lines, made from FDA-approved materials (NSF 51/61 basis).

Key features

  • Push-in connection for water and beverage piping (water purifiers, bidets, refrigerators, dispensers)
  • Collet-and-O-ring sealing gives high resistance to leakage
  • FDA-approved materials, built on NSF 51 and 61 approvals
  • Styles: HEC male connector, HEL male elbow, HEUC union, HEUL union elbow, HEUT union tee
  • Tube OD Ø4 to Ø12; PE, PA and PU tubing

Specifications

Fluid Water, beverages
Tube type PE, PA, PU
Working pressure Ø4-Ø8 16 bar (1-25°C), 10 bar (70°C)
Working pressure Ø10-Ø12 10 bar (1-25°C), 7 bar (70°C)
Temperature range 1 to 70°C
Thread R (BSPT) male
Source KCC catalog HE.pdf, p. 1-6 (PDF pages)
HEC0601 Type: Male connector | Tube OD: Ø6 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEC0602 Type: Male connector | Tube OD: Ø6 mm | Other end: R1/4 (BSPT) | Box qty: 100
HEC0801 Type: Male connector | Tube OD: Ø8 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEC0802 Type: Male connector | Tube OD: Ø8 mm | Other end: R1/4 (BSPT) | Box qty: 50
HEC1003 Type: Male connector | Tube OD: Ø10 mm | Other end: R3/8 (BSPT) | Box qty: 50
HEC1004 Type: Male connector | Tube OD: Ø10 mm | Other end: R1/2 (BSPT) | Box qty: 50
HEC1203 Type: Male connector | Tube OD: Ø12 mm | Other end: R3/8 (BSPT) | Box qty: 50
HEC1204 Type: Male connector | Tube OD: Ø12 mm | Other end: R1/2 (BSPT) | Box qty: 50
HEL0401 Type: Male elbow | Tube OD: Ø4 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEL0601 Type: Male elbow | Tube OD: Ø6 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEL0602 Type: Male elbow | Tube OD: Ø6 mm | Other end: R1/4 (BSPT) | Box qty: 50
HEL0802 Type: Male elbow | Tube OD: Ø8 mm | Other end: R1/4 (BSPT) | Box qty: 50
HEL1003 Type: Male elbow | Tube OD: Ø10 mm | Other end: R3/8 (BSPT) | Box qty: 50
HEL1204 Type: Male elbow | Tube OD: Ø12 mm | Other end: R1/2 (BSPT) | Box qty: 25
HEUC0404 Type: Union straight | Tube OD: Ø4 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUC0604 Type: Union straight | Tube OD: Ø6 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUC0606 Type: Union straight | Tube OD: Ø6 mm | Other end: Tube Ø6 mm | Box qty: 100
HEUC0806 Type: Union straight | Tube OD: Ø8 mm | Other end: Tube Ø6 mm | Box qty: 50
HEUC0808 Type: Union straight | Tube OD: Ø8 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUC1008 Type: Union straight | Tube OD: Ø10 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUC1010 Type: Union straight | Tube OD: Ø10 mm | Other end: Tube Ø10 mm | Box qty: 50
HEUC1210 Type: Union straight | Tube OD: Ø12 mm | Other end: Tube Ø10 mm | Box qty: 25
HEUC1212 Type: Union straight | Tube OD: Ø12 mm | Other end: Tube Ø12 mm | Box qty: 25
HEUL0404 Type: Union elbow | Tube OD: Ø4 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUL0606 Type: Union elbow | Tube OD: Ø6 mm | Other end: Tube Ø6 mm | Box qty: 100
HEUL0806 Type: Union elbow | Tube OD: Ø8 mm | Other end: Tube Ø6 mm | Box qty: 50
HEUL0808 Type: Union elbow | Tube OD: Ø8 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUL1010 Type: Union elbow | Tube OD: Ø10 mm | Other end: Tube Ø10 mm | Box qty: 50
HEUL1212 Type: Union elbow | Tube OD: Ø12 mm | Other end: Tube Ø12 mm | Box qty: 25
HEUT0404 Type: Union tee | Tube OD: Ø4 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUT0606 Type: Union tee | Tube OD: Ø6 mm | Other end: Tube Ø6 mm | Box qty: 50
HEUT0808 Type: Union tee | Tube OD: Ø8 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUT1010 Type: Union tee | Tube OD: Ø10 mm | Other end: Tube Ø10 mm | Box qty: 25
HEUT1212 Type: Union tee | Tube OD: Ø12 mm | Other end: Tube Ø12 mm | Box qty: 20
Push-to-Connect FittingsKCC
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KCC HE Water One-Touch Fitting (Food and Beverage)

Brand KCC·Push-to-Connect Fittings

Available part numbers (34)

HEC0601, HEC0602, HEC0801, HEC0802, HEC1003, HEC1004, HEC1203, HEC1204, HEL0401, HEL0601 + 24 more — see full table ↓

How to order

Send the KCC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HEC0601Type: Male connector | Tube OD: Ø6 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEC0602Type: Male connector | Tube OD: Ø6 mm | Other end: R1/4 (BSPT) | Box qty: 100
HEC0801Type: Male connector | Tube OD: Ø8 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEC0802Type: Male connector | Tube OD: Ø8 mm | Other end: R1/4 (BSPT) | Box qty: 50
HEC1003Type: Male connector | Tube OD: Ø10 mm | Other end: R3/8 (BSPT) | Box qty: 50
HEC1004Type: Male connector | Tube OD: Ø10 mm | Other end: R1/2 (BSPT) | Box qty: 50
HEC1203Type: Male connector | Tube OD: Ø12 mm | Other end: R3/8 (BSPT) | Box qty: 50
HEC1204Type: Male connector | Tube OD: Ø12 mm | Other end: R1/2 (BSPT) | Box qty: 50
HEL0401Type: Male elbow | Tube OD: Ø4 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEL0601Type: Male elbow | Tube OD: Ø6 mm | Other end: R1/8 (BSPT) | Box qty: 100
HEL0602Type: Male elbow | Tube OD: Ø6 mm | Other end: R1/4 (BSPT) | Box qty: 50
HEL0802Type: Male elbow | Tube OD: Ø8 mm | Other end: R1/4 (BSPT) | Box qty: 50
HEL1003Type: Male elbow | Tube OD: Ø10 mm | Other end: R3/8 (BSPT) | Box qty: 50
HEL1204Type: Male elbow | Tube OD: Ø12 mm | Other end: R1/2 (BSPT) | Box qty: 25
HEUC0404Type: Union straight | Tube OD: Ø4 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUC0604Type: Union straight | Tube OD: Ø6 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUC0606Type: Union straight | Tube OD: Ø6 mm | Other end: Tube Ø6 mm | Box qty: 100
HEUC0806Type: Union straight | Tube OD: Ø8 mm | Other end: Tube Ø6 mm | Box qty: 50
HEUC0808Type: Union straight | Tube OD: Ø8 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUC1008Type: Union straight | Tube OD: Ø10 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUC1010Type: Union straight | Tube OD: Ø10 mm | Other end: Tube Ø10 mm | Box qty: 50
HEUC1210Type: Union straight | Tube OD: Ø12 mm | Other end: Tube Ø10 mm | Box qty: 25
HEUC1212Type: Union straight | Tube OD: Ø12 mm | Other end: Tube Ø12 mm | Box qty: 25
HEUL0404Type: Union elbow | Tube OD: Ø4 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUL0606Type: Union elbow | Tube OD: Ø6 mm | Other end: Tube Ø6 mm | Box qty: 100
HEUL0806Type: Union elbow | Tube OD: Ø8 mm | Other end: Tube Ø6 mm | Box qty: 50
HEUL0808Type: Union elbow | Tube OD: Ø8 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUL1010Type: Union elbow | Tube OD: Ø10 mm | Other end: Tube Ø10 mm | Box qty: 50
HEUL1212Type: Union elbow | Tube OD: Ø12 mm | Other end: Tube Ø12 mm | Box qty: 25
HEUT0404Type: Union tee | Tube OD: Ø4 mm | Other end: Tube Ø4 mm | Box qty: 100
HEUT0606Type: Union tee | Tube OD: Ø6 mm | Other end: Tube Ø6 mm | Box qty: 50
HEUT0808Type: Union tee | Tube OD: Ø8 mm | Other end: Tube Ø8 mm | Box qty: 50
HEUT1010Type: Union tee | Tube OD: Ø10 mm | Other end: Tube Ø10 mm | Box qty: 25
HEUT1212Type: Union tee | Tube OD: Ø12 mm | Other end: Tube Ø12 mm | Box qty: 20
